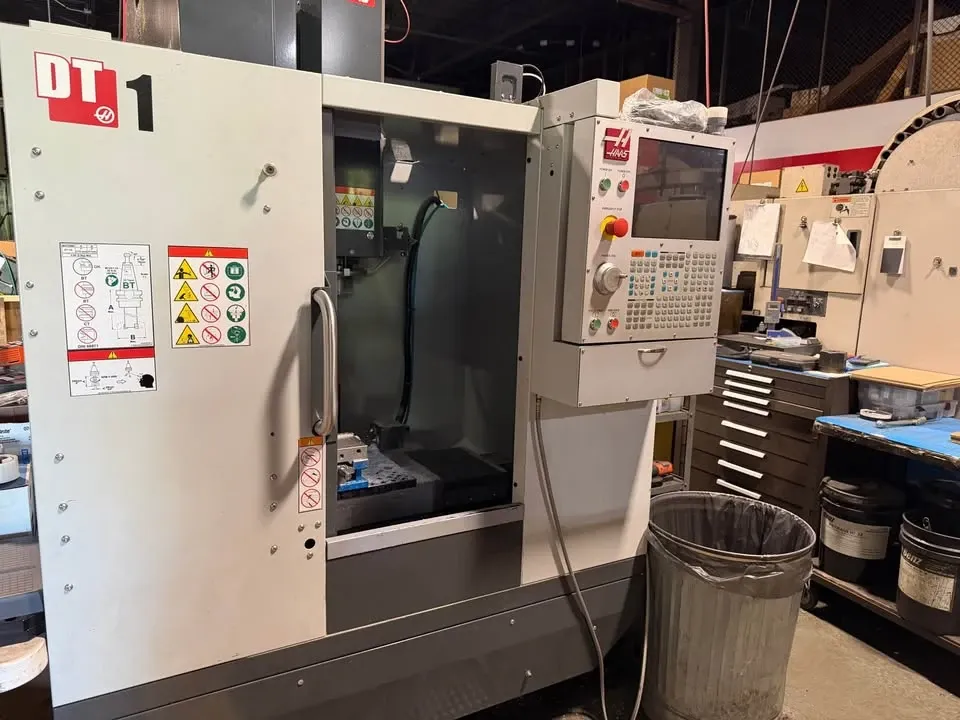

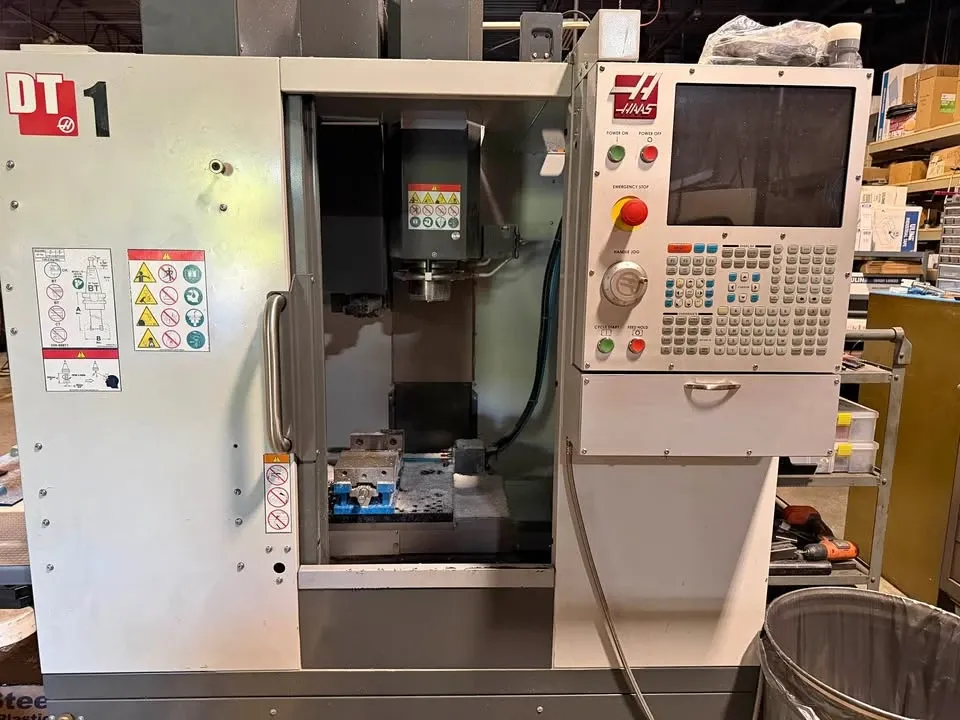

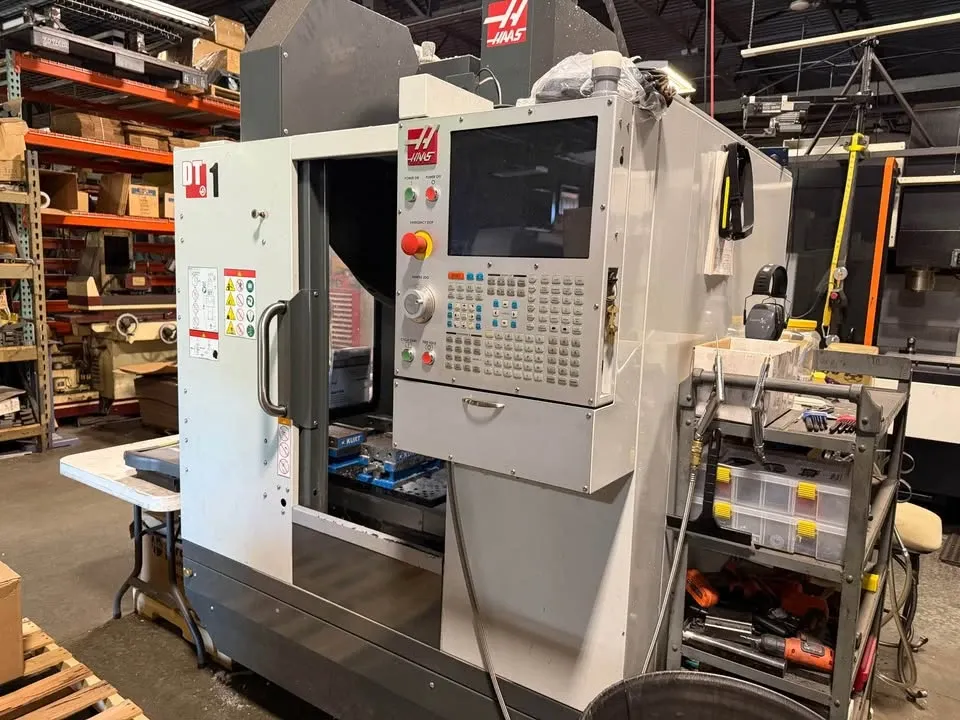

Haas #DT-1, CNC Vertical Machining Center, 20" X, 16" Y, 15.5" Z, 26" x 15" table, 15 HP, 10,000 RPM, 20 tool automatic tool changer, 2022

Used 2022 HAAS DT-1 Vertical Machining Center with 4th axis, ideal for precision work. Specs: X: 20", Y: 16", Z: 15", RPM: 10,000, Taper: BT30. Includes rotary table, 5-6 tool holders. Used only for plastics.
X Axis: 20.00 in
Y Axis: 16.00 in
Z Axis: 15.50 in
Spindle Nose to Table (~ max): 21.5 in
Spindle Nose to Table (~ min): 6.0 in
Max Rating: 15.0 hp
Max Speed: 10000 rpm
Max Torque: 46.0 ft-lbf @ 1700 rpm
Drive System: Inline Direct-Drive
Taper: BT30
Bearing Lubrication: Air / Oil Injection
Cooling: Air Cooled
Length: 26.0 in
Width: 15.0 in
T-Slot Width: 0.626 in to 0.630 in
T-Slot Center Distance: 4.92 in
Number of Std T-Slots: 3
Max Weight on Table-100% Rapids (evenly dist.): 250 lb
Max Weight on Table-50% Rapids (evenly dist.): 500 lb
Max Cutting: 1200 ipm
Rapids on X: 2400 ipm
Rapids on Y: 2400 ipm
Rapids on Z: 2400 ipm
Max Thrust X: 2550 lbf
Max Thrust Y: 2550 lbf
Max Thrust Z: 4200 lbf
Type: SMTC
Capacity: 20+1
Max Tool Diameter (full)**: 2.0 in
Max Tool Length (from gage line): 7.00 in
Max Tool Weight: 5.5 lb
Tool-to-Tool (avg): 1.75 s
Chip-to-Chip (avg): 2.00 s
Max Tapping Speed: 5000 rpm
Coolant Capacity: 55 gal
Air Required: 4 scfm @ 100 psi
Inline Air Hose: 3/8 in
Coupler (Air): 3/8 in
Air Pressure Min: 80 psi
Spindle Speed: 10000 rpm
Drive System: Inline Direct-Drive
Spindle Power: 15.0 hp
Input AC Voltage (3 Phase) - Low: 220 VAC
Full Load Amps (3 Phase) - Low: 40 A
Input AC Voltage (3 Phase) - High*: 440 VAC
Full Load Amps (3 Phase) - High*: 20 A
Domestic Pallet: 100.0 in x 80.0 in x 98.0 in
Export Pallet: 100.0 in x 80.0 in x 98.0 in
Weight: 5150 lb
