Description

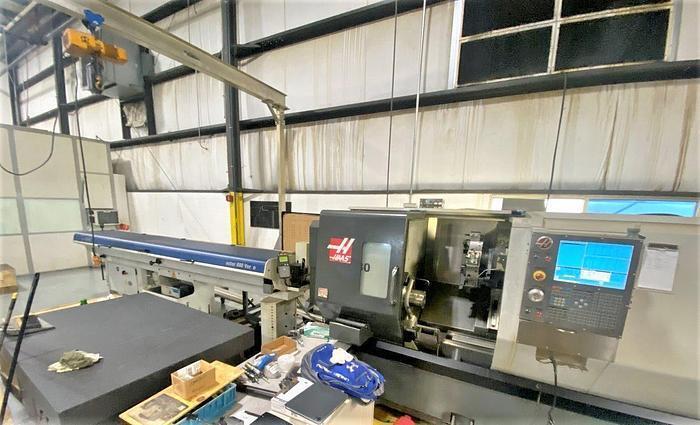

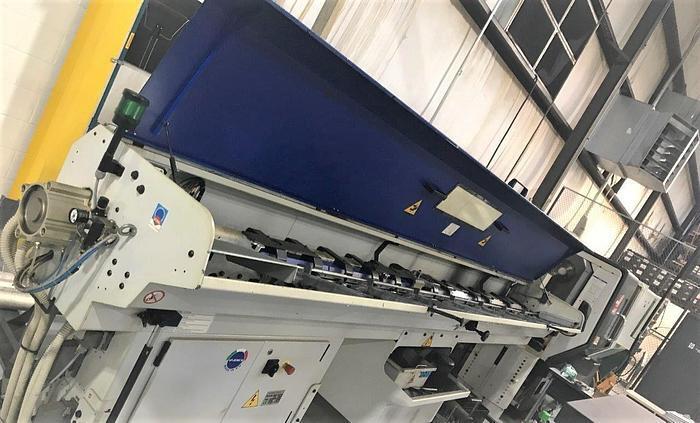

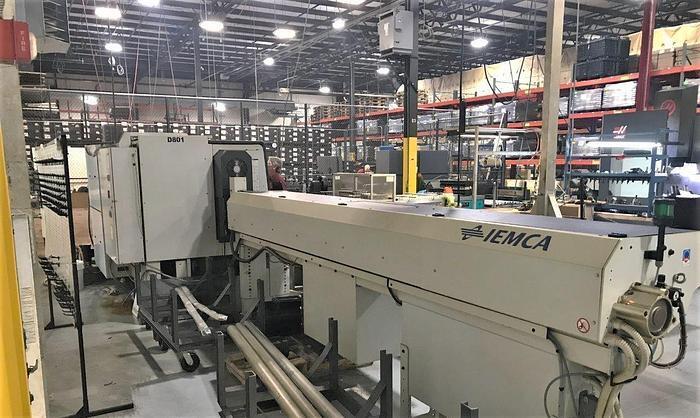

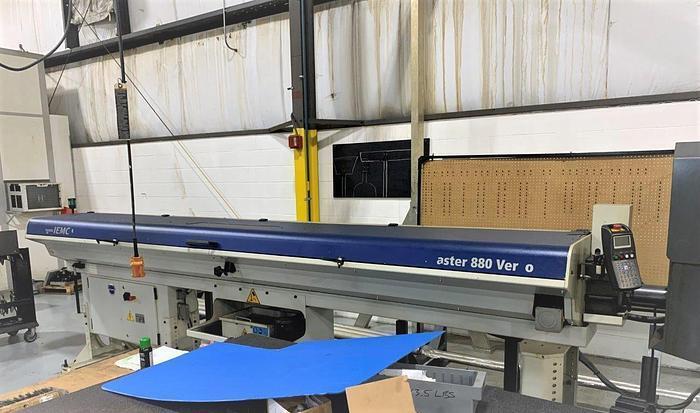

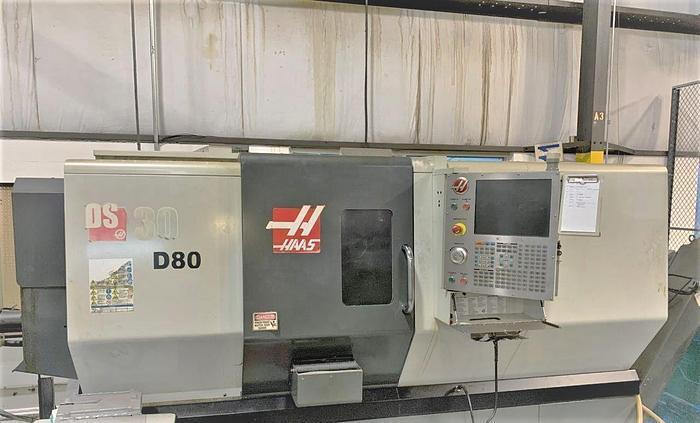

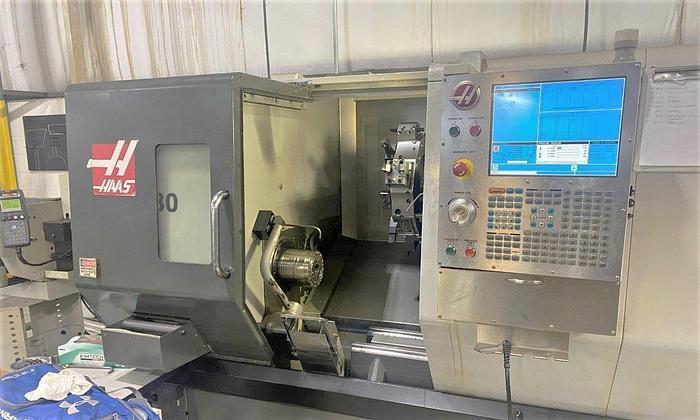

Used CNC Lathe, equipped with subspindle, C-axis rotation, live milling, 31.75" max swing, 16" cutting dia, and 4,000 RPM spindle speeds. Features chip conveyor, parts catcher, and Iemca barfeed. Includes high torque live tooling.
Chuck Sizes Main / Subspindle Collet Chucks on both spindles
Maximum Swing 31.75"
Maximum Swing Over Cross Slide 20.75"
Maximum Cutting Diameter 16"
Maximum Distance Between Spindles 23"
Maximum Bar Capacity 3.03"
X-axis travel 12.5"
Z-Axis Travel 23"
Spindle Nose / Spindle Bore A2-6" / 3.5"
Spindle Speeds 4,000 RPM
Spindle Motor 30 HP
Subspindle Nose / Subspindle Bore A2-5" / 2.44"
Subspindle Speed 4,000 RPM
Subspindle Motor 20 HP
Rotary Tool Speed / Rotary Motor 4,800 RPM / 5 HP

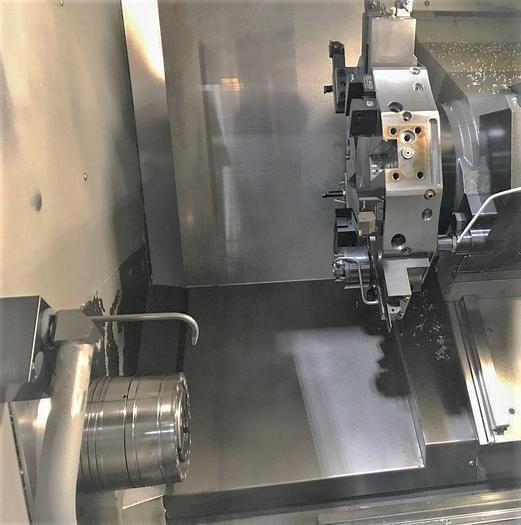

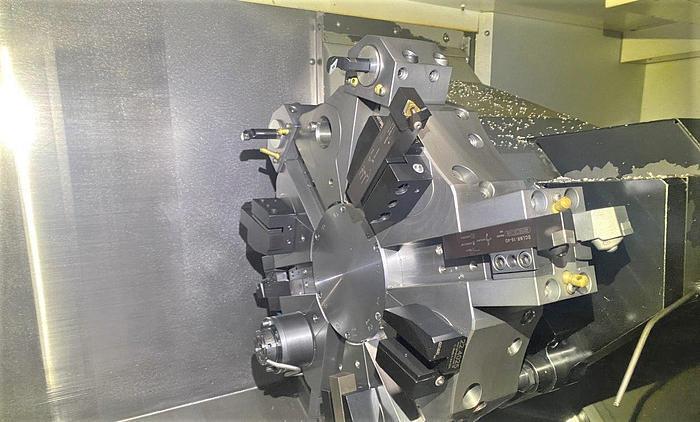

Number of Turret Positions 12 Station Turret - VDI/BOT
Rapid Traverse Rates X, Y / Z 472 IPM / 1200 IPM
Machine Weight 14,600 lbs.
Chuck Sizes Main / Subspindle Collet Chucks on both spindles
Maximum Swing 31.75"
Maximum Swing Over Cross Slide 20.75"
Maximum Cutting Diameter 16"
Maximum Distance Between Spindles 23"
Maximum Bar Capacity 3.03"
X-axis travel 12.5"
Z-Axis Travel 23"
Spindle Nose / Spindle Bore A2-6" / 3.5"
Spindle Speeds 4,000 RPM
Spindle Motor 30 HP
Subspindle Nose / Subspindle Bore A2-5" / 2.44"
Subspindle Speed 4,000 RPM
Subspindle Motor 20 HP
Rotary Tool Speed / Rotary Motor 4,800 RPM / 5 HP
Number of Turret Positions 12 Station Turret - VDI/BOT
Rapid Traverse Rates X, Y / Z 472 IPM / 1200 IPM
Machine Weight 14,600 lbs.
