Grove Gear Worm Gear Reducer SP1 HMQ213

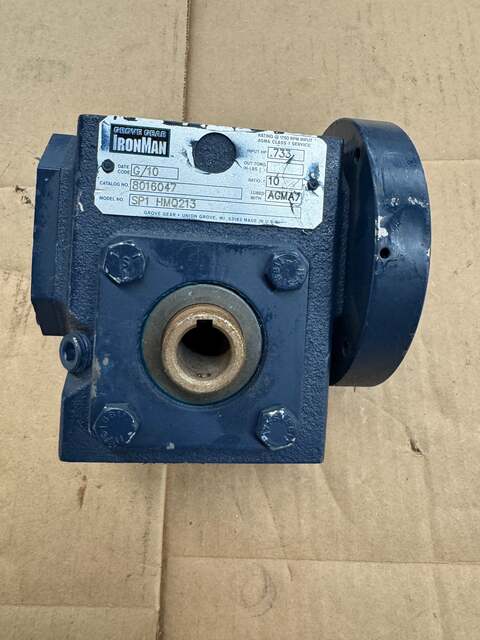

Used in conveyor systems, packaging lines, and general industrial drive applications, the Grove Gear IronMan SP1 HMQ213 is a right angle single reduction worm gear reducer with a 10:1 ratio, rated at 0.733 input HP at 1750 RPM input speed under AGMA Class 1 service conditions. The catalog number is 8016047. The HMQ designation indicates a hollow bore output with motorized C-face quill input, suitable for direct motor mounting. The unit is lubricated with AGMA 7 gear oil per the nameplate specification. Manufactured in Union Grove, Wisconsin, USA, this IronMan series reducer features a cast iron housing construction consistent with the Grove Gear 800 series platform, which is known for its one-piece housing, bronze worm gear, and tapered roller output shaft bearings. The date code G/10 is visible on the nameplate. Grove Gear IronMan reducers are a premium domestic product line and are widely used as direct replacements for industry-standard worm reducers across a broad range of right angle drive applications.

Stock # 0326-864
