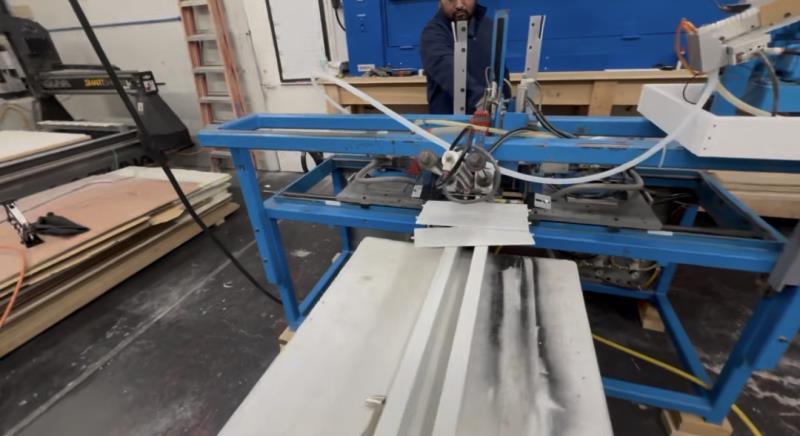

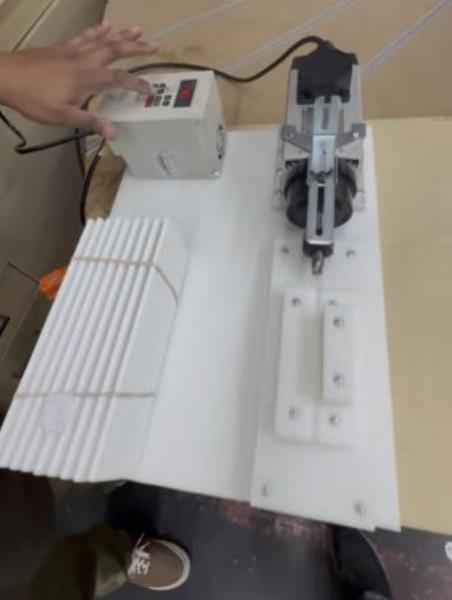

Giddings & Lewis Technologies #LPS-36, Louver Production Machine w/ Custom Jig, 2-1/2" to 4-1/2" louver width, 20 louvers/batch, 38" max length, 5/16"-1/2" thickness, 220 Volt, 2000

Estimated monthly payment valid upon approved credit.

Request Formal Quote

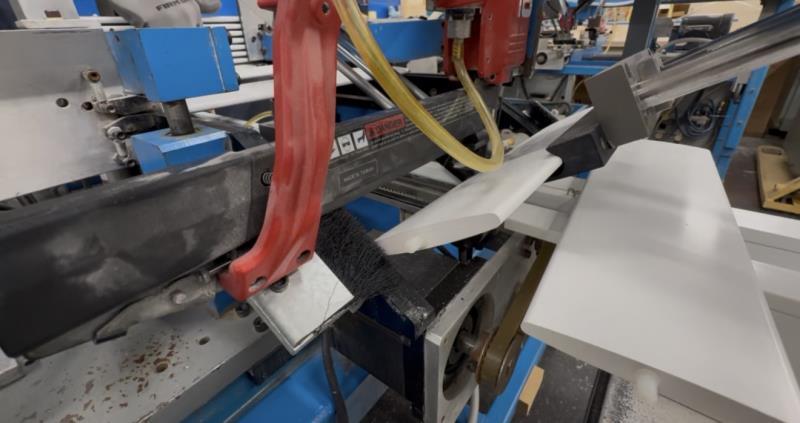

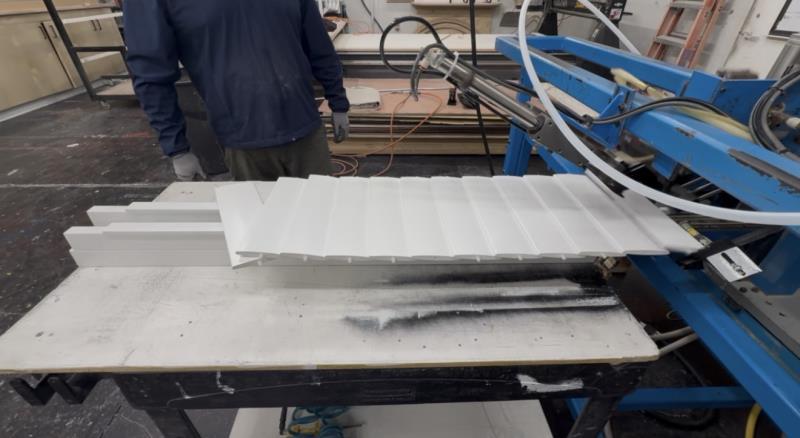

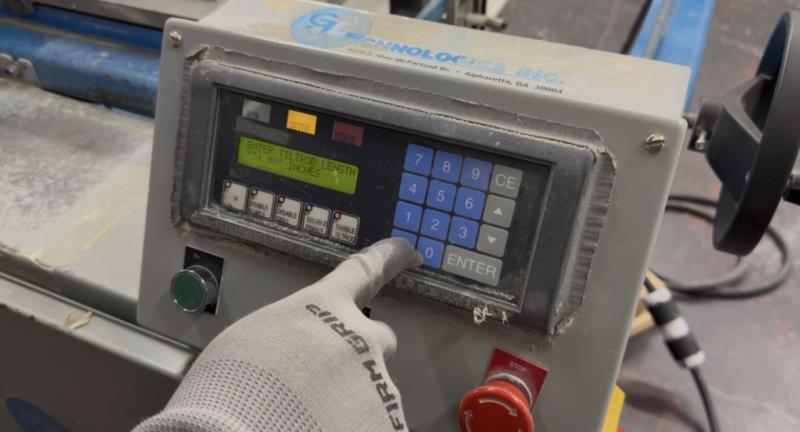

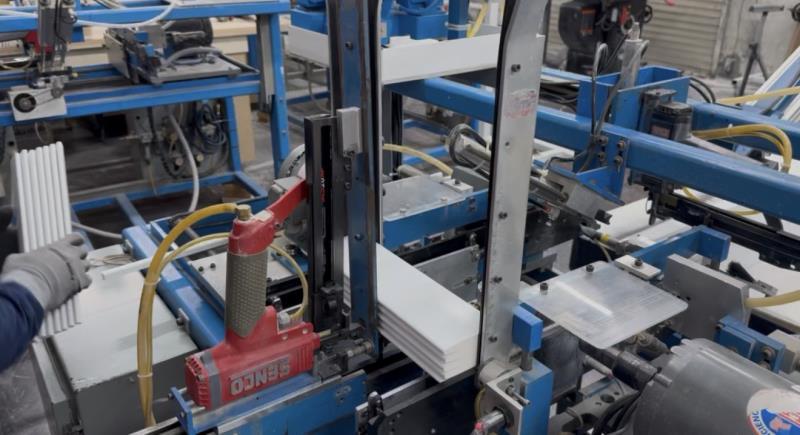

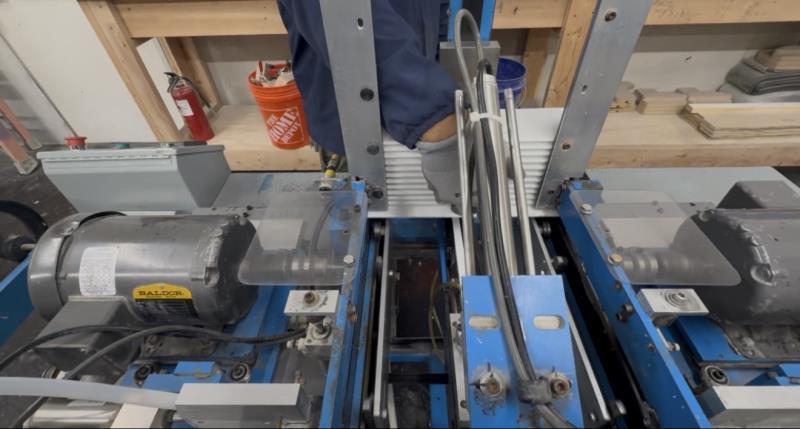

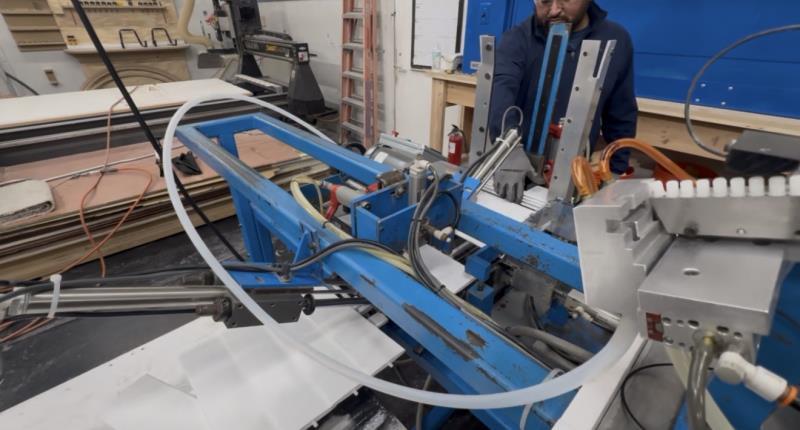

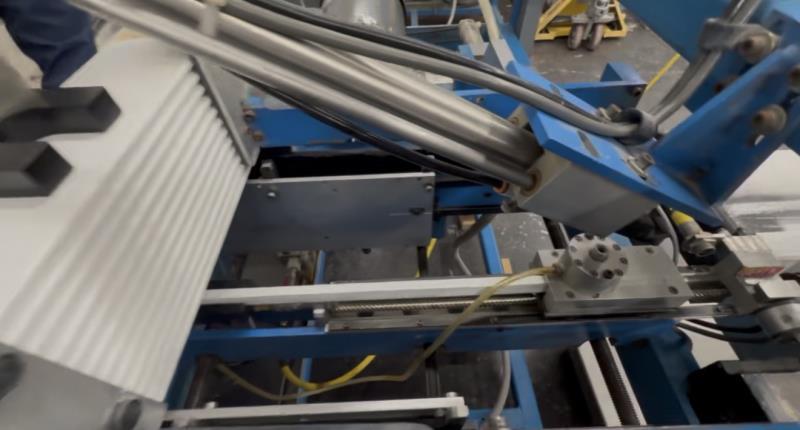

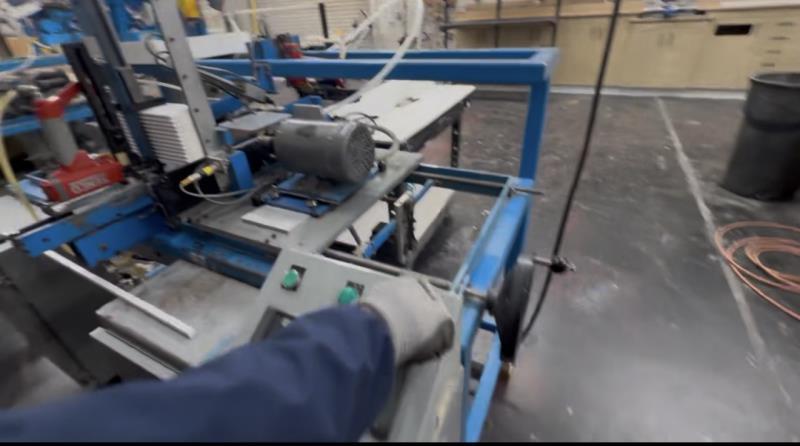

G & L TECHNOLOGIES LPS-36T SHUTTER PRODUCTION MACHINEAutomatic, hopper-fed continuous operation machine that automatically performs the process steps of louver end-sanding, drilling, pinning, and tilt-rod stapling in the production of wood & Polywood shutters. The system basically takes all the individual components (louver blade, tilt rod staples, pivot pins, and tilt rod itself) and produces a semi-finished louver without the stiles & rails.It handles louver widths from 2 1/2 to 4 1/2 inches, processes up to 20 louvers in a bundle at a time, and accommodates louver lengths from 6 inches minimum to 38 inches maximum. Estimated cycle time of approximately 3 seconds per louver. Specifications: ● Profile types: Flat or Tapered. ● Length cap.: 6" - 36". ● Width cap.: 1-1/2" - 5-1/2". ● Thickness cap: 5/16" - 1/2". ● Spindle speed: 3,600 RPM. ● Twin Head, w/FMC/Syntron. ● Working height: 36".Dimensions: 36" x 48" x 72" Weight: 1,600 Lbs.Features: ● PLC Control with keypad & LCD display for setup & function control, such as index speed, spacing, system staple, drill & pin sequencing, and parts feed. ● Air Requirements: 90 PSI Air at 15 SCFM min. ● Outfeed table which accepts tilt rod assemblies.Includes: ● Electrical belts have been replaced and are in excellent working condition. ● Sensors are functioning properly ● Staple guns have been replaced ● Bearings throughout the machine have been deep cleaned and maintained ● Mini/bar assembly that moves the louvers next to the super nut has also been cleaned and maintained ● Extra ball screws and actuators ● [3] Extra brand new super nuts ● Custom rear tilt clean view louver notching jig, designed to make precise corner notches on louvers for hidden tilt rod/clear view shutter applicationsNOTE: Machine in very good to excellent condition. A workhorse that is ready for production! The machine has been meticulously maintained and upgraded. NOTE: EX-FACTORY’s Logistic Department is experienced and setup to provide insured “Full Service Logistics"; right to your facility door
