Manufacturer: Mikron
Model: HSM-400-LP
Year: 2012
Longitudinal" X: 19.7
Cross" Y: 17.7
Vertical" Z: 14.2
RPM: 42000
Stock # 4764418
1 / 5
Click to zoom in
1 / 5
For Sale by Franke CNC, LLC
Surplus Record Dealer Since 2009
Location: Germantown, WI
Contact York Franke
Phone Number: 262...> Show Phone Number 262-302-3672
Let the seller know you found their listing on Surplus Record!
Description
SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS OF FRANKE CNC SALES CONTRACT, WE OFFER FOR YOUR CONSIDERATION:

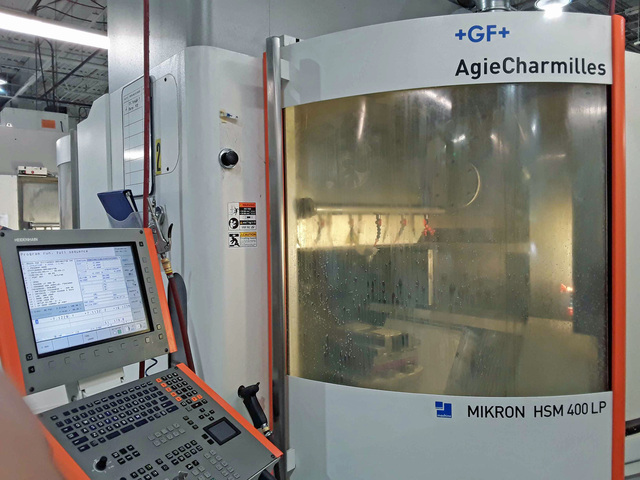

One used 2012 +GF+ MIKRON HSM 400 LP 3-Axis high speed VMC with pallet changer and tool tower:
Machine was manufactured at +GF+ in Nidau, Switzerland 8/2012
CONTROL
HEIDENHAIN iTNC 530 with 15.1" color TFT monitor, ethernet and electronic handwheel for part setup
WORKAREA
Longitudinal X.......................................... 500 mm (19.7")
Lateral Y............................................... 450 mm (17.7")
Vertical Z.............................................. 360 mm (14.2")
FEED AXES
Drive............... Linear direct drives (no ballscrews) in X,Y,Z axes
FEED RATE
Rapid traverse X,Y,Z......................... 60 m/min (2,362 inch/min)
WORKING SPINDLE
RPM.......................................... 42,000 rpm, HSK-E40 taper
Power.................................................. 13.5 kW (18 hp)
Torque.............................................. 8.8 Nm (6.5 ft/lb)

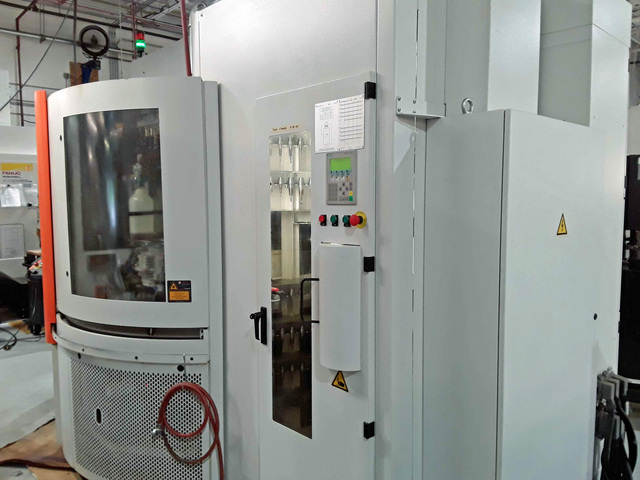

TOOL TOWER

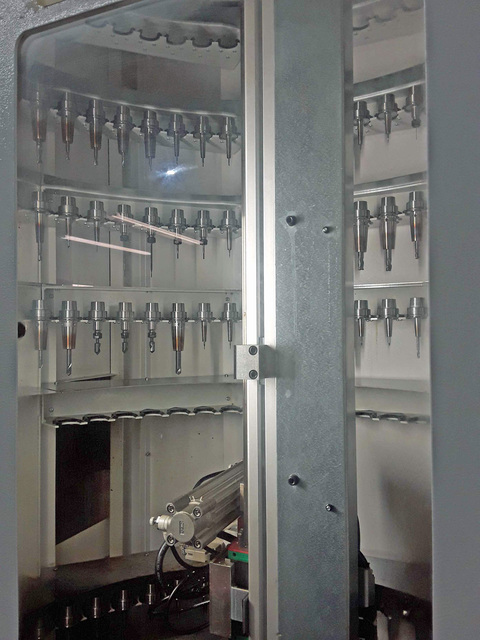

Automatic tool changer capacity.............................. 308 tools
AUTOMATION

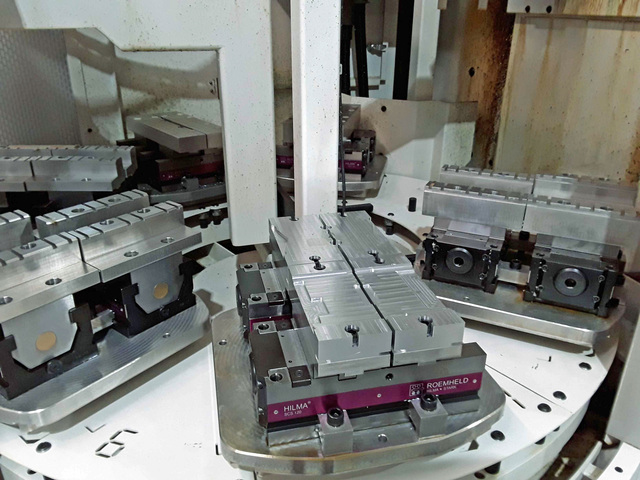

Pallet size Dynafix 280 mm x 280 mm (350 mm x 350 mm pallet size possible)
Number of pallet stations.................................................... 7
Max. load on pallets................................... 80 kg (176 lbs)
WEIGHT
Machine.......................................... 6,800 kg (14,991 lbs)
Pallet magazine................................... 1,200 kg (2,645 lbs)
EQUIPPED WITH:
High performance lift-up chip conveyor

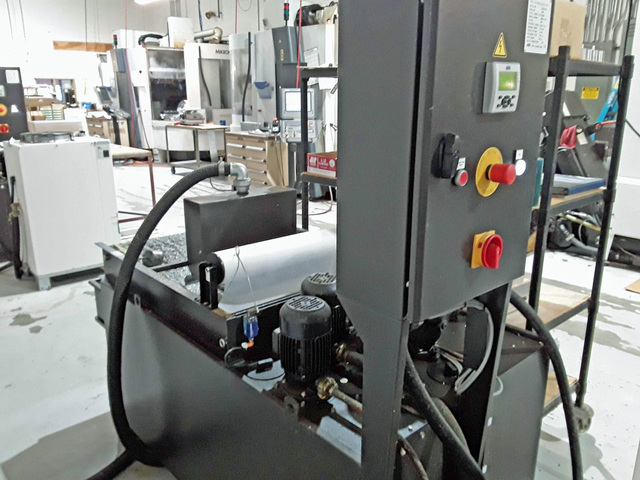

Band filter system 650 l capacity
Wash down system
Spray gun
Mistbuster mist extraction unit
Laser tool measuring system
Infrared OMP 40-2 touch probe
Beacon
TOOLING PACKAGE
Will come with approximately 100 tool holders of your choice but no tooling
One used 2012 +GF+ MIKRON HSM 400 LP 3-Axis high speed VMC with pallet changer and tool tower:
Machine was manufactured at +GF+ in Nidau, Switzerland 8/2012
CONTROL
HEIDENHAIN iTNC 530 with 15.1" color TFT monitor, ethernet and electronic handwheel for part setup
WORKAREA
Longitudinal X.......................................... 500 mm (19.7")
Lateral Y............................................... 450 mm (17.7")
Vertical Z.............................................. 360 mm (14.2")
FEED AXES
Drive............... Linear direct drives (no ballscrews) in X,Y,Z axes
FEED RATE
Rapid traverse X,Y,Z......................... 60 m/min (2,362 inch/min)
WORKING SPINDLE
RPM.......................................... 42,000 rpm, HSK-E40 taper
Power.................................................. 13.5 kW (18 hp)
Torque.............................................. 8.8 Nm (6.5 ft/lb)
TOOL TOWER
Automatic tool changer capacity.............................. 308 tools
AUTOMATION
Pallet size Dynafix 280 mm x 280 mm (350 mm x 350 mm pallet size possible)
Number of pallet stations.................................................... 7
Max. load on pallets................................... 80 kg (176 lbs)
WEIGHT
Machine.......................................... 6,800 kg (14,991 lbs)
Pallet magazine................................... 1,200 kg (2,645 lbs)
EQUIPPED WITH:
High performance lift-up chip conveyor
Band filter system 650 l capacity
Wash down system
Spray gun
Mistbuster mist extraction unit
Laser tool measuring system
Infrared OMP 40-2 touch probe
Beacon
TOOLING PACKAGE
Will come with approximately 100 tool holders of your choice but no tooling
Get Your Price from Franke CNC, LLC!
Buyers Who Viewed This Listing Also Viewed:
Mikron #HSM-500, CNC vertical machining center, 36 automatic tool changer, 19.7" X, 17.7" Y, 13.8" Z, 42000 RPM, 2007
Category: Vertical CNC Machining Centers
Seller: Franke CNC, LLC
Location: Germantown, WI
Mfr: Mikron
Model: HSM-500
Year: 2007
VERTICAL MACHINING CENTERS HSM 500 SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS FOLLOWING, WE OFFER FOR YOUR CONSIDERATION: One used 2007/8 +GF+ MIKRON HSM 500 3-Axis High Speed Machining Center: Built at +GF+ in Nidau, Switzerland 11/2007, first installed new 4/2008 -WORK AREA- Longitudinal, X. 500 mm (19.7") ...more
JUST ADDED!

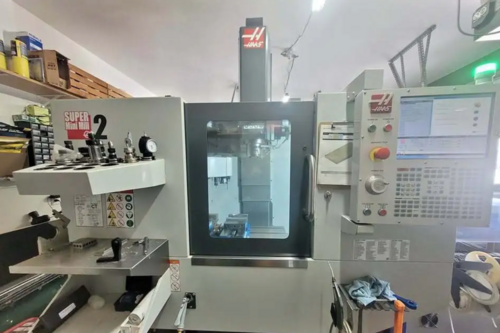

Haas #Super-Mini-Mill-2, CNC Vertical Machining Center, 20" X, 16" Y, 14" Z, 40" x 14" table, 15 HP, 10,000 RPM, CAT 40, 20 automatic tool changer, rigid tap, 2019
Category: Vertical CNC Machining Centers
Seller: Toolquip Inc
Location: Lebanon, OH
Mfr: Haas
Model: SUPER MINI MILL 2
Year: 2019
Used vertical machining center with 20" x-axis, 16" y-axis, and 14" z-axis. s 15 hp, 10,000 RPM, 3-axis operation, CAT 40 taper, 40"x14" table. Includes rigid tap and 20-position automatic toolchanger., 2019 HAAS Super Mini Mill 2, X. 20", Y. 16", Z. 14", Power. 15 hp, RPM. 10,000 RPM, # ATC. 20, Taper. CAT 40 ...more
JUST ADDED!

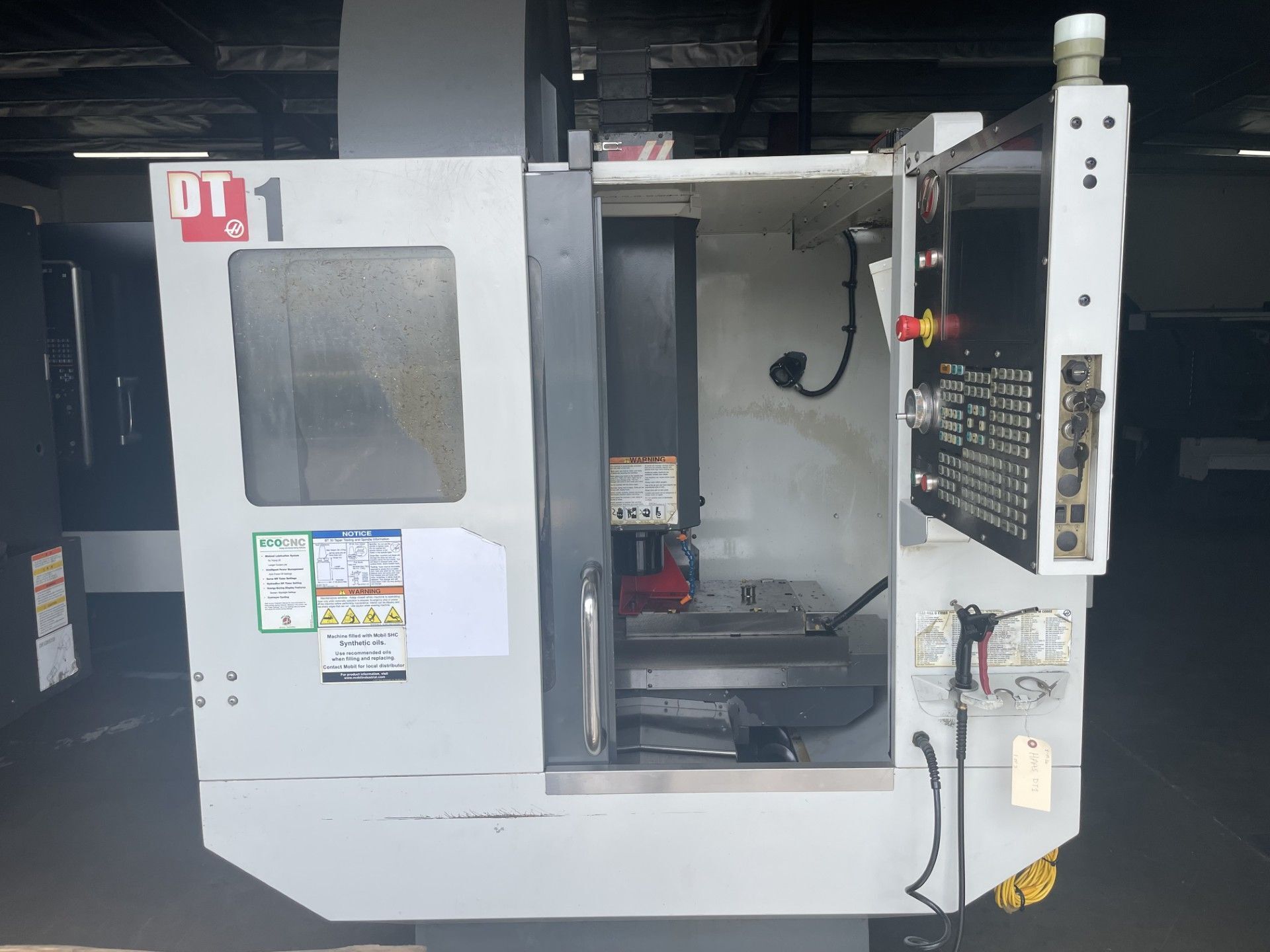

Haas #DT-1, CNC vertical machining center, 20" X, 16" Y, 15.5" Z, 10,000 RPM, BT 30, 24 tool changer, 26" x15" table, 15 HP, Midaco 2-pallet, 2011
Category: Vertical CNC Machining Centers
Seller: Wheeler Machinery Sales
Location: Pomona, CA
Mfr: Haas
Model: DT-1
Year: 2011
2011 HAAS DT-1 Vertical Machining Center w/ Midaco Pallet Changer #8366 #2, TABLE LENGTH 26", TABLE WIDTH 15", NUMBER OF PALLETS 2, X-AXIS TRAVEL 20", Y-AXIS TRAVEL 16", Z-AXIS TRAVEL 15.5", SPINDLE SPEED 10,000 RPM, SPINDLE MOTOR 15 hp, SPINDLE TAPER BT 30, TOOL CAPACITY (ATC) 24, RAPID TRAVERSE - X AXIS 2,400 ...more
JUST ADDED!

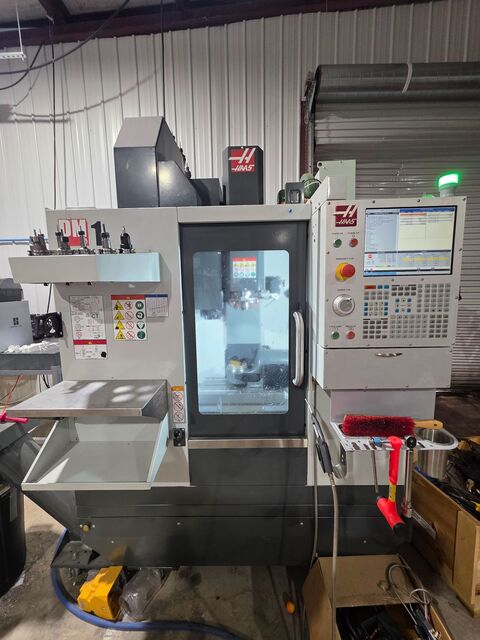

Haas #DM-1, CNC vertical machining center, 20" X, 16" Y, 15.5" Z, 26" x 15" table, 15 HP, 10,000 RPM, CAT 40, 18 automatic tool changer, TRT160 5-Axis rotary, 2022
