General Electric Circuit Breaker TFJ236200 600 VAC

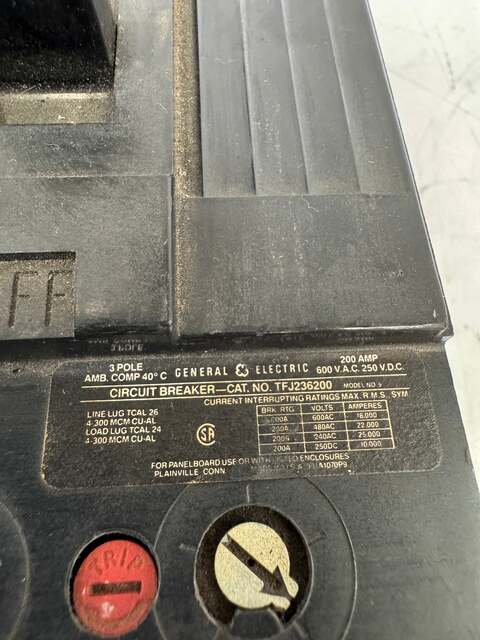

General Electric circuit breaker, catalog number TFJ236200, rated 200 AMP. Nameplate indicates 3 pole configuration with ambient compensation to 40°C. Electrical ratings show 600 VAC and 250 VDC maximum, with interrupting capacity listed as 18,000 A at 600 VAC, 22,000 A at 480 VAC, 25,000 A at 240 VAC, and 10,000 A at 250 VDC (maximum RMS symmetrical). The unit is marked for panelboard use or with listed enclosures and includes CSA certification markings.

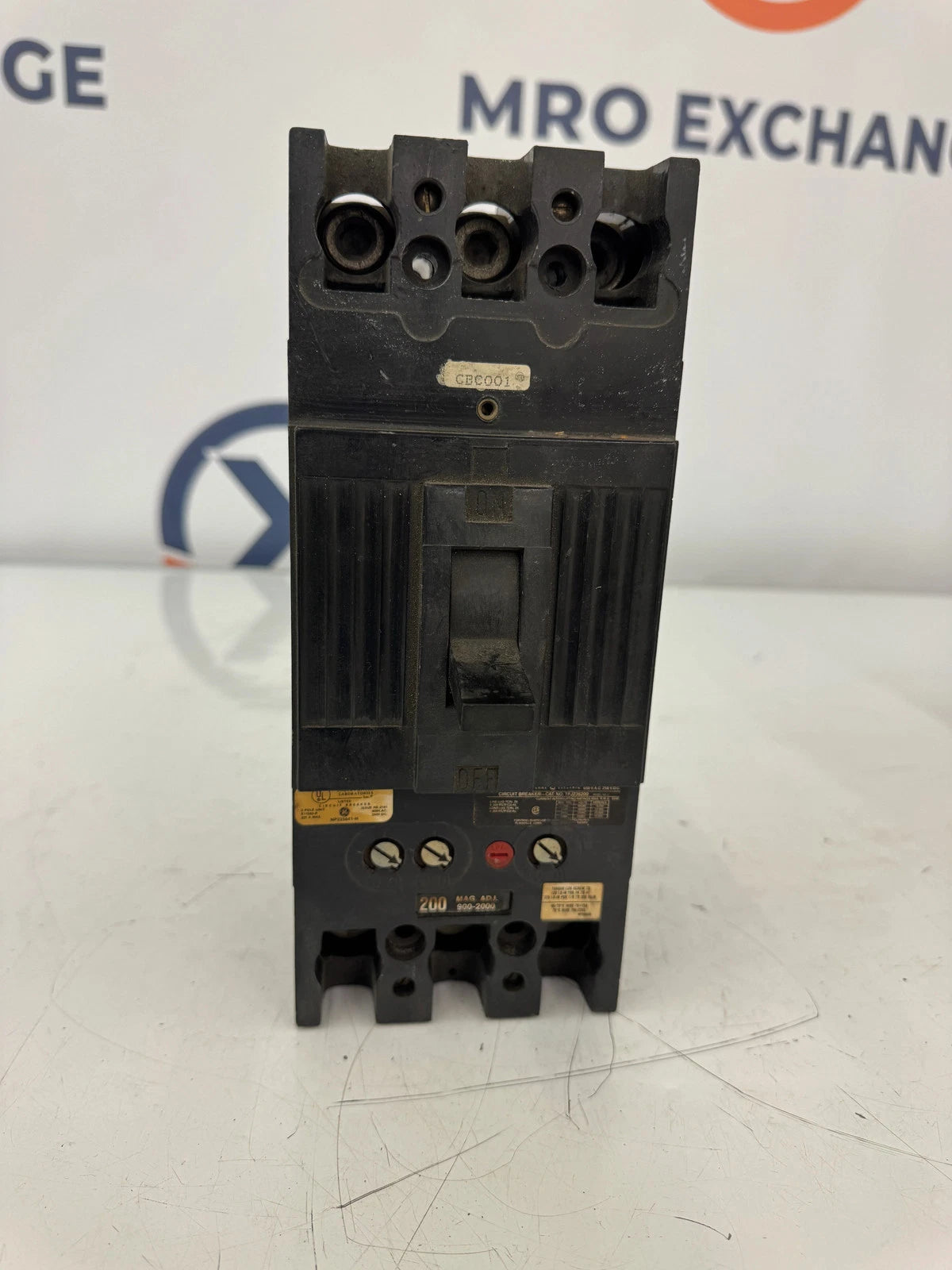

Front panel features a molded case housing with toggle handle and adjustable magnetic trip setting labeled "MAG ADJ 900-2000." Line and load lug specifications are printed on the nameplate, indicating compatibility with copper or aluminum conductors up to 300 MCM.

Identification and specifications are based strictly on visible nameplate markings and housing labels. Suitable for use in industrial power distribution systems requiring General Electric TFJ236200 200A, 3-pole molded case circuit breaker with 600 VAC rating.

Stock # 0226-347
