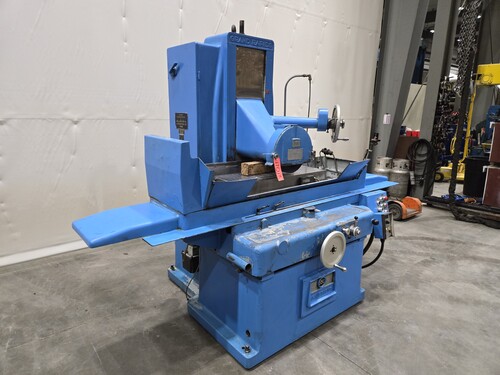

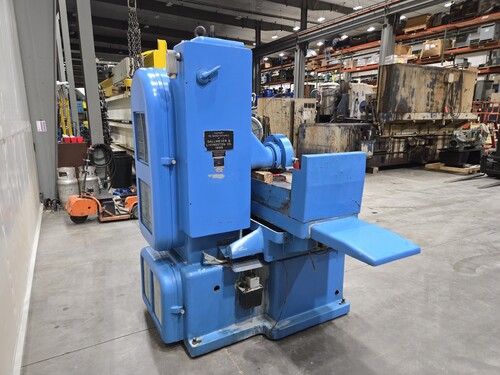

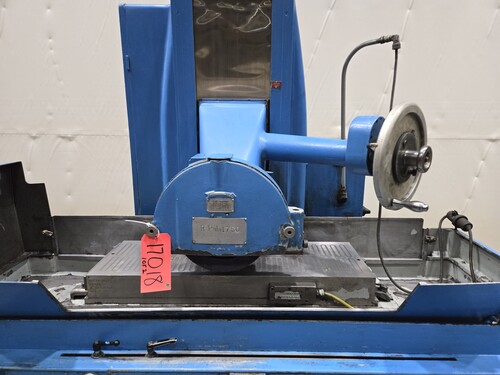

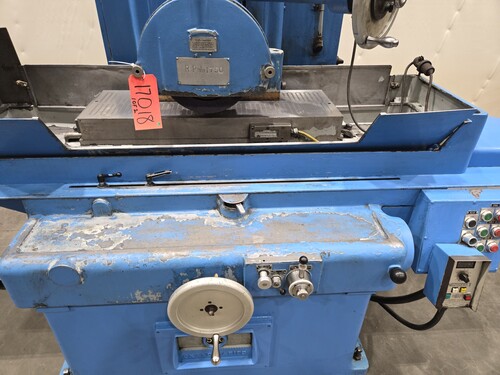

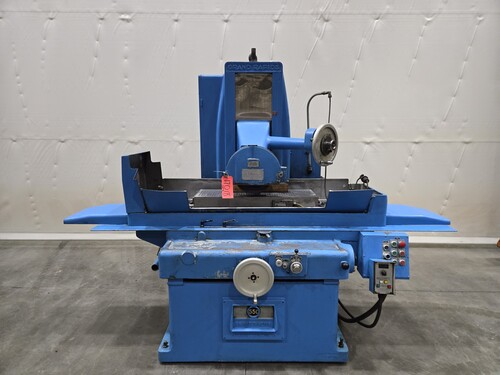

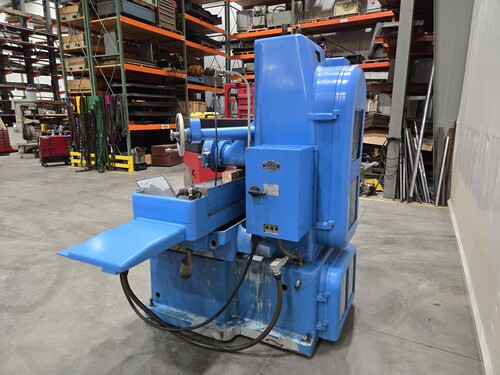

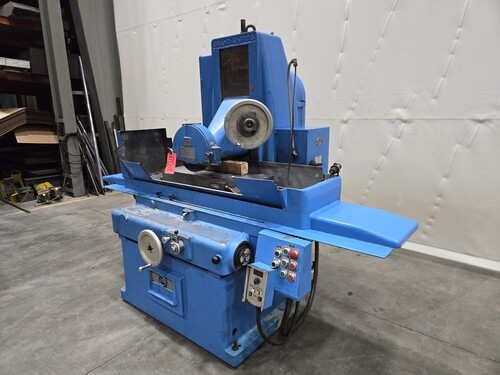

Gallmeyer & Livingston #550, hydraulic surface grinder, #17018

Description

Gallmeyer & Livingston 12” x 36” Hydraulic Grinder, Model 550

Asset # 17018

Specifications:
Chuck Size 12” x 36”
Max. Grinding Width 15”
Max. Grinding Length 36”
Work Height – Full Wheel 18”
Height Floor to Work Surface 38”
Spindle Wheel Diameter 14”
Spindle Wheel Width 1 ½”
Spindle Wheel Bore Size 5”
Throat Depth 17 1/8”
Housing Radius 3”
Spindle Speed 1750 RPM
Spindle Drive Motor 7 ½ HP
Vertical Adjustment Speed per Minute 9.33”
Table Work Surface 12” x 37”
Maximum Longitudinal Travel 47 ½”
Maximum Longitudinal Speed 100 ft/min
Maximum Cross Travel 13 ¾”
Continuous Cross Speed – Max. per Minute 120 per minute
Step Cross Travel – Maximum ¾”
Hydraulic Motor 3 HP
Floor Space 171” x 104”
Machine Height 102”
Approximate Weight 9,000 lbs.

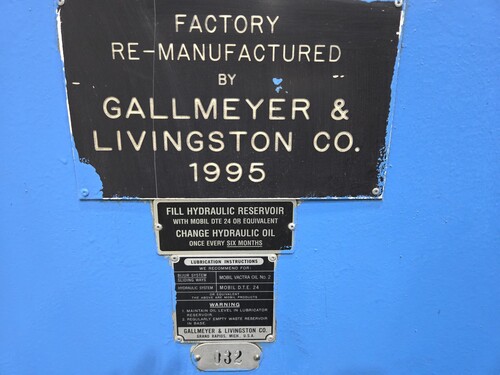

Remanufactured in 1995 by Gallmeyer & Livingston.

Preliminary Specifications – Subject to Verification
