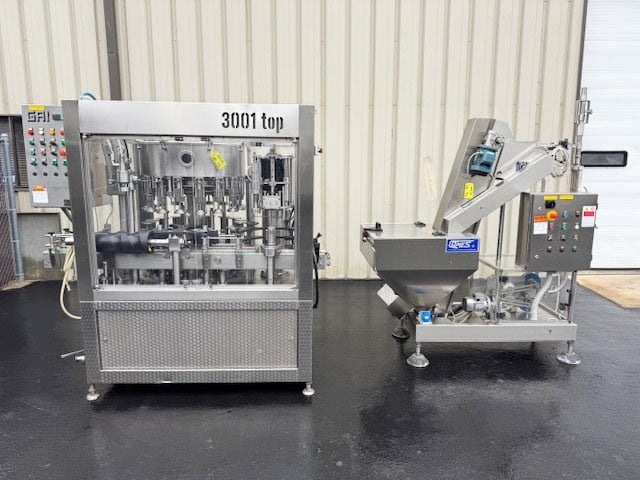

GAI 16-Valve Triblock Bottle Sparger, Filler and Corker with Cork Feed System
- 1/16/1 Bottle Sparger-Filler-Corker
- Model 3001 TOP
- Serial number ACI 3000
- Last filling wine into 750ML glass bottles

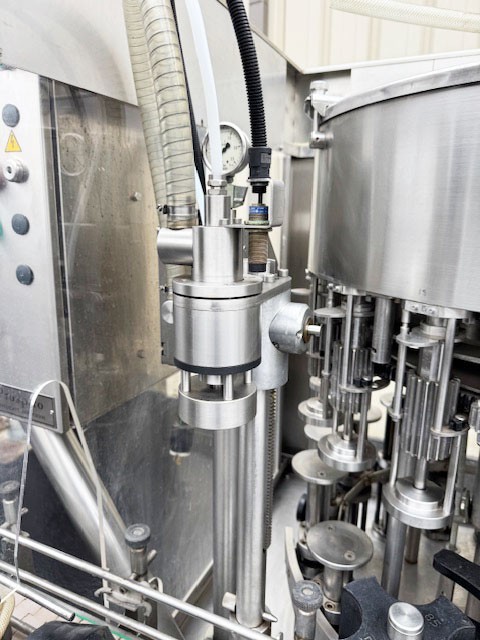

- 1 Head Sparger (vauum takes approx 90% of the air out of the bottle and fills with neutral gas such as CO2 or Nitrogen)

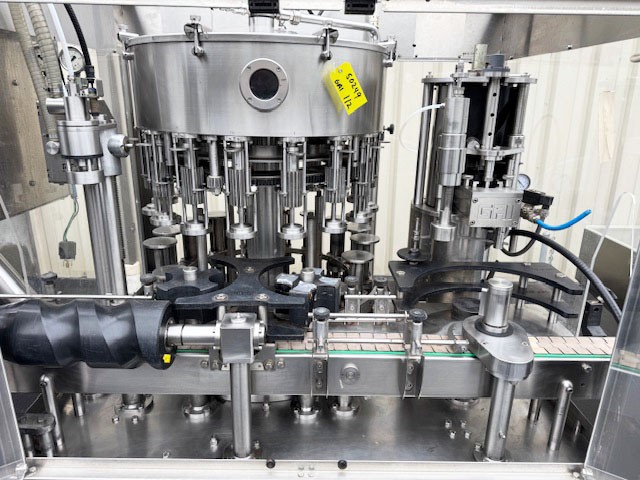

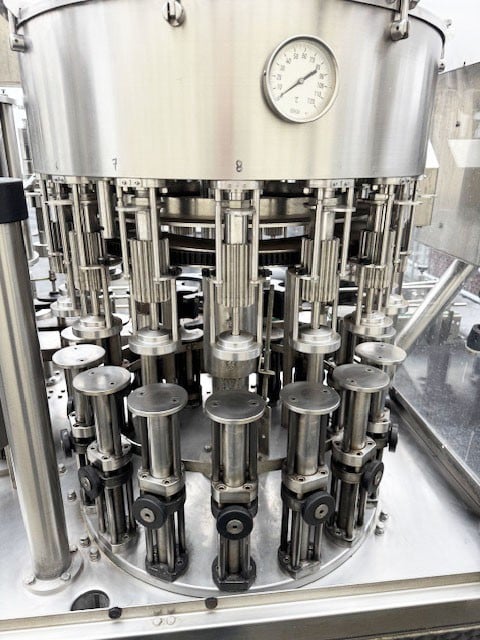

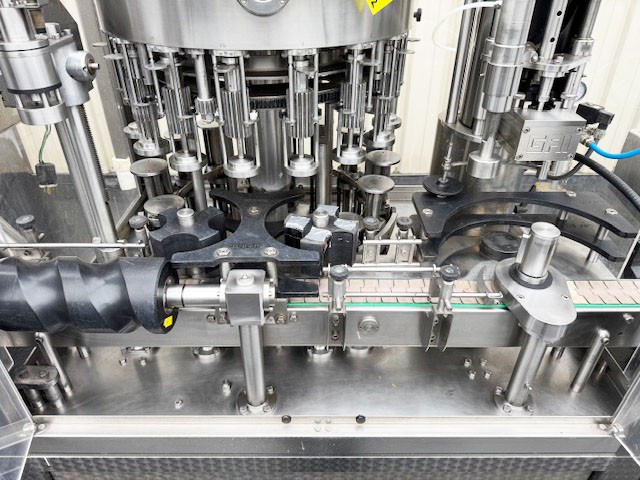

- 16 Valve Gravity Rotary Filler with 5.75" Valve Pitch

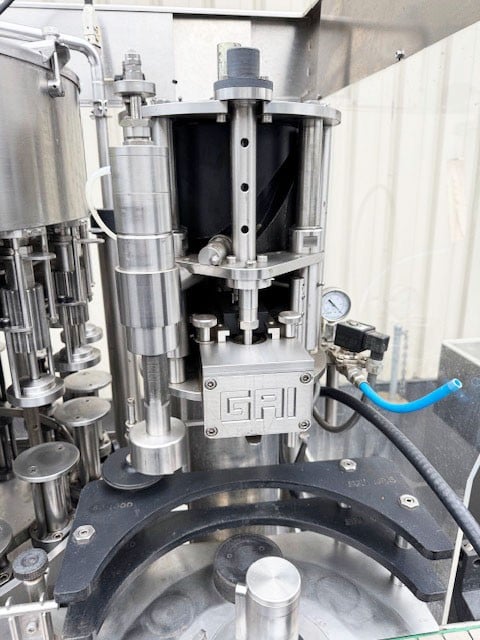

- 1 Head Corker presently set for straight wine corks
- Factory rated up to 3000 bph
- Left to right (clockwise) operation
- Stainless steel construction
- Includes 1 set existing bottle handling parts for 750ML round glass with timing screw
- Includes Cames Cork Feed System, Model ALX 1
- 3.25" wide x 80" Long pull through conveyor section
- Conveyor elevaction 40" (adjustable)
- 3.25" wide plastic tab conveyor chain belt
- 4 threaded floor levelers (filler)
- Operator panel with E-Stop
- Electronic filler bowl height adjustment
- Electrical 240V/3/60 21 amps (filler)
- Dimenstins 80" L x 49" W x 80" H (filler)

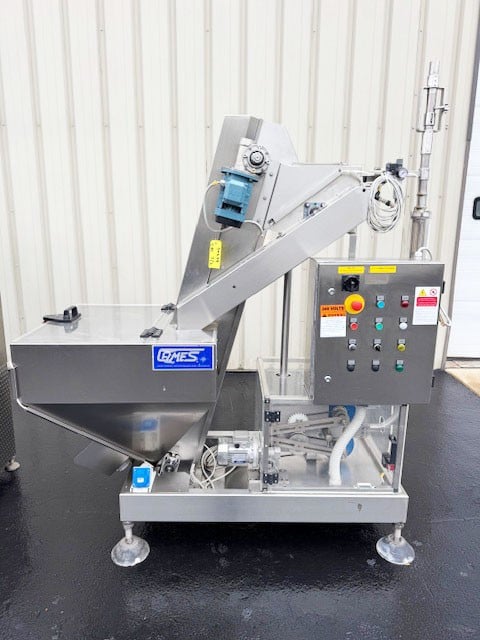

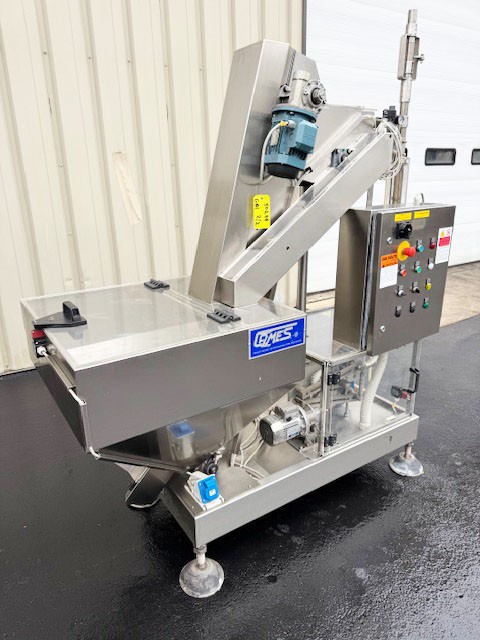

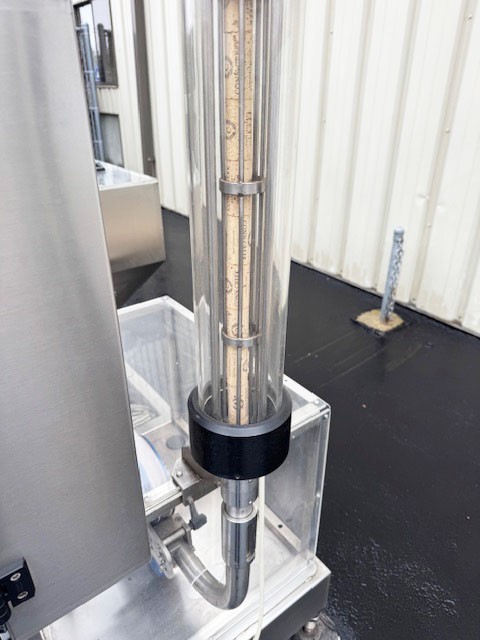

CAMES Cork Orientor Feed System
- Manufacturer: Cames Wine Industry Machines, Canelli Italy
- Model ALX 1
- Serial number 2052

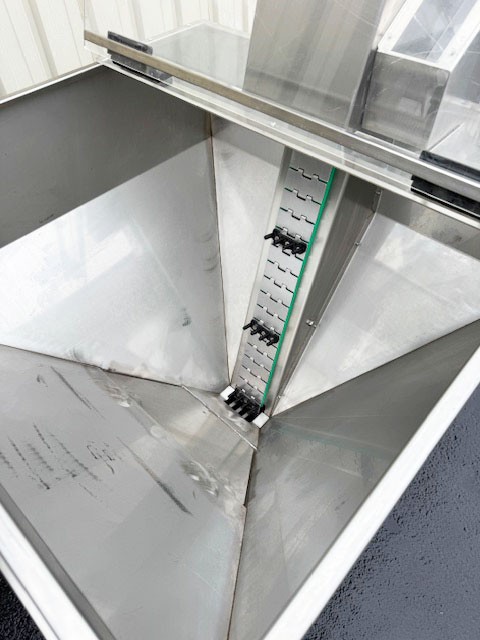

- Approx 10 cuft SS cork hopper
- Hopper ID 31" L x 31" W x 28" deep
- 4 threaded leveler legs (cork feeder)
- Operator panel with E-Stop
- CE rated
- Electrial 240V/3/60 (feeder)
-Dimensions 72" L x 32" W x 86" H (feeder)
