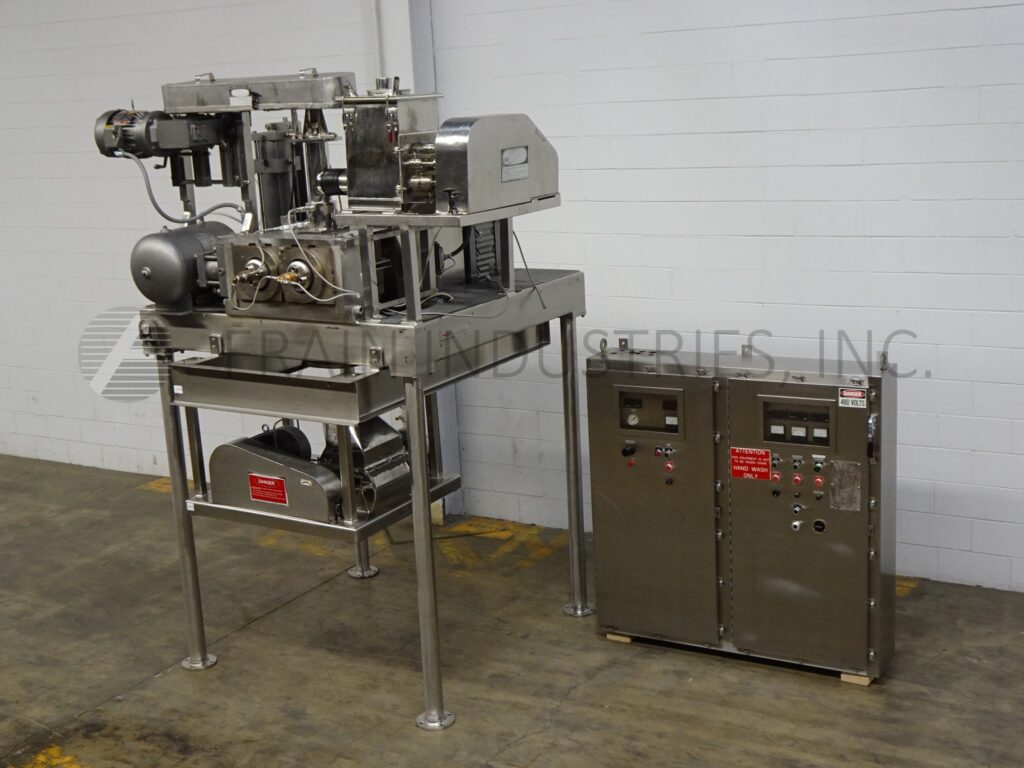

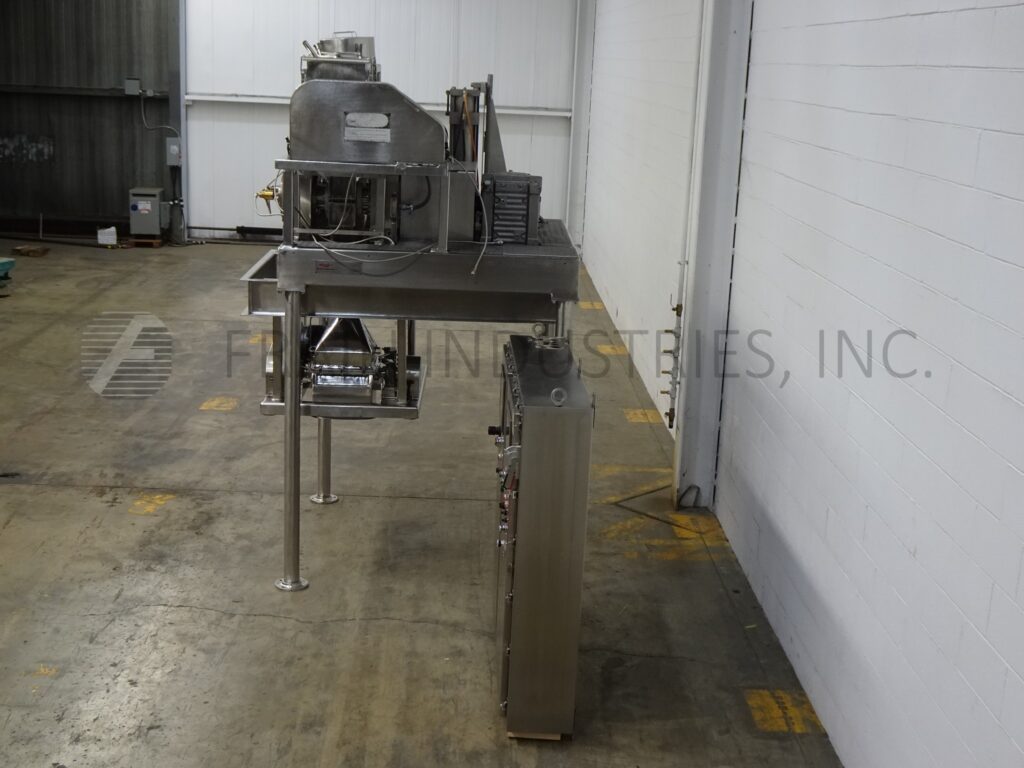

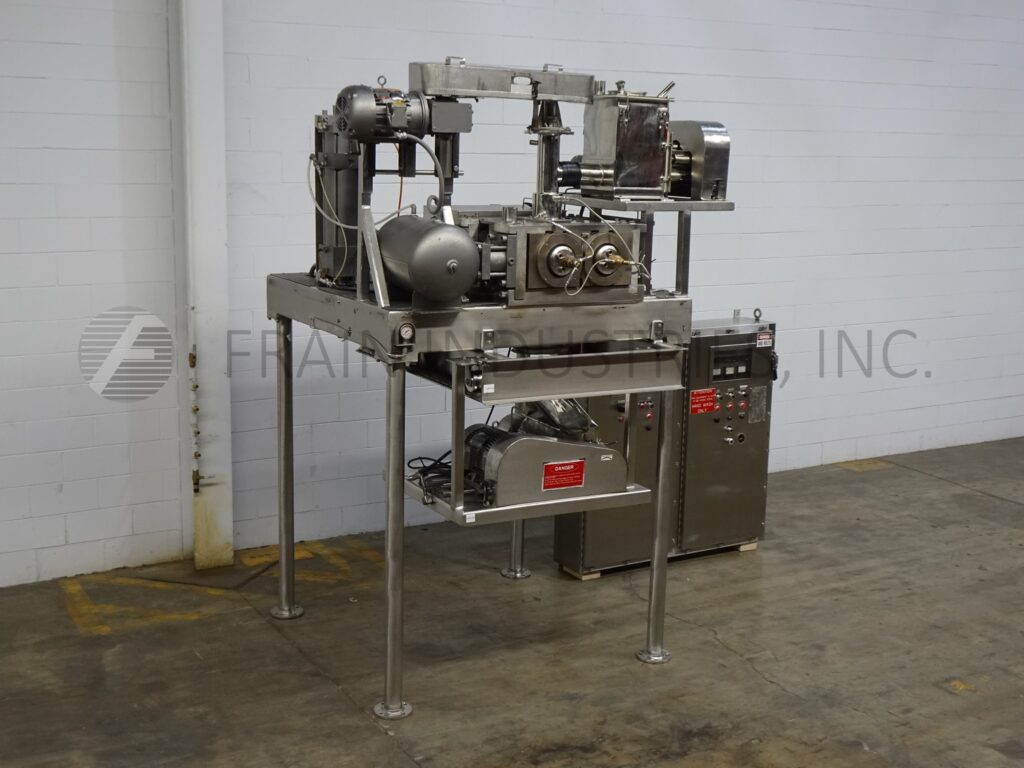

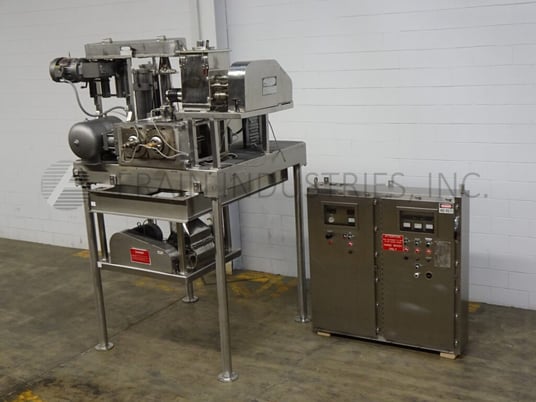

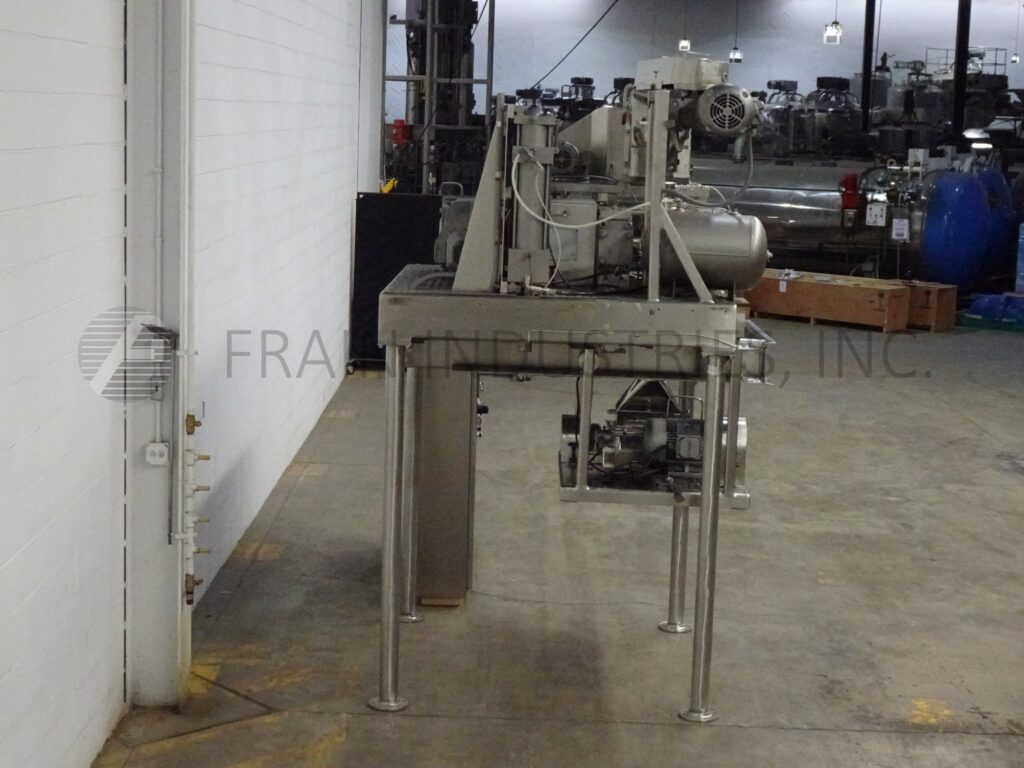

Fitzpatrick #4LX10D, 316 Stainless Steel, free standing roller compactor, chilsonator with onboard Stainless Steel Fitzmill DKASO12 knife rotor hammer mill

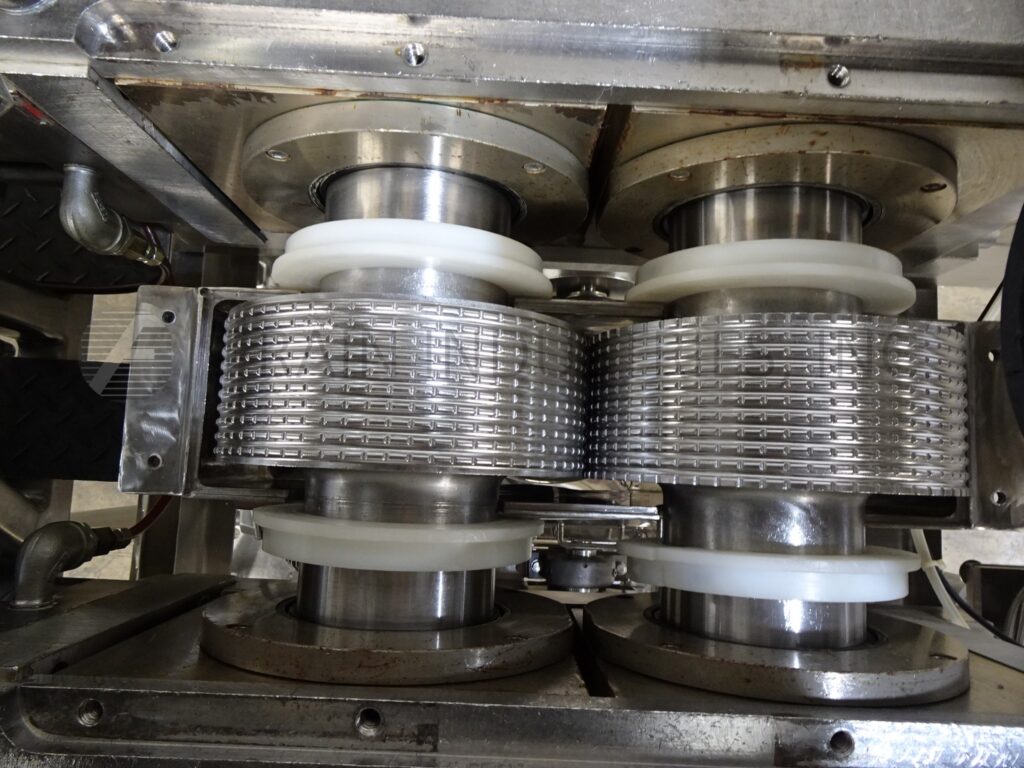

Fitzpatrick Model 4LX10D, 316 stainless steel, free standing roller compactor, chilsonator with onboard stainless steel Fitzmill Model DKASO12 knife rotor hammer mill and the system is rated from 250 – 400 kg of product per hour – depending on materials, application, machine configuration and environment being run in. Equipped with 4" OD horizontal metering screw with 1 Hp motor drive that eliminates vacuum dearation to 4 OD" vertical pre-compression screw with 5 Hp motor drive, that compresses product for more uniformity prior to feeding into the 4" OD x 10" long face cored product compaction rollers with 7.5 Hp motor drive with bulk densities of feed from 10 to 100 lbs per cubic foot and roll force of 17.5 KN/cm with roll gap range of 1mm to 6mm. Has Fitzmill model DKASO12 knife rotor hammer mill with 10 Hp motor drive. Control cabinet with AMP meters and digital RPM indicators for rolls, verticle and horizontal screws, variable frequency speed controls with start and stop push buttons and e-stop. Mounted on (4) stainless steel legs.

OAD: 86"L x 74"W x 125"H
