Festo Solenoid Valve MFH-3-1/4 G1/4 1.5 to 8 Bar

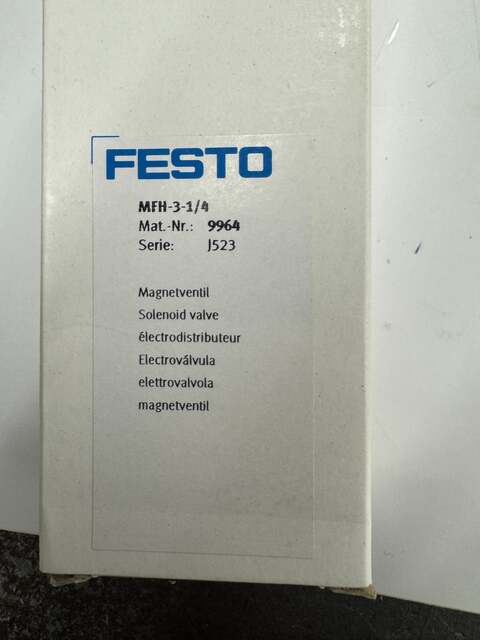

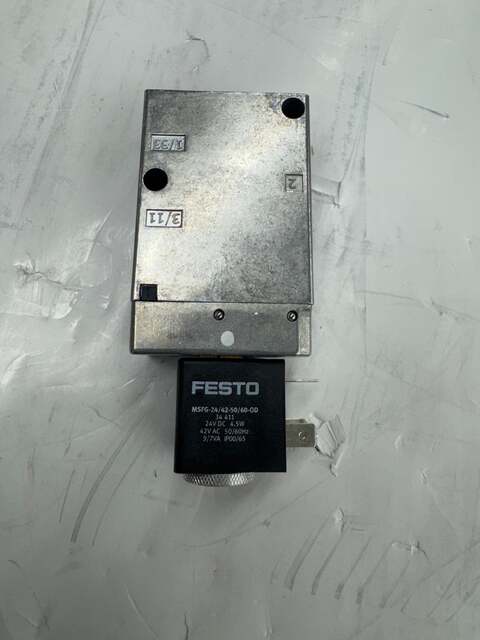

Used in pneumatic automation and industrial control systems, the Festo MFH-3-1/4 is a 3/2-way, normally closed, monostable solenoid valve from the MFH Tiger Classic series. The valve body carries part number 9964, Serie J523. Included with this unit is a Festo MSFG-24/42-50/60-OD solenoid coil, Mat.-Nr. 34 411, rated at 24V DC at 4.5W and 42V AC at 9/7 VA, 50/60 Hz, with IP00/65 protection. The valve body is constructed from die-cast aluminum housing with NBR seals. Pneumatic connections are G1/4. Operating pressure range is 1.5 to 8 bar (21 to 120 PSI). Standard nominal flow rate is 800 L/min. The port face is labeled with ISO designations 1, 2, and 3/11 and 1/33 visible on the valve body. The MSFG coil features an F-type form factor compatible with the MFH valve series. Protection class is IP65 per Festo published specifications. Mounting options include manifold rail or through-hole configurations. The coil and valve body ship together as a single assembly. Country of manufacture is Germany per Festo standard production for this series. No coil connectors or additional hardware are included beyond what is shown.

Stock # 0326-1131
