Fellows #65A3, gear shaper w/spur Guide, 18" diameter capacity, 5" width face, 5.12" stroke, 3" riser, 0.75" spur Diametral pitch, 1940

Fellows 65A3 Gear Shaper, Spur Guide, 3" Riser, Coolant Pump

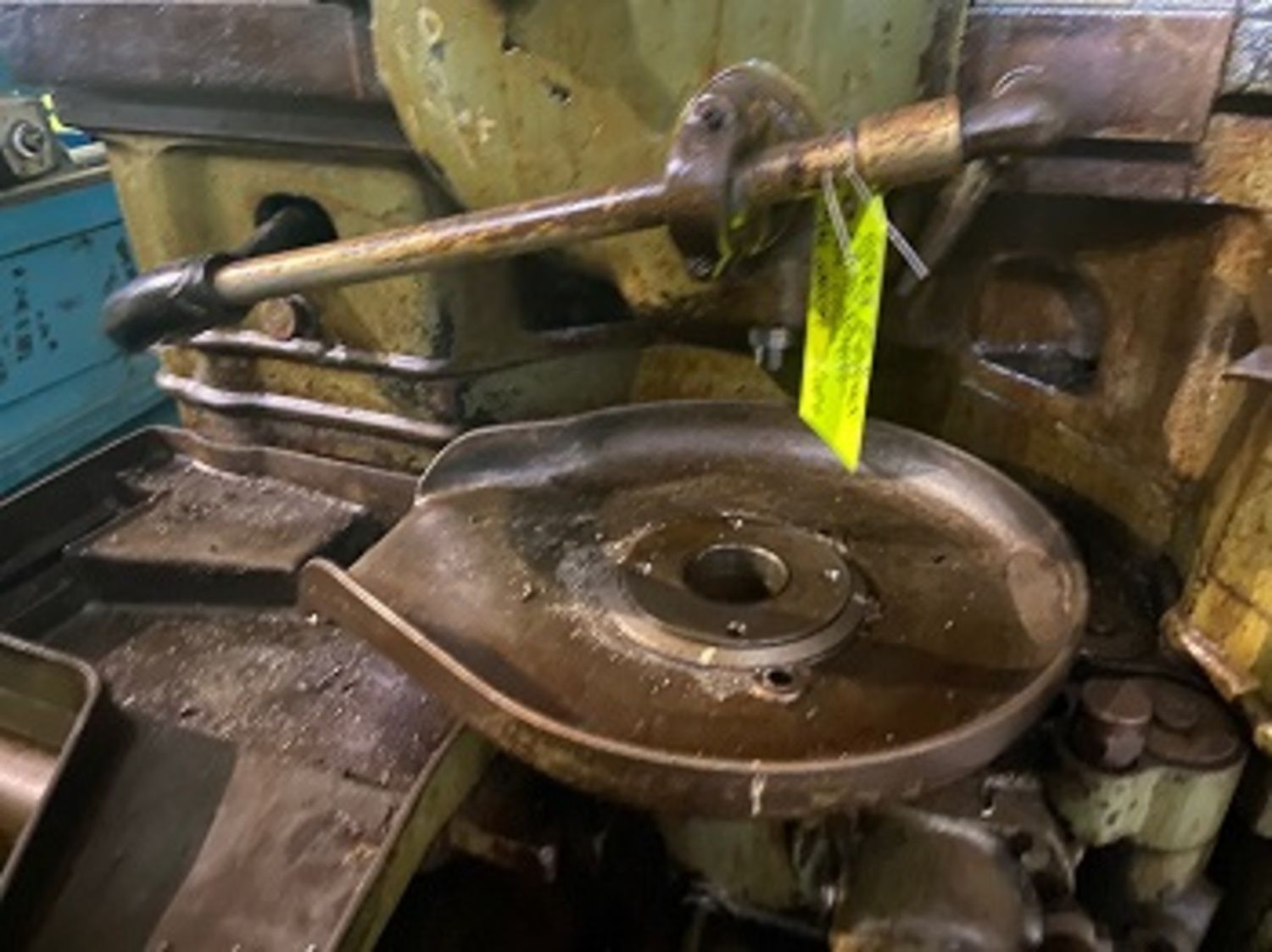

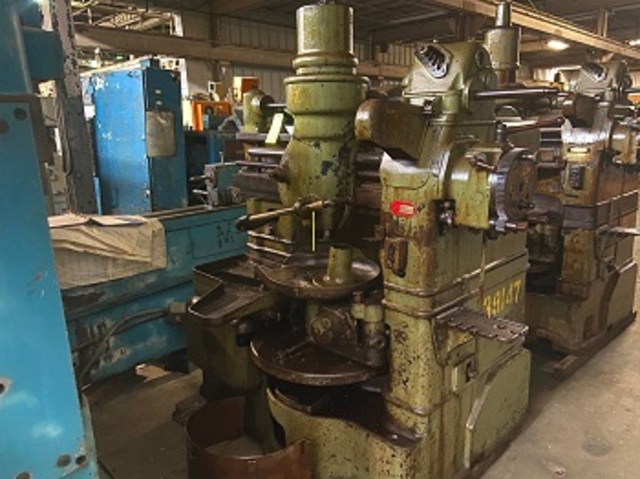

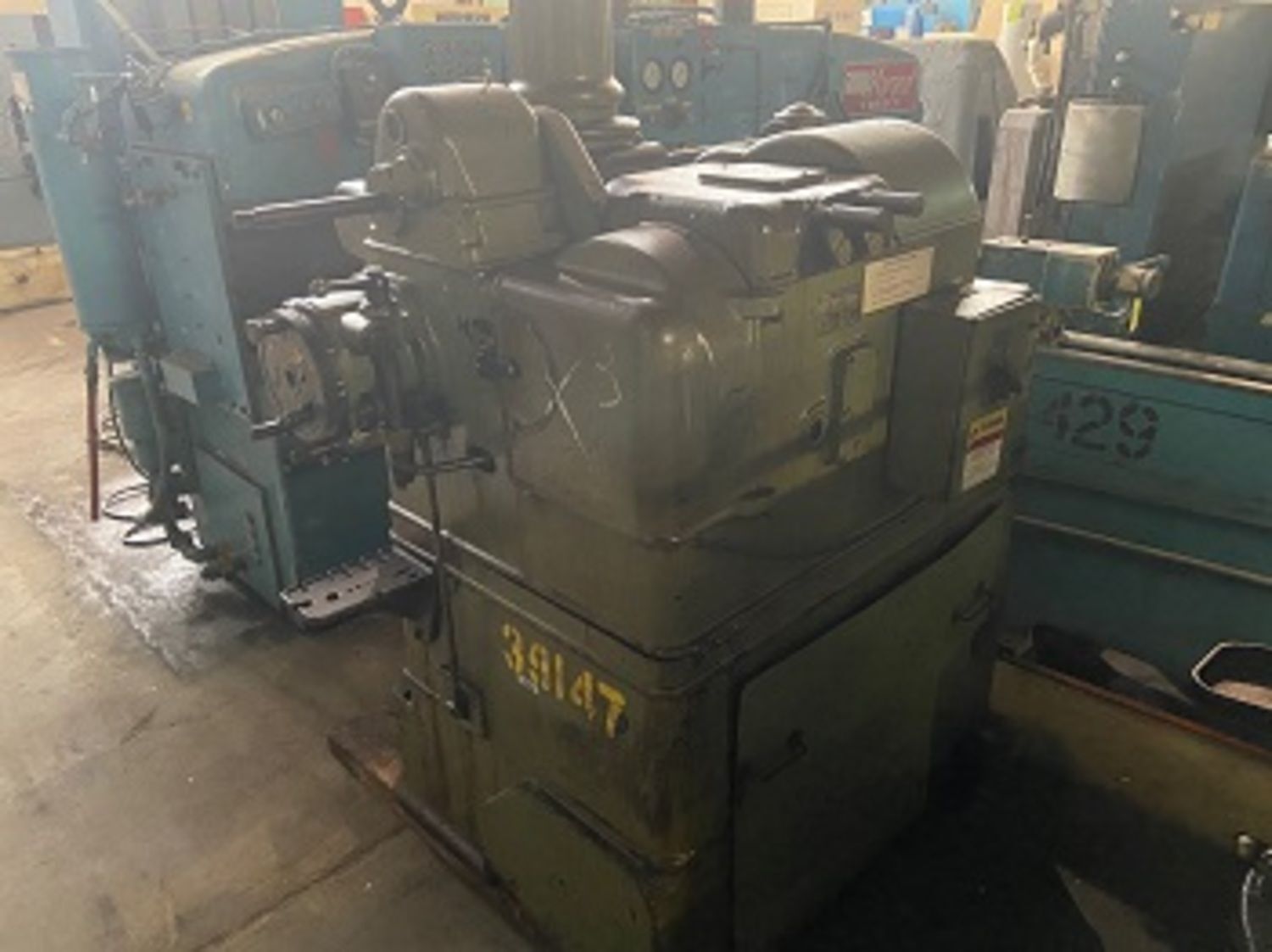

FELLOWS 65A3 GEAR SHAPER
S/N 17126 Year:1940
STANDARD SPECIFICATIONS
Max External Internal Pitch Diameter…………………………….18”
Max External Face Width…………………………………………… 5”
Max Internal Face Width……………………………………………..5”
Max Spur Diametral Pitch……………………………………………3/4”
Stroke…………………………………………………………………5.12”
DIMENSIONS
Max Overall Length Of Machine……………………………………..5’ 3”
Max Overall Width Of Machine………………………………………4’
Max Overall Height Of Machine (W/ Out Raising Blocks)…………..6’ 5”
Weight…………………………………………………………………6800 lbs.
EQUIPPED WITH
Spur guide.
3” Riser.
Coolant pump.
1 Set-Up of change gears.
Specifications are deemed accurate, however, subject to verification or prior sale.
