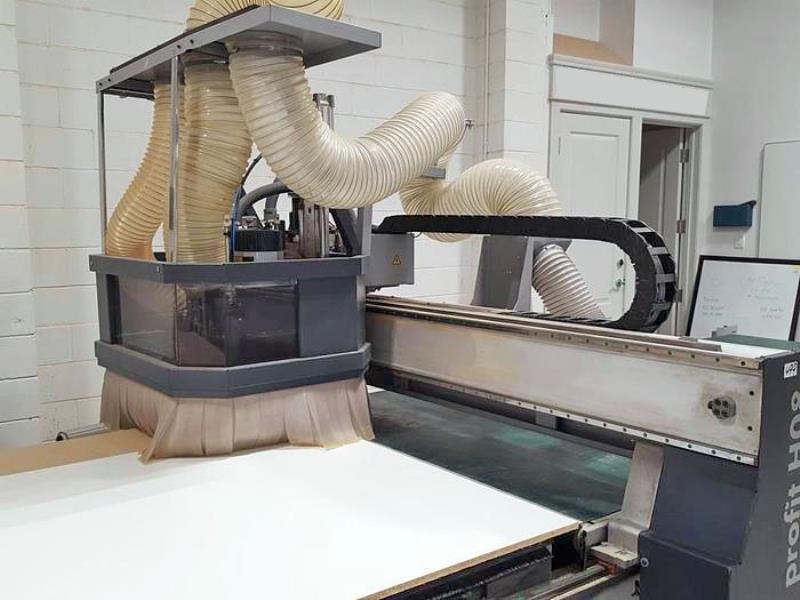

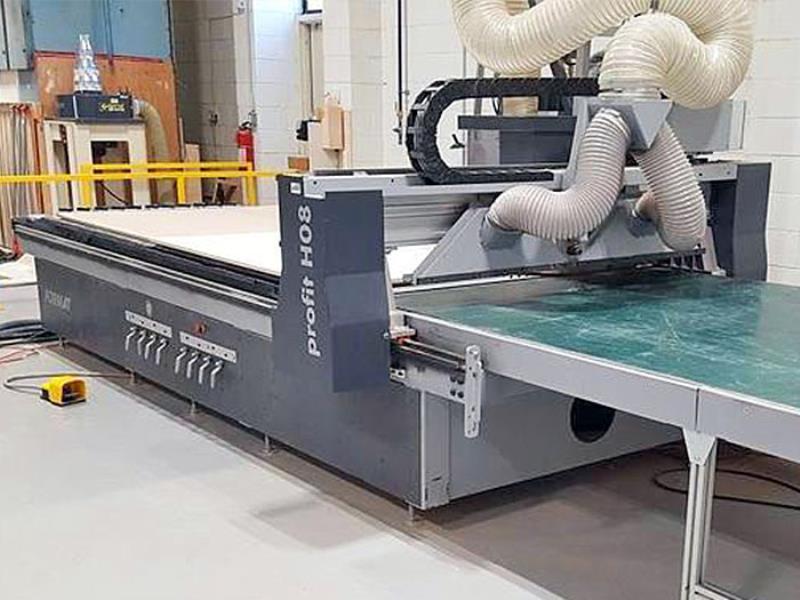

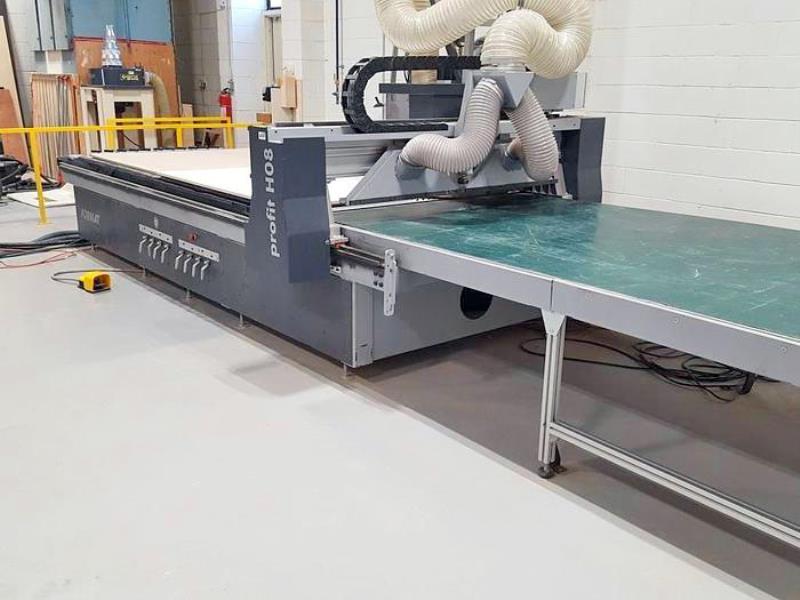

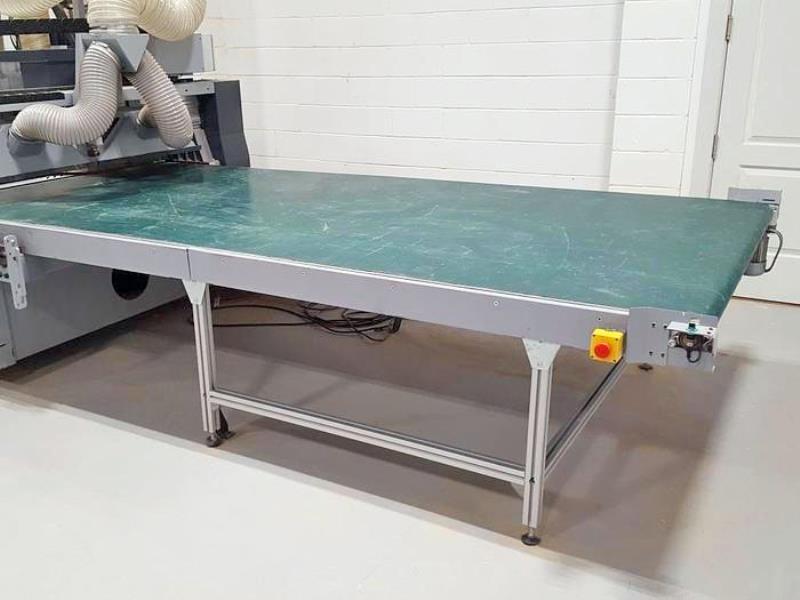

Felder #Profit-H08, flat table machine, 5' x10' table, 121.6" X, 60.2" Y, 11.8" Z, 15 ATC, 24k RPM, HSK F63, loading/unloading, 2017

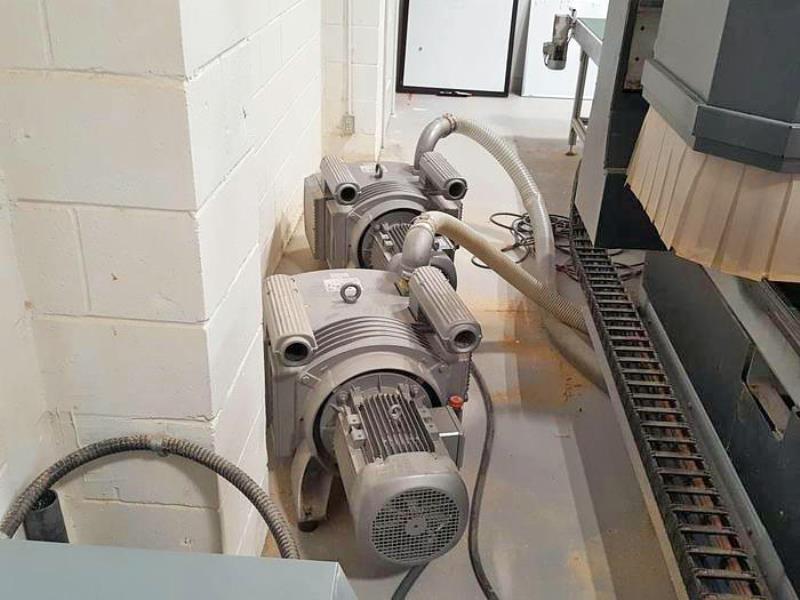

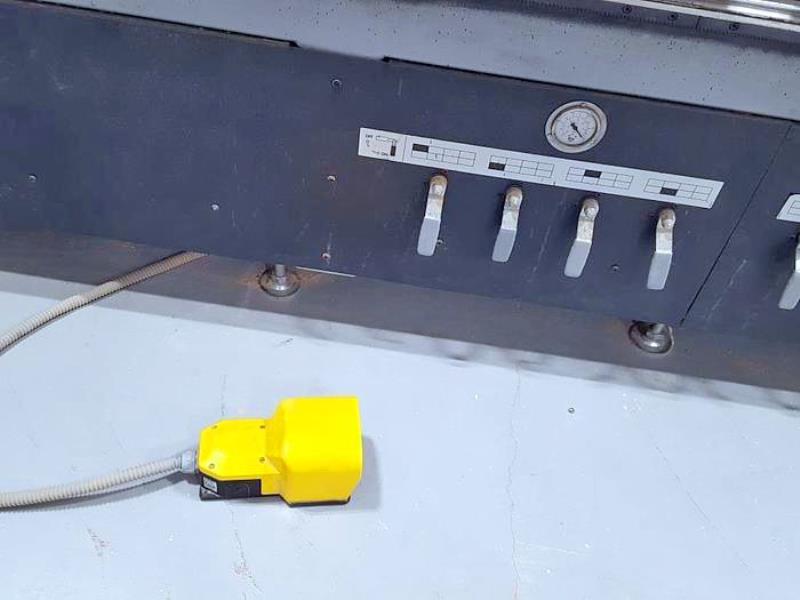

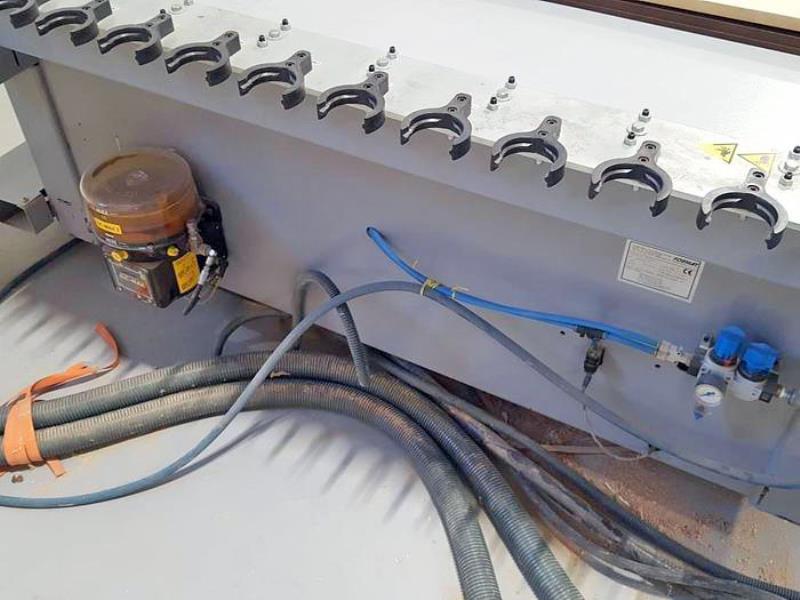

FELDER FORMAT4 - Profit H08: Flat Table Machine (w/Offloading) -- Specifications5' x 10' "MATRIX" Phenolic Flat Table design for: "Nested Base" Manufacturing. -- Working Capacity"X" Axis is 121.6" (3,090 mm); "Y" axis is 60.2" (1,530 mm);"Z" axis stroke is 11.8" (300 mm); max. material thickness is 4.3" (110 mm). -- Positioning Speed"X" & "Y" Axis at 197 FPM (60 MPM); "Z" axis is 49 FPM (15 MPM). -- WorktableWorking area is subdivided into (8) vacuum fields (H08 16.31) to: Ensure the best holding force for the most varied board sizes.The vacuum fields are controlled manually by means of: Hand levers on the front side of the machine. Prepared for (optional) elevated pods: Allows profile & horizontal machining. -- Boring Unit(1) DH 8-Spindle Vertical Drill block: On 32 mm centers. -- Machining(1) 13.4 HP (10 kW) Vertically mounted electro spindle Router with: HSK F63 Adaptor; inverter driven 1,000 - 24,000 RPM; max. torque from 12,000 RPM.(1) 15-Position ATC Tool Rack: Mounted at the end of the machine. -- Operator & Machine ControlPC Based user-friendly; icon driven control housed on the: Main machine base + "WOODFLASH" Operating System. -- Complete with:(2) 250 m/Hr Vacuum pumps; handheld terminal with: Potentiometer & emergency stop; automatic measuring system of the tool length.Sound absorbing protective head enclosure with: Debris curtain around bottom edge. -- Options Include: Automatic unloading unit with: Electromotive offloading pusher. This addition allows finished workpieces to be automatically pushed off the table after processing: Reducing manual handling & speeding up production cycles. -- Actual model: FELDER FORMAT4 - PROFIT H08 16.31
