Description
Description

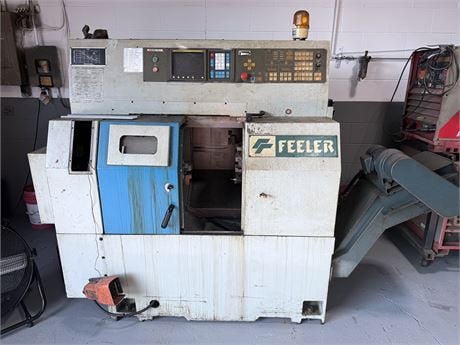

Feeler FTC-10 (1997)
Description
Max Turning Diameter: 9.45" (240 mm)
Max Turning Length: 10" (255 mm)
Swing Over Bed: 20.07" (510 mm)
Swing Over Cross Slide: 10.23" (260 mm)
Chuck Size: 6" (standard, 8" option)
Spindle Nose: A2-5
Spindle Speed Range: 60 to 6,000 RPM
Spindle Bore Diameter: 2.2" (56 mm)
Bar Capacity: 1.77" (45 mm)
Spindle Motor Power: 10 HP / 15 HP (7.5 kW / 11 kW continuous/30-min)
X-Axis Travel: 5.51" (120 mm + 20 mm)
Z-Axis Travel: 11.41" (290 mm)
X / Z Axis Rapid Traverse Rate: 945 IPM (24 m/min)

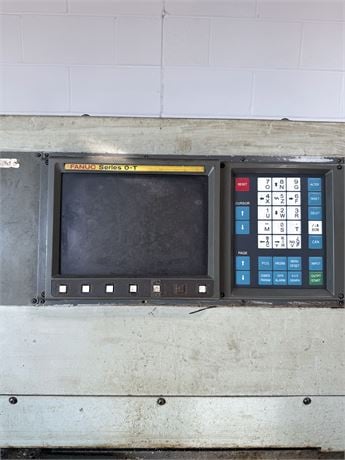

Control Unit: Fanuc (typically Fanuc 0-T or 21-T for late 90s models)
Floor Space (L × W × H): ~79" × 52" × 66" (2,005 mm × 1,317 mm × 1,670 mm)
Machine Weight: 5,500 lbs (2,500 kg)
Equipped With
Requires new Fanuc CPU drive
