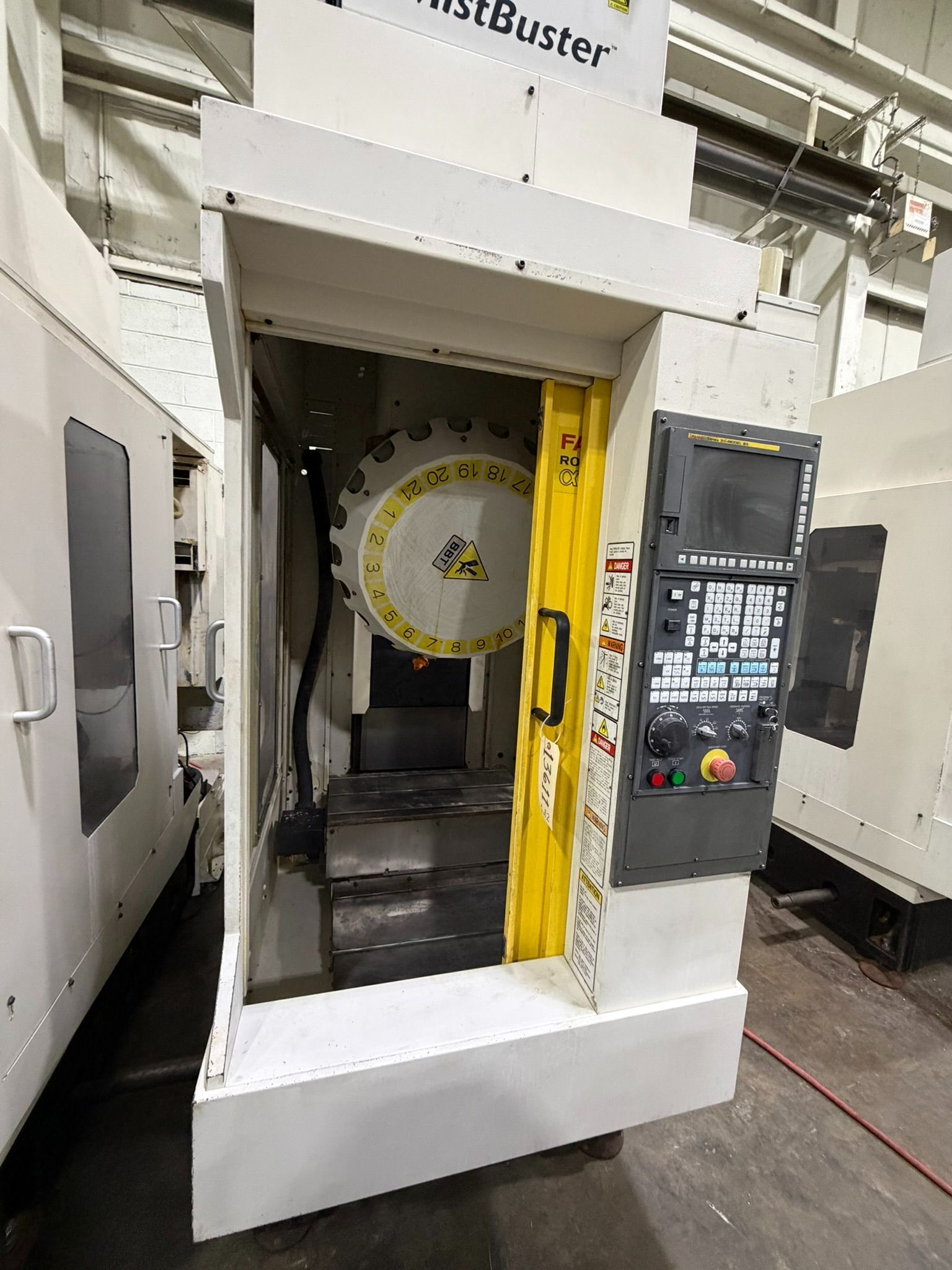

Fanuc #Robodrill-Alpha-D21SiA5, 3-Axis CNC Drill Tap Vertical Machining Center, 11.81" X, 15.75" Y, 12.99" Z, 24000 RPM, 21-turret, Fanuc 31i, 2013

FANUC ROBODRILL A-D21SiB5 3-AXIS CNC DRILL TAP VERTICAL MACHINING CENTER, NEW 2013, 21 position turret, 24,000 rpm spindle, coolant system, Fanuc 31i CNC Control
Standard Features
Axis Travel of 300mm (X Axis), 400mm (Y Axis),330mm (Z
630mm x 330mm Table Area With A 200 kg Load Capacity
200-24,000 RPM Direct Drive High Torque Spindle
200L Coolant Tank
BT-30 Spindle Taper

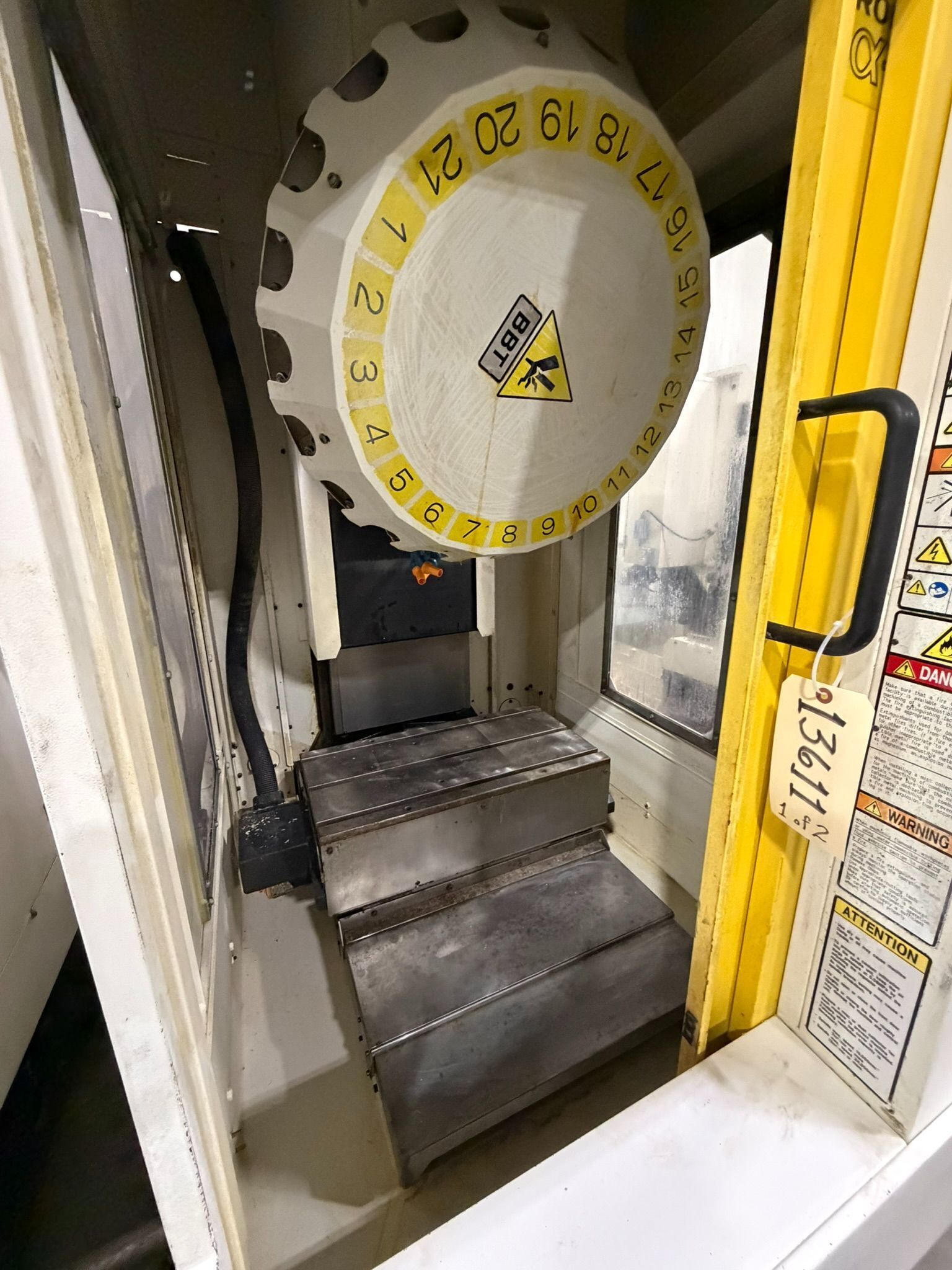

21 Position, Bi-Directional Tool Changer
Quick ATC Recovery System
1.6 Second Tool Change Time (Chip to Chip)
0.9 Second Tool Change Time (Tool to Tool)
5,000,000 Duty Cycle Time
Rigid Tapping up to 8,000 RPM
Quick Tap Recovery System
High Speed Reverse Tapping
Thread Milling
Helical and Linear Interpolation
1 Millisecond Servo Response Time
Three Axis Simultaneous expandable
Custom PMC
Simultaneous ATC / Table Positioning
2125 IPM Rapid Rate X, Y, Z Axis
Feed Rates to 1181 IPM X, Y, Z
Multi Step Skip
AI Contour Control I
Nano CNC System
Ultra Precise 32,000,000 Pulses/Rev encoders
1.5 G Acceleration
Thermal Growth Compensation
2 MB Memory
1,000 Registerable Programs
Smart Backlash Compensation
HRV3 Plus
Tool Compensation Memory C
Tool Offset Pairs 200 Pairs
Part Program Storage 2 MB
6 + 48 Work Offsets
Coordinate System Rotation (G68.G69)
Coordinate System Setting (G92)
Custom Macro B
Canned cycles for drilling (G73, G74, G81~G89/G80)
Manual Handle Feed
Coolant System- 200 liter coolant tank
Coolant & Chip Splash Guard
Skip Function (G31)
Background Editing
Dynamic Graphic Display
On Screen Display of Spindle RPM and Load Meter
Basic Metal Top Cover
Leveling Bolts and Pads
Alpha Numeric Keyboard
Automatic Lubrication System
NEW! Perodic Maintenance Management
Quick Side (Operator Interface)
