Fanuc Manual Pulse Generator A860-0201-T003 +5V DC

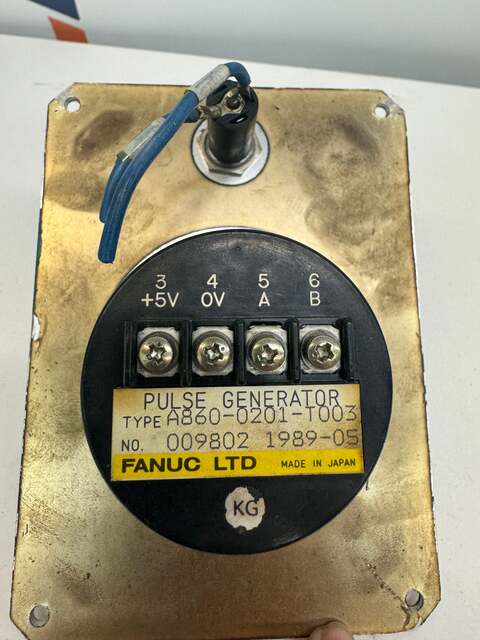

The Fanuc A860-0201-T003 is a manual pulse generator used in Fanuc CNC systems for incremental axis jogging and handwheel feed operations. The nameplate identifies the unit as a Pulse Generator with serial number 009802, dated 1989-05, manufactured by Fanuc Ltd in Japan. The front panel features a graduated rotary handwheel dial marked with incremental divisions and positive/negative direction indicators, along with an amber indicator light. The rear terminal block provides four connection points labeled 3 (+5V), 4 (0V), 5 (A), and 6 (B), corresponding to power supply and quadrature output signals. The A860-0201-T003 is a widely referenced MPG unit compatible with a range of Fanuc control systems and is commonly used as a replacement or spare component in CNC machining centers, turning centers, and other Fanuc-controlled machine tools. The unit is mounted to a metal panel with four corner mounting holes, making it suitable for panel or pendant integration. Part number A860-0201-T003 is the OEM-recognized identifier used consistently across US industrial surplus and CNC parts markets.

Stock # 0326-821
