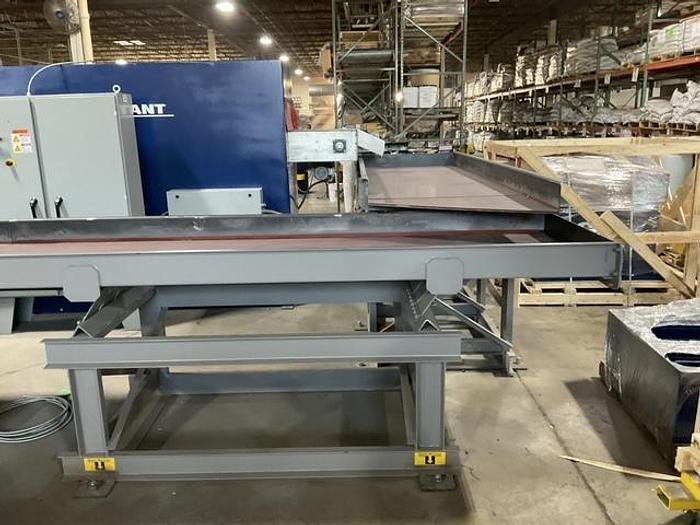

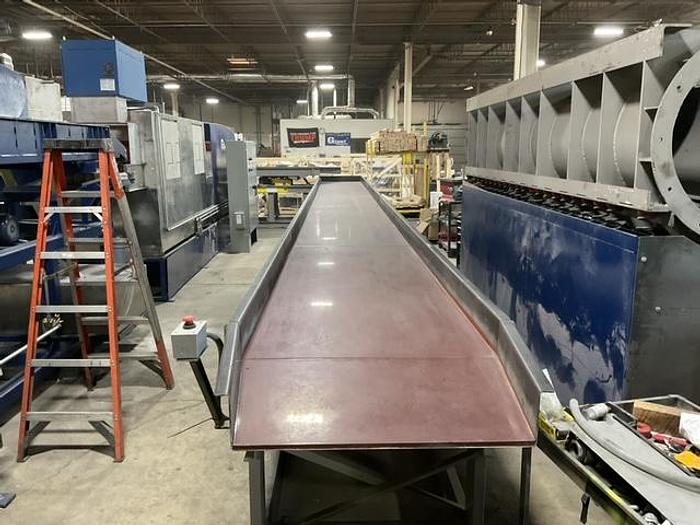

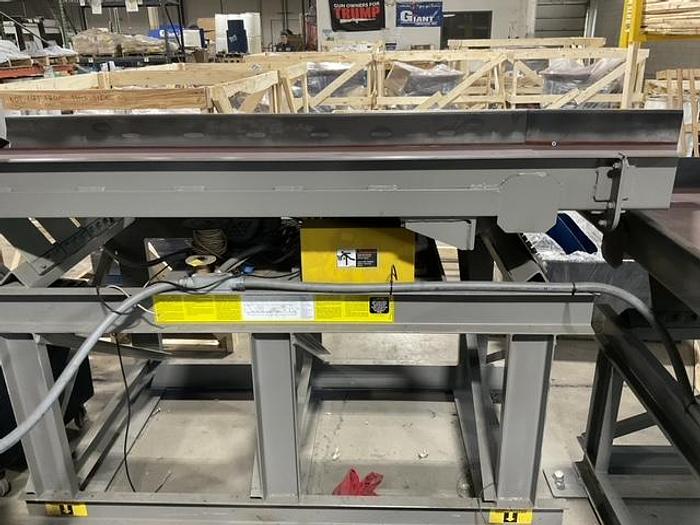

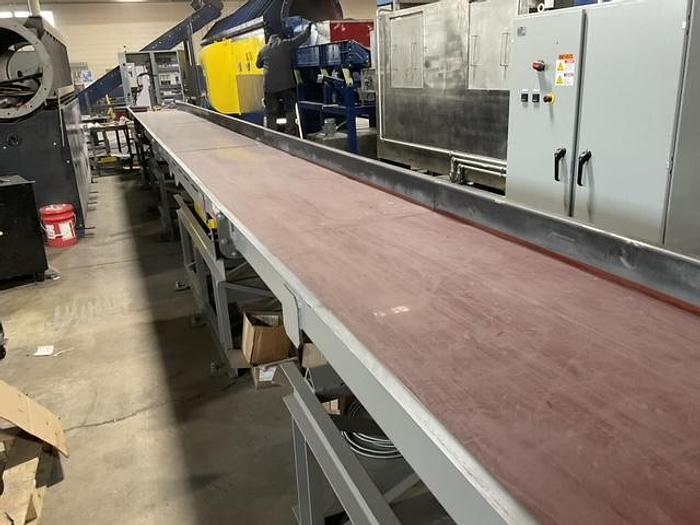

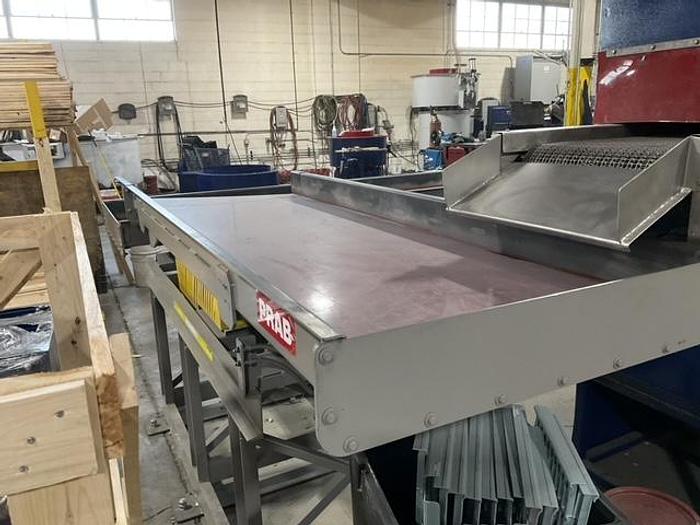

Prab, oscillating vibatory conveyor system, 3 HP, 2022

(A) PRAB Oscillating Conveyor: Qty 1

Subject: PRAB Oscillator Conveyor and Conveyor

Rev 5 Proposal Changes:

• Increased the discharge height 10” for conveyors A & B

• Decreased the load capacity

• Provided options for adding one (1) PRAB 4” Pitch, 36” wide L style conveyor D,

and one (1) cart dumper

Thank you for your interest in PRAB Scrap Handling Equipment. PRAB has provided innovative solutions for efficient metal scrap handling for over 65 years. As you requested, we are pleased to provide you with the following proposal.

The PRAB Difference is this: Built on Excellence, Integrity, Sustainability and Social Responsibility. We have also carefully documented a number of PRAB Advantages, a few of those are listed below.

PRAB Advantages

Durable Equipment

We are still shipping parts for equipment we sold 57 years ago.

Available Parts

We have maintained nearly $1.5 million in parts inventory for the past 3 years.

Experts in the Industry

Thirteen of our engineers have assisted customers with start- ups, 16 have done installations, 17 have done trouble shooting: all at customer’s sites.

Reliable / On -Time Delivery

Our overall on-time equipment delivery is 98% when factoring in for customer requested delays.

Giant Finishing

Material Handled: Parts Size:

Volume of Material:

Steel Castings

4” x 6” x 1” min to 22” x 28” x 3” max (parts in excess of 16” in any direction will be hand fed onto infeed conveyor, Item “D” on system 2 below.

3,200 Lbs./hr. (1 to 10 Lbs./part)

Customer’s Requirement

Budgetary Proposal: Date: Page No:

Application Information

PC74578-5 8/10/21 2

Giant Finishing requires a conveyor system to return large, finished castings from a dryer to the operator for loading a tote. Conveyor “C” to receive up to 800 lbs. dump loads.

PRAB Solution

We recommend that you purchase a two PRAB Oscillating Conveyor System. Oscillator Conveyor A will receive castings from a dryer, horizontally transfer the material and discharge into Oscillator Conveyor B to operator for loading a tote. System 2 would also include a vibratory conveyor, dumper and 4” Pitch conveyor for loading the dryer.

Photo for illustration purposes only, options shown may not reflect items in this quote.

Trough

Trough Liner

Trough Width

Overall Trough Width Trough Depth

Overall Conveyor Height Conveyor Length

Conveyor Discharge Height Electrical Power Source No-Rotation Sensor

#7 gauge formed steel. 85 Shore A Urethane 36”

39”

(B) PRAB Oscillating Conveyor: Qty 1

Trough

Trough Liner

Trough Width

Overall Trough Width Trough Depth

Overall Conveyor Height Conveyor Length

Conveyor Discharge Height Electrical Power Source No-Rotation Sensor

#7 gauge formed steel. 85 Shore A Urethane 36”

39”

6”

43”

40’-0” overall, including 1 removable discharge section

37”

3 hp motor, 460 Volts, 3 phase, 60 Hertz Proximity sensor positioned at shaft of conveyor. Provides output that can be used to monitor if the

shaft stops rotating.

(Note: This as a standalone item will NOT provide any output. It has to be wired and programmed into an existing or new control panel in order to work.)
