Fanuc CNC Control Unit A02B-0083-B501 Allis-Chalmers 200-240V

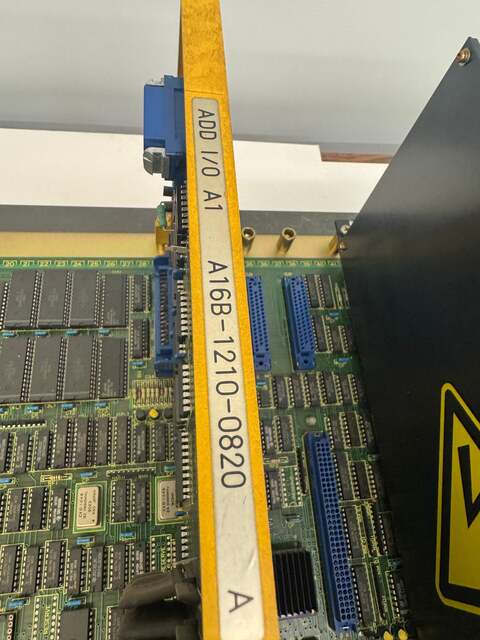

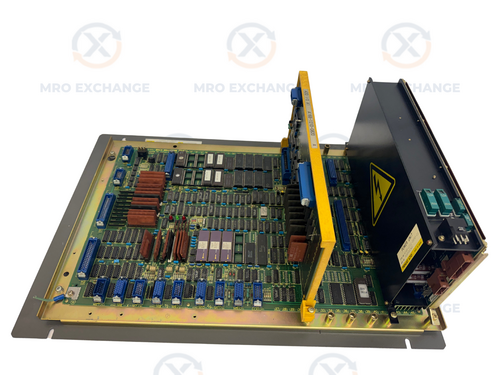

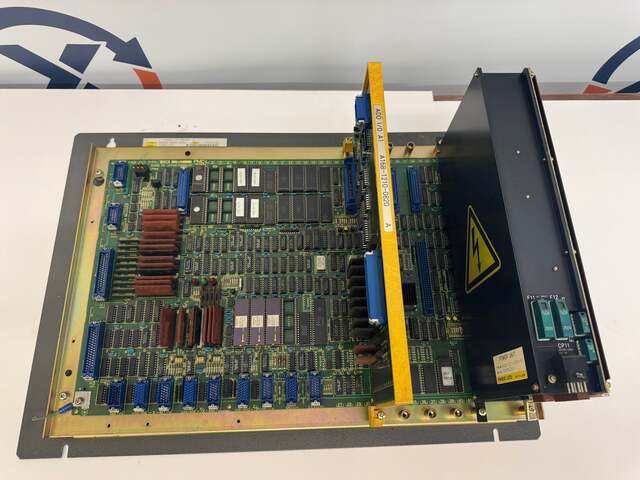

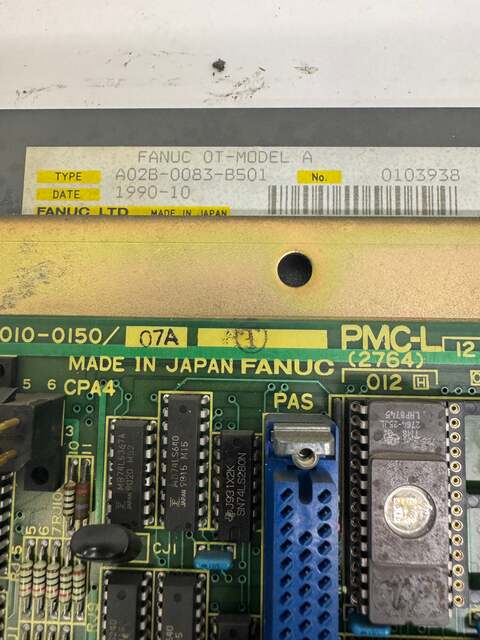

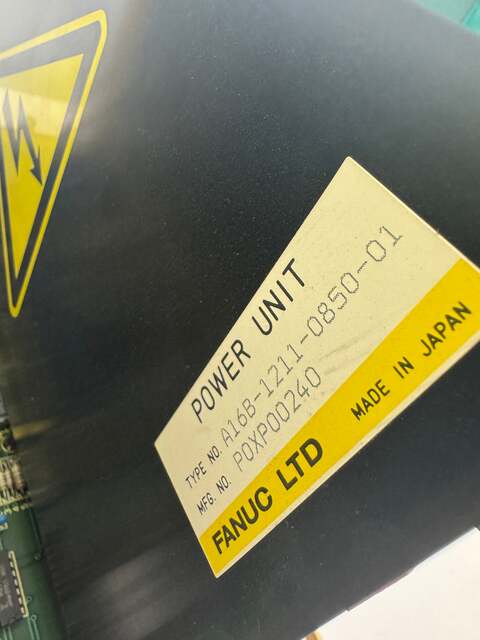

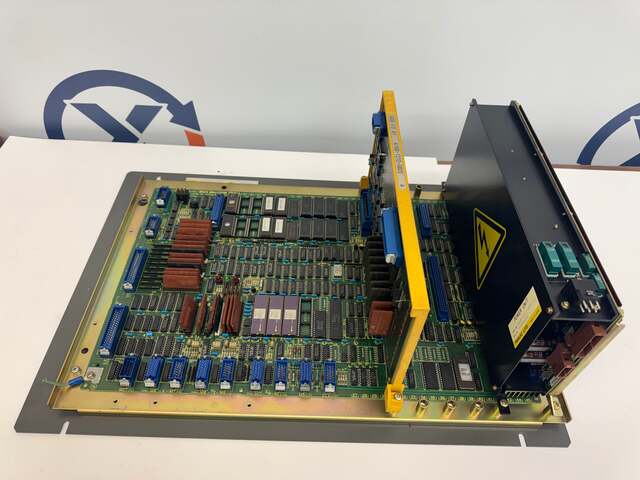

Used in CNC turning centers built around the Fanuc Series 0T control platform, the A02B-0083-B501 is a complete Fanuc 0T-Model A CNC control unit assembly manufactured by Fanuc Ltd in Japan. The assembly includes the main CPU and PMC-L motherboard (A16B-1010-0150 revision 07A), an ADD I/O A1 expansion board (A16B-1210-0820, revision A), and an integrated Power Unit (A16B-1211-0850-01). The system unit serial number is 0103938 and the manufacturing date is October 1990. The main PCB carries Fanuc silkscreen markings including PMC-L (2764) and CPA4 designations. The Power Unit label confirms Fanuc Ltd manufacture in Japan with manufacturing number P0XP00240. Fuses F11 and F12 are rated 5.0A / 250V and are visible on the power unit panel alongside the CP11 AC200–240V input connector. The A02B-0083-B501 system type is consistent with Fanuc 0T-Model A controls used on two-axis CNC lathes and turning centers produced during the late 1980s and early 1990s. This assembly is offered as a complete board set with power unit intact, as pictured.

Stock # 0326-828
