FANUC A06B-6127-H105 iSV-80HV Servo Drive

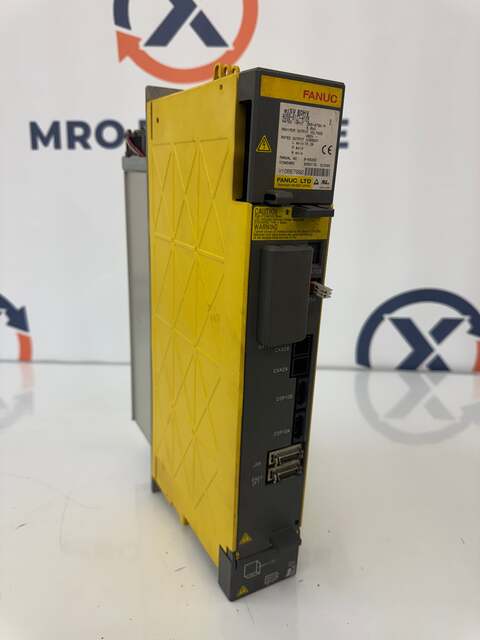

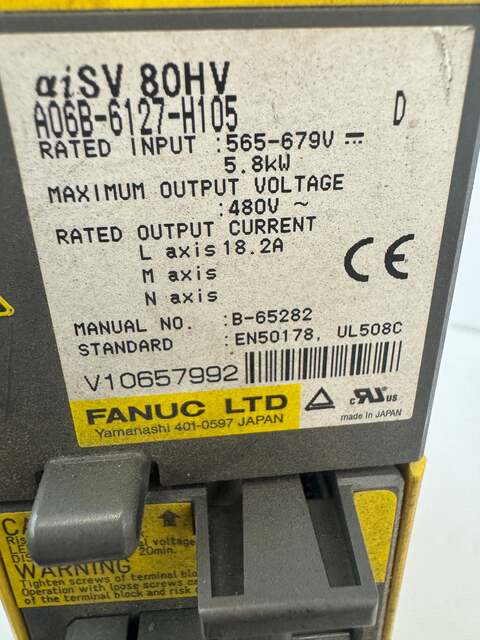

The Fanuc A06B-6127-H105 is an Alpha i series servo amplifier module, identified on the nameplate as aiSV 80HV. This unit is part of Fanuc's 400V class high voltage servo amplifier line used with 30i, 31i, 32i, and 35i Series A CNC control systems. The nameplate shows a rated input of 565 to 679 VDC from the link, with a maximum output voltage of 480 VAC and a continuous output rating of 5.8 kW. The L axis is rated at 18.2 A. Markings on the housing identify the unit as version D, manual number B 65282, and reference compliance standards EN50178 and UL508C. The CE mark and cULus mark are present. Serial number V10657992 is visible on the label. The amplifier is manufactured by Fanuc Ltd. in Yamanashi, Japan. This single axis servo module integrates with a Fanuc Power Supply Module (PSM) and connects to the CNC control through the FSSB fiber optic interface. It drives a single Alpha i or Beta i series AC servo motor and is commonly installed in machining centers, lathes, grinders, and other CNC equipment built around the Fanuc 30i family controls. The module includes a DC link charge confirmation LED on the front face and uses a Panasonic BR 2/3 AGCT4A backup battery for absolute encoder data retention. Buyers should confirm compatibility with their existing PSM rating, FSSB topology, and CNC parameter settings before installation.

Stock # 0226-143
