FANUC A06B-6114-H209 Servo Drive

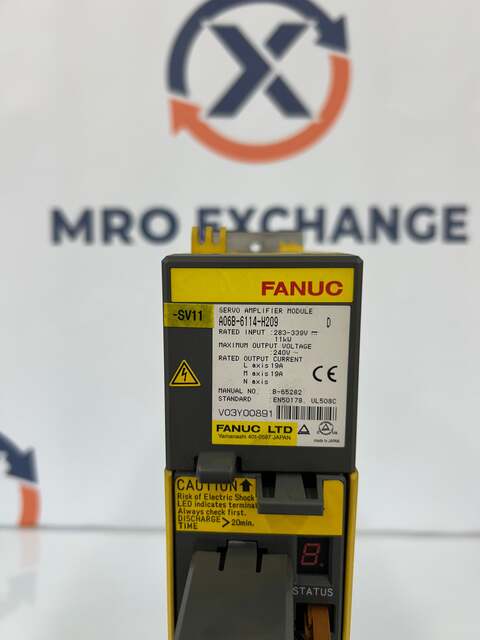

The Fanuc A06B-6114-H209 is a 2 axis Alpha i series servo amplifier module, model SVM2 80/80i, used in CNC machine tool drive systems. The nameplate identifies the unit with axis label SV11, manual number B-65282, and standard certification to EN50178 and UL508C. Rated input is 283 to 339V DC at 11 kW, with a maximum output voltage of 240V AC. Rated output current is 19A on the L axis and 19A on the M axis. The N axis position on the nameplate is unmarked for current value. Serial number is V03Y00891 and the revision marking is D.

The SVM2 80/80i is a dual axis FSSB interfaced servo drive module within the Fanuc Alpha i amplifier family, paired typically with aiPS power supply modules and aiSP spindle amplifier modules. It is commonly fitted to Fanuc i series CNC controls including 0i, 16i, 18i, 21i, 30i, 31i, and 32i platforms. The module supports compatible Alpha i and Alpha iS servo motors in the 8 to 22 kW class, including aiS 8/4000, aiS 8/6000, aiS 12/4000, aiF 12/3000, and aiF 22/3000 motor families.

Country of origin is Japan. The unit carries CE marking on the nameplate. Compatible wiring board and FSSB control card references are A16B 2203 0673 and A16B 2100 074x series. This MPN is part of the A06B 6114 series of Fanuc alpha i twin axis servo amplifier modules.
