EVA Film Production Lines, Roughly 13 Years Old, 2010 (2 available)

1. Chemical Compounding
Description: Chemicals
compounded in a reactor
to create additives used in
the formation of blending
chip

2. Raw Material Handeling
Description: Additives
and EVA resin mixed in a
mixer to create blending
chip

3. Extruding
Description: A formation
of EVA sheet is extruded
during this process and
conveyed onto Horizontal
Roll

Output Max.: 1200 kg/hr
Zone: 7 Zones
Screw Diameter: 143.4 cm

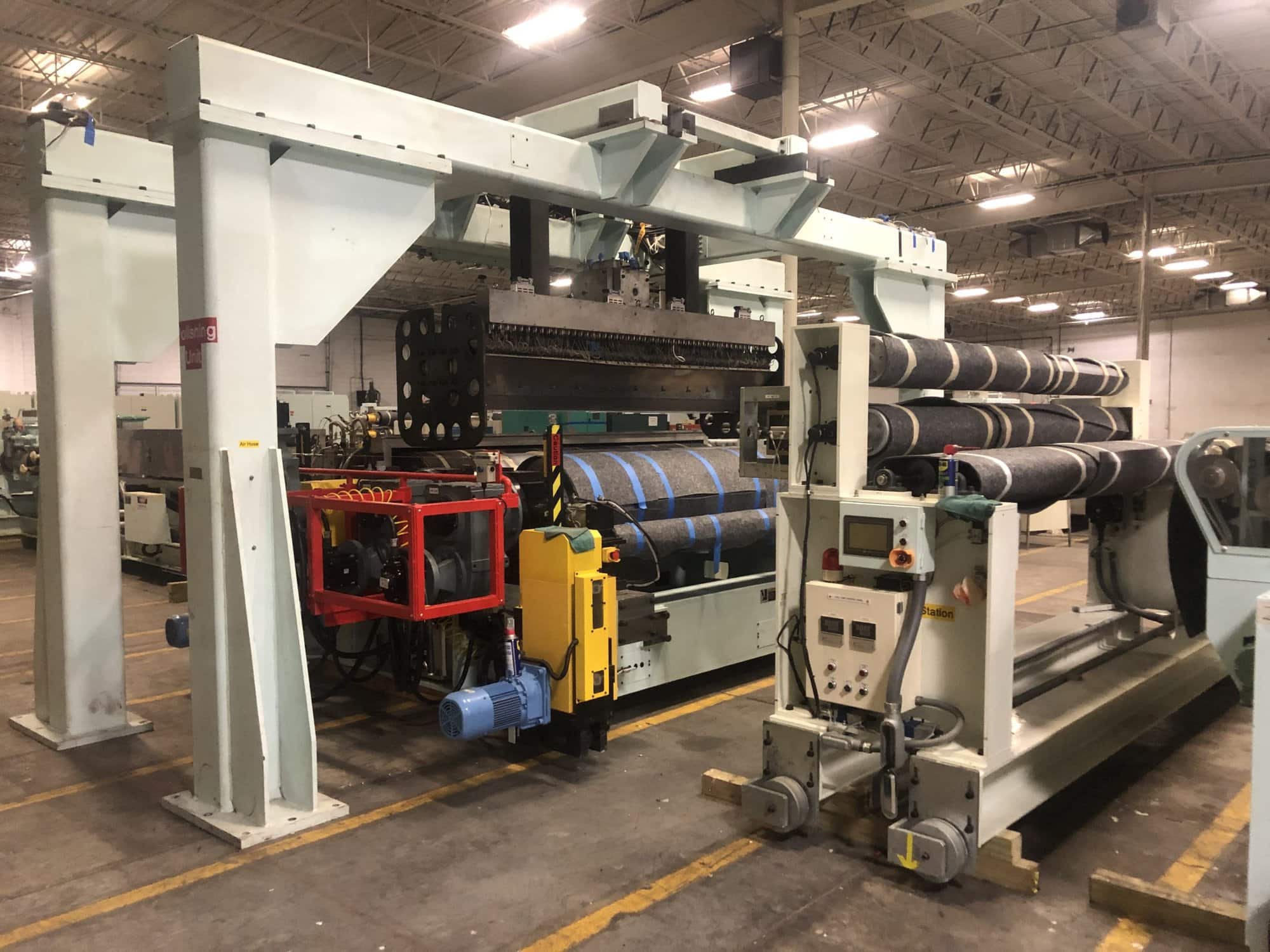

4. Casting
Description: Extruded
EVA sheet is cast onto
Horizontal Roll, which
then stretches out the
product

R1 (Rubber): Ø ×l Ø 614×2900
R2 (Casting): Ø ×l Ø 900×2200
R3: Ø ×l Ø 600×2200
Guide Roll: Ø ×l Ø 150 x2200

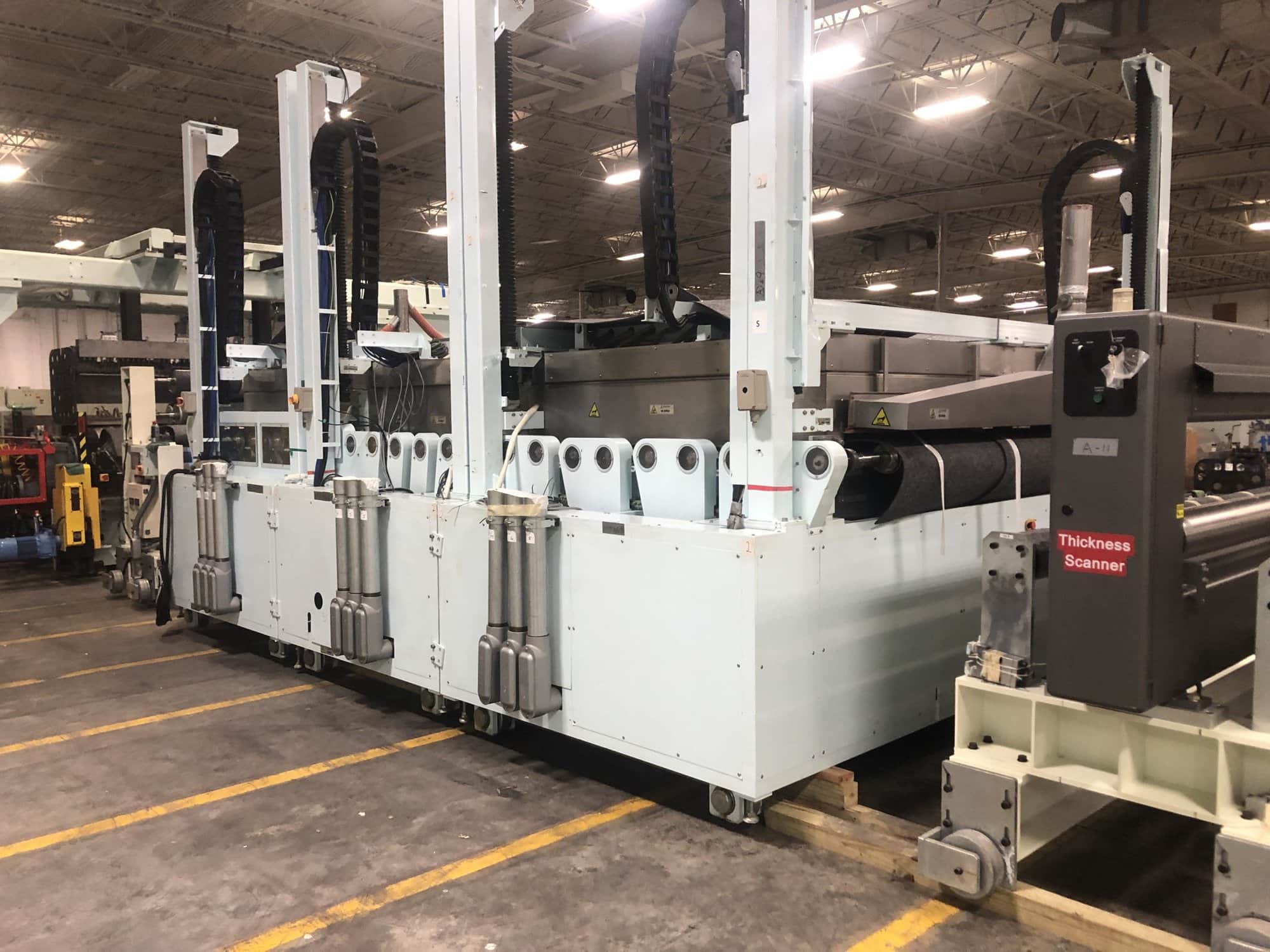

5. Annealing
Description: By heating
and cooling down EVA
sheet, heat shrinkage
feature is effectively
reduced

6. Embossing
Description: EVA sheet
is embossed with Vertical
Roll to enhance vapor
permeability

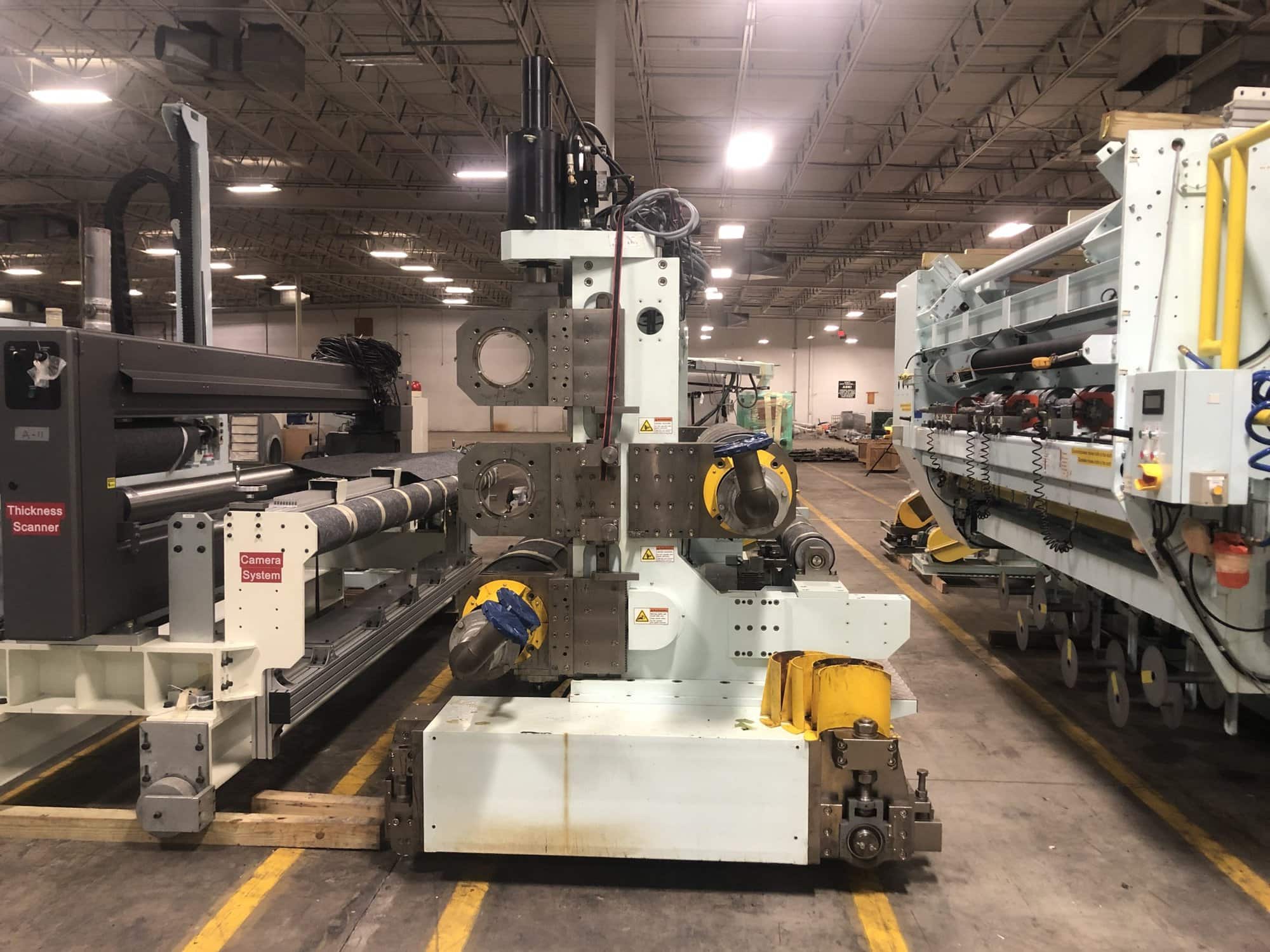

7. Thickness Measuring
Description: Thickness
measurer identifies
outliers and alerts to a
supervisor in real time

8. Detecting
Description: With
detecting cameras, foreign
materials on every product
can be alerted to a
supervisor in real time

9. Slitting
Description: Completed
sheets can be cut into half
or into any size as
instructed

10. Reclaiming
Description: Scraps
from slitting process are
sent back to be reused as
raw materials

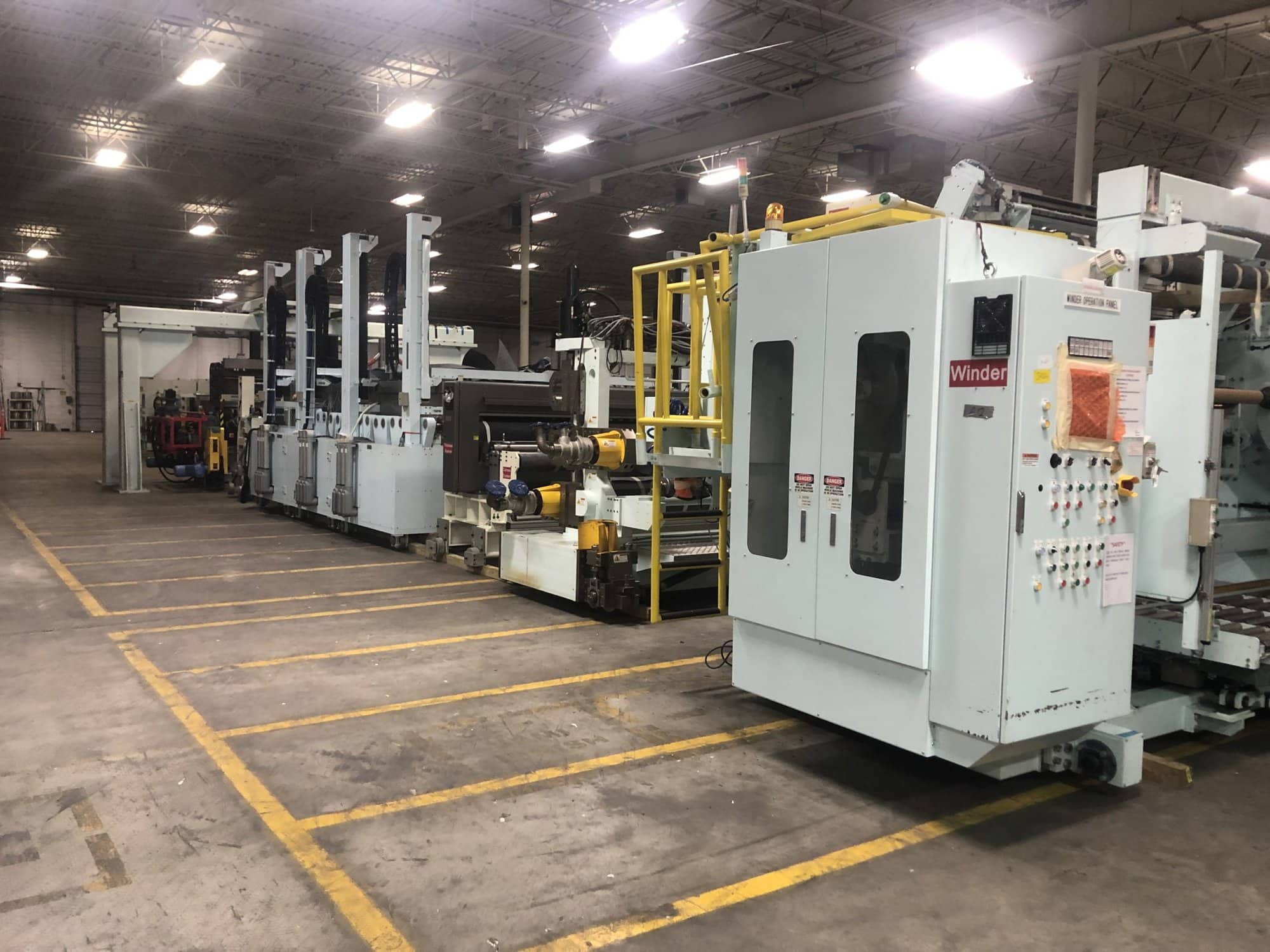

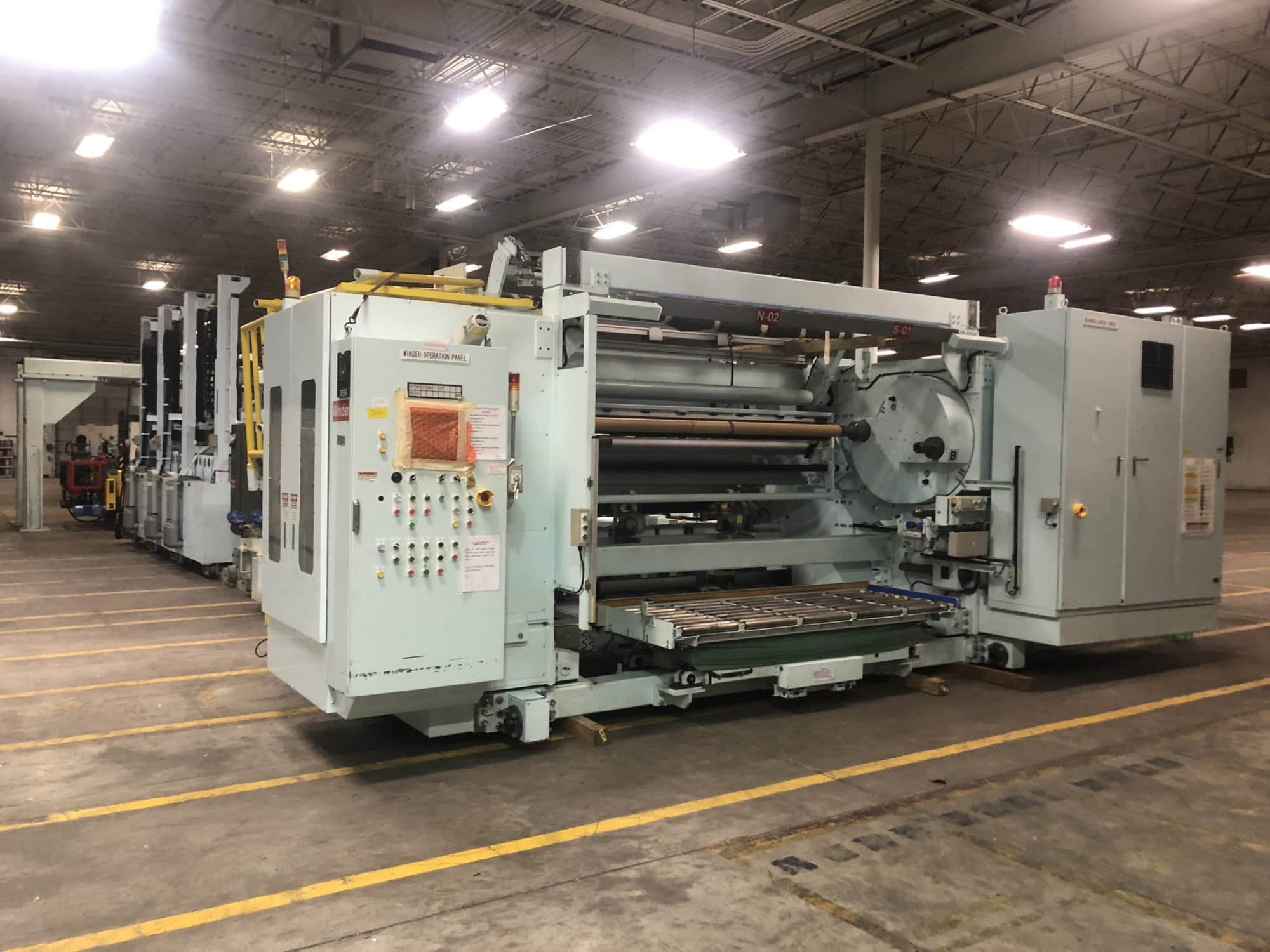

11. Winding
Description: Slittered
sheets are winded up by a
winder and then
transferred to packaging

Speed Max.: 50m/min
Before Trimming: 1000 ~ 2700mm
After Trimming: 900 ~ 2500mm
Wind Thickness: Max. 1000mm
Maximun Wind Wight Max.: 1400 kg/Roll

12. Packaging
Staff: 4 F/T, 12 Temp.
Description: Finished
products are packaged in
the packaging area and
transferred to the
warehouse

Vendor: Toshiba, Fujitekko
Sheet Thickness: 0.4~0.7mm
Production Speed: 40m/min
Main Weight Feeder: 500 ~ 1200 kg/hr
Sub Weight Feeder: 50 ~ 250 kg/hr

Roughly 13 Years Old, Only Used For ~6 Years

Willing To Sell Lines Separately
Contact Us For Individual Pricing

More Specs Available Upon Request
