Eurotech #Elite-Trofeo-B446-SY2, Multi-Tasking CNC Lathe 20" swing, 2" bar, 9.6" machining diameter, 2.17" bore, 2012

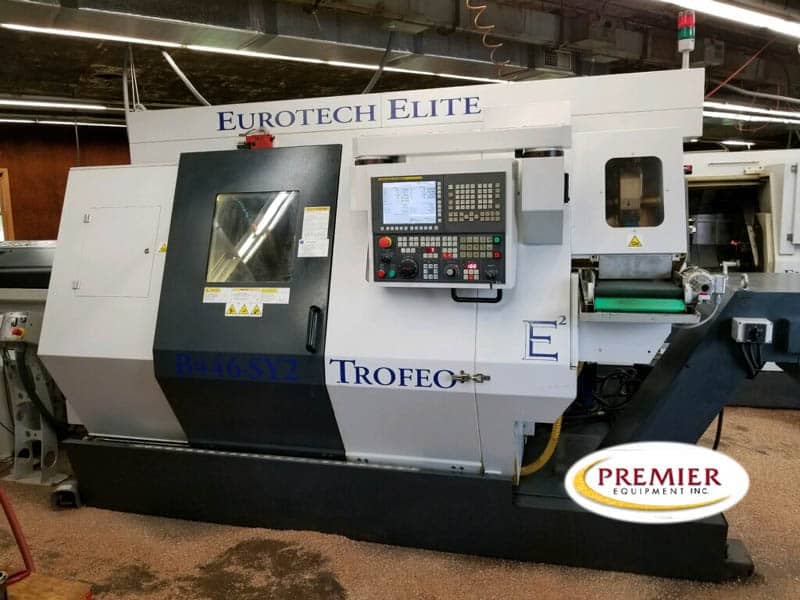

Eurotech Elite Trofeo B446-SY2 Multi-Tasking CNC Lathe

Specifications (subject to buyer verification):
Bar capacity – 2”
Max. machining diameter – 9.6″
Max. swing over diameter – 20″
MAIN SPINDLE
Max. speed – 5000 RPM
Spindle Nose – ASA-5
Spindle Bore – 2.17″
Motor – 20HP
C-axis: least input value – .001 Deg
Sub Spindle
Max. speed – 5000 RPM
Spindle Nose – ASA-5
Spindle Bore – 2.17″
Motor – 15HP
Upper Turret
No. of Stations – 12
Lower Turret
No. of Stations – 12
Machine with chip conveyor – 173 x 85 w x 89 h
Machine weight with chip conveyor – Machine weight with chip conveyor

Equipped With (subject to buyer verification):
Fanuc 31i
2” Bar Capacity Option
Top Automazioni Fusion Bar feed (Italian)
Chip Conveyor
Auto Parts Catcher with Exit Conveyor
Collet Chucks on Main and Sub (B52 & B42 on Main / B42 on Sub Spindle)
(4) Live Holders (2 Horz / 2 Vertical)
