Erectorbot #EB12105HD, 4-axis Hybrid Multi-head 3d Printing System, 10' x5' Gantry, Arduino Control, 2025

ErectorBot Model EB12105HD large-format additive manufacturing system, manufactured in 2025. This 4-axis hybrid multi-head CNC 3D printing platform features a 10′ x 5′ standard two-carriage gantry, complete 12′ X-axis rails, CNC/Arduino 9-axis control center, Blue Zircon Blaster 3/8″ pellet extruder with hot cup, and non-heated base. Includes two 75 mm brass high-flow nozzle kits, integrated pre-programmed Intel-PC server/workstation kiosk, LED HDMI monitor, and installed application-tailored software.

Manufacturer: ErectorBot, Inc.

Model: EB12105HD

Year: 2025

Machine type: Large-format gantry 3D printing / additive manufacturing system

Motion configuration: 4-axis CNC hybrid multi-head system

Controls: CNC / Arduino with 9-axis control center

Operating mode: Multi-head HD mode with legacy-mode capability

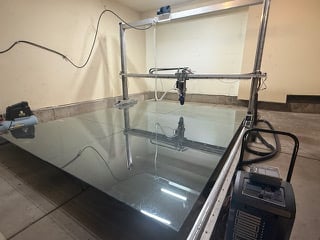

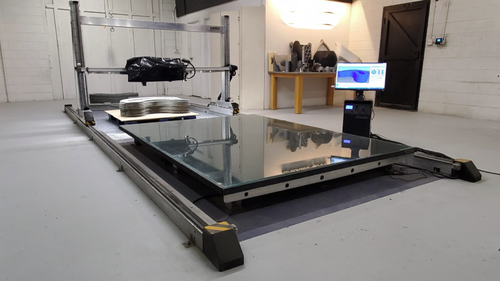

Gantry configuration: 10′ x 5′ standard gantry with two carriages

X-axis rail system: 12′ complete X-axis rails

Extruder: Blue Zircon Blaster pellet extruder

Extruder size: 3/8″ pellet extruder with hot cup, identified as experimental

Base: Non-heated base

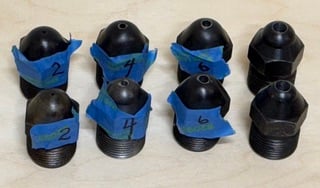

Nozzle kits: Includes (2) high-flow nozzle kits

Nozzle material and size: 75 mm brass nozzles

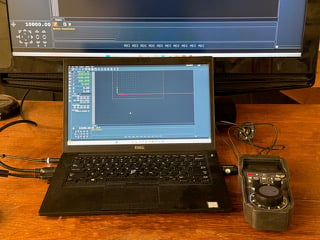

Operator terminal: Integrated server/workstation/kiosk terminal

Computer: Pre-programmed Intel PC

Monitor: LED HDMI monitor

Software: Installed and tailored for the purchaser’s process/application needs

Remote capability: Remote support/server setup for customer workflow

Electrical: 110 V listed for multi-head / Arduino legacy mode

Included: Machine accessories, gantry, two carriages, complete X-axis rails, pellet extruder, two high-flow nozzle kits, control center, integrated workstation, Intel PC, and monitor
