Engineered Air Airtex #LM46C/C, LOT of 7 Containerized Outdoor Air Handling Unit, 40,000 CFM, 40"/44" fans, 60/25 HP, 460 V., 3 phase, UL/ETL listed, new, 2020

Overview
These brand new, never installed Engineered Air LM46C/C Air Handling Units are designed for large-scale commercial and industrial HVAC applications requiring substantial air movement capacity. This lot of seven (7) identical units delivers exceptional performance with proven Airtex Manufacturing design and construction. These containerized outdoor units provide reliable climate control for facilities requiring high-capacity air handling with both heating and cooling capabilities, featuring a maximum airflow of 40,000 CFM.
Design and Performance
- Airflow Capacity: 40,000 CFM (Supply & Return)
- Model: LM46C/C

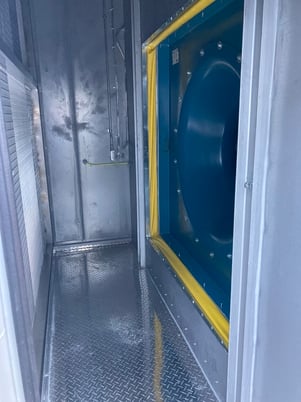

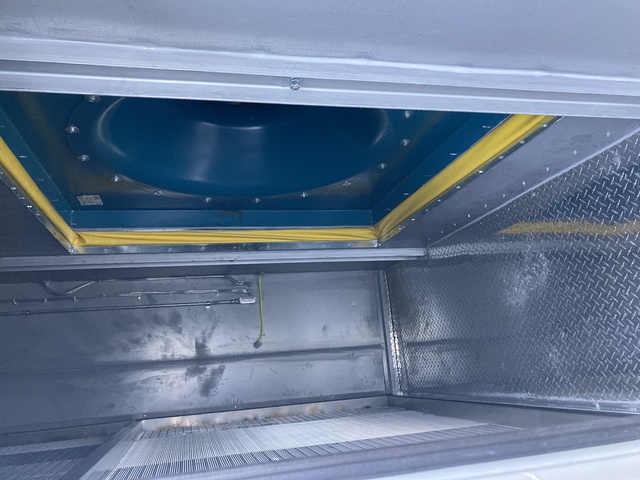

- Supply Fan Size: 40" diameter
- Return Fan Size: 44" diameter

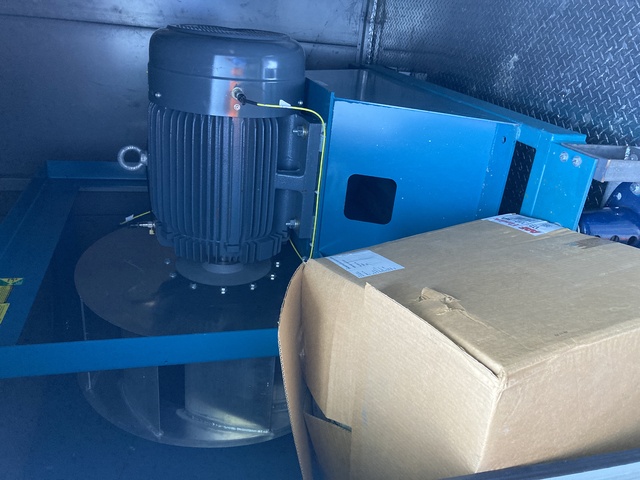

- Supply Motor: 60 HP, 94.5% efficiency
- Return Motor: 25 HP, 93% efficiency
- External Static Pressure: 3.0" w.c. (Supply), 1.0" w.c. (Return)
- Temperature Rise: 43°F (Hot Water Heat)
- Electrical: 460V, 3-Phase, 60 Hz
- Minimum Operating Temperature: -20°F

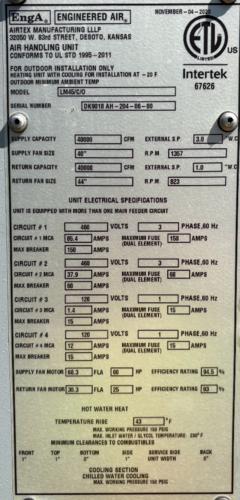

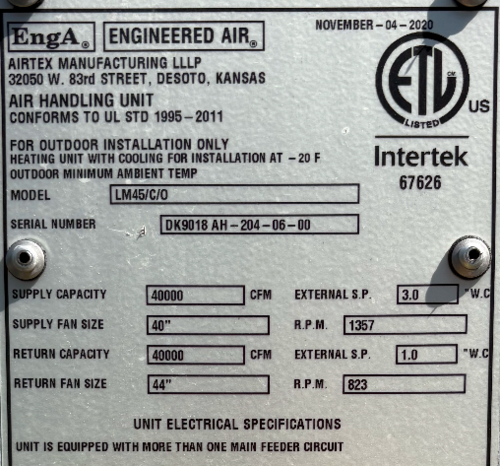

- Serial Number: DK9018 AH-204-06-00
Key Specifications
- Condition: Brand New - Never Installed
- Manufacturer: EngA / Airtex Manufacturing LLP (Desoto, Kansas, USA)
- Model: LM46C/C
- Quantity Available: Seven (7) Units

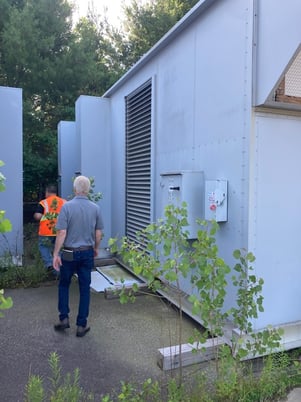

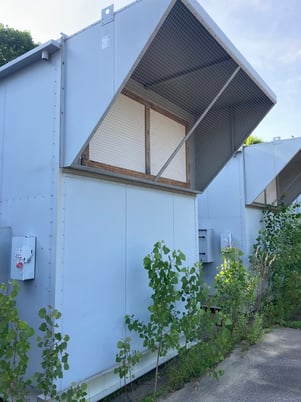

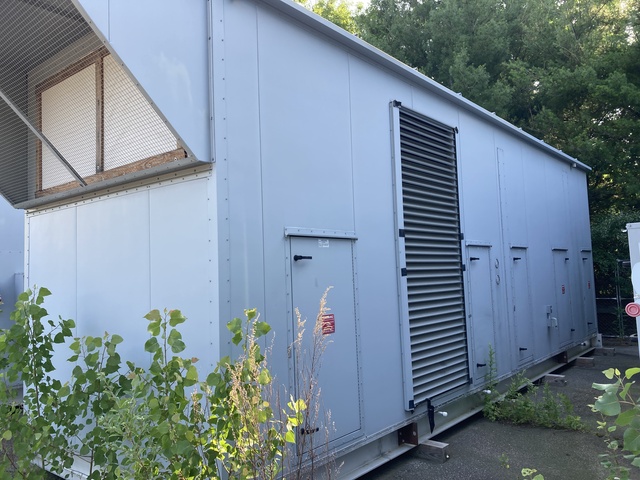

- Unit Type: Containerized Outdoor Air Handling Unit
- Certification: UL/ETL Listed (Intertek 67626)
- Compliance: UL STD 1995-2011

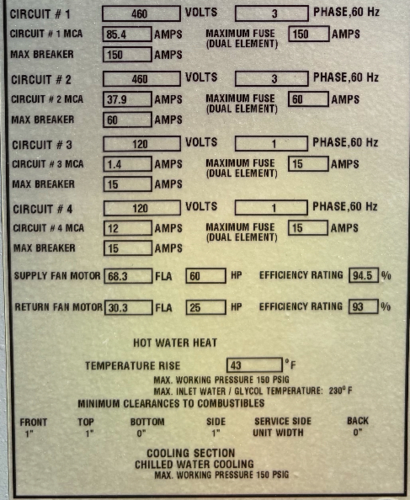

Electrical Requirements
- Circuit #1: 85.4A MCA, 150A Max Breaker, 460V/3Φ/60Hz
- Circuit #2: 37.9A MCA, 60A Max Breaker, 460V/3Φ/60Hz
- Circuit #3: 1.4A MCA, 15A Max Breaker, 120V/1Φ/60Hz
- Circuit #4: 12A MCA, 15A Max Breaker, 120V/1Φ/60Hz
- Maximum Fuse Ratings: 160A (Dual Element)
Ideal Applications
- Large Commercial Office Buildings
- Industrial Manufacturing Facilities
- Distribution Centers and Warehouses
- Airport Terminals
- Convention Centers
- Large Retail Spaces
- Hospital and Healthcare Facilities
- Educational Campus Buildings
- Data Centers (with appropriate filtration)
- Multi-Story Commercial Complexes
Benefits
- Ultra-high-capacity 40,000 CFM rating for large-scale applications
- High-efficiency motors (94.5% and 93%) for reduced energy costs
- Dual fan design for optimal air distribution and pressure control
- Hot water heating capability with 43°F temperature rise
- Chilled water cooling section for year-round climate control
- Containerized outdoor design eliminates need for mechanical room space
- Weather-resistant construction rated to -20°F minimum ambient
- Multiple electrical circuits for flexible control options
- Brand new units with full manufacturer specifications
- Bulk quantity (7 units) available for large projects or multiple buildings
Additional Information
- Condition: Brand New - Never Installed
- Manufacturer: EngA / Airtex Manufacturing LLP
- Model: LM46C/C
- Manufacturing Location: Desoto, Kansas, USA
- Year of Manufacture: November 2020
- Total Motor Horsepower: 85 HP per unit (60 HP supply + 25 HP return)
- Total Available Capacity: 280,000 CFM (7 units × 40,000 CFM)

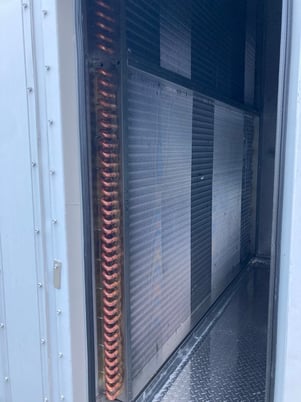

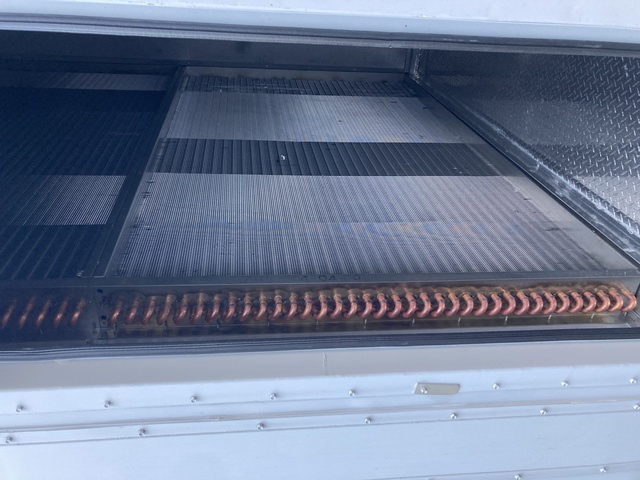

- Cooling Type: Chilled Water Cooling Section
- Heating Type: Hot Water Heat
- Installation: Outdoor rated - no indoor mechanical room required
Technical Notes
- Supply and return fans sized for optimal performance (40" and 44" respectively)
- Multiple electrical circuits allow for sophisticated control strategies
- High static pressure capability (3.0" w.c.) suitable for extensive ductwork
- Clearance requirements marked on all sides for proper installation
- ETL certified to ensure safety and code compliance
Location: Ohio
