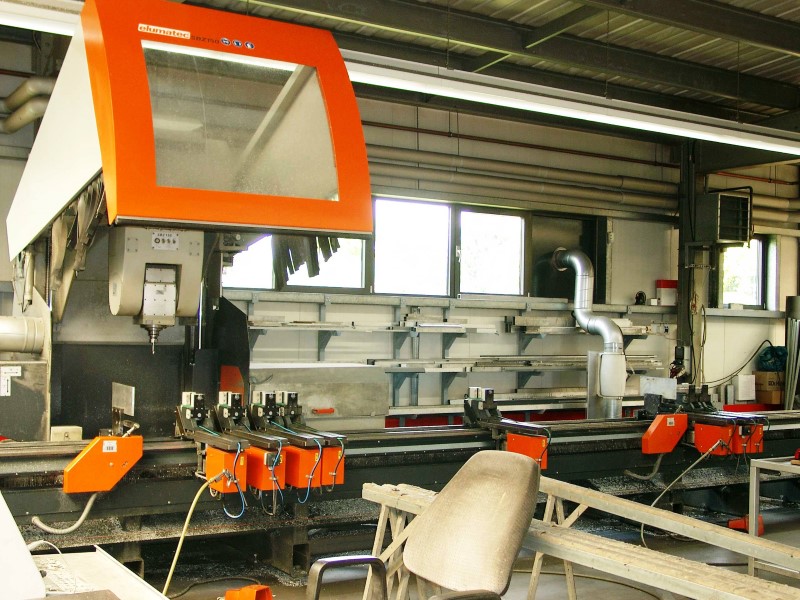

Elumatec #SBZ-150, Profile Machining Center, 7800 mm X, 39" Y, 25" Z, 230 FPM X, 131 FPM Y & Z, 3.94" cutting tool diameter, 15.75" saw blade diameter, 24000 RPM, 2009

$170,240 USD

Request Formal Quote

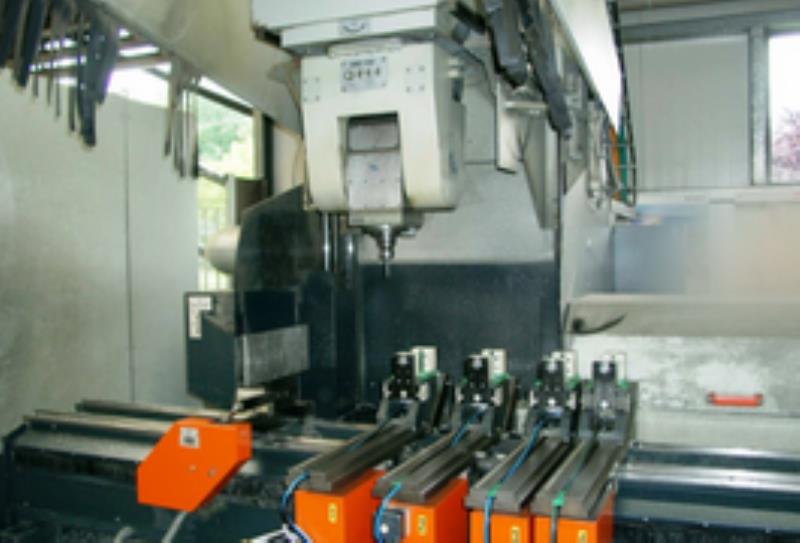

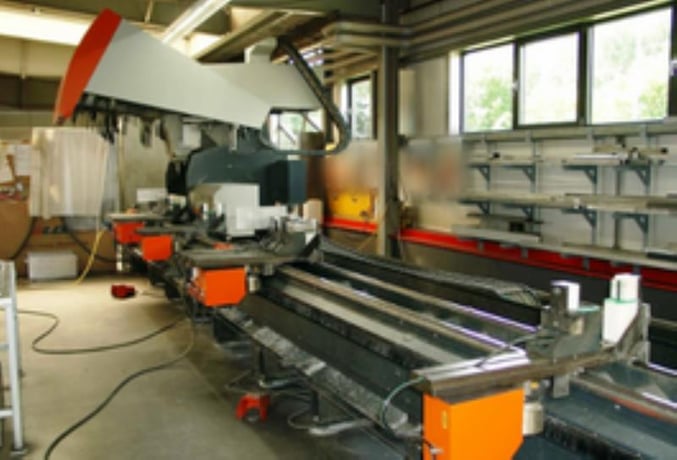

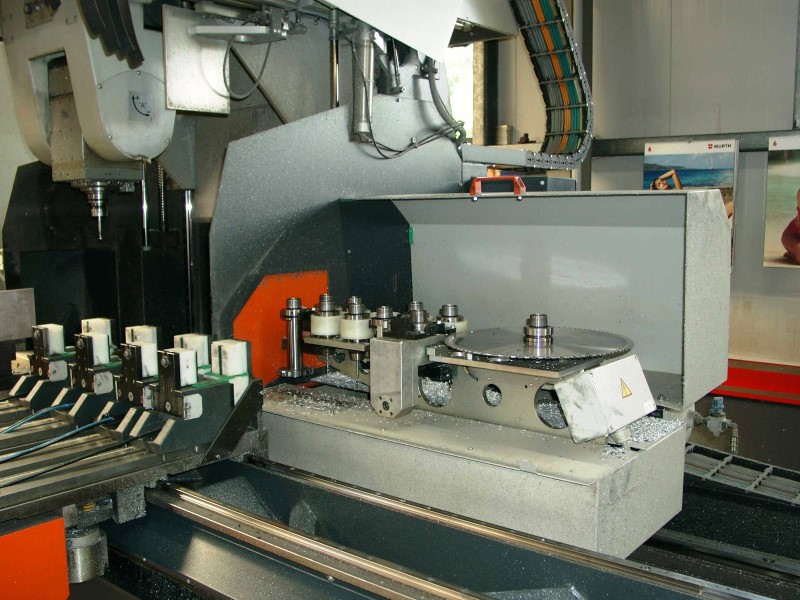

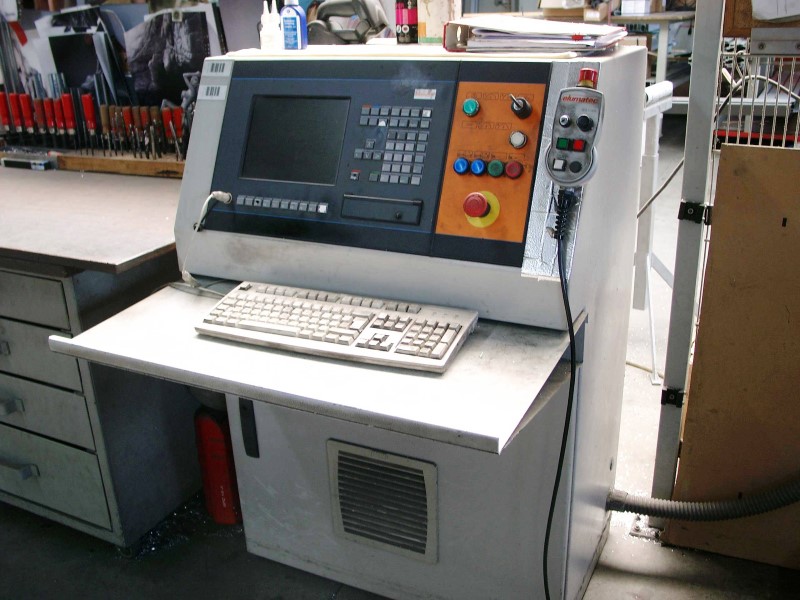

ELUMATEC SBZ-150 CNC Profile Machining Center - 7.2 Meter 5-Axis Profile Machining Center designed for economical and efficient machining of PVC, aluminium and thin-walled steel profiles. All operations, such as routing, drilling, tapping, thread milling, notching and sawing, are performed while the profile bar is stationary to protect the profile surfaces.Versatile 6-sided machining from below with an angle head and operator software with graphic 3D display of workpieces. (2) Separate working zones enable machining in shuttle operation. The tooling magazine can be equipped with (9) standard tools, five special tools (angle routing head and and special cutters) and one saw bladeSpecifications: Max. machining length with profile end machining, 7200 mm (284")Max. machining length without profile end machining, 7520 mm (296")Traverse X-axis: 7800 mm / V max. 70 m/Min (230 FPM)Traverse Y-axis: 1000 mm (39") / V max. 40 m/Min (131 FPM)Traverse Z-axis: 630 mm (25") / V max. 40 m/Min (131 FPM)A-axis pivoting angle: +/–110, user programmable in 1/10 stepsC-axis rotating +/–182, user programmable in 1/10 stepsMax. cutting tool dia: 100 mm (3.94")Max. disc milling cutter dia: 100 mm (3.94")Max. saw blade dia: 400 mm (15.75")Max. Spindle speed: 24,000 RPMEquipped with: -- Tool changer for (8) tools -- Touch Screen Windows operating system -- 15" Flat screen display, USB ports and network connection (RJ45 10/100 MBit) -- Light Barrier for operator protection -- (4) Horizontal Material Clamps -- Pulsed Coolant System -- Barcode scanner -- Automatic length measuring -- Automatic clamping device with collision detection -- Tool holder set, holder for end milling tool -- Rotation in the head for angle head -- Tool place for angle headDimensions: 8000 x 3350 x 2700 mm (315" x 132" x 106")Weight: 4900 kG (10,800 Lbs)NOTE: The machine is in excellent condition with only 3400 spindle hours on the meter and ready for immediate shipment. Included in the price... “Full Service Logistics"; from Overseas Suppliers to your Door. …Professional Dismantling by ELUMATEC Technician, Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
