For Sale by KD Machinery
Description

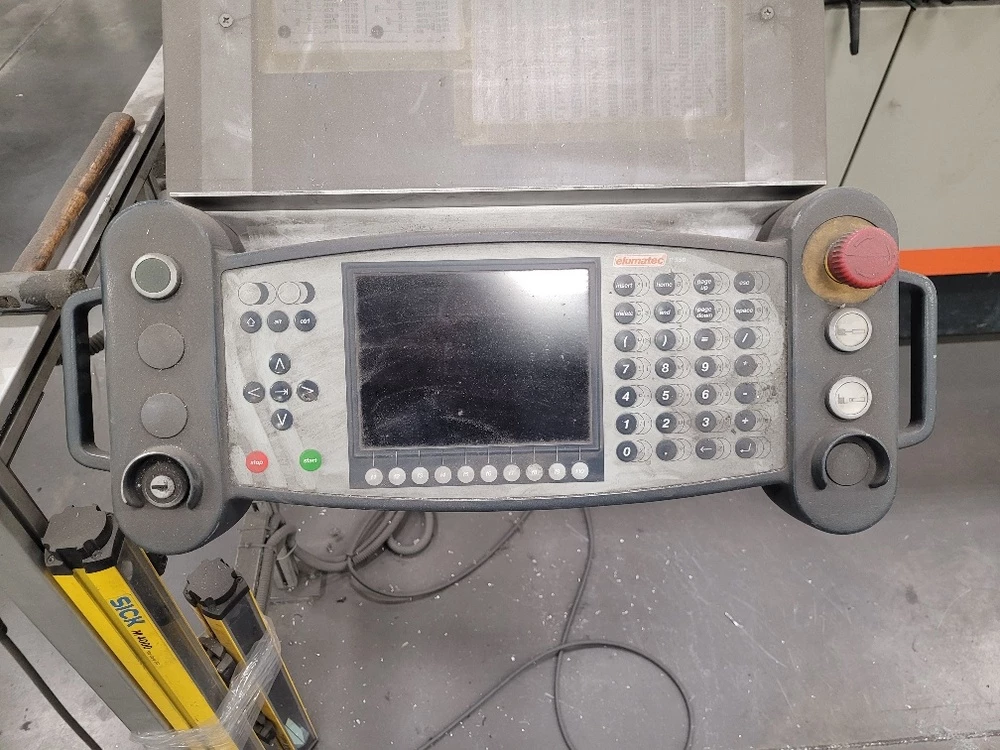

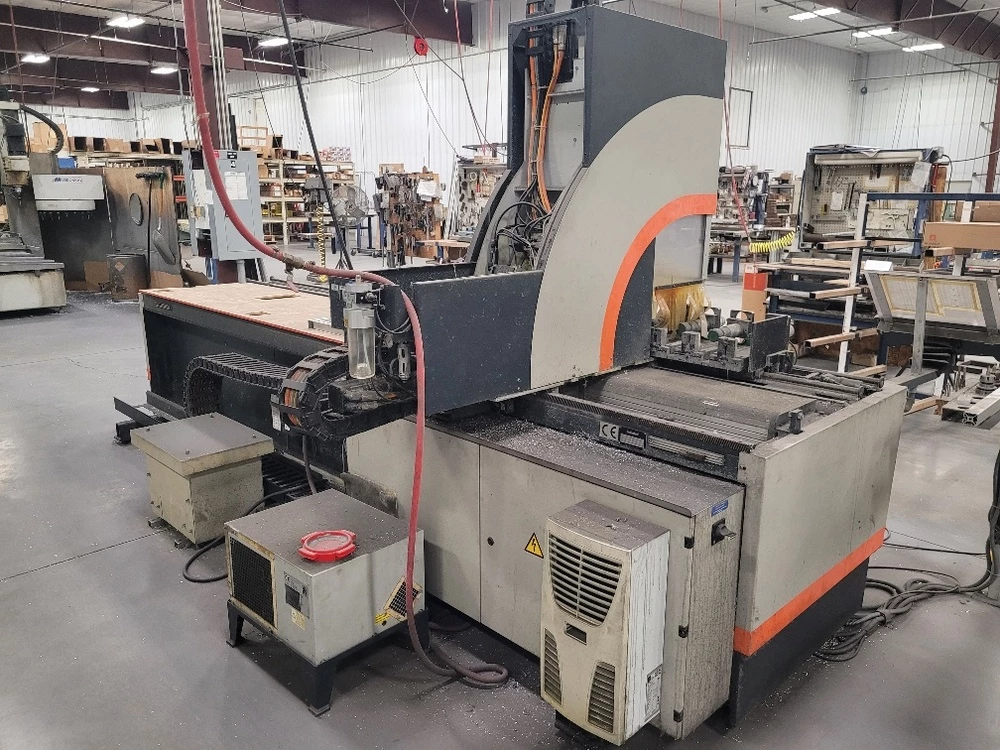

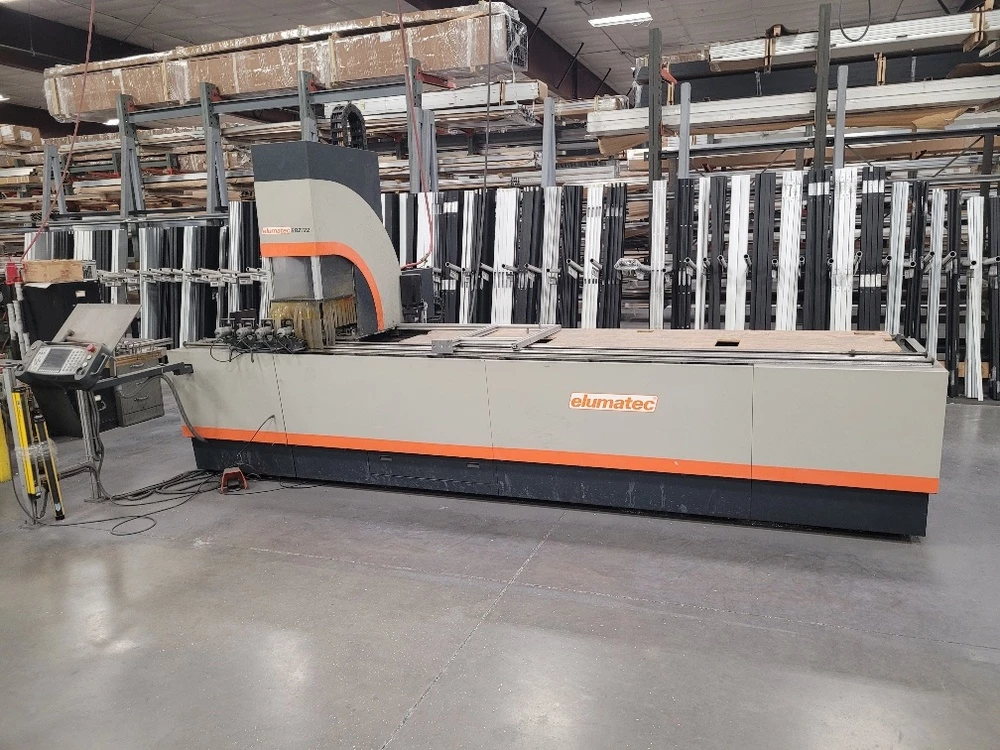

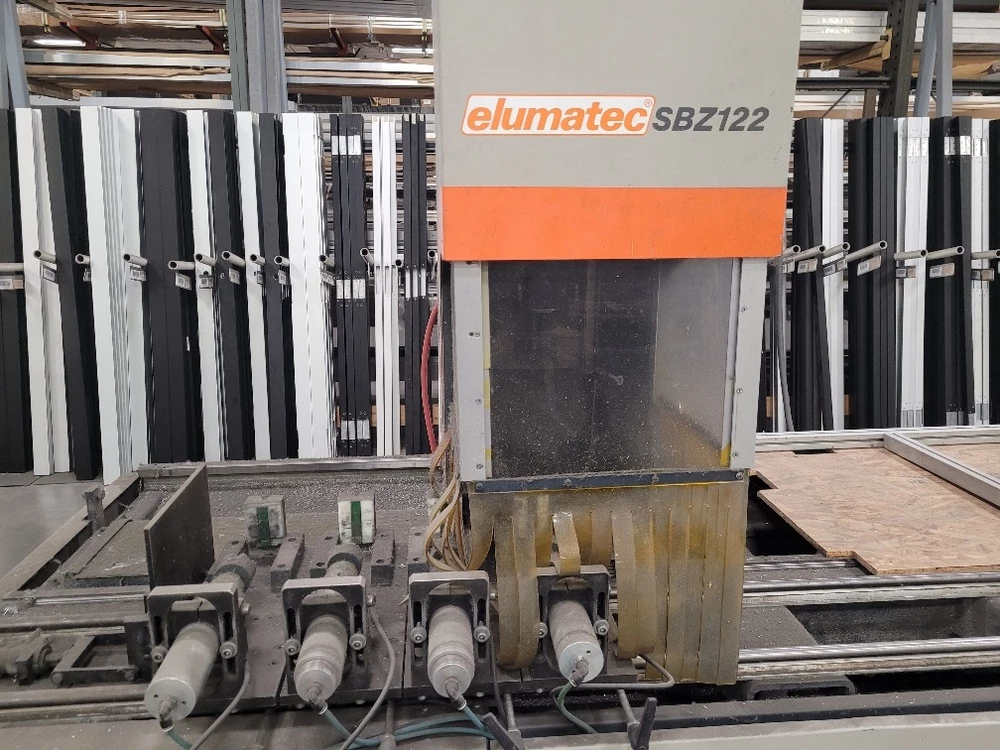

Used Elumatec SBZ 122/20 (2007) CNC Router for Sale. This 3-axis profile machining center is equipped with an Elumatec E 550 control, 151.5″ mechanical X-axis stroke with roughly 137.7″ maximum effective machining length, 13.75″ Y-axis travel and 11″ Z-axis travel. The air-cooled routing spindle delivers 8.5 HP at speeds up to 21000 24000 RPM with an HSK-F63 tool taper and a 4-position automatic tool tray/magazine. Rapid traverse reaches 1968 IPM on X and 1176 IPM on Y and Z. A 90 right-angle milling/routing head allows processing on profile sides, front, rear and end faces, handling aluminium, PVC and steel profiles up to 3 mm wall thickness. Single station, approximately 182″ × 81″ × 100″ and 4000 lbs. Two machines available inquire for package price. Available for inspection under power. See more used CNC routers, then
| Number of Axis | 3 |
|---|---|
| Control | Elumatec E 550 |
| X-Axis Travel (Mechanical Stroke) | 151.5" |
| Max Effective Machining Length | ~137.7" |
| Y-Axis Travel | 13.75" |
| Z-Axis Travel | 11" |
| Tool Changer Capacity | 4-Position Automatic Tool Tray/Magazine |
| Rapid Traverse Rate | Up to 1968 IPM on X-Axis; Up to 1176 IPM on Y and Z Axes |
| Spindle Speed | Up to 21000 24000 RPM |
| Spindle Power | 8.5 HP |
| Footprint | Approx 182" × 81" × 100" |
| Weight | Approx 4000 Lbs |
| Note | (2) Machines Available - Inquire for Package Price |
