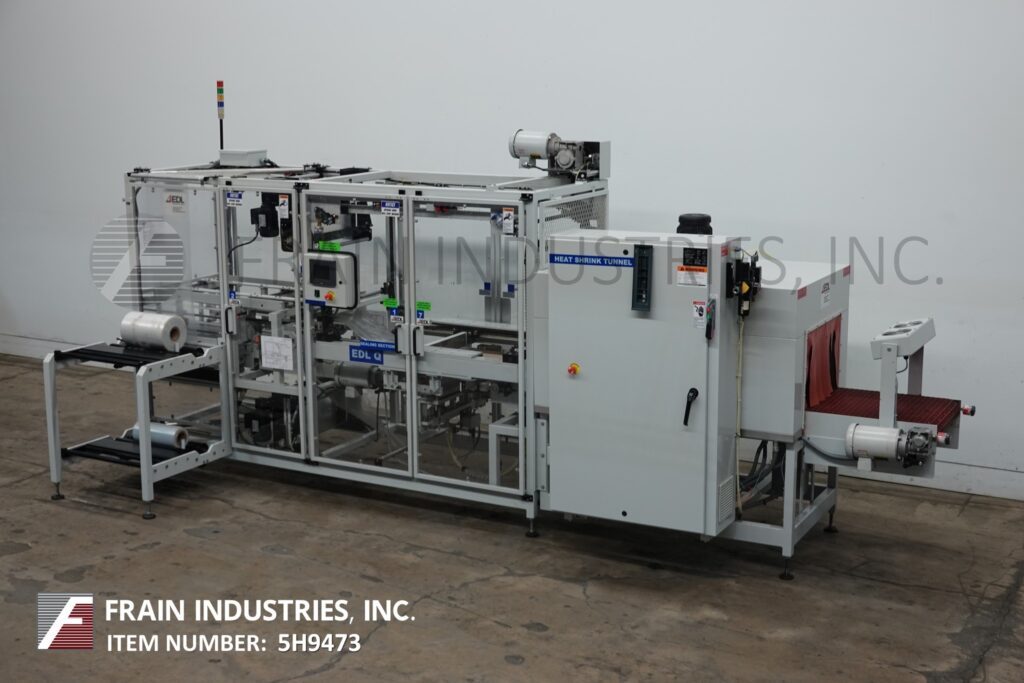

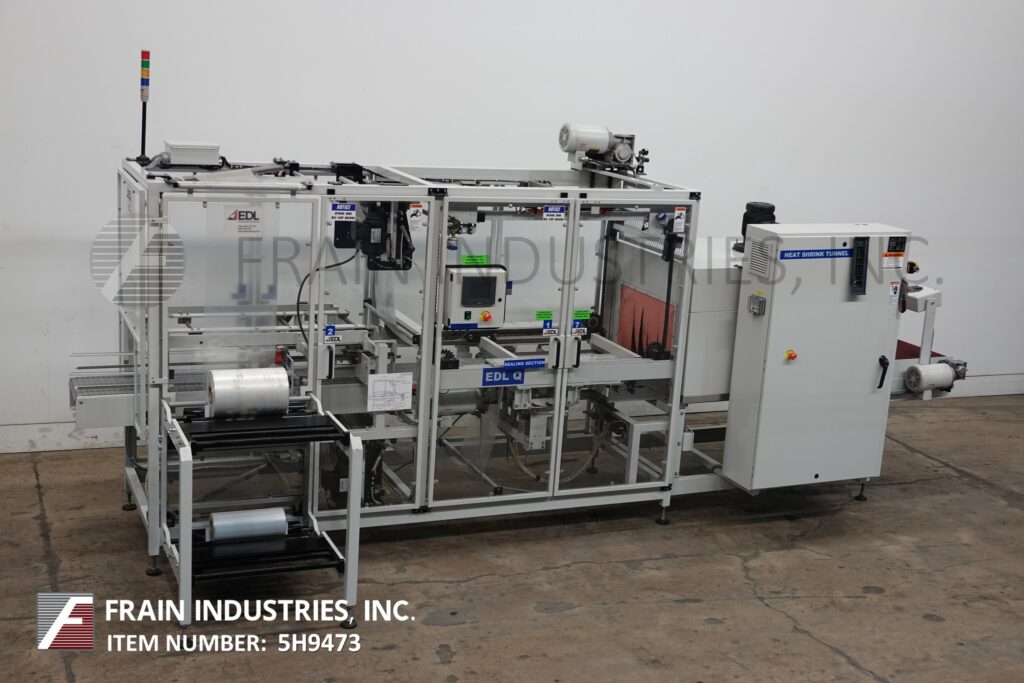

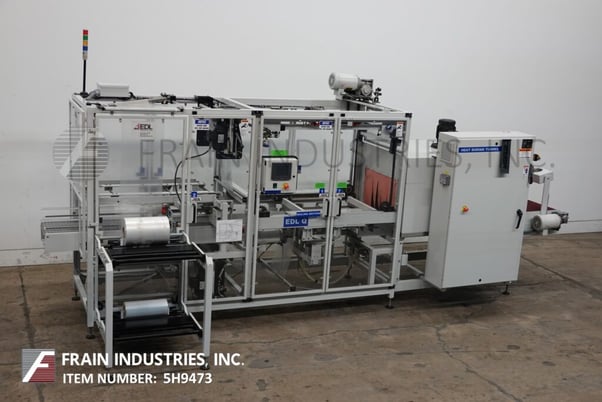

EDL #FBA22-12, inline, continuous motion, bundler & integrated shrink tunnel, rated up to 55 bundles per minute, mounted on heavy duty frame with status light bar & interlocked safety guarding

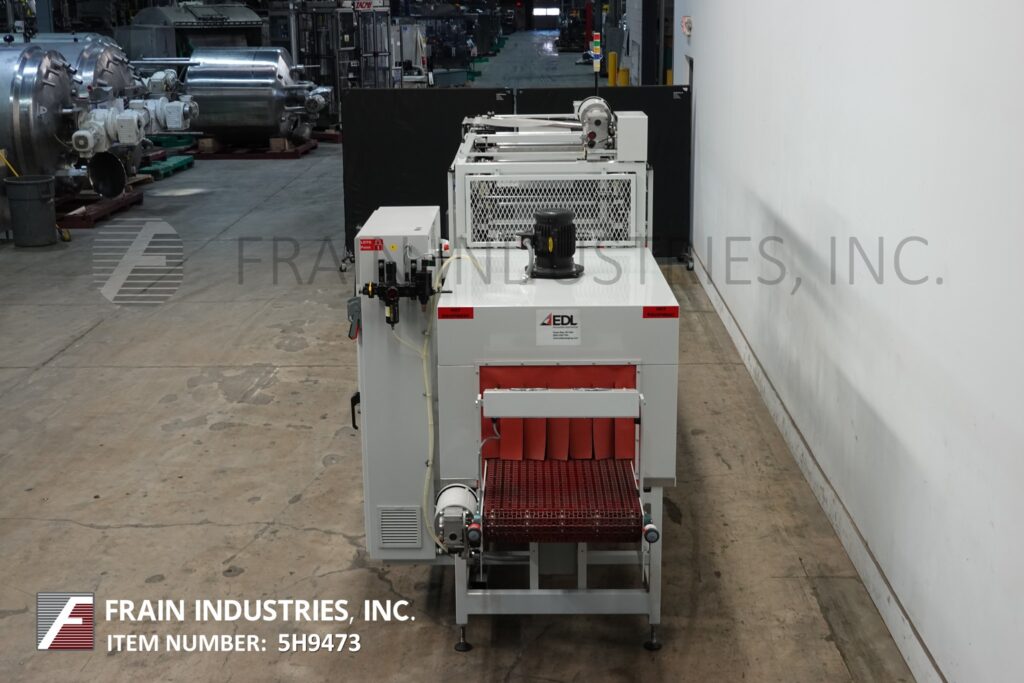

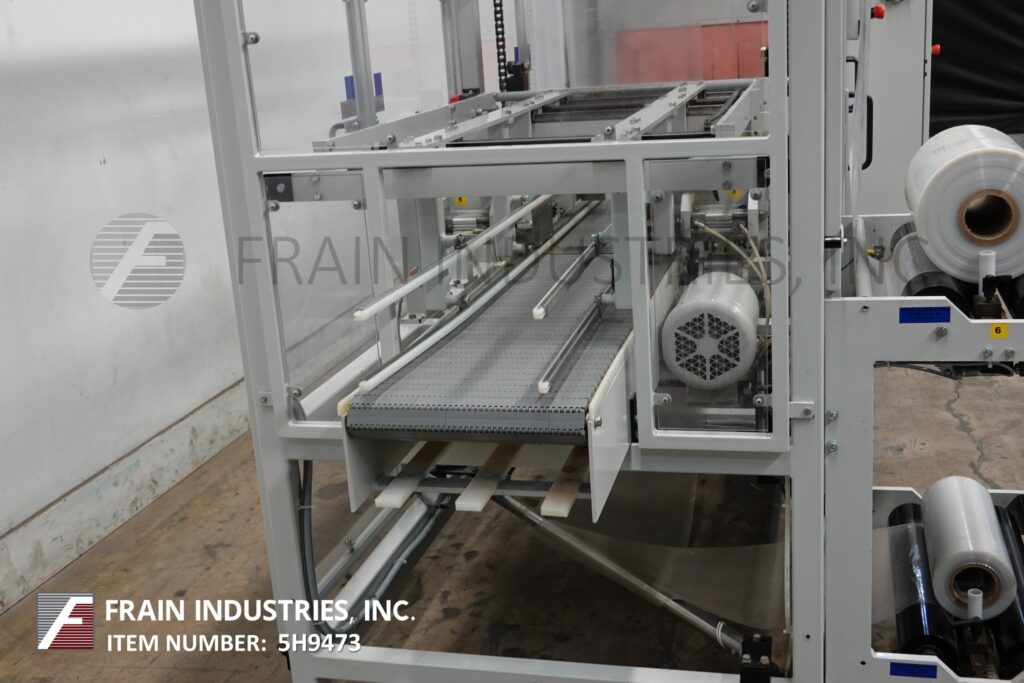

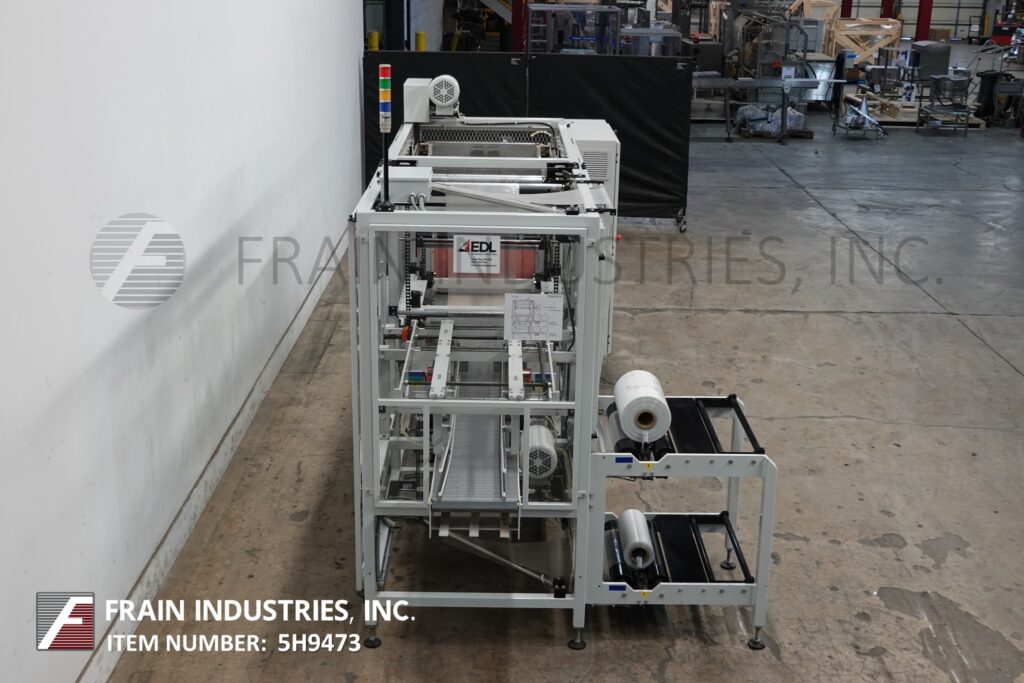

EDL, inline, continuous motion, bundler and integrated shrink tunnel. Rated up to 55 bundles per minute – depending on materials and application. Product size range: 7" to 28" in Length x 6" to 22" in width x 4" to 9" in Height. Equipped with 40" long x 14" wide in feed conveyor, 45" long x 14" wide metering conveyor with pneumatic gate indexing, 23½" wide hot impulse seal jaws set on 30" centers stream flight bar, side mounted film racks, with film rolls up to 22" in width; and 14" OD. Single zone shrink tunnel with 24" wide flex link conveyor and 24” in width x 16" in height aperture and 60" long chamber and top mounted blower motor. Control panel has Allen-Bradley controller with touch screen HMI. Mounted on heavy duty frame with status light bar and interlocked safety guarding.

OAD: 222"L x 78"W x 93"H
