Manufacturer: Ecodyne Mrm
Stock # U-3876
1 / 9
Click to zoom in
1 / 9
For Sale by Heat Treat Equipment Co
Surplus Record Dealer Since 2013
Location: Canton, MI
Contact John Becker
Phone Number: 734...> Show Phone Number 734-331-3939
Let the seller know you found their listing on Surplus Record!
Description

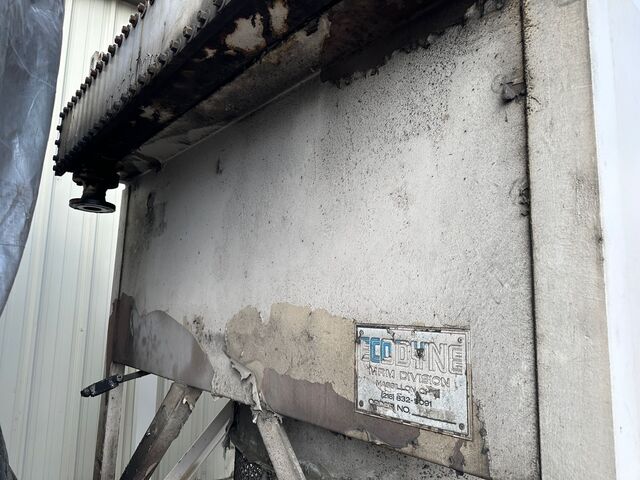

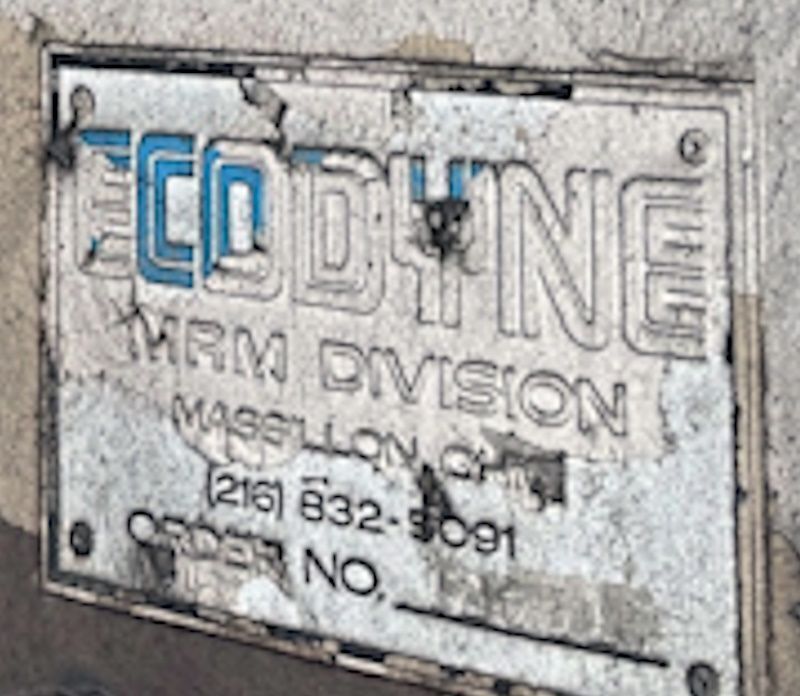

Manufacturer: Ecodyne MRM

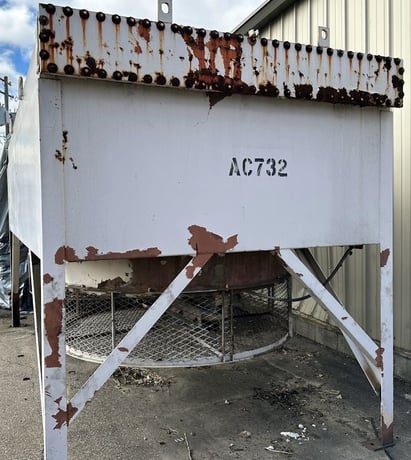

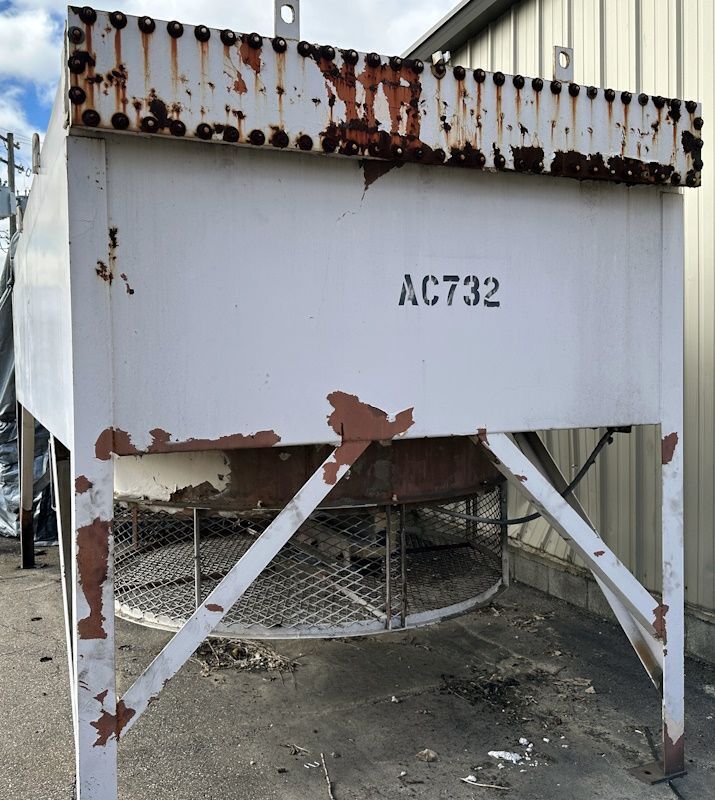

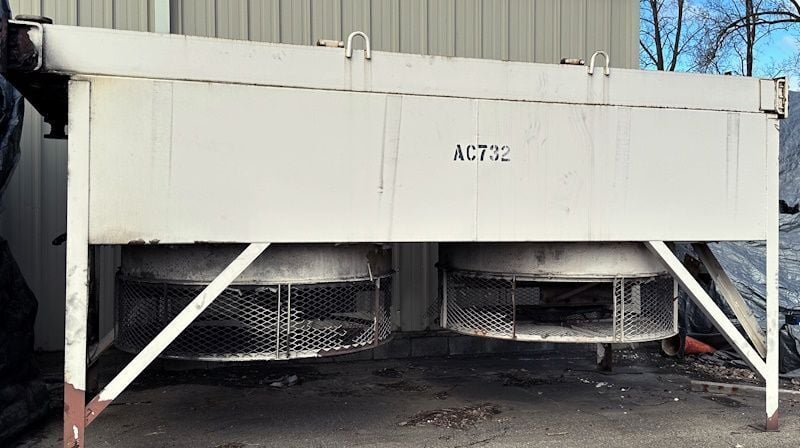

Type: Quench Oil-to-Air Heat Exchanger

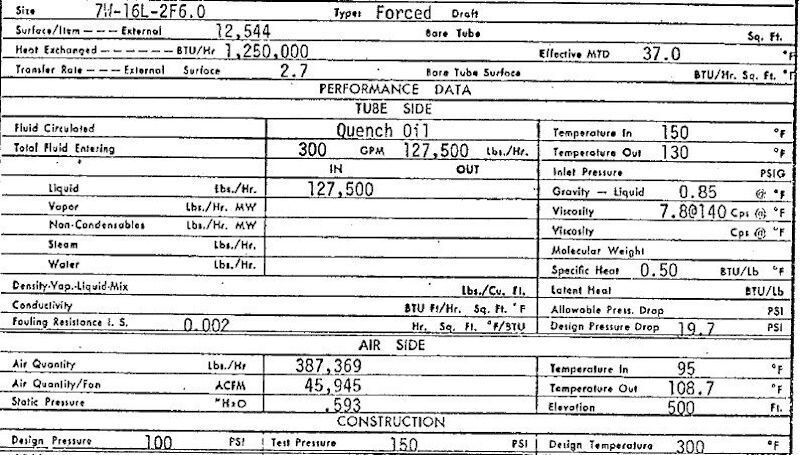

Size: 7W-16L-2F6.0
Serial Number: 12831
Heat Exchanged: 1,250,000 BTU/hr
Tube Side: Quench Oil Temp: In 150°F, Out 130°F
Air Side: Quench Oil Temp: In 95°F, Out 108.7°F
Overall Dim’s: 17’ long x 7’5” wide x 8’4” high
Inlet/Outlet: 3” oil inlet / 2.5” oil outlet
Power: 230/460 Volts

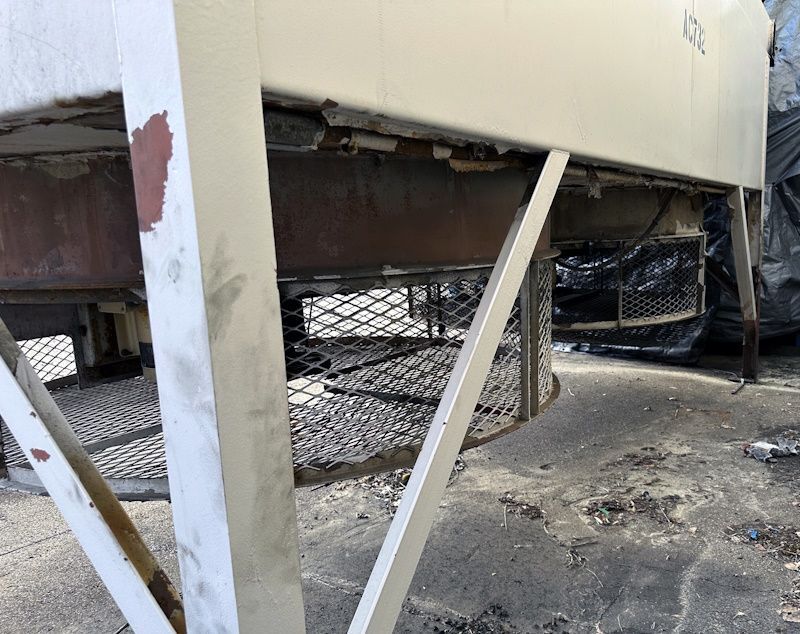

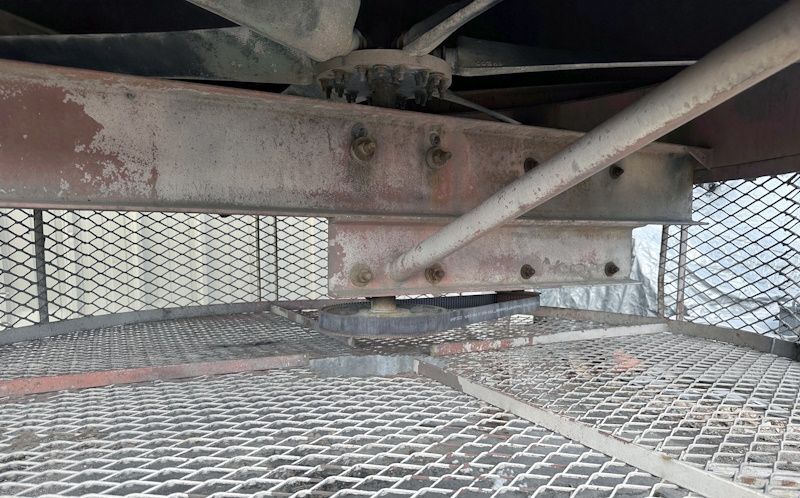

Fans: Two (2) 6’ diameter blades, belt driven

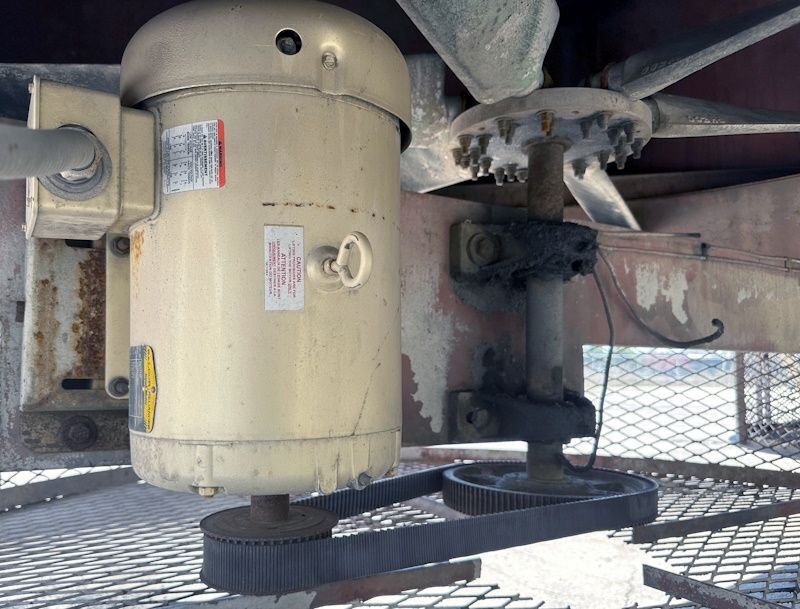

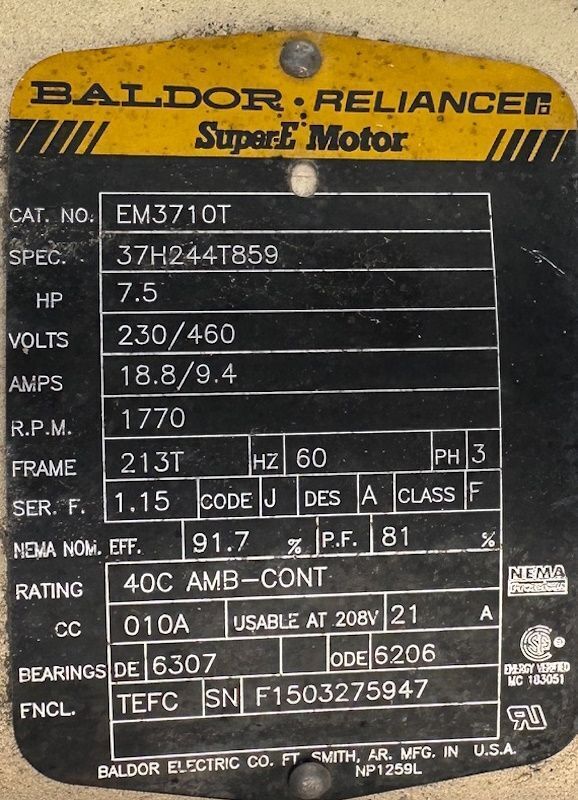

Motors: Two (2) Super Duty Baldor/Reliance Super E, 7.5 HP / 1770 RPM
Type: Quench Oil-to-Air Heat Exchanger
Size: 7W-16L-2F6.0
Serial Number: 12831
Heat Exchanged: 1,250,000 BTU/hr
Tube Side: Quench Oil Temp: In 150°F, Out 130°F
Air Side: Quench Oil Temp: In 95°F, Out 108.7°F
Overall Dim’s: 17’ long x 7’5” wide x 8’4” high
Inlet/Outlet: 3” oil inlet / 2.5” oil outlet
Power: 230/460 Volts
Fans: Two (2) 6’ diameter blades, belt driven
Motors: Two (2) Super Duty Baldor/Reliance Super E, 7.5 HP / 1770 RPM
Get Your Price from Heat Treat Equipment Co!
