Stock # 122890
Price: $201,996 USD
Click to zoom in
For Sale by Lenmark Industries
Surplus Record Dealer Since 2024
Location: Langley, BC Canada
Contact Lenmark Sales
Phone Number: 778...> Show Phone Number 778-653-5801
Let the seller know you found their listing on Surplus Record!
$201,996 USD
Description
SKU: 122890
Condition: Used
Dimensions: 132.00 (H) x 132.00 (W) x 264.00 (L) inches

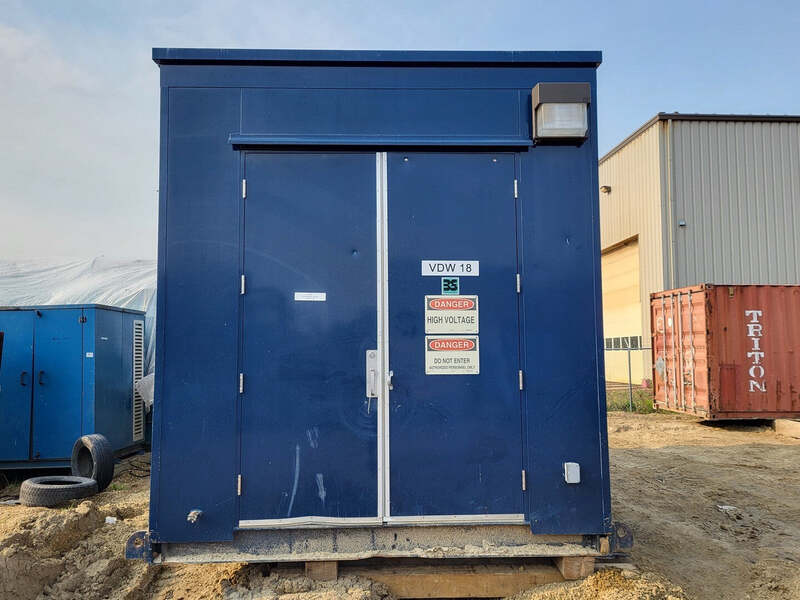

Additional Description:
General Specifications:
- Outside Dimensions (LxWxH): 264in. x 132in. x 132in.
- Inside Dimensions (LxWxH): Pending
- Includes:
- 770kVA Step-Up Transformer 540V Pri., 4160Y/2402V Sec.
- ABB 710kW (950HP) Variable Frequency Drive (VFD)
- Main Disconnect
- Low-Voltage Distribution
- Fire Suppression System
- HVAC System
- Lighting
DELTA EVI Step-Up Transformer Specifications:
- Model No.: E-CM3C0770 S005830-001
- CAT No.: CM3C0770 S005830
- Serial No.: MPK-0005-171093
- kVA: 770kVA
- Primary: 540V, 10kV BIL
- Secondary: 4160Y/2402V, 30kV BIL
- Phase: 3-Ph
ABB Variable Frequency Drive (VFD)
- Base Model No.: ACS800-37-0870-7
- Options: C134+E206+G340+H351+H353+K454+L504+P902+Q951+R700
- Nominal Ratings:
- Amps (1N): 657A
- Amps (Cont. Max.): 729A
- Amps (Max.): 1091A
- Input:
- U: 3-Ph, 525...690 (600 UL,CSA)V, IP21, Type 1
- I: 657A
- f: 48...63hz
- Icc: 65kA
- Output:
- U: 3-Ph, 0...UInput V
- I: 729A
- f: 0...100hz
- Normal Duty: 710kW (950HP), 729A
- Light Duty: 710kW (950HP), 700A
- Heavy Duty: 500kW (670HP), 545A
- Heat Dissipation: 32kW
- Air-Flow: 6400m3/h
- Noise Level: 77dBA
Condition: Used
Dimensions: 132.00 (H) x 132.00 (W) x 264.00 (L) inches
Additional Description:
General Specifications:
- Outside Dimensions (LxWxH): 264in. x 132in. x 132in.
- Inside Dimensions (LxWxH): Pending
- Includes:
- 770kVA Step-Up Transformer 540V Pri., 4160Y/2402V Sec.
- ABB 710kW (950HP) Variable Frequency Drive (VFD)
- Main Disconnect
- Low-Voltage Distribution
- Fire Suppression System
- HVAC System
- Lighting
DELTA EVI Step-Up Transformer Specifications:
- Model No.: E-CM3C0770 S005830-001
- CAT No.: CM3C0770 S005830
- Serial No.: MPK-0005-171093
- kVA: 770kVA
- Primary: 540V, 10kV BIL
- Secondary: 4160Y/2402V, 30kV BIL
- Phase: 3-Ph
ABB Variable Frequency Drive (VFD)
- Base Model No.: ACS800-37-0870-7
- Options: C134+E206+G340+H351+H353+K454+L504+P902+Q951+R700
- Nominal Ratings:
- Amps (1N): 657A
- Amps (Cont. Max.): 729A
- Amps (Max.): 1091A
- Input:
- U: 3-Ph, 525...690 (600 UL,CSA)V, IP21, Type 1
- I: 657A
- f: 48...63hz
- Icc: 65kA
- Output:
- U: 3-Ph, 0...UInput V
- I: 729A
- f: 0...100hz
- Normal Duty: 710kW (950HP), 729A
- Light Duty: 710kW (950HP), 700A
- Heavy Duty: 500kW (670HP), 545A
- Heat Dissipation: 32kW
- Air-Flow: 6400m3/h
- Noise Level: 77dBA
Inquire Further with Lenmark Industries!
