Dodge #23Q60LR56, Gear Reducer

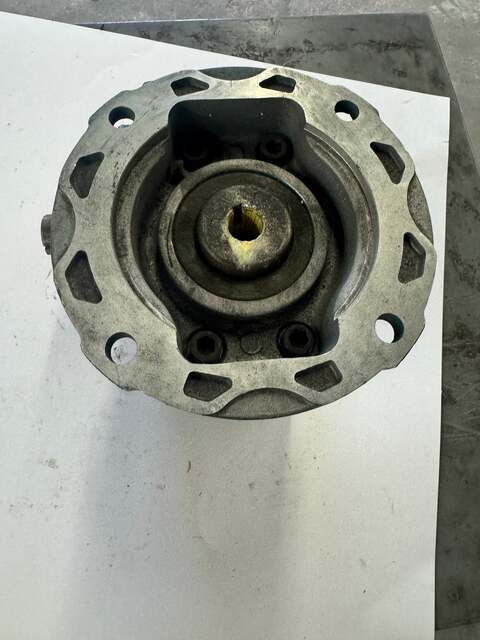

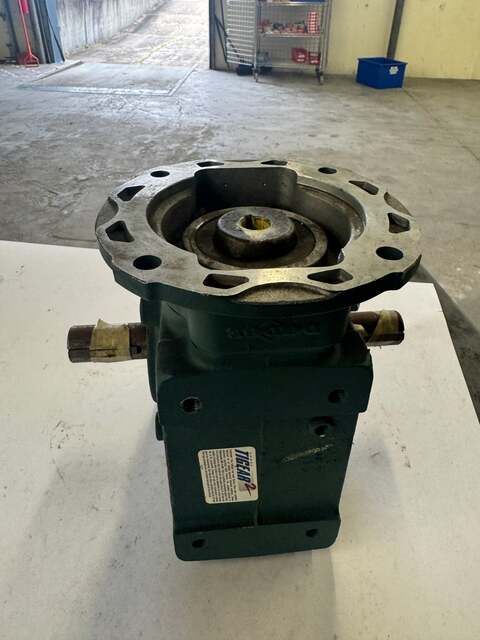

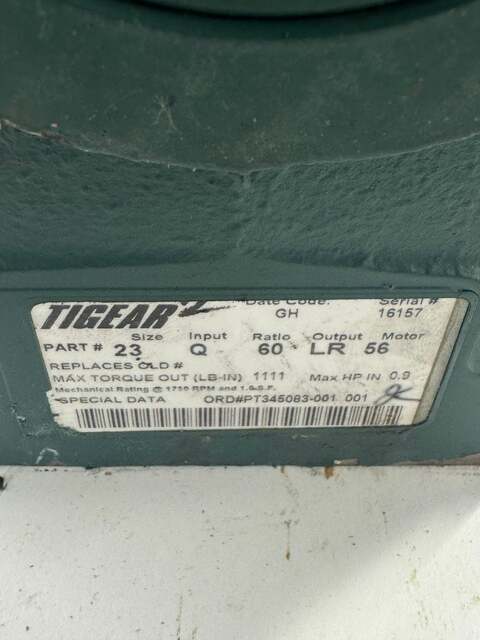

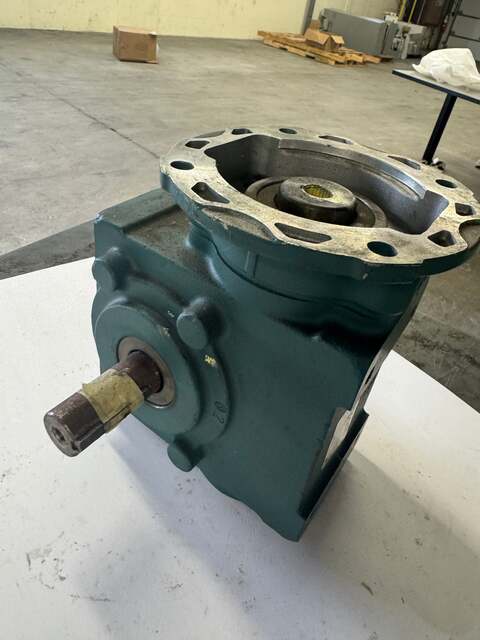

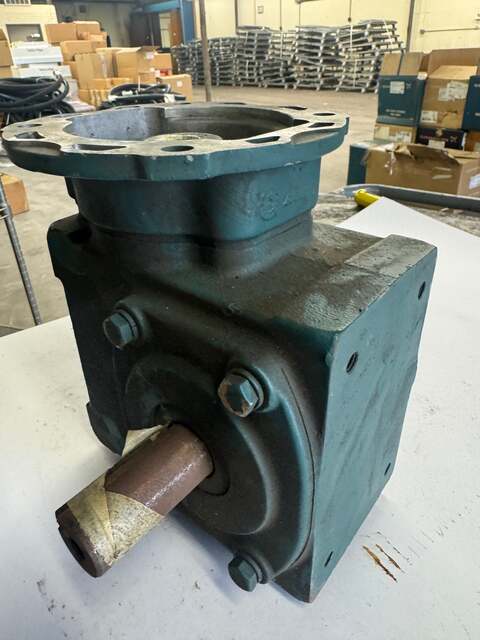

Used in conveyor systems, packaging equipment, and general industrial machinery, the Dodge Tigear 2 right-angle worm gear reducer is a widely specified power transmission component in the US industrial market. This unit is Size 23 with a 60:1 reduction ratio and LR (left or right) output configuration for NEMA 56C frame motor input. The nameplate confirms Part Number 23Q60LR56, Date Code GH, and Serial Number 16157. Maximum torque output is rated at 1,111 lb-in with a maximum input of 0.9 HP at 1,750 RPM and 1.0 service factor. Center distance for the Size 23 frame is 2.31 inches. Special data field on the nameplate references internal order number ORD#PT345083-001, preserved here for buyer traceability. The Tigear 2 series is a single-reduction right-angle worm drive product line manufactured in the USA under the Dodge/Baldor brand. The Size 23 frame is among the most commonly stocked in the Tigear 2 range. The 60:1 ratio is suited to low-output-speed applications requiring high torque multiplication from a fractional or sub-1-HP drive motor. No motor is included with this unit.

Stock # 0426-02040
