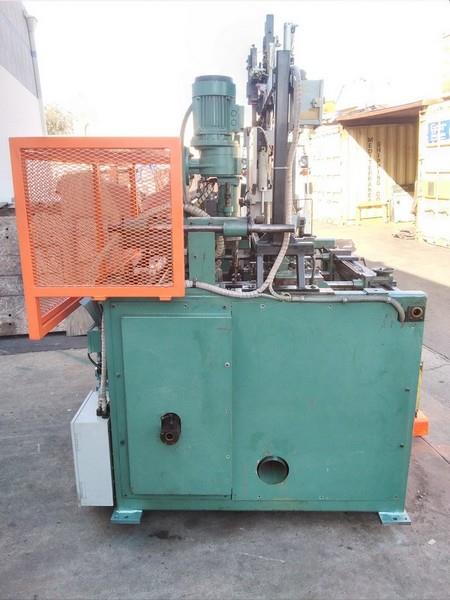

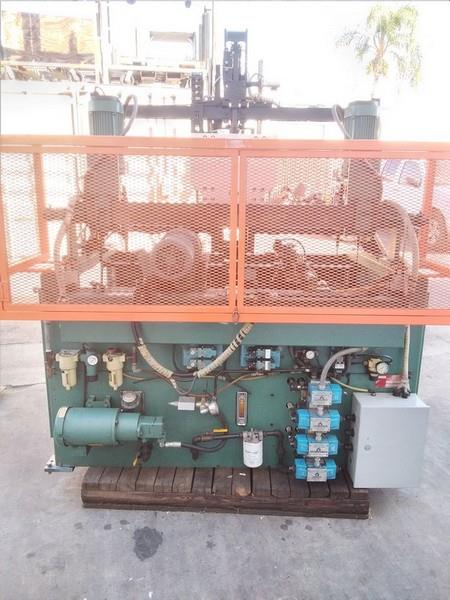

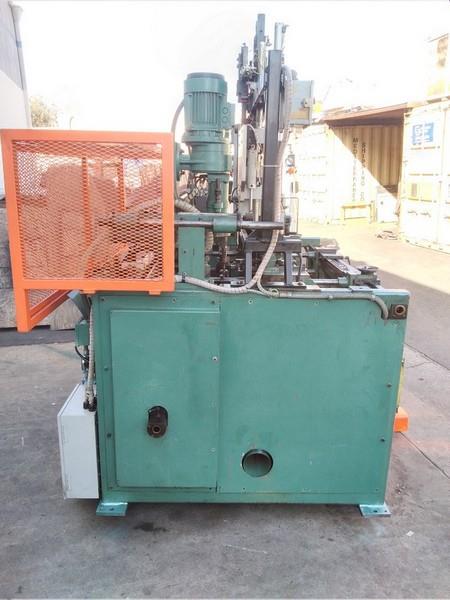

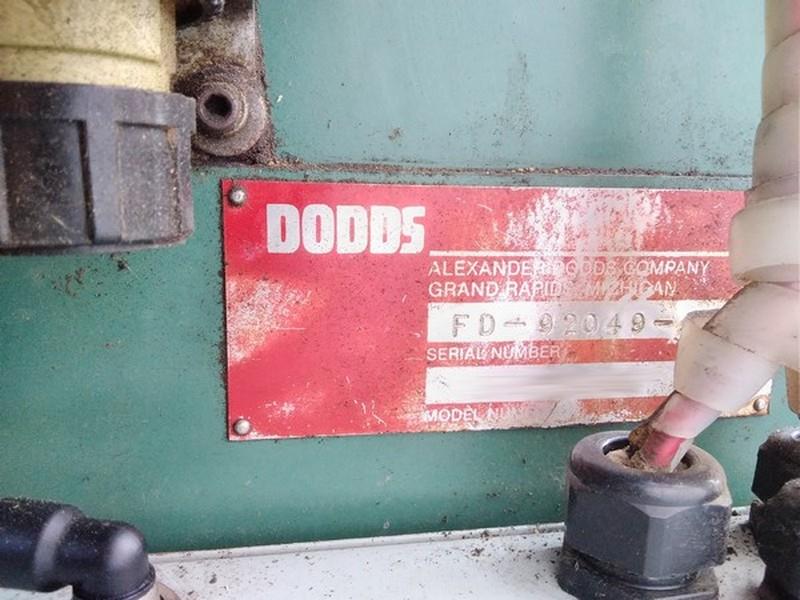

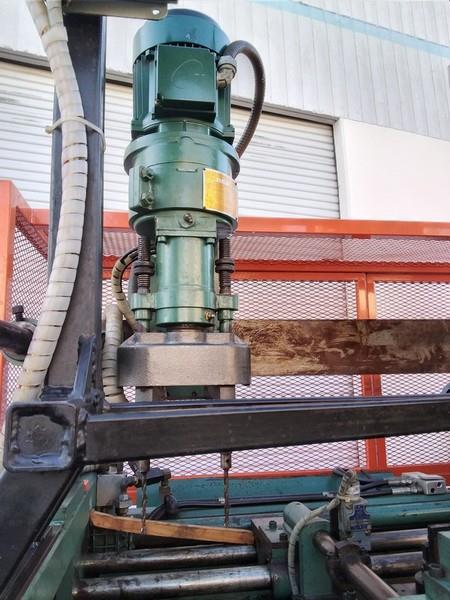

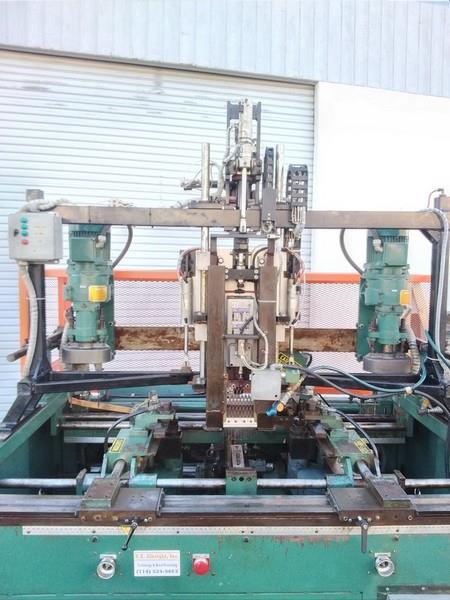

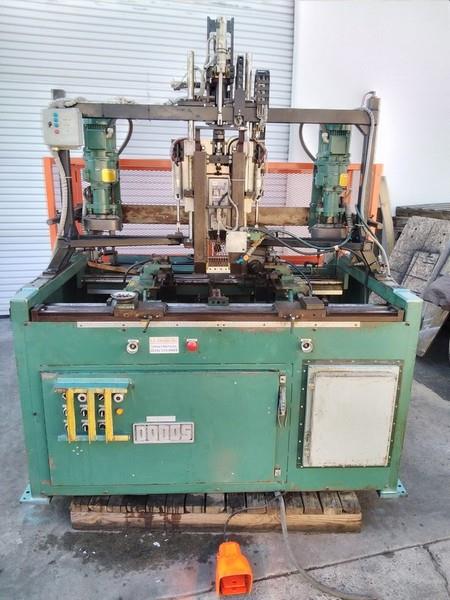

DODDS FD - 48I: Heavy-Duty French Dovetailer5" to 48" Max. drawer front width; 2" - 16" max. drawer height; 3/8" - 1-1/4" max. thickness.Specifications -- (3) 2 HP - 18,000 RPM High speed spindles; (2) spindles automatically traverse in & out on the drawer front for machining a dovetail for mounting the drawer sides. -- 1-1/2" - 15" Max. dovetail length; 3rd spindle: Automatically traverses left-to-right for the drawer bottom Dado. -- 9/64", 3/16", 1/4", 5/16" Dado cap.; hydraulic movement: All spindles & hydraulic clamping. -- Complete with: (2) Twin air drills for drilling of drawer handle mounting holes.Features -- Accurate to .001 via: Crew located below the cutter in the Spindle unit. -- Hardened round-ways & linear ball bearings. -- Automatic oil mist lubricated. -- Adjustable dual-spindle Drill Unit Option.
Product length (left to right) 8-7/8" to 42" (8-7/8" length must be 6" wide for processing) Product depth (front to back) 1-3/4" to 12" Product thickness 7/16" to 1-3/4" Machine foot print 14'-4" wide x 14'-2" long (suggested area 18' x 18') Double end machine design Infeed gravity hopper part feeder ...more
Made in Germany, very heavy-duty, freestanding production unit designed to simultaneously process two workpieces for the Hoffmann Dovetail Joining System.- Precision Engineering: Built with a heavy-duty cast aluminum table and precision linear bearings for vibration-free, professional-grade routing.- High Efficiency: ...more
