For Sale by Silverlight CNC
Surplus Record Dealer Since 2016
Location: Barrington, IL
Contact Jeff Katzbeck
Phone Number: 847...> Show Phone Number 847-796-6687
Let the seller know you found their listing on Surplus Record!
Description

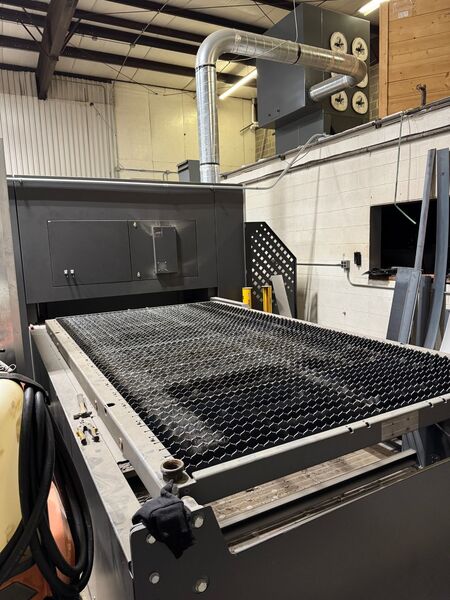

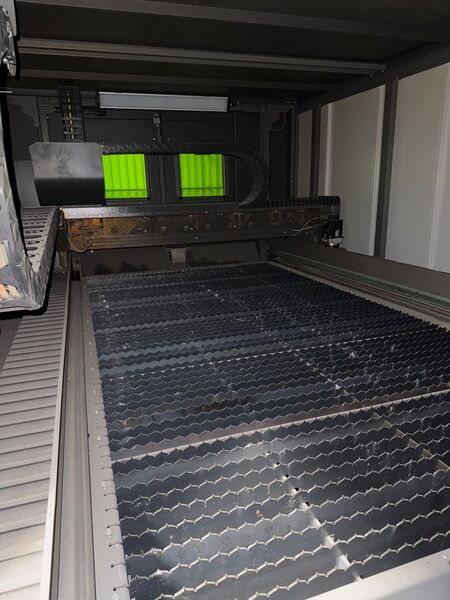

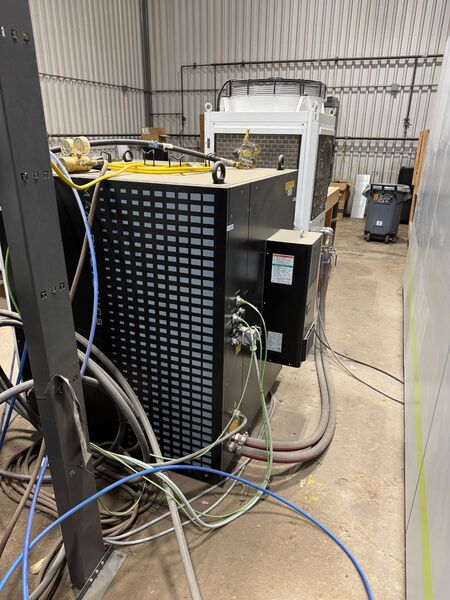

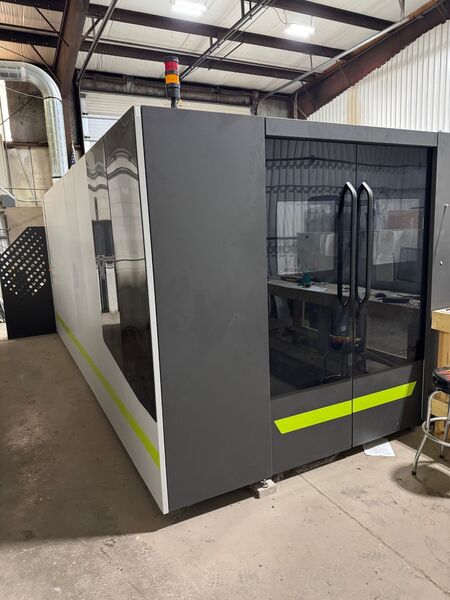

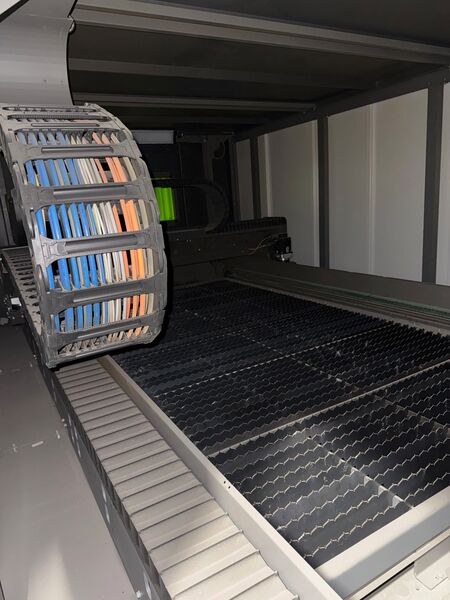

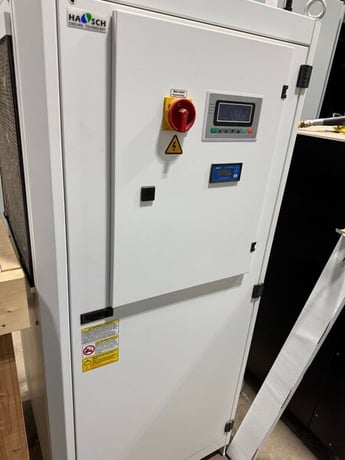

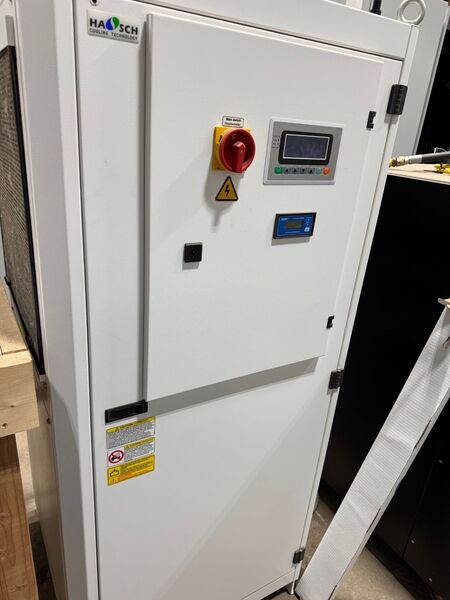

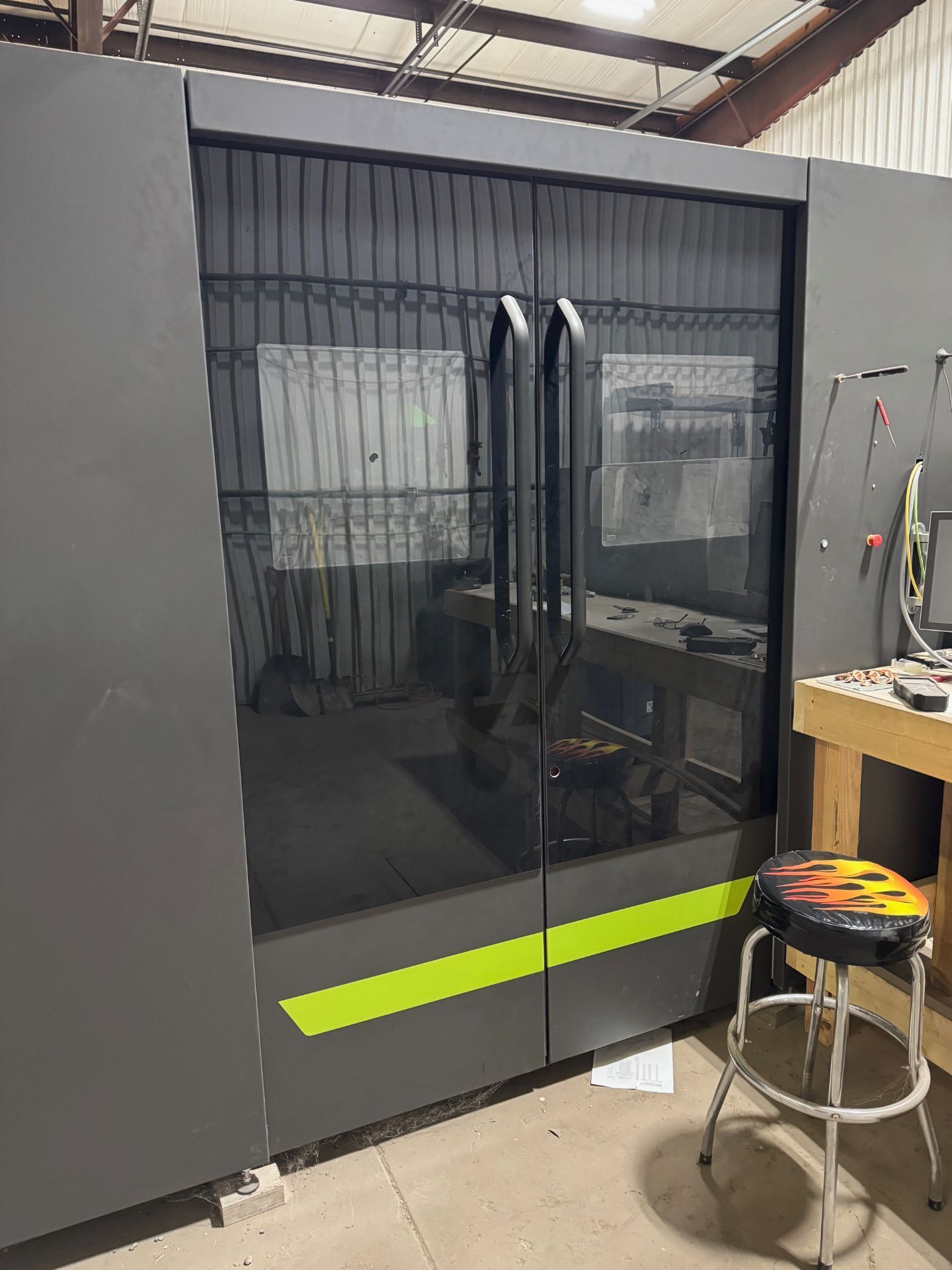

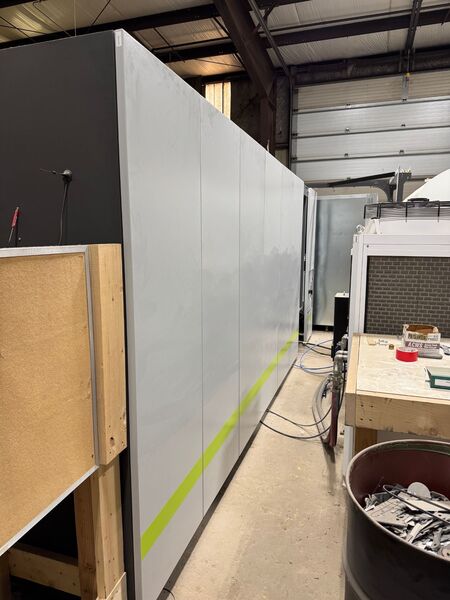

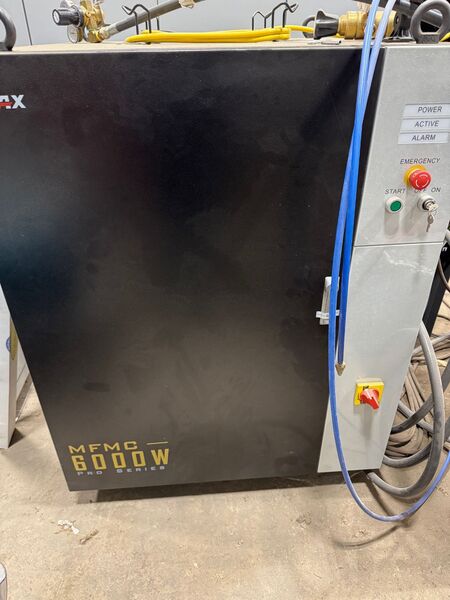

DNE LC3 5'x10' 6000W Fiber Laser, 2021 used model. Features include MFMC 6000W Power Source, Hasch Coolant System, and Shuttle Table. Capable of cutting up to 0.750" steel. Total electrical consumption: 29kW. Approx. 120 hrs cut time.
Specifications
Power: 6000W
Laser Type: Fiber
Sheet Size: 5 x 10
Max Positioning Speed X/Y: 3937 IPM
Max Simultaneous Positioning Speed: 5511 IPM
Bilateral Repeatability of Positioning of One Axis R (Following ISO 230-2:2014(E)): 0.002 in
Bilateral Repeatability of Positioning of One Axis M (Following ISO 230-2:2014(E)): 0.004 in
Edge Detection Accuracy: 0.019
Max Weight of Workpiece: 1,984 Lbs
Table Changeover Time: 24 s
Polarization: Unpolarized
Wavelength: 1 m
Pulse Frequency: 1 2500HZ
Maximum Sheet Thicknesses: Steel: 0.750 in
Maximum Sheet Thicknesses: Stainless Steel: 0.750 in
Maximum Sheet Thicknesses: Aluminum: 0.750 in
Maximum Sheet Thicknesses: Brass: 0.375 in
Maximum Sheet Thicknesses: Copper: 0.375 in
Total Electrical Consumption of System: 29kW
Specifications
Power: 6000W
Laser Type: Fiber
Sheet Size: 5 x 10
Max Positioning Speed X/Y: 3937 IPM
Max Simultaneous Positioning Speed: 5511 IPM
Bilateral Repeatability of Positioning of One Axis R (Following ISO 230-2:2014(E)): 0.002 in
Bilateral Repeatability of Positioning of One Axis M (Following ISO 230-2:2014(E)): 0.004 in
Edge Detection Accuracy: 0.019
Max Weight of Workpiece: 1,984 Lbs
Table Changeover Time: 24 s
Polarization: Unpolarized
Wavelength: 1 m
Pulse Frequency: 1 2500HZ
Maximum Sheet Thicknesses: Steel: 0.750 in
Maximum Sheet Thicknesses: Stainless Steel: 0.750 in
Maximum Sheet Thicknesses: Aluminum: 0.750 in
Maximum Sheet Thicknesses: Brass: 0.375 in
Maximum Sheet Thicknesses: Copper: 0.375 in
Total Electrical Consumption of System: 29kW
Get Your Price from Silverlight CNC!
