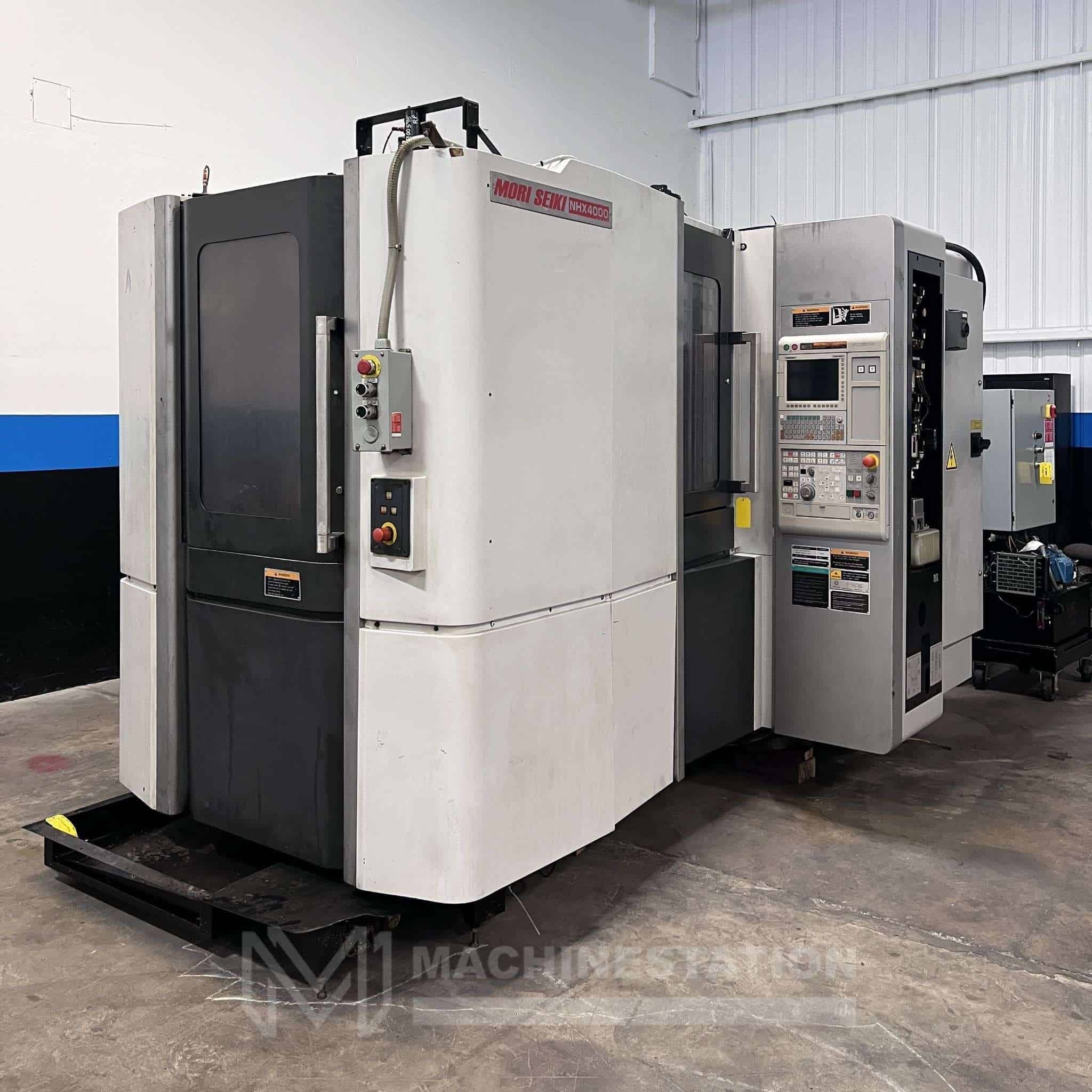

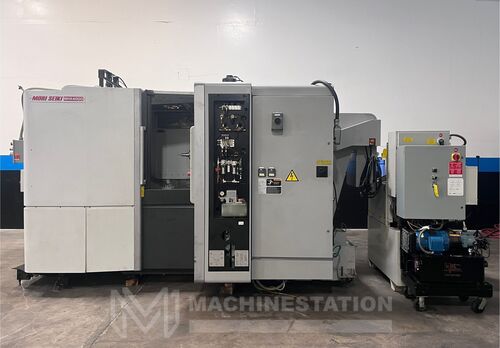

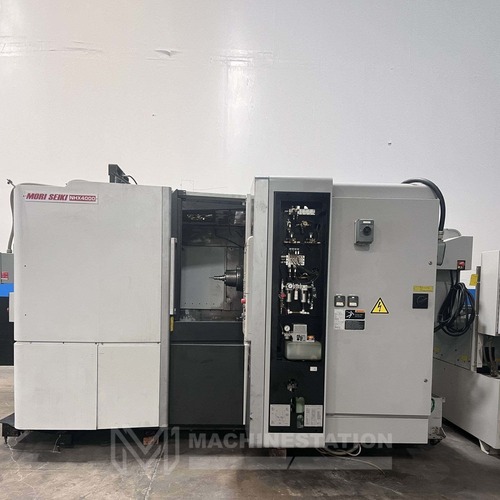

Manufacturer: Mori Seiki
Model: NHX-4000
Year: 2011
Longitudinal" X: 22.0
Cross" Y: 22.0
Vertical" Z: 26.0
Stock # 113002
For Sale by MachineStation
Surplus Record Dealer Since 2022
Sales Dept.
909-91...> Show Seller's Phone Number 909-919-9600 Let the seller know you found their listing on Surplus Record!
Description
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

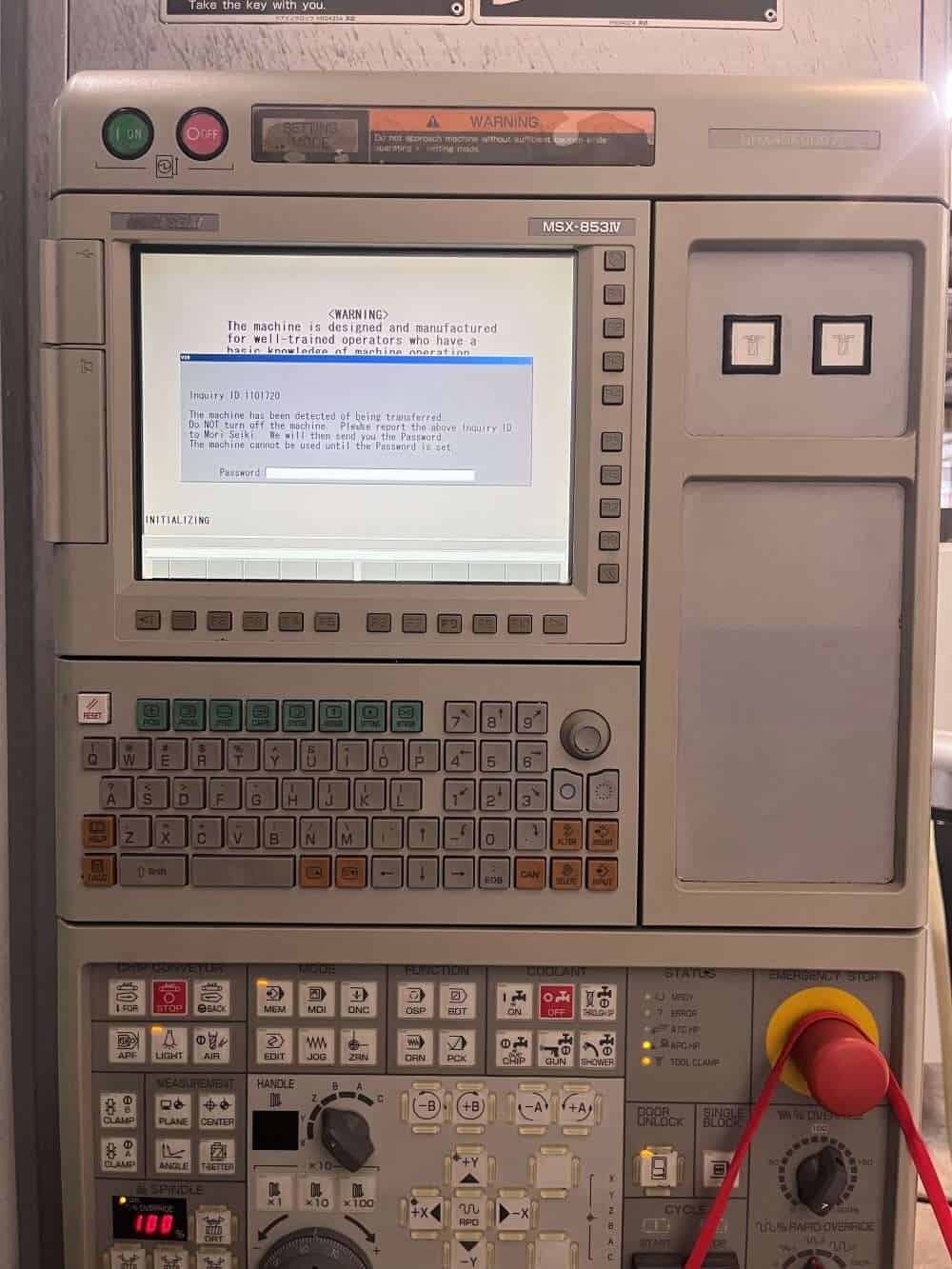

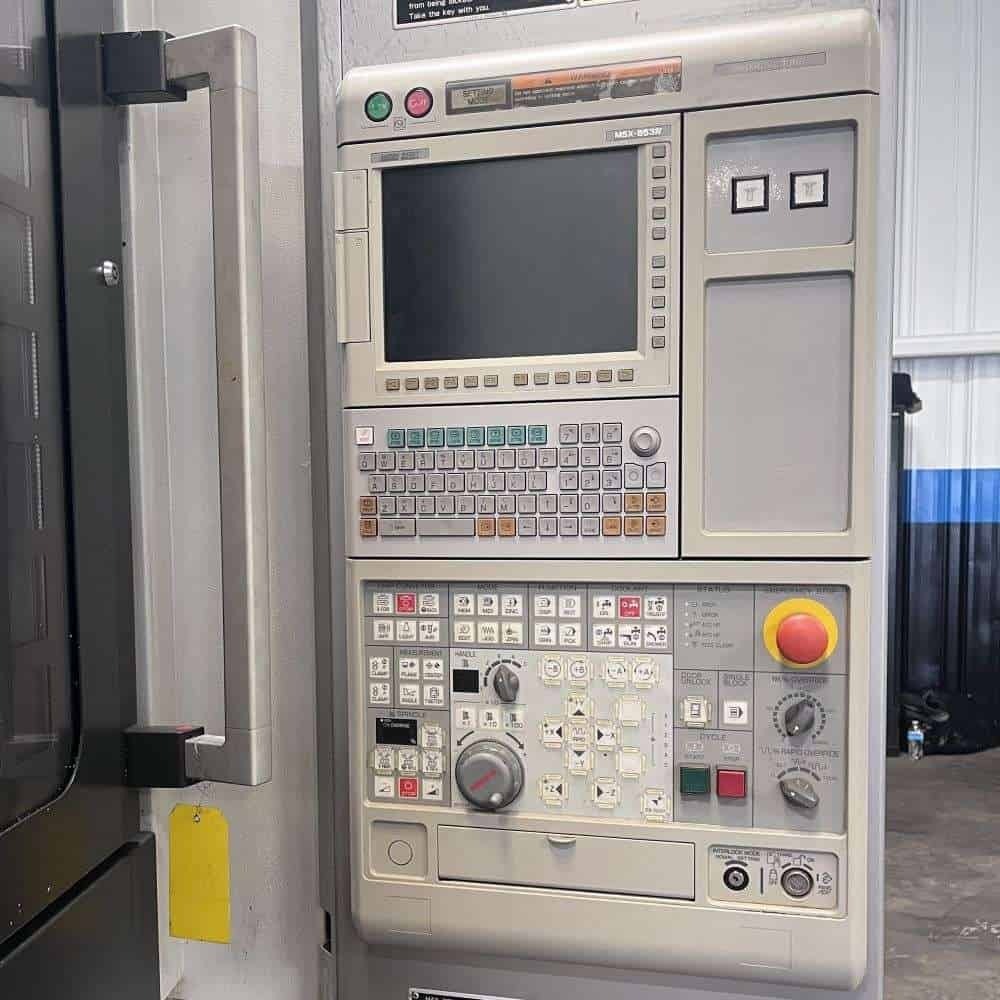

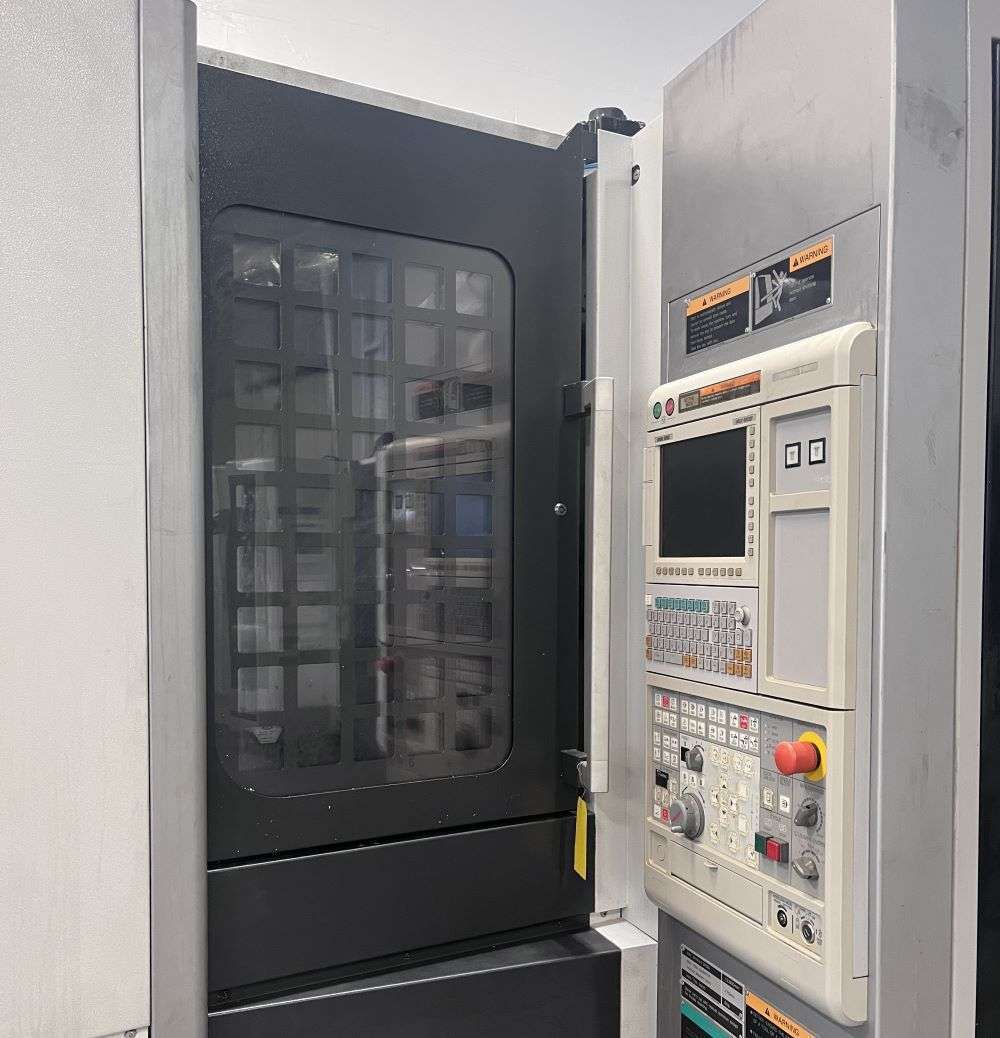

Mori Seiki MSX-853IV CNC Control
12,000 RPM High Precision Spindle
USB Ports
50 MB Memory
Pallet Seat Detection
Spindle Orientation
Rigid Tapping
Custom Macros
Fast Rapid Traverse Rate
Travels:
X Axis: 22.0"
Y Axis: 22.0"
Z Axis: 26.0"
B Axis: 0.001° ( Full 4th )

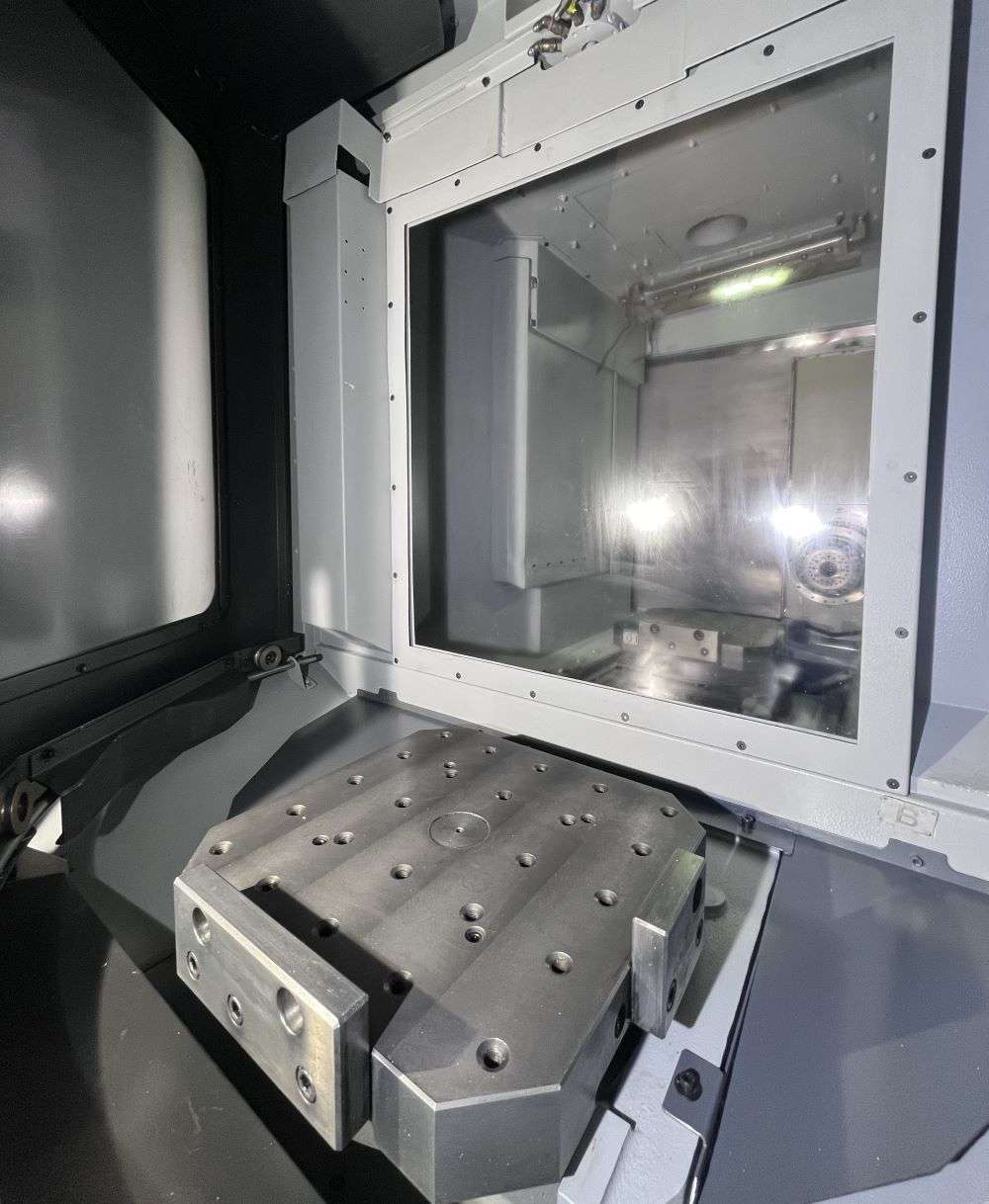

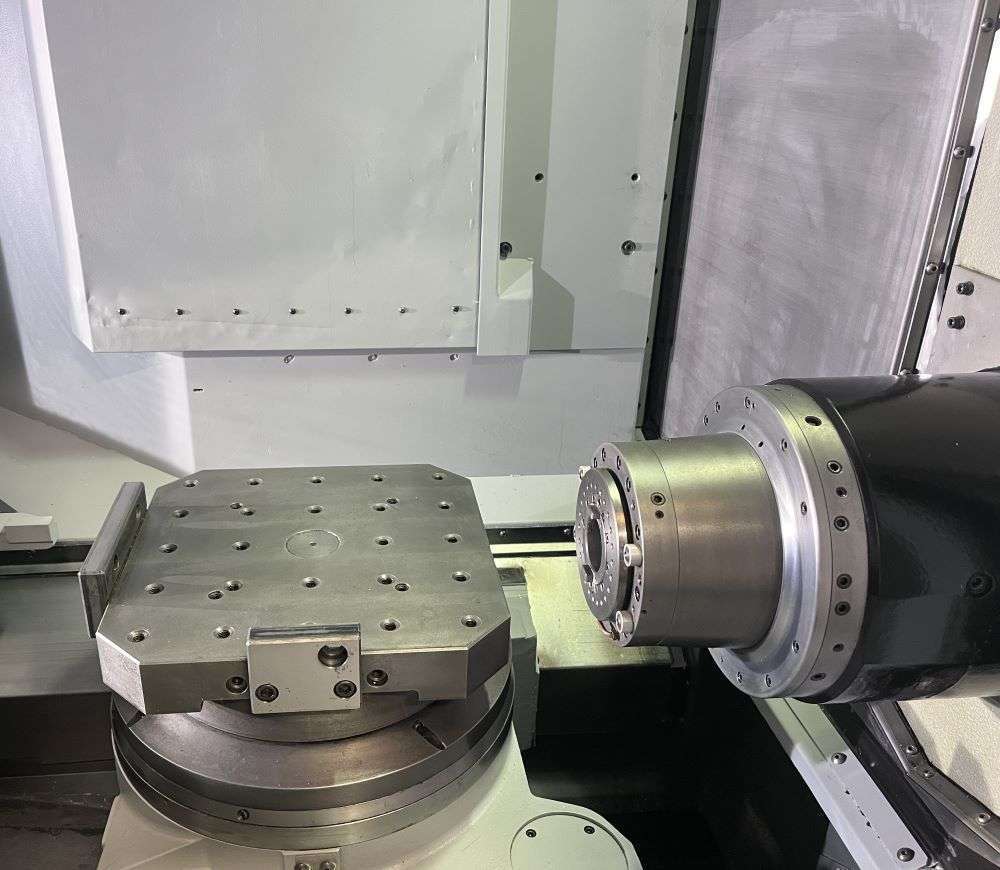

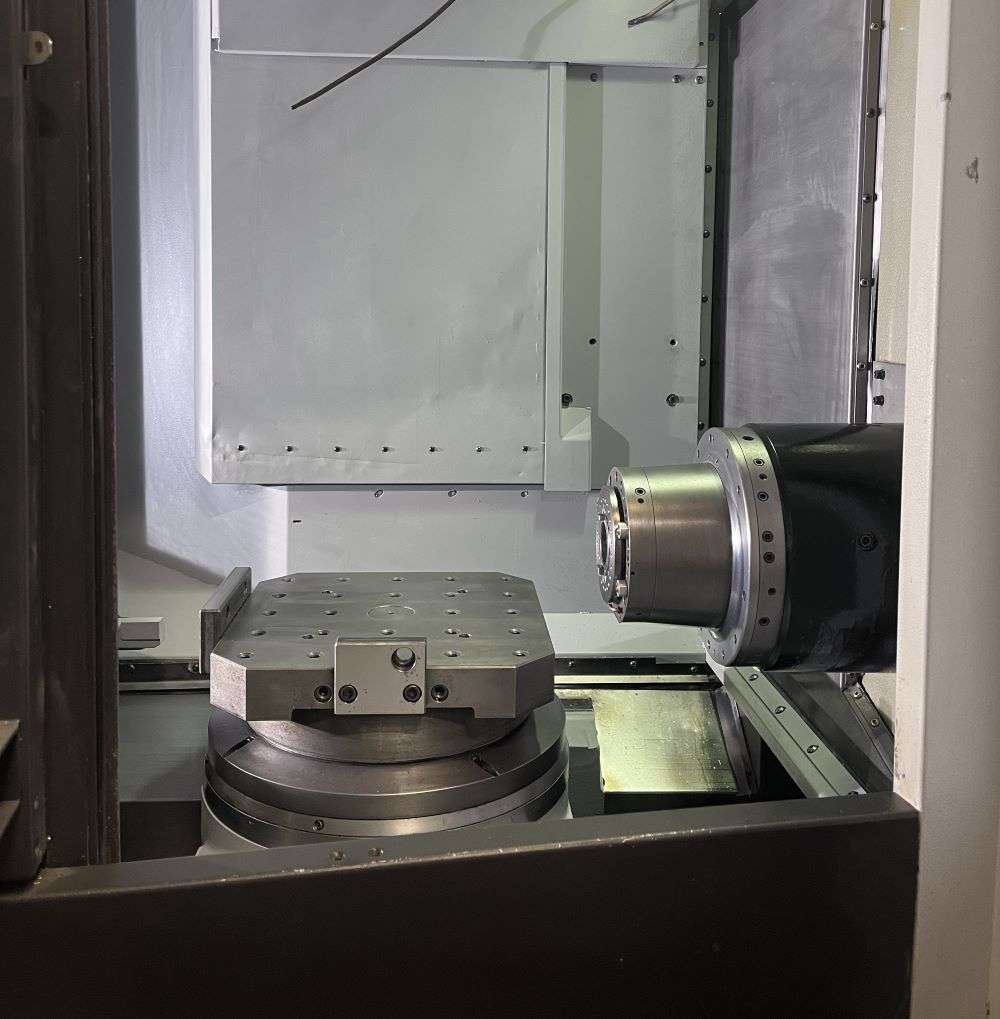

Table:
Length: 15.7"
Width: 15.7"
Max Weight on Table: 882 lbs
Max Workpiece Height: 35.4"
Index Time: 8 seconds

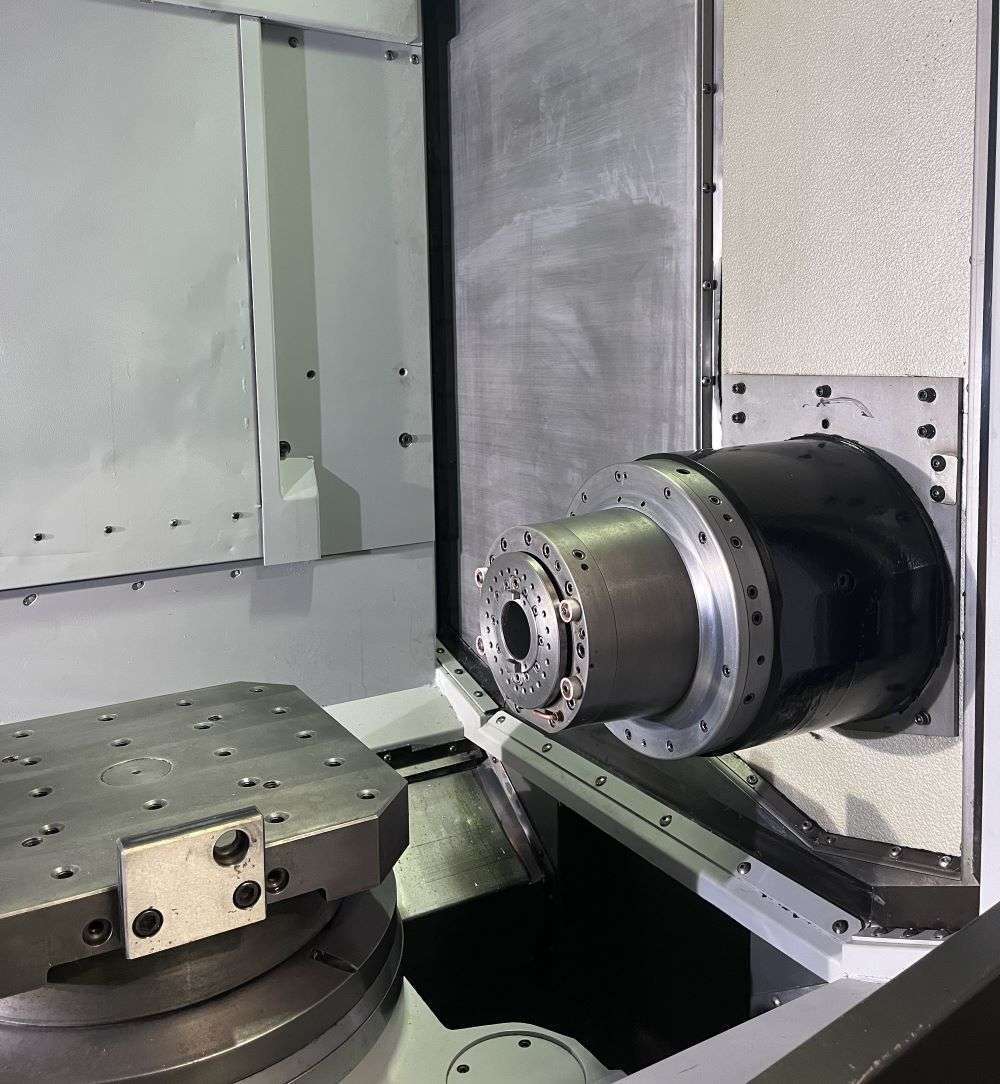

Spindle:
Taper Size: CAT-40
Max. Speed: 12,000 RPM
Power: 40 HP
Torque: 76.7 ft/lbs
Feed Rates:
Rapid X & Y : 2352 Inch Per Minute
Rapid Z : 2352 Inch Per Minute
Cutting Feedrate : 984 Inch Per Minute
Tool Changer:
Capacity: 40 Tools
Taper: CAT-40
Max Tool Size: 6.6"
Max Tool Length: 17.7"
Max Tool Weight: 18 lbs.
Tool Change Time: 0.9 Second
General:
Air Required: 90 psi, 4 scfm
Power: 38 kva / 205-220v / 3-Phase
Overall Dimensions: 165" X 105" x 100" High
Weight: 16,755 lbs
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:
Mori Seiki MSX-853IV CNC Control
12,000 RPM High Precision Spindle
USB Ports
50 MB Memory
Pallet Seat Detection
Spindle Orientation
Rigid Tapping
Custom Macros
Fast Rapid Traverse Rate
Travels:
X Axis: 22.0"
Y Axis: 22.0"
Z Axis: 26.0"
B Axis: 0.001° ( Full 4th )
Table:
Length: 15.7"
Width: 15.7"
Max Weight on Table: 882 lbs
Max Workpiece Height: 35.4"
Index Time: 8 seconds
Spindle:
Taper Size: CAT-40
Max. Speed: 12,000 RPM
Power: 40 HP
Torque: 76.7 ft/lbs
Feed Rates:
Rapid X & Y : 2352 Inch Per Minute
Rapid Z : 2352 Inch Per Minute
Cutting Feedrate : 984 Inch Per Minute
Tool Changer:
Capacity: 40 Tools
Taper: CAT-40
Max Tool Size: 6.6"
Max Tool Length: 17.7"
Max Tool Weight: 18 lbs.
Tool Change Time: 0.9 Second
General:
Air Required: 90 psi, 4 scfm
Power: 38 kva / 205-220v / 3-Phase
Overall Dimensions: 165" X 105" x 100" High
Weight: 16,755 lbs
Get Your Price from MachineStation!
Buyers Who Viewed This Listing Also Viewed …
JUST ADDED!
Mori Seiki #NHX-4000, CNC horizontal machining center, 60 automatic tool changer, 22" X, 22" Y, 26" Z, 12000 RPM, #40, 20 HP, Mittsibishi 700 controller, 1000 psi thru spindle coolant, 2012
Category: Horizontal CNC Machining Centers
Seller: Excel Machinery
Location: Clinton Township, MI
Mfr: Mori Seiki
Model: NHX-4000
Year: 2012
, 22” X, 22” Y, 26” Z, 20 Hp. Spindle 12000 rpm, Spindle Taper: Cat 40, Pallets: 15.7” x 15.7” ( 400mm x 400mm ), Max. Pallet Load: 881 lbs., Rapid Traverse Rate: 2362 ipm, Dimensions: 107” x 166” x 99”, Weight: 16755 lbs., 1000 psi Thru-Coolant, Full 4th Axis ...more
JUST ADDED!
Mori Seiki #NHX-4000, CNC horizontal machining center, 60 automatic tool changer, 22" X, 22" Y, 26" Z, 12000 RPM, #40, 40 HP, 4-Axis, Mitsubishi M730BM, 2013
Category: Horizontal CNC Machining Centers
Seller: Machine Tool Bids
Location: Chicago, IL
Mfr: Mori Seiki
Model: NHX-4000
Year: 2013
Used 2013 Mori Seiki NHX4000 Horizontal Machining Center with Mitsubishi M730BM control. Ideal for high-volume, unmanned multi-pallet production, complex multi-side machining, and precision manufacturing for automotive, aerospace, and metal components., MACHINE, Pallet Size: 15.7" x 15.7", Number of Pallets: ...more
Mori Seiki #NHX-4000, CNC Horizontal Machining Center, 22" X, 22" Y, 26" Z, 40 HP, 12,000 RPM, CAT 40, 40 automatic tool changer, Mitsubishi 730 CNC, 2012
Category: Horizontal CNC Machining Centers
Seller: CNC Exchange div. Gray Machinery Co.
Location: Prospect Heights, IL
Mfr: Mori Seiki
Model: NHX-4000
Year: 2012
2012 Mori Seiki NHX-4000 CNC Horizontal Machining Center offers precision with 22"x22"x26" XYZ travel, 40 hp, and 12k rpm. 40 ATC, thru spindle coolant, hydraulic fixturing, servo workstation, and more. Reliable choice for high-performance needs., Model NHX4000, Brand MORI SEIKI, Type Horizontal Machining Centers ...more
Mori Seiki #NHX-4000, 4-Axis Horizontal Machining Center, 22" X, 22" Y, 26" Z, 15.7" overall Pallet, 40 HP, 12000 RPM, 60 automatic tool changer, CAT 40, Mitsubishi M730BM, 2014
Category: Horizontal CNC Machining Centers
Seller: Toolquip Inc
Location: Lebanon, OH
Mfr: Mori Seiki
Model: NHX-4000
Year: 2014
Uused horizontal machining center with 40 hp, 12,000 RPM, s 22"x22"x26" travel, 4-axis, CAT 40 spindle taper, 60 ATC, a chip blaster, conveyor, and coolant thru spindle. Comes with all available manuals., 2014 MORI SEIKI NHX4000, X. 22", Y. 22", Z. 26", Power. 40 hp, RPM. 12,000 RPM, # ATC. 60, Taper. CAT 40 ...more

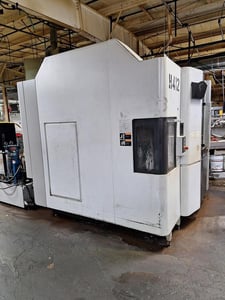

Mori Seiki #NHX-4000, horizontal machining center, 22" x 22" x 26" trvls, 16" x 16" table, 12000 RPM, 40 HP, 40 automatic tool changer, thru spindle coolant, rigid tap, chip conveyor, 2013
