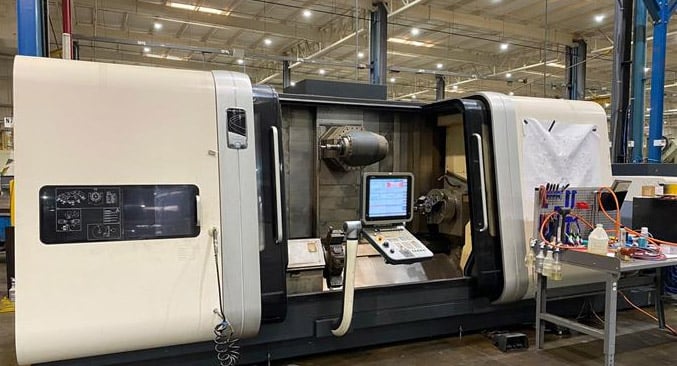

DMG, Mori-Seiki #CTX-Gamma-2000TC, CNC mill turn, Siemens 840D Control, 4.1" bar, 2012

DMG Mori Seiki CTX Gamma 2000 TC
CNC Mill Turn

CAPACITY:
MAXIMUM WORKPIECE DIAMETER 27.6″
MAXIMUM WORKPIECE LENGTH 78.74″
MAXIMUM BAR CAPACITY 4.1″
X1 TRAVEL 25.59″
Y1 TRAVEL +/-7.87″
Z1 TRAVEL 80.70″
Z2 TRAVEL 75.19″
Z3 TRAVEL 75.19″
B-AXIS +/- 0.001 DEGREES
MAIN SPINDLE:
CHUCK SIZE 20″
MAXIMUM SPEED 2,500 RPM
MOTOR OUTPUT (30 MINUTE RATING) 70 HP
SECOND SPINDLE:
CHUCK SIZE 13″
MAXIMUM SPEED 4,000 RPM
MOTOR OUTPUT (30 MINUTE RATING) 61 HP
MILLING SPINDLE:
B-AXIS TRAVEL 240 DEGREES
TOOL MAGAZINE 36 ATC
TOOLING HSK63
MAXIMUM SPEED 8,000 RPM
MOTOR OUTPUT 43 HP
APPROXIMATE DIMENSIONS 299″ X 166″ X 100″
APPROXIMATE WEIGHT 52,910

EQUIPPED WITH:
SIEMENS 840D CNC CONTROL
MAIN & COUNTER SPINDLES
15″ CHUCK ON MAIN SPINDLE
18″ CHUCK ON COUNTER SPINDLE
LOWER TURRET
HIGH PRESSURE COOLANT SYSTEM
FACTORY COOLANT CHILLER
DUAL CTS 300 PSI & 1000 PSI PUMPS
BALANCED PRESSURE CLAMPING FOR MAIN AND SUB-SPINDLES
FLUSHING OF CHUCKS, STEADY REST, WAY COVERS
CHILLER SYSTEM, COOLING OF THE MILLING/TURNING SPINDLE AND COUNTER SPINDLES
SUB SPINDLE AS TAILSTOCK OPTION WITH PROGRAMMABLE MOVEMENT AND FORCE
36 STATION AUTOMATIC TOOL CHANGER
AUTOMATIC CABIN DOORS
CHIP CONVEYOR
TOOLING
