Manufacturer: Dmg
Model: NLX-2500SY/700
Year: 2022
Swing: 36.2
Chuck: 12
Bar Capacity: 3.1
Stock # 3746618
1 / 9
Click to zoom in
1 / 9
For Sale by Machine Tool Bids
Surplus Record Dealer Since 2025
Location: Chicago, IL
Contact Stephanie Buczek
Phone Number: 312...> Show Phone Number 312-604-1850
Let the seller know you found their listing on Surplus Record!
Description
Description

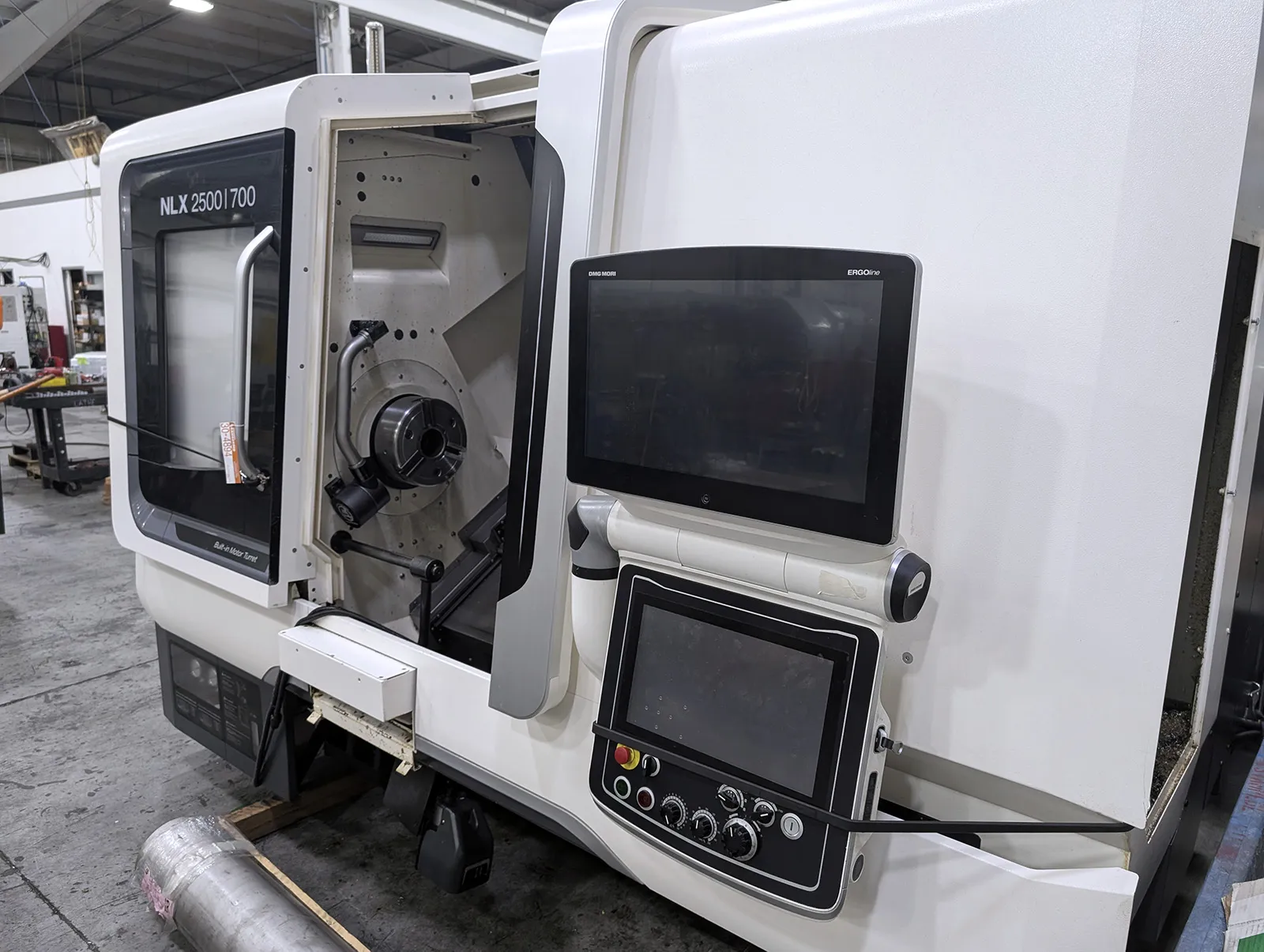

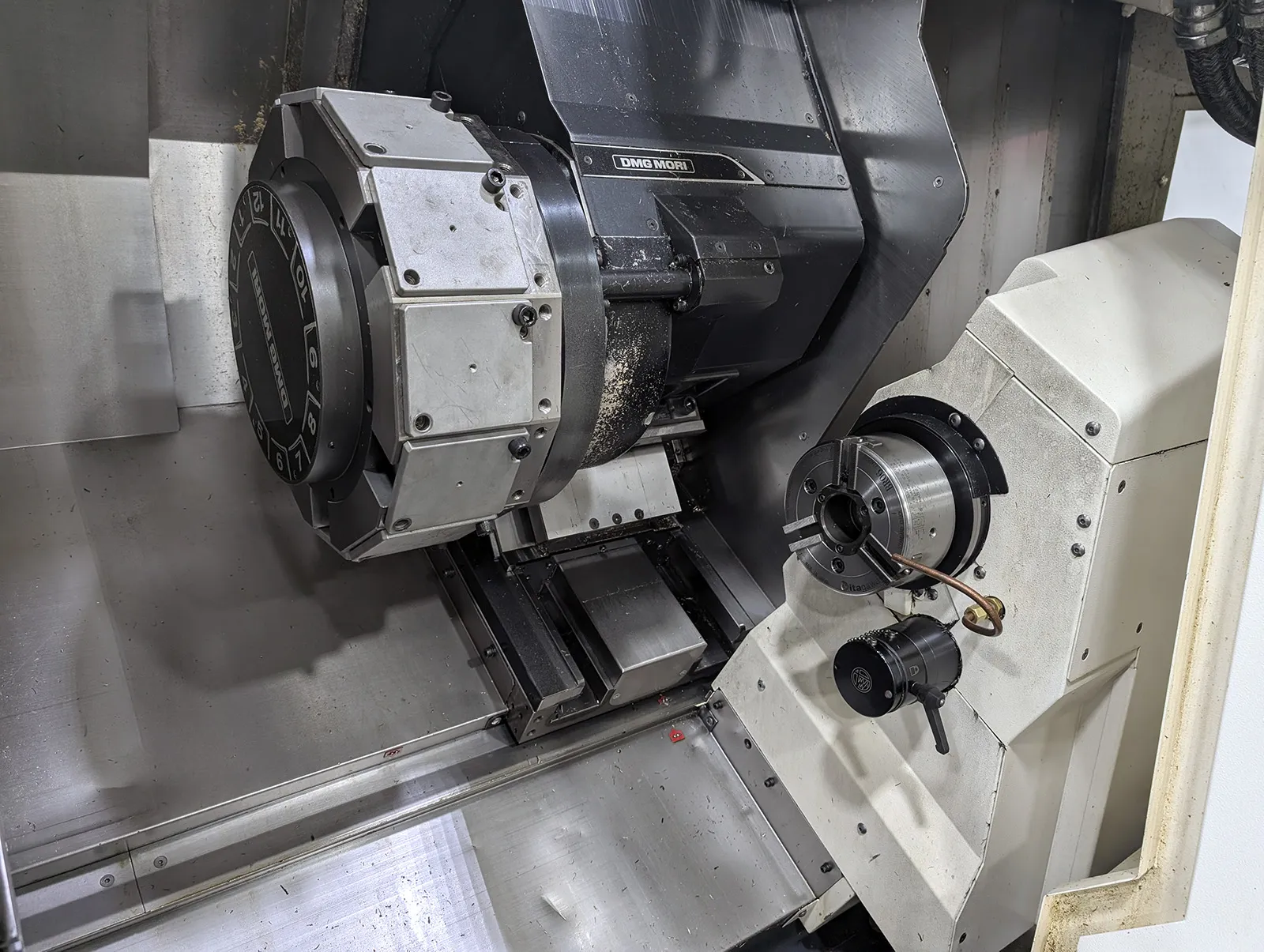

The DMG MORI NLX 2500 | 700 is a high-performance CNC mill-turn center featuring Y-axis, sub-spindle, and BMT live tooling for complete part machining in a single setup. Built with rigid box ways and thermal stability, it delivers excellent accuracy and reliability for precision manufacturing.
Equipped with 10,000 RPM live tooling, high-pressure coolant, chip conveyor, parts catcher, and bar feeder interface, this machine is ideal for high-production and lights-out operations.
Also, this machine includes an extended transferable warranty through 2027, providing added value and peace of mind.
MACHINE SPECIFICATION
Swing over Bed: 36.2"
Swing over cross slide: 29.2"
Max Turning Diameter: 14.4"
Max Turning Length: 27.7"
Bar Capacity: 3.15"
Main Spindle Speed: 4,000 RPM
Main Spindle Nose: A2-8
Main Spindle Bore: 3.58"

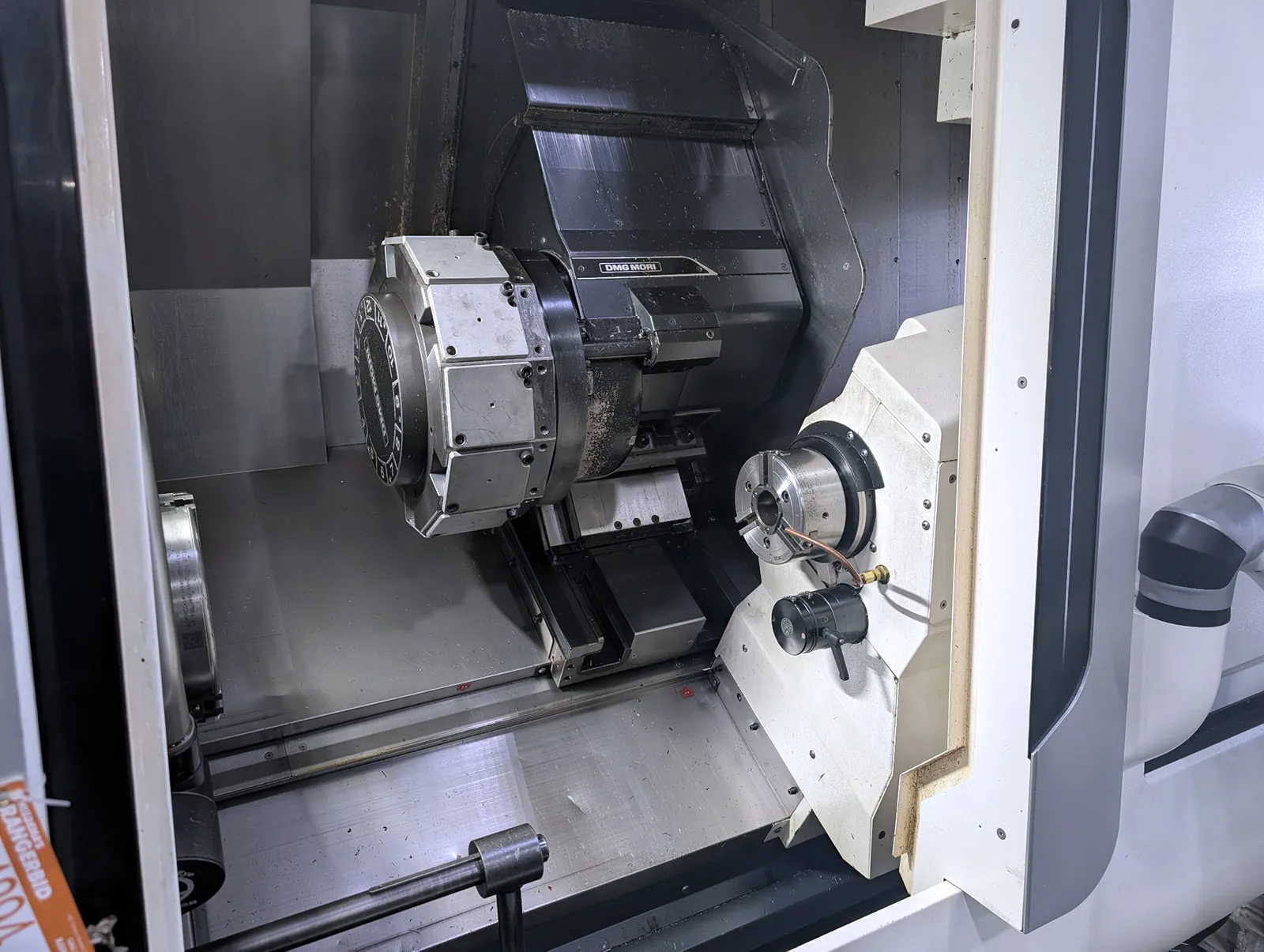

Sub Spindle Speed: 5,000 RPM
Sub Spindle Nose: A2-6
Sub Spindle Bore: 2.87"
Axes Travel (X / Z / Y): 10.2" / 31.3" / 2.0"
Rapid Traverse Rate: 1,181 IPM (X/Z)

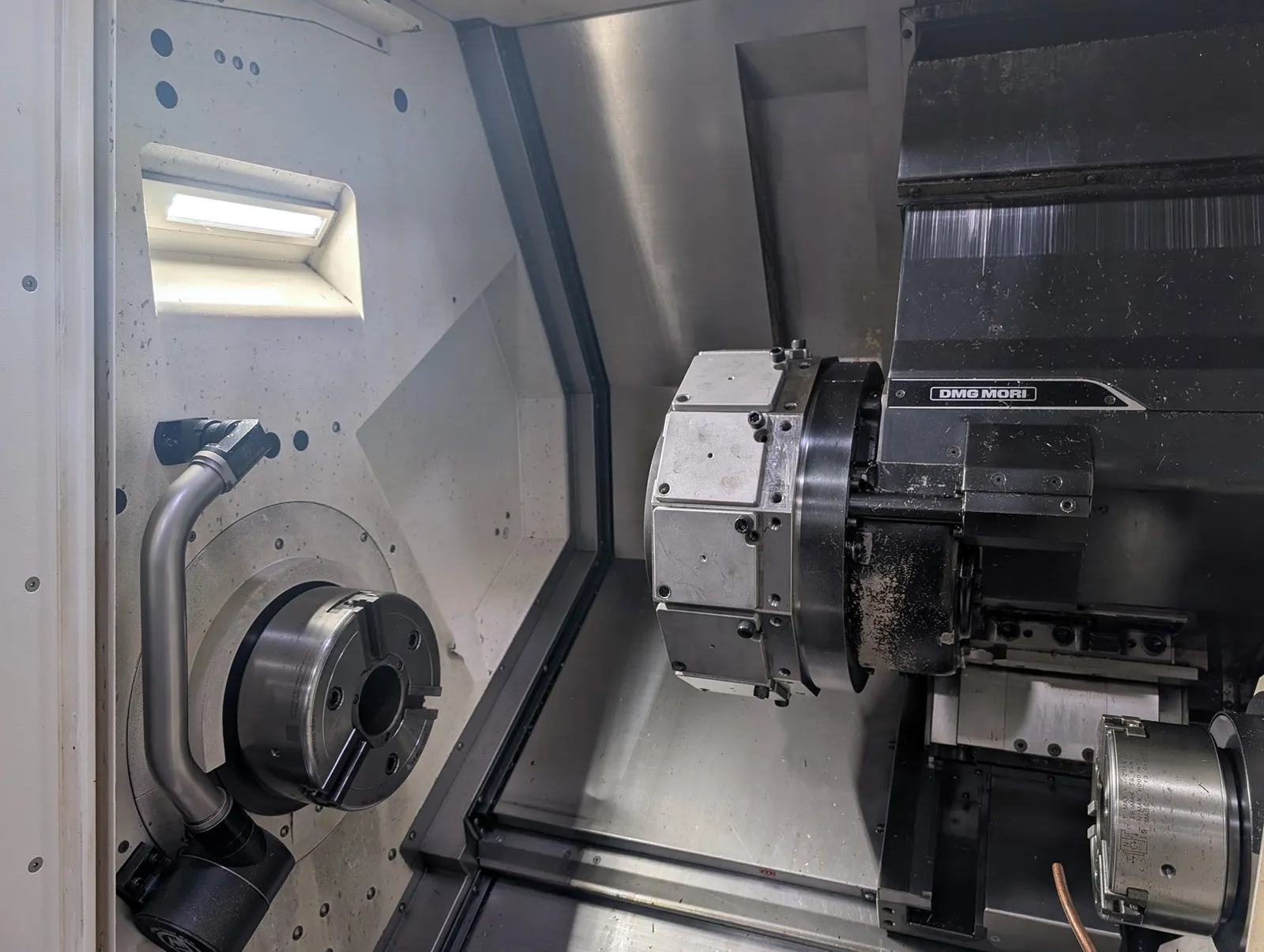

Turret: 12-Station BMT
Rotary Tool Speed: 10,000 RPM
Rotary Tool Torque: 29.5 / 22.1 / 10.3 ft-lbs
Chuck Size (Main): 10" Kitagawa
Chuck Size (Sub): 6" Kitagawa
Coolant Tank Capacity: 96.6 Gallons
Machine Dimensions (L x W): 131.8" x 82.9"
Machine Weight: Approx. 13,500 lbs
The DMG MORI NLX 2500 | 700 is a high-performance CNC mill-turn center featuring Y-axis, sub-spindle, and BMT live tooling for complete part machining in a single setup. Built with rigid box ways and thermal stability, it delivers excellent accuracy and reliability for precision manufacturing.
Equipped with 10,000 RPM live tooling, high-pressure coolant, chip conveyor, parts catcher, and bar feeder interface, this machine is ideal for high-production and lights-out operations.
Also, this machine includes an extended transferable warranty through 2027, providing added value and peace of mind.
MACHINE SPECIFICATION
Swing over Bed: 36.2"
Swing over cross slide: 29.2"
Max Turning Diameter: 14.4"
Max Turning Length: 27.7"
Bar Capacity: 3.15"
Main Spindle Speed: 4,000 RPM
Main Spindle Nose: A2-8
Main Spindle Bore: 3.58"
Sub Spindle Speed: 5,000 RPM
Sub Spindle Nose: A2-6
Sub Spindle Bore: 2.87"
Axes Travel (X / Z / Y): 10.2" / 31.3" / 2.0"
Rapid Traverse Rate: 1,181 IPM (X/Z)
Turret: 12-Station BMT
Rotary Tool Speed: 10,000 RPM
Rotary Tool Torque: 29.5 / 22.1 / 10.3 ft-lbs
Chuck Size (Main): 10" Kitagawa
Chuck Size (Sub): 6" Kitagawa
Coolant Tank Capacity: 96.6 Gallons
Machine Dimensions (L x W): 131.8" x 82.9"
Machine Weight: Approx. 13,500 lbs
