DMG, Mori Deckel Maho #DMU-50-eVolution, 5-Axis, 20" X, 16.5" Y, 15" Z, MillPlus, 18000 RPM, Cat 40, 47 HP, 2002

Subject to availability, prior sale, and terms & conditions of FRANKE CNC Sales Agreement, we offer for your consideration:

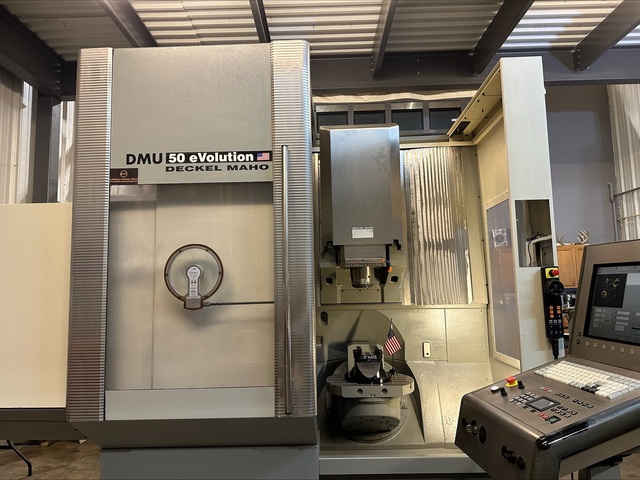

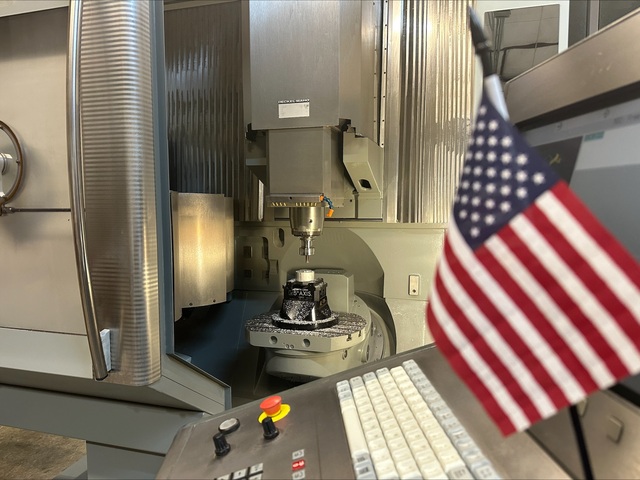

One used 2002 DMG MORI DECKEL MAHO DMU 50 eVolution full 5-Axis simultaneous VMC:
Fly into MKE to inspect under power in our Wisconsin showroom by appointment
History
Machine was manufactured at DECKEL MAHO Seebach GmbH in Seebach, Germany 5/2002
First installed new in the USA 6/2002

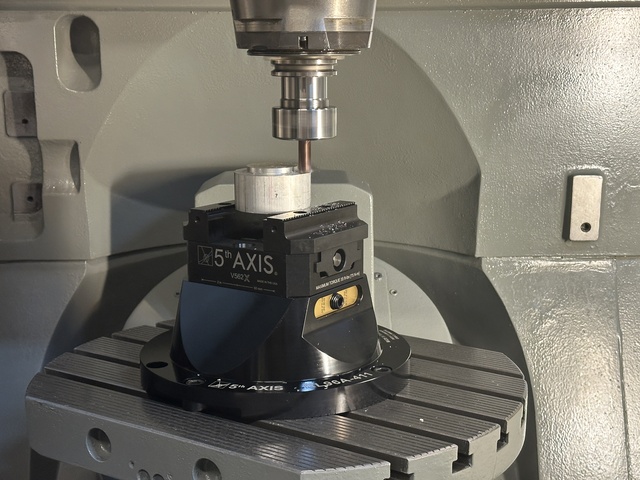

Clamp once, machine 5-sides
Table on machine swivels 0-180 degrees and rotates 360 degrees which allows for 5-sided 5-axis simultaneous machining with 1 workpiece clamping.
Working area
Longitudinal (X) 19.7" (500 mm)
Transverse (Y) 16.5" (420 mm)
Vertical (Z) 15.0" (380 mm)
Main drive
AC motor spindle drive power 100% DC 33.5 hp (25 kW)
AC motor spindle drive power 40% DC 46.9 hp (35 kW)
Work spindles, tool mounting CAT 40
Speed range 18,000 rpm
Number of gear steps None
Maximum spindle torque 95.9 ft/lbs (130 Nm)
Spindle bearing diameter 3.15 (80 mm)
Tool changer
Number of tools 60
Maximum tool weight 13.22 lbs (6 kg)
Maximum tool diameter wo vacant places 3.15 (80 mm)
Maximum tool diameter with vacant places 4.13 (105 mm)
Maximum tool length 11.02 (280 mm)
Chip to chip time Approximately 6 seconds
Feed
Feed range, linear axes 787.4 ipm (20 m/min)
Rapid traverse, linear axes 1,968 ipm (50 m/min)
Path measuring system
Direct, Heidenhain glass scales, resolution 1 um (0.00004) for X/Y/Z
Control
Heidenhain MillPlus With electronic handwheel control
Weight
Weight of machine with NCSRT Approximately 11,374 lbs

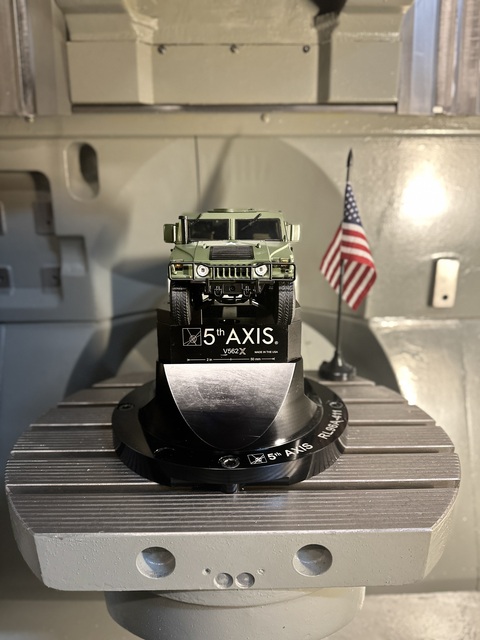

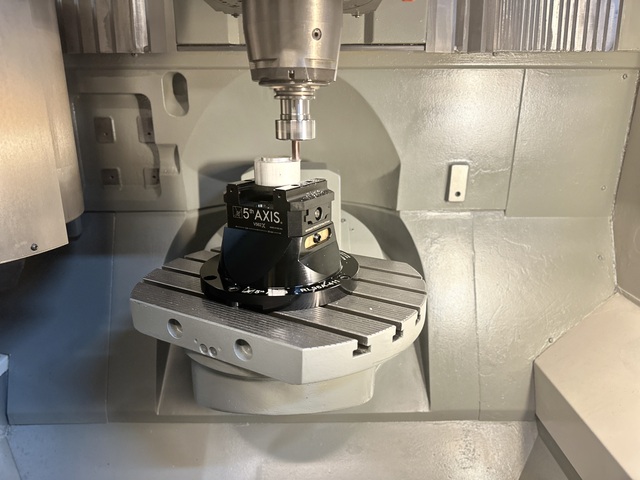

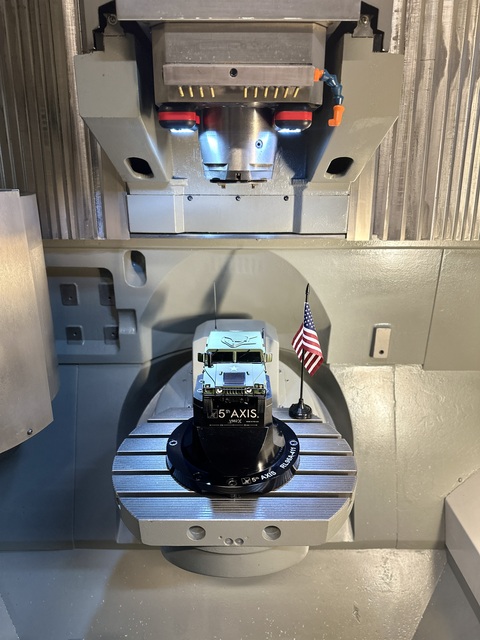

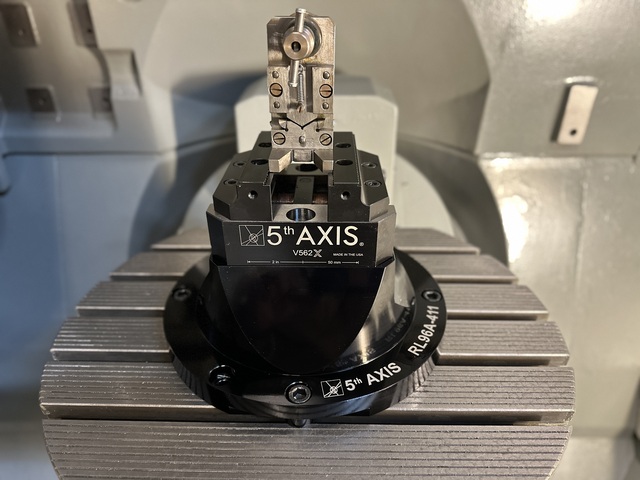

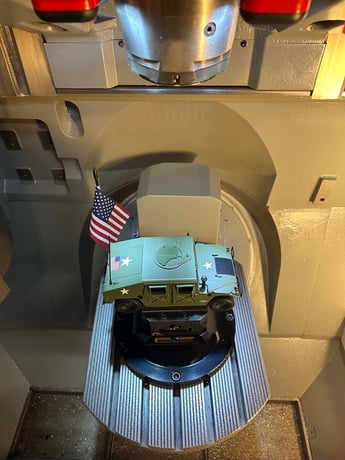

NC-rotary table with NC-swivel axis
Clamping area 19.7 diameter x 15 (500 mm x 380 mm)
Center bore 1.2 H6 diameter
No./Spacing of T-slots 5/2.5 14H7

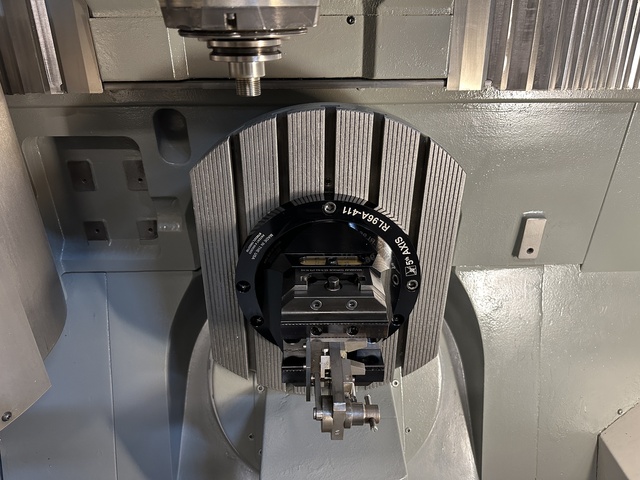

Swivel axis (B axis) 0 degrees through 180 degrees
Rapid traverse (Swivel B axis) 26 rpm
Table swivel time, horizontal to vertical Approximately 1.5 seconds
Rotary axis (C axis) 0-360 degrees (continuous, full 4th axis)
Rapid traverse (Rotary C axis) 33 rpm
Table loading maximum 440 lbs (200 kg)
Table measuring system Direct, Heidenhain angle encoders for B & C axes
Table cooling Drive cooling for B & C axis with heat exchanger
Flood coolant
Amount of coolant 52.8 gallons (200 l)
Flow rate 5.28 gallon/minute (20 l/minute)
Price quoted in United States Dollars
Price quoted is FOB Origin
To the best of our knowledge all details listed above are deemed correct. It is the Buyer's responsibility to confirm all details including condition, capacity, suitability or performance and we encourage an under power inspection of the machine(s) and accessories prior to purchase.
