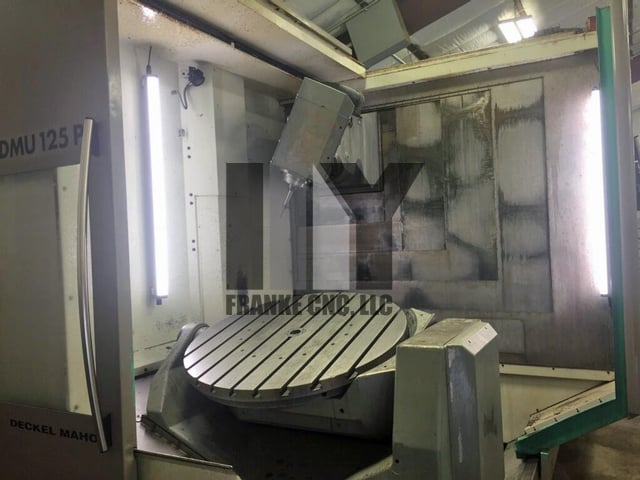

DMG, Mori Deckel Maho #DMU-125P, 60 automatic tool changer, 49.2" X, 34.6" Y, 31.5" Z, 12000 RPM, MillPlus, 1998

5-AXIS MACHINING CENTERS DECKEL MAHO DMU125P SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS FOLLOWING, WE OFFER FOR YOUR CONSIDERATION: Used 1998 DMG MORI DECKEL MAHO DMU125P 5-Axis Universal Machining Center: INSPECT IN USA PLANT UNDER POWER BY APPOINTMENT! Machine was manufactured in Pfronten, Germany HEIDENHAIN MillPlus CNC Control -SERVICE HISTORY- The following parts have all been replaced within the past 2 years: -New spindle -All new drives -All new ballscrews -DESIGN CONCEPT- This is a UNIVERSAL machining center meaning it is two machines in one: both a vertical AND horizontal machining center. The universal milling head on this machine is automatic and programmable. It can be swivelled in 4 seconds from vertical to horizontal, and in combination with the rotary swivel table makes 5-sided, full 5-axis machining in 1 set up possible. Setup time is reduced, the need for multiple setups is eliminated and accuracy and precision are improved. The P Series machines are intended for fully automatic manufacturing of highly complex workpieces in a single set up. Ideal for both small and large batches with the high production components including high pressure CTS (Coolant Thru The Spindle) and chip conveyor. -WORKING RANGE- -NC SWIVEL ROTARY TABLE, has bearings on both sides- Swivel angles To spindle -45 degrees, from working spindle +30 degrees -AUTOMATIC UNIVERSAL MILLING HEAD- Automatic swivel from horizontal to vertical in approximately 4 seconds. The auto swivel head makes this machine 2 machines in one because both vertical and horizontal machining is possible with one workpiece clamping. Together with the NC Swivel Rotary table 5-Sided, full 5-Axis machining is possible with one workpiece clamping. -12,000 RPM Motor Spindle- -FEED DRIVES- -60 POSITION TOOL CHANGER- Maximum tool diameter with no neighbouring empty pockets 3.94" (100 mm) Chip-to-chip time CAT40 Approximately 15 seconds vertical, 7 sec horiz -HEIDENHAIN GLASS SCALES X/Y/Z AXES DIRECT PATH MEASURING SYSTEM- -HEIDENHAIN ROTARY ENCODERS B/C AXES DIRECT PATH MEASURING SYSTEM- -EXTERNAL FLOOD COOLANT PUMP ON OUTSIDE OF SPINDLE- -INTERNAL COOLANT SUPPLY THRU THE SPINDLE- -EQUIPPED WITH- Fully enclosed protection cabin Infrared parts measuring probe Chip conveyor
