DELTA AUTOMOTIVE SPRAY BOOTH

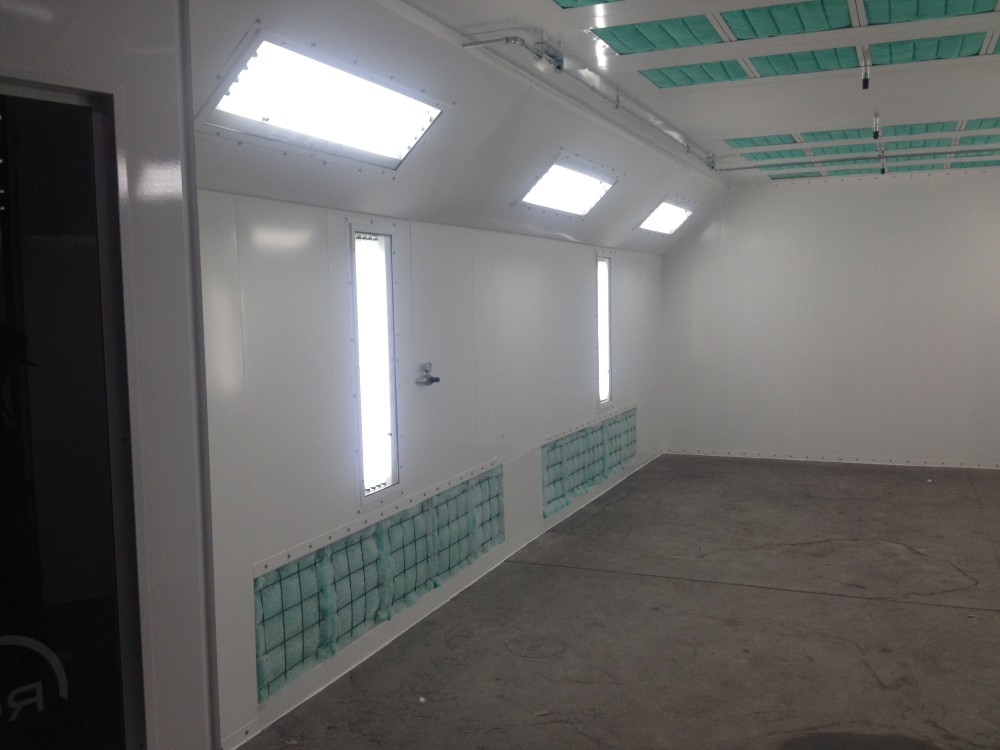

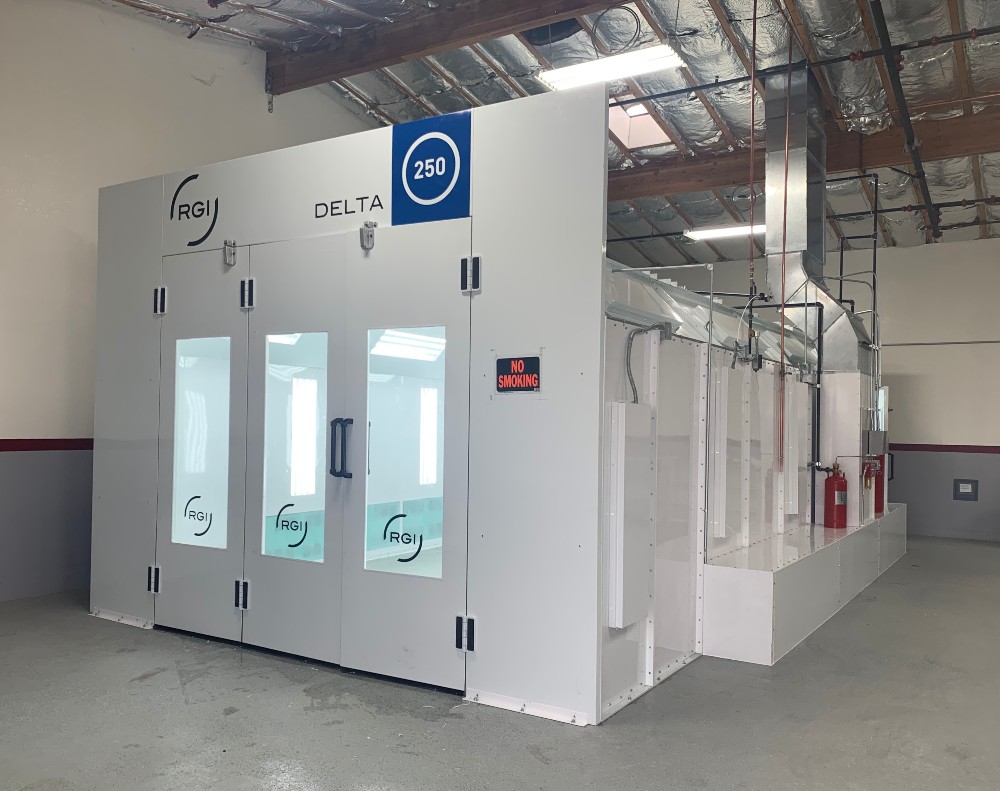

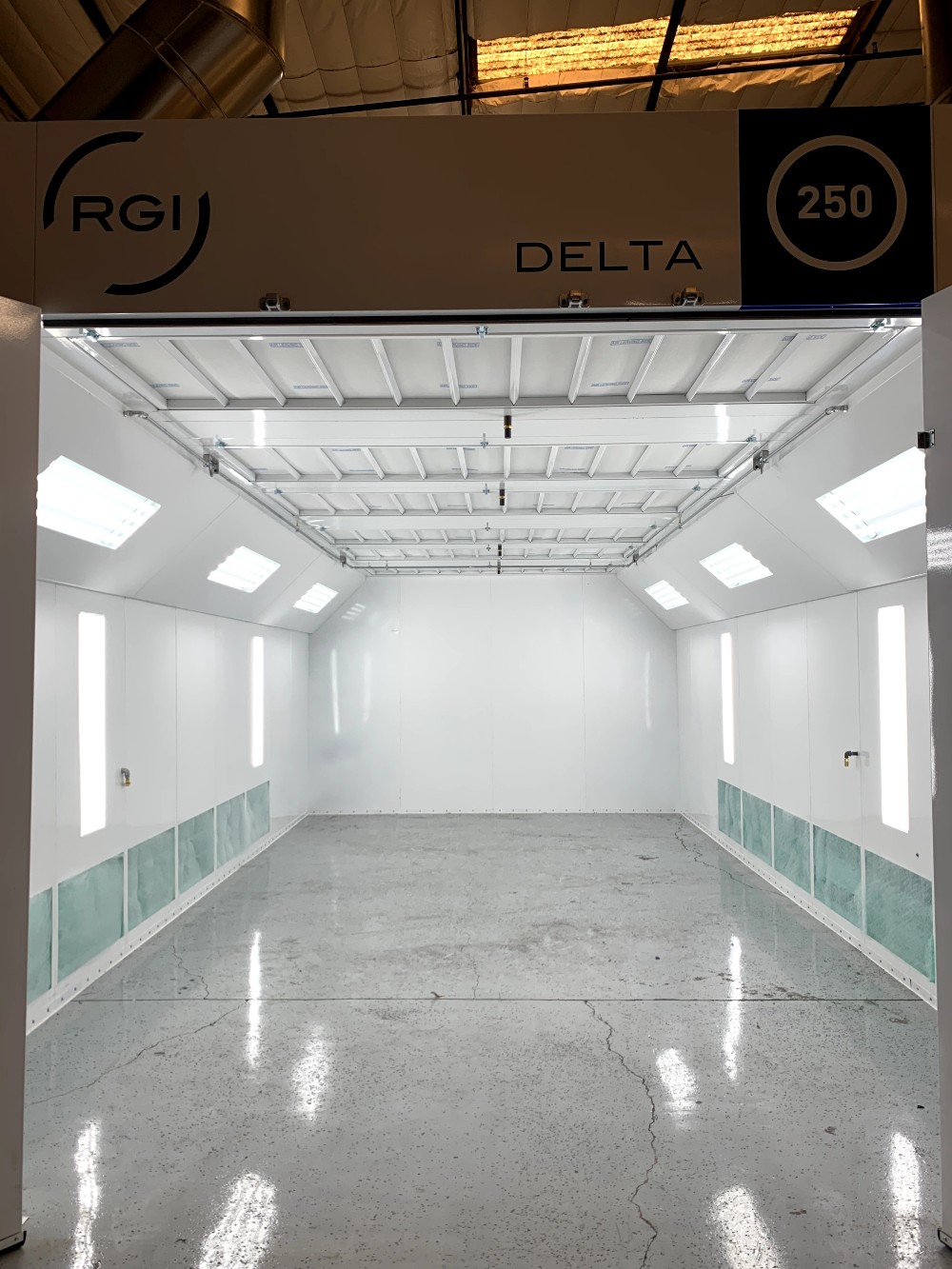

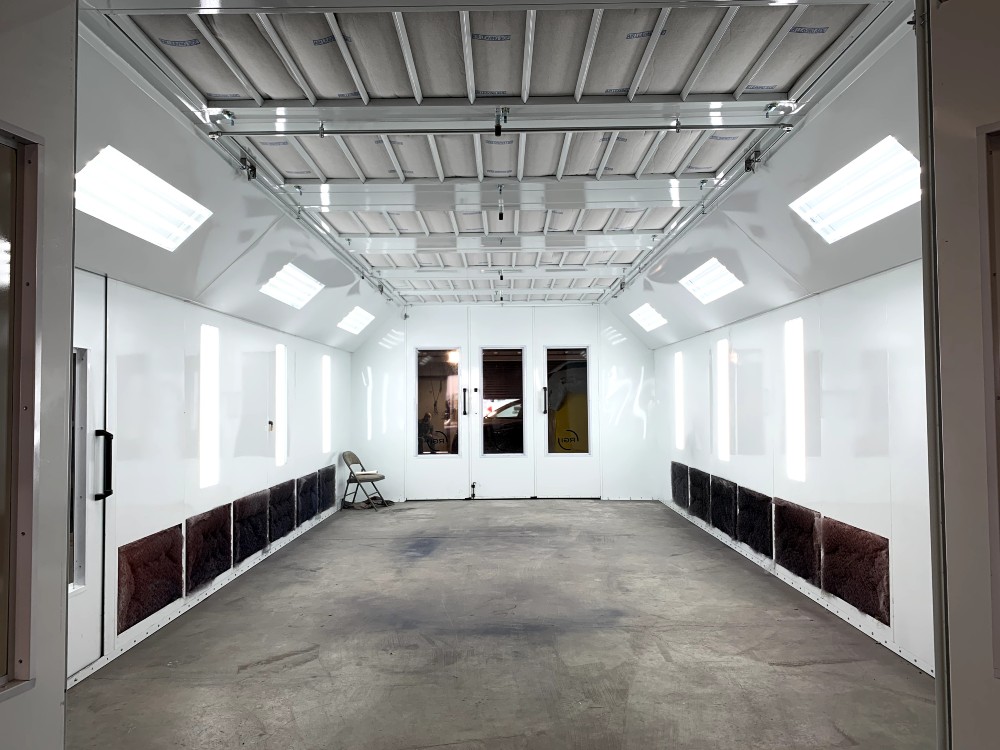

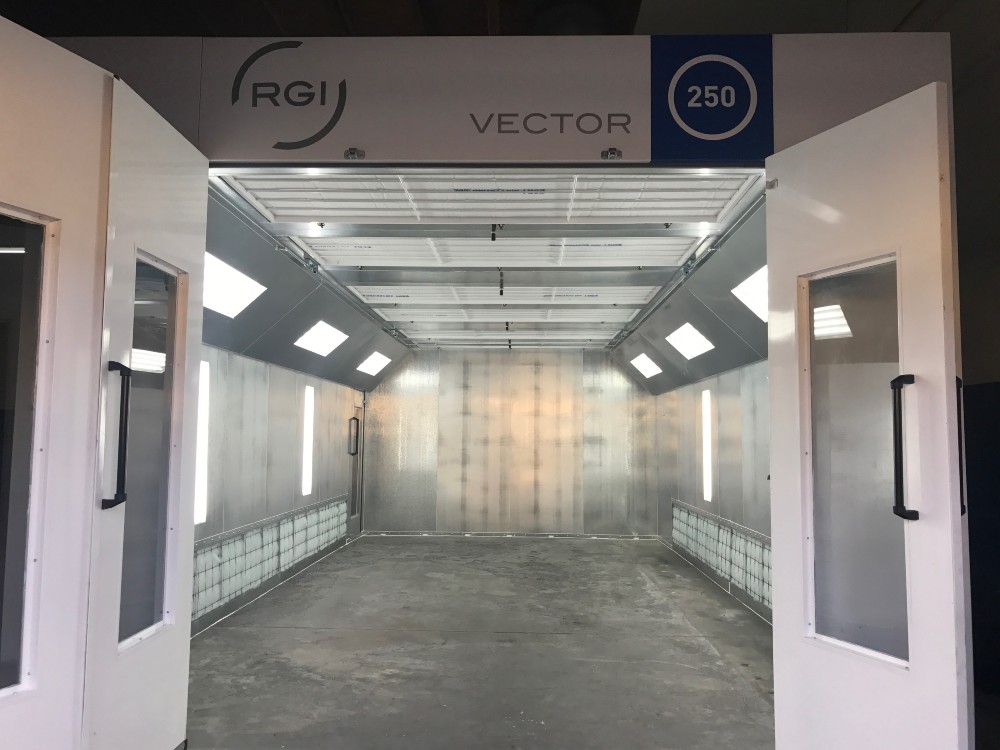

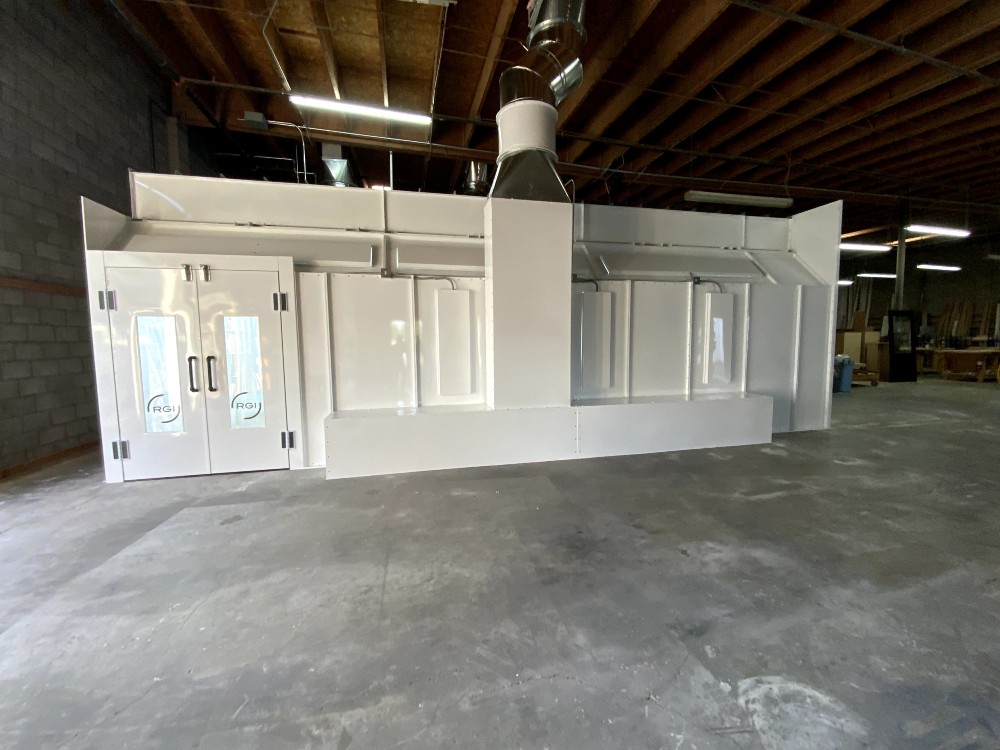

Side downdraft paint booths are an economical solution for shops that aren't able to install a pit. Air enters the booth through a full-length, filtered ceiling plenum, and flows downward over the product. When air reaches the floor, it is pulled into floor-level filtered exhaust plenums on both sides of the booth.

Heavy Duty Construction: All of our single wall booths are made with premium 18 ga. Zinc galvanized steel panels, companion flanged and pre-punched at 6" on center for easy assembly with 1/4" nuts and bolts. Single Wall. Better air flow, lighting, and strength because of gabled roof design. RGI uses high-quality hardware — including heavy-duty latches, long-lasting brass bushings, durable hollow rubber seals and sturdy handles — to ensure ease of use and many years of reliable service. Hinges and latches stay secured and are fully adjustable for a perfect fit. Our weld-free designs prevent against weak points and corrosion, making for a sturdy, long-lasting booth.

Fans & Motors: (2) 24" Dia. Tube-axial fan with aluminum spark-proof blades belt drive exhaust fan (2) 3hp 3ph Belt-drive motor 208-230/460v. 60 hz

Filters: (12) Exhaust filters w/ (14) exhaust filter grids (6) Intake filter pads 37” x 117” x 2” Ceiling Diffusion Media is a 1” thick, scrim backed

Doors:

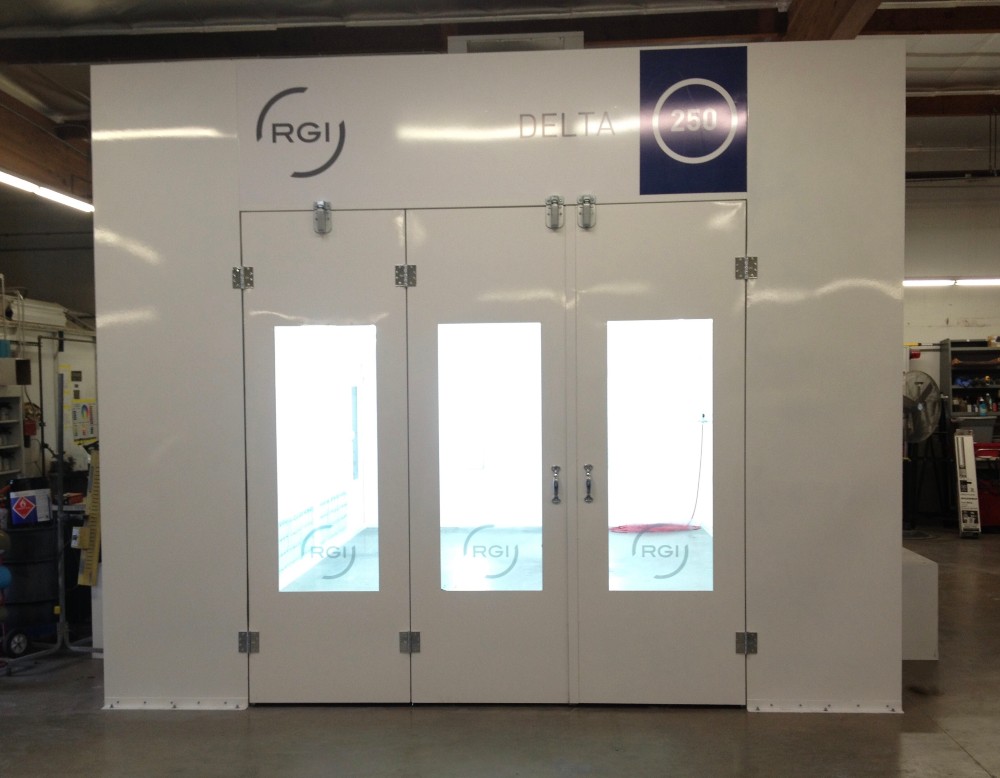

(1) Set of DOUBLE WALL TRI-FOLD drive-in doors with observation windows, opening Dimension 9'x9'
(1) Side access man door - Dim. 3'x7' with observation windows

Lighting: Full booth illumination from LED (standard) 4’ Long, 4 tube LED T8 light fixtures 120v. ETL listed

Booth Upgrades:

• Powder Coat or Galvanized Finish. Panels cover all walls, door frames, floor channels & ceiling panels.
• Booth Extension. Need more space to spray? Extend the length of your booth.
• Single-Phase Motor Upgrade
• Drive-Thru Doors - Add automotive exit doors to the booth to increase production time.
• AMU - Heating for your Spray Booth
• Control Center for spray booth

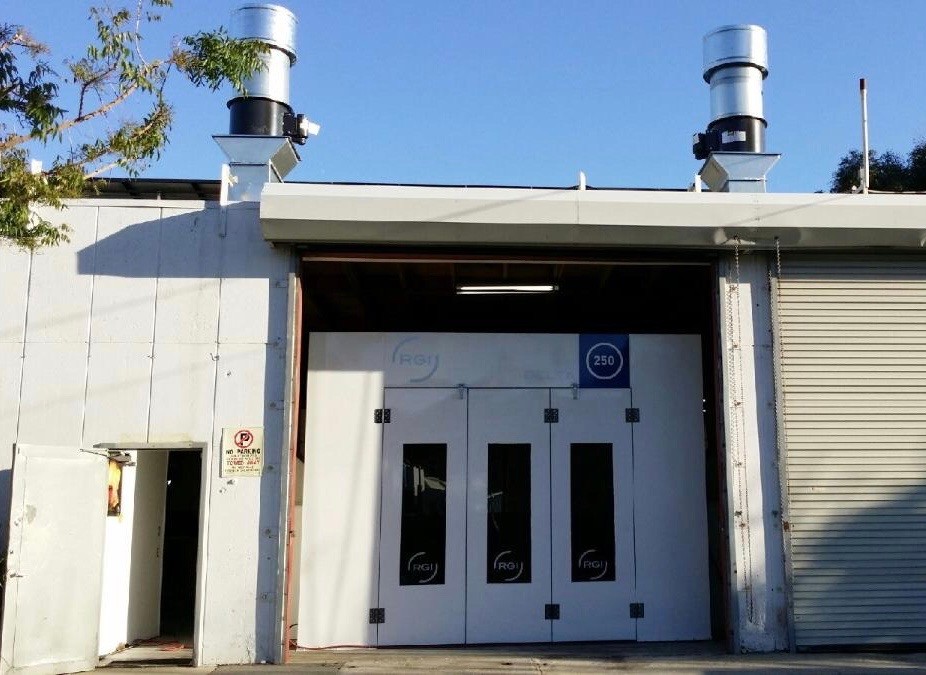

• Ducting Kit - Spray booth exhaust system includes:
  *(2) Plain duct, (1) Service door duct, (1) Flashing for the roof (1) damper cap
