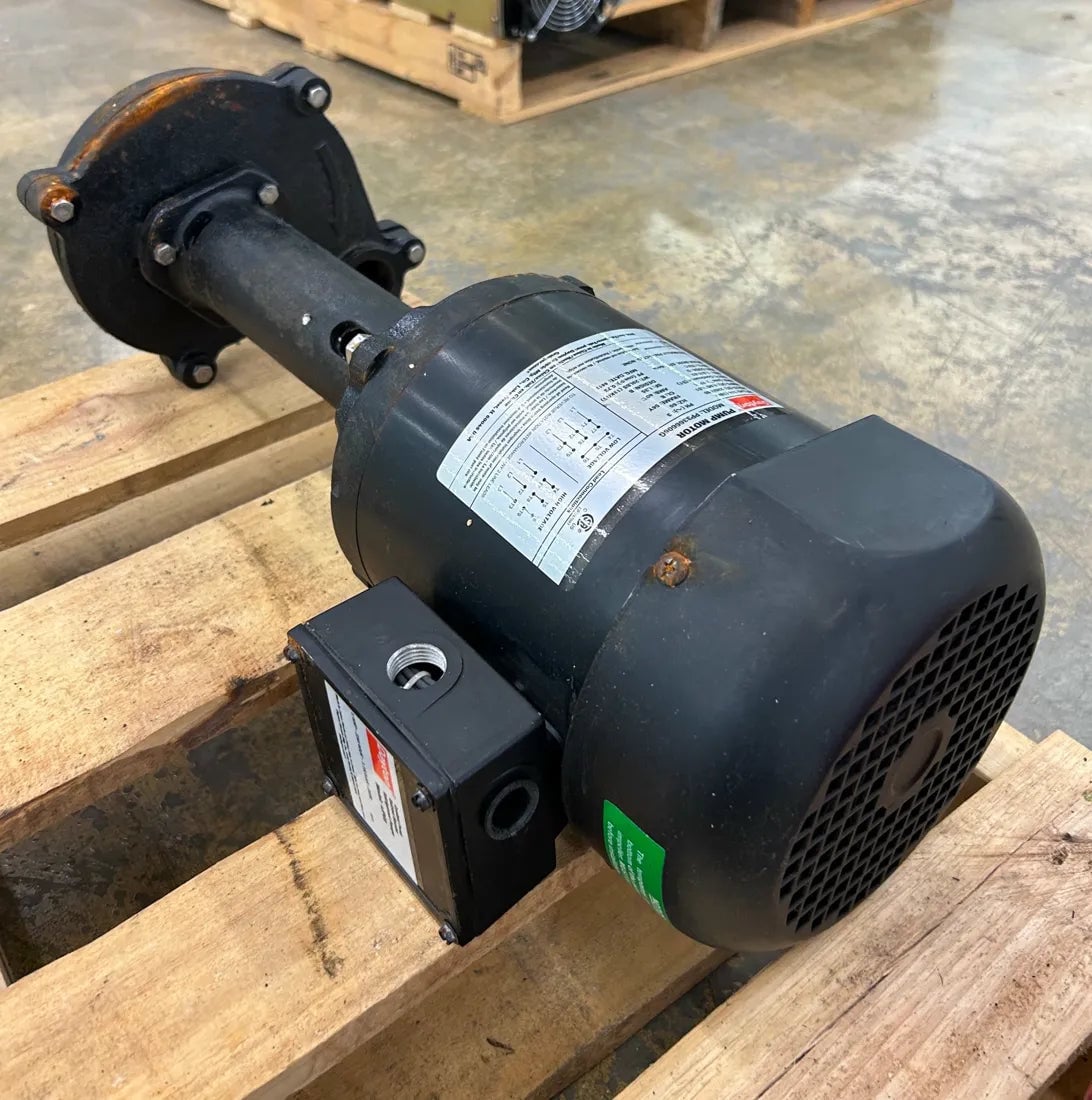

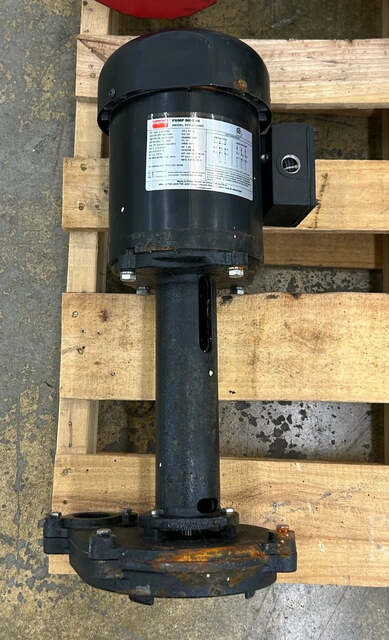

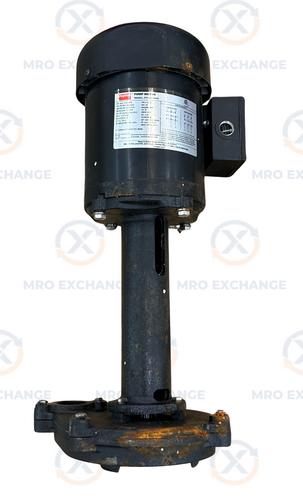

Dayton Coolant Pump 4JPG9 1-1/4 in. Inlet and Outlet 18 ft shut-off head

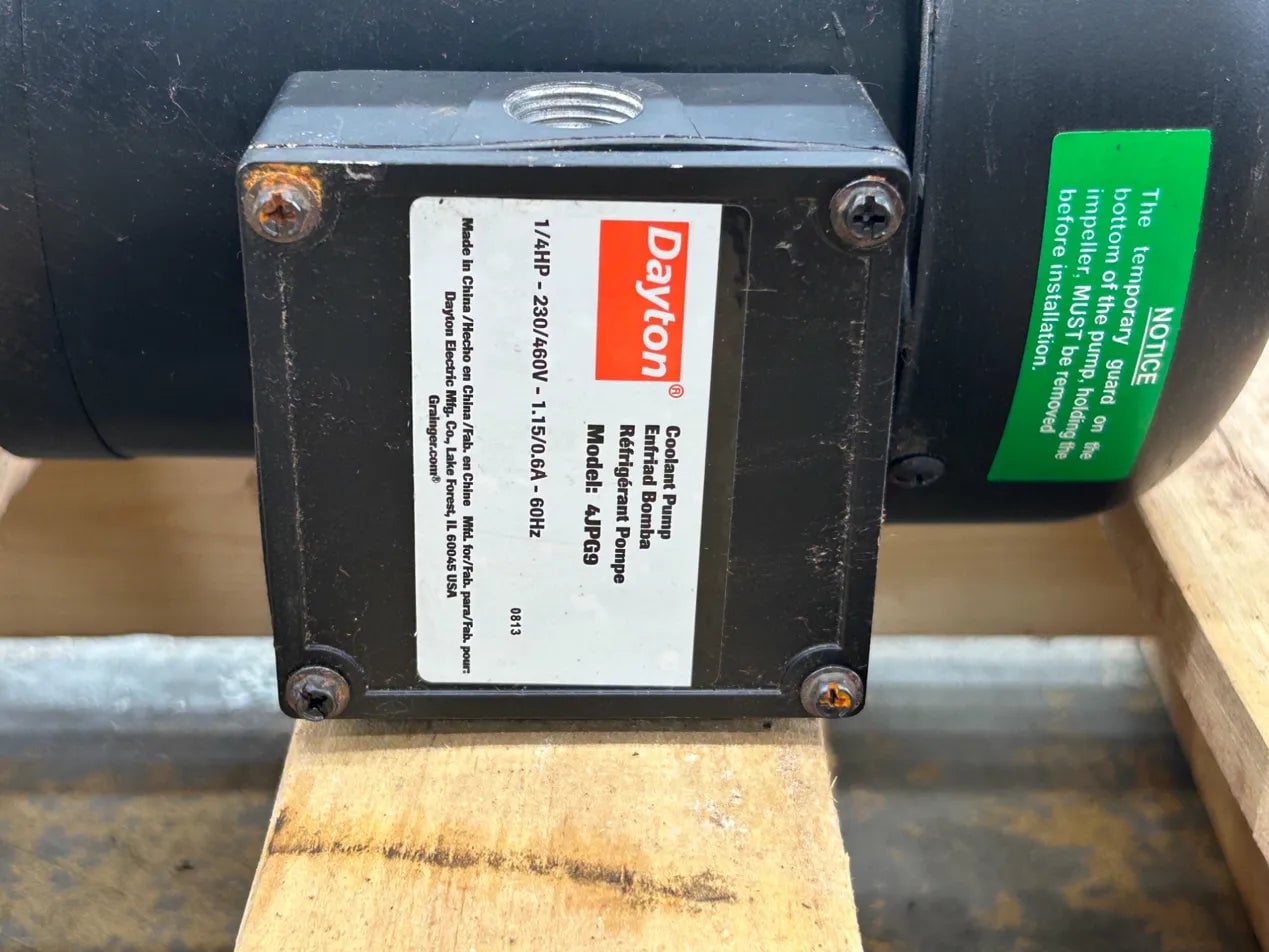

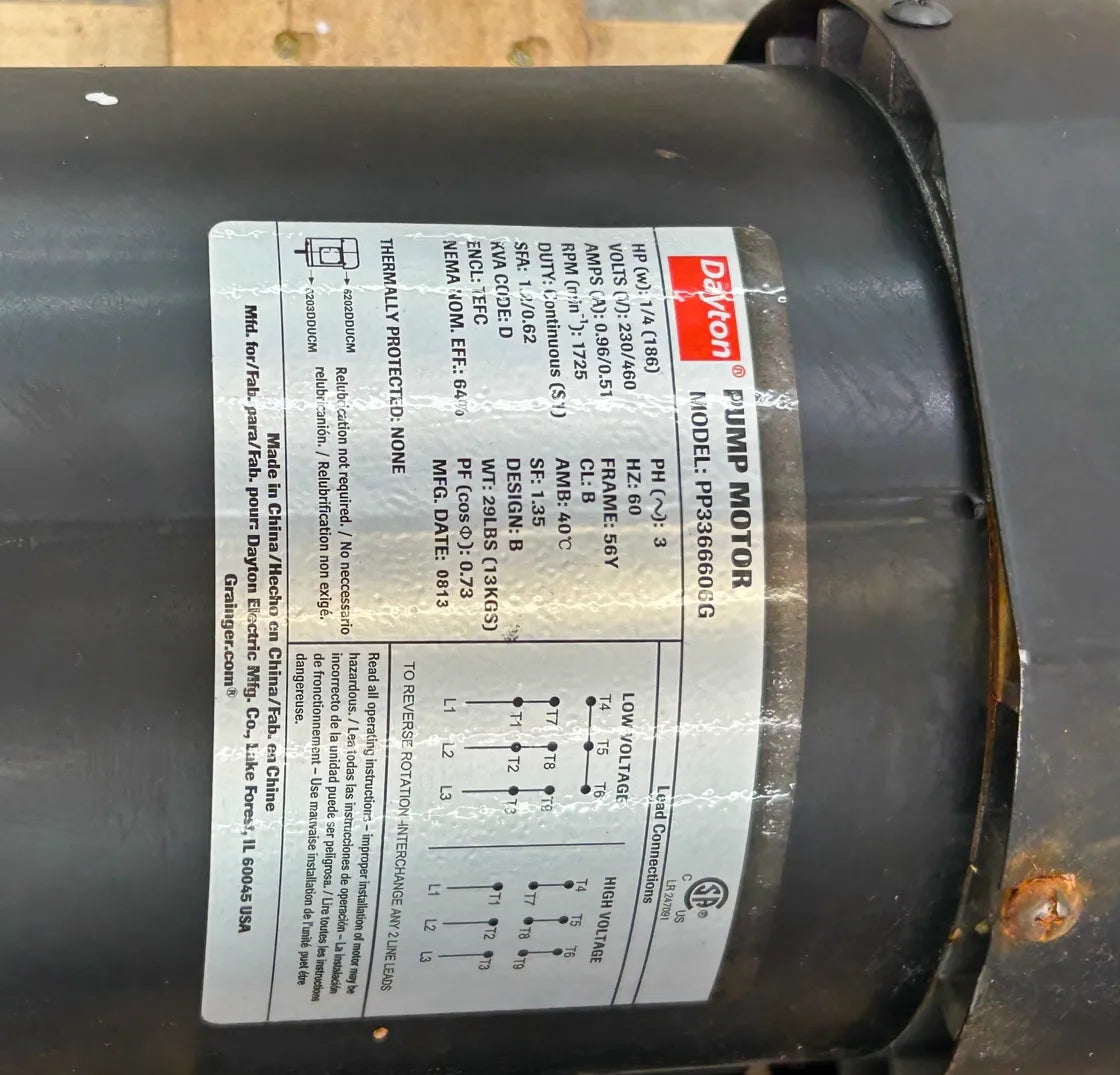

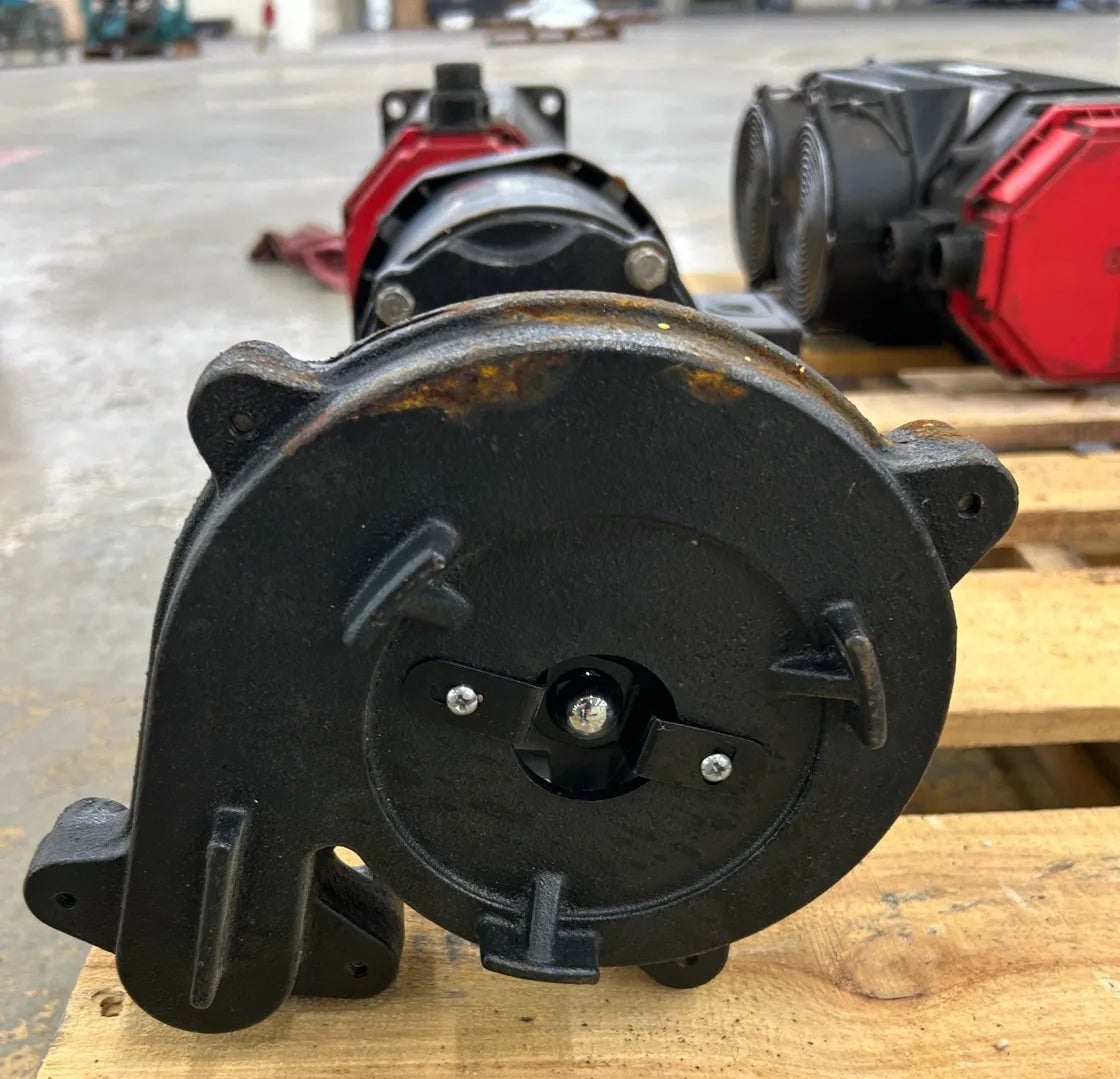

Used in CNC machining centers and industrial machine tools, the Dayton 4JPG9 is a 1/4 HP three-phase coolant pump designed to circulate machining lubricants, cutting oils, and water-soluble coolants. The pump operates on 230/460V at 0.7/0.43 amps and runs at 1,725 RPM. It features a cast iron pump body with a 304 stainless steel impeller and delivers up to 55.5 GPM of water at 1 ft. of head, with a shut-off head of 18 ft. The inlet and outlet port size is 1-1/4 in. Maximum fluid temperature is 200 degrees F with a maximum recommended viscosity of 500 SSU. The TEFC (Totally Enclosed Fan Cooled) motor is rated for continuous duty service factor 1.35, NEMA frame 56Y, Class B insulation. Overall dimensions per manufacturer specifications are approximately 11 in. length, 8-7/16 in. width, and 21-7/16 in. height. The pump housing is cast iron with a stainless steel impeller, making it compatible with a range of nonflammable industrial fluids. The assembly includes the motor and pump head as a single integrated unit with a separate junction box for wiring. Manufactured by Dayton Electric Mfg. Co., Lake Forest, IL, and distributed through Grainger under item number 4JPG9. MFG date code shown on nameplate is 0813.

Stock # 0226-772
