Manufacturer: Daewoo Doosan
Model: LYNX-2600SY
Year: 2021
Swing: 24.8
Bar Capacity: 3.2
Stock # 45806
Click to zoom in
For Sale by Premier Equipment Inc
Surplus Record Dealer Since 2023
Location: Altamonte Springs, FL
Contact Tom Kohm
Phone Number: 407...> Show Phone Number 407-759-4569
Let the seller know you found their listing on Surplus Record!
Description

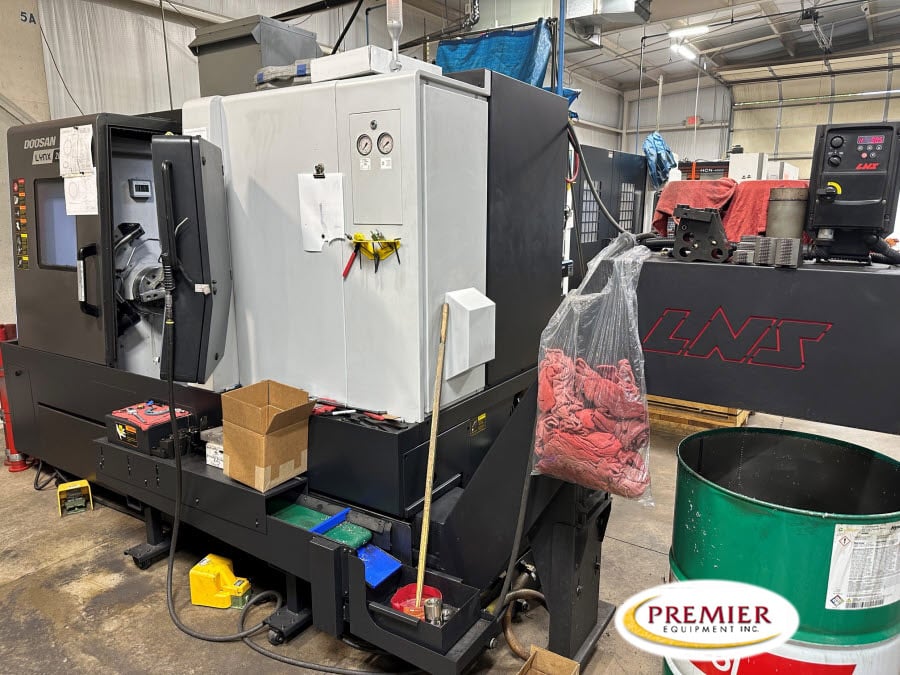

Doosan Lynx 2600SY Multi-Axis CNC Turning/Milling Center
Specifications (subject to buyer verification):
Capacity
Swing over bed: 24.8″
Swing over saddle: 18.1″
Recom. Turning diameter: 10.0″
Max. Turning diameter: 15.0″
Max. Turning length: 24.0″
Bar working diameter: 3.2″
Travels
X-axis Travel: 9.8″
Z-Axis Travel: 26.9″
Y-axis Travel: 4.1″ (±2.1)
Feedrates
Max. Spindle speed: 3500 RPM
Main spindle motor power (15min/Con.): 25 / 20 / 20 HP
No. of tool stations: 12 {24positin index}
Max. Rotary tool speed: 5000 RPM
Rotary tool motor power: 7.4 HP
Sub spindle
Max. Spindle speed: 4500 RPM
Main spindle motor power: 10 / 7.5 / 7.5 HP (S6 25%/S6 40%/Cont.)
Equipped With (subject to buyer verification):
Doosan-Fanuc i Series Plus
Tool Presetter
Chip Conveyor
Parts Catcher with Exit Conveyor
10” Main Spindle Chuck
8” Sub Spindle Chuck
Get Your Price from Premier Equipment Inc!
