Manufacturer: Daewoo Doosan
Model: LYNX-2100LYA
Year: 2021
Swing: 23.6
Chuck: 8
Bar Capacity: 2.6
Stock # 46464
Click to zoom in
For Sale by Premier Equipment Inc
Surplus Record Dealer Since 2023
Location: Altamonte Springs, FL
Contact Tom Kohm
Phone Number: 407...> Show Phone Number 407-759-4569
Let the seller know you found their listing on Surplus Record!
Description

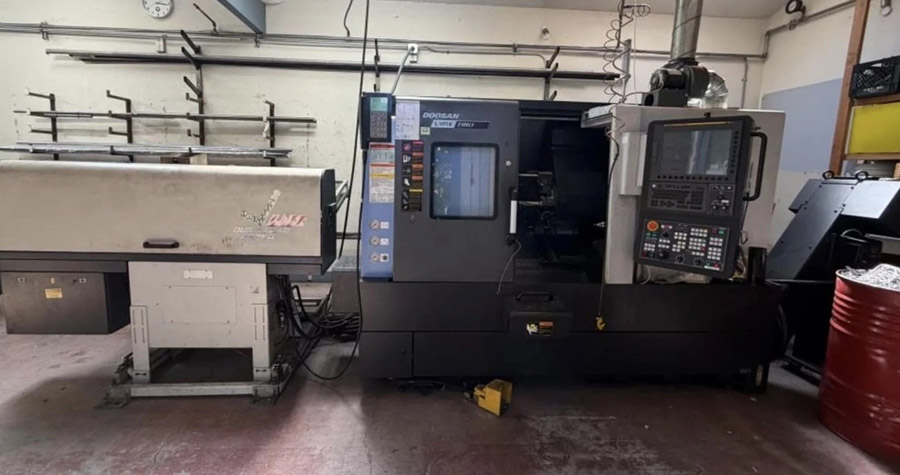

2021 DOOSAN LYNX 2100LYA
SPECIFICATIONS:
Swing Over Bed 23.6″
Maximum Turning Diameter 13.8″
Maximum Turning Length 20.1″
Chuck Size 8″ Hydraulic Chuck
Bar Capacity 2.6″
Spindle Nose A2-6
Spindle Speed 4,500 RPM
Spindle Motor 20 HP
X-Axis Travel 8.1″
Y-Axis Travel ±2.05″
Z-Axis Travel 22.0″
Rapid Traverse (X/Z) 1,181 IPM
Turret 12-Station BMT55
Live Tool Speed 6,000 RPM
Machine Weight Approx. 9,900 lbs
Power Requirement 220V / 3 Phase
EQUIPPED WITH:
FANUC 0i-TF Plus Control
LNS Bar Feeder
Live Tooling
Y-Axis
C-Axis
Hydraulic Tailstock
Chip Conveyor
Coolant System
Parts Catcher
