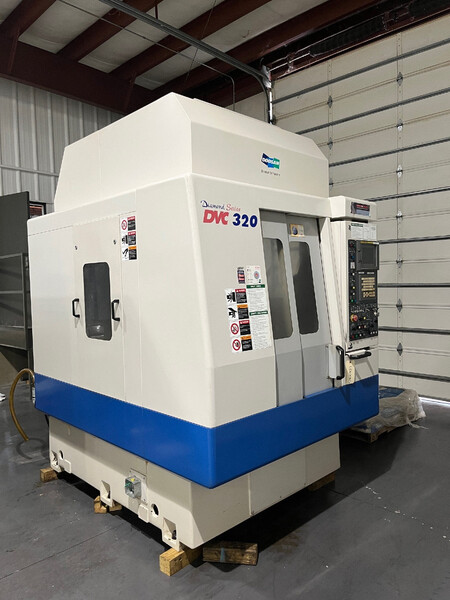

Manufacturer: Daewoo Doosan
Model: DVC-320
Year: 2002
Automatic Tool Changer: 14
Longitudinal" X: 20.4
Cross" Y: 12.6
Vertical" Z: 13.7
RPM: 10000
Stock # UD100635
1 / 3
Click to zoom in
1 / 3
For Sale by Machinery Solutions Inc
Surplus Record Dealer Since 1999
Location: Lexington, SC
Contact Jason A.
Phone Number: 803...> Show Phone Number 803-359-7000
Let the seller know you found their listing on Surplus Record!
Description
FEATURES
* Fanuc 21iM Control
* High speed 10,000 RPM precision spindle
* Powerful 10 hp spindle motor
* Cartridge spindle design
* High Precision spindle with two double-row cylindrical
roller bearings and two angular contact bearings
* Spindle taper air blow
* Spindle Orientation
* Rigid tapping
* Spindle overide 50% to 150%

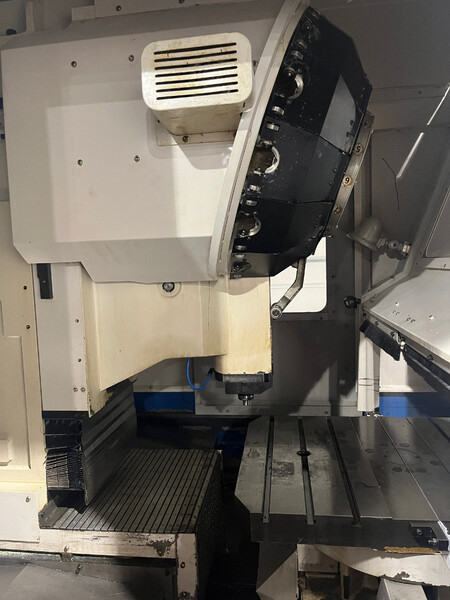

* Memory Random (14) ATC
* Fast 1.2 second tool change
* Automatic 5 second indexing with (2) T-slotted pallets
* Hydraulic pallet clamping
* Portable Manual Pulse Generator
* 120 degree, Swiveling operator console
* Compact design
* Traveling column design
* One piece Meehanite cast iron bed
* Large Linear Motion Guides
* Oversized ball screws and 1.6 hp servo drives mounted directly
SPECIFICATIONS
CAPACITY:
X axis travel 20.4 inches
Y axis travel 12.6 inches
Z axis travel 13.7 inches
Table type Dual type pallet changer
Table indexing 180 degrees
Table Size 23.6” x 14.17” per side
Allowable table load 330 pounds per pallet
Table T - slots (3) – 3.93” x .55”
SPINDLE:
Spindle nose to tabletop 5.9 - 19.6 inches
Spindle center to column 18.5 inches
Spindle taper ISO No. 30
Spindle speed 10,000 RPM
AC spindle motor (30 minutes) 10 hp
Spindle torque (30 minutes) 35 ft-lbs.
AUTOMATIC TOOL CHANGER:
Number of tools 14
Tool shank BT 30
Maximum tool diameter 3.15 inches
Maximum tool length 7.87 inches
Maximum tool weight 6.2 pounds
Tool to tool change time 1.2 sec.
Chip to chip change time 2.2 sec.
MOTION:
X and Y axis rapid traverse rate 1,417 IPM
Z axis rapid traverse rate 1,890 IPM
Maximum cutting feed rate 787 IPM
Least command increment . 0001”
X, Y & Z-axis servomotors 1.6 hp

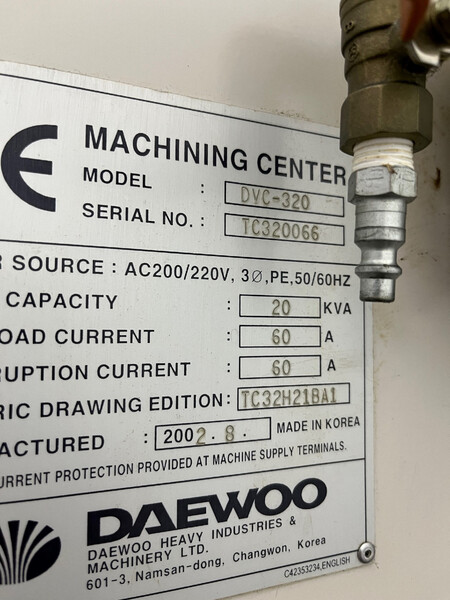

GENERAL:
Machine height 91”
Machine length & width 114" x 67"
Machine net weight 11,000 pounds
Voltage required 220 volt / 3 phase
KVA required 20
to ballscrews by flexible couplings
* Fast 1,417 IPM X,Y and 1,890 IPM Z rapid traverse
* Metered piston distributor lubrication
* Telescopic way covers
* Base Flush Chip Disposal
* Fully enclosed work area (including top)
* Flood coolant with large separate coolant tank
* Fanuc 21iM Control
* High speed 10,000 RPM precision spindle
* Powerful 10 hp spindle motor
* Cartridge spindle design
* High Precision spindle with two double-row cylindrical
roller bearings and two angular contact bearings
* Spindle taper air blow
* Spindle Orientation
* Rigid tapping
* Spindle overide 50% to 150%
* Memory Random (14) ATC
* Fast 1.2 second tool change
* Automatic 5 second indexing with (2) T-slotted pallets
* Hydraulic pallet clamping
* Portable Manual Pulse Generator
* 120 degree, Swiveling operator console
* Compact design
* Traveling column design
* One piece Meehanite cast iron bed
* Large Linear Motion Guides
* Oversized ball screws and 1.6 hp servo drives mounted directly
SPECIFICATIONS
CAPACITY:
X axis travel 20.4 inches
Y axis travel 12.6 inches
Z axis travel 13.7 inches
Table type Dual type pallet changer
Table indexing 180 degrees
Table Size 23.6” x 14.17” per side
Allowable table load 330 pounds per pallet
Table T - slots (3) – 3.93” x .55”
SPINDLE:
Spindle nose to tabletop 5.9 - 19.6 inches
Spindle center to column 18.5 inches
Spindle taper ISO No. 30
Spindle speed 10,000 RPM
AC spindle motor (30 minutes) 10 hp
Spindle torque (30 minutes) 35 ft-lbs.
AUTOMATIC TOOL CHANGER:
Number of tools 14
Tool shank BT 30
Maximum tool diameter 3.15 inches
Maximum tool length 7.87 inches
Maximum tool weight 6.2 pounds
Tool to tool change time 1.2 sec.
Chip to chip change time 2.2 sec.
MOTION:
X and Y axis rapid traverse rate 1,417 IPM
Z axis rapid traverse rate 1,890 IPM
Maximum cutting feed rate 787 IPM
Least command increment . 0001”
X, Y & Z-axis servomotors 1.6 hp
GENERAL:
Machine height 91”
Machine length & width 114" x 67"
Machine net weight 11,000 pounds
Voltage required 220 volt / 3 phase
KVA required 20
to ballscrews by flexible couplings
* Fast 1,417 IPM X,Y and 1,890 IPM Z rapid traverse
* Metered piston distributor lubrication
* Telescopic way covers
* Base Flush Chip Disposal
* Fully enclosed work area (including top)
* Flood coolant with large separate coolant tank
Get Your Price from Machinery Solutions Inc!
Buyers Who Viewed This Listing Also Viewed:
JUST ADDED!
Tsugami #VA2, 3-Axis Vertical Machining Center, 19.6" x 12.9" table, 14.1" X, 10.2" Y, 9.8" Z, 12 HP, 30,000 RPM, 14+1 automatic tool changer, 2015
Category: Vertical CNC Machining Centers
Seller: Toolquip Inc
Location: Lebanon, OH
Mfr: Tsugami
Model: VA2
Year: 2015
Vertical Machining Center, used condition. s: X 360 mm, Y 260 mm, Z 250 mm; 9 kW power; 30,000 RPM; 3-axis; table 330x500 mm; spindle speed 300-30,000 RPM; max table load 200 kg; 14+1 tool magazine., Spindle Speed: 300-30,000 RPM, Spindle Taper: 7/24 S20T, Chip-to-chip time of 1.35 seconds, Maximum weight on table: ...more
Daewoo Doosan #DT-360D, CNC vertical machining center, 14 automatic tool changer, 20.5" X, 14.2" Y, 13.8" Z, 12000 RPM, #40, 10 HP, 2014
Category: Vertical CNC Machining Centers
Seller: Machinery Resources Intl
Location: Simi Valley, CA
Mfr: Daewoo Doosan
Model: DT-360D
Year: 2014
Doosan DT360/40 CNC Vertical Machining Center, Model DT 360D from 2014. This used vertical machining center offers precision engineering, ideal for optimizing your production workflow., TRAVELS:, -X AXIS: 20.5", -Y AXIS: 14.2", -Z AXIS: 13.8", TABLE PALLET SIZE: 25.6" x 14.8", SPINDLE SPEED: 12,000 RPM, TAPER: CAT 40 ...more
Brother #TC-2SA, Drilling & Tapping Center, 19" X, 14" Y, 10.6" Z, 10000 RPM, BT-30, 14 automatic tool changer, 1999
Category: Vertical CNC Machining Centers
Seller: Deal Makers Machinery
Location: Thousand Oaks, CA
Mfr: Brother
Model: TC-2SA
Year: 1999
10,000 RPM, 19X14X10.6, BT-30, 14 ATC.
JUST ADDED!

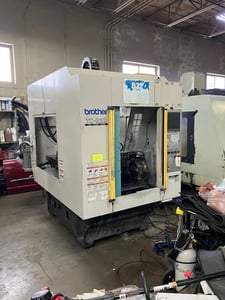

Brother #TC-R2B, CNC Drill & Tap vertical machining center, 16.5" X, 12.8" Y, 12" Z, 10,000 RPM, 14 automatic tool changer, BT30, 2010
