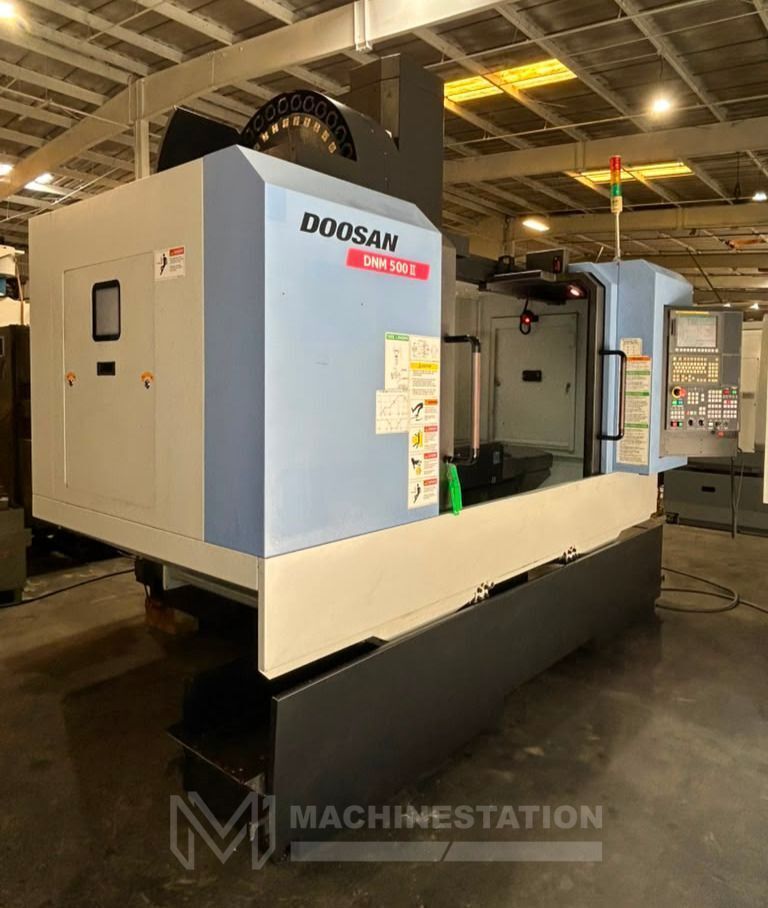

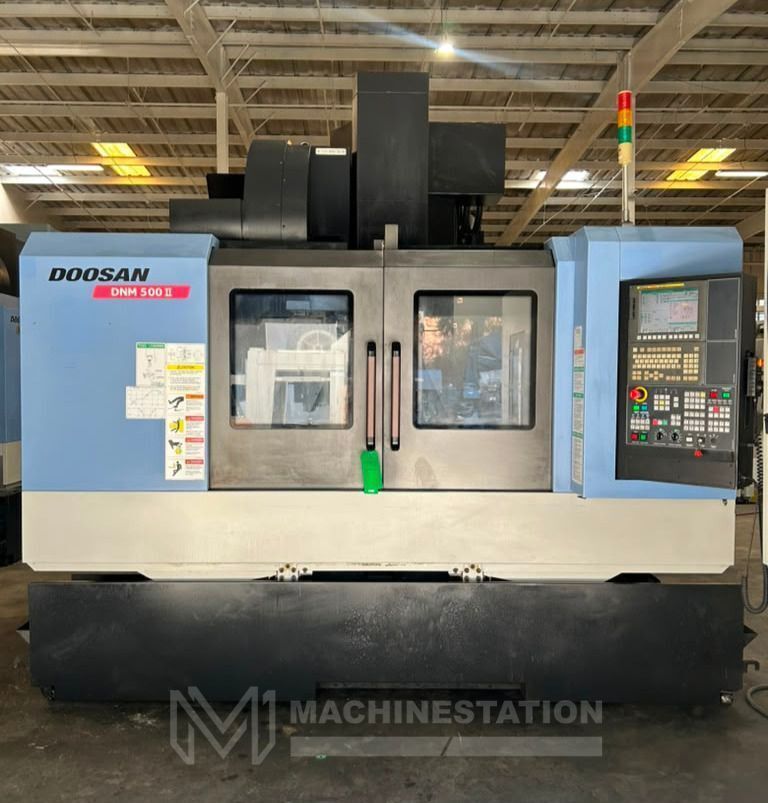

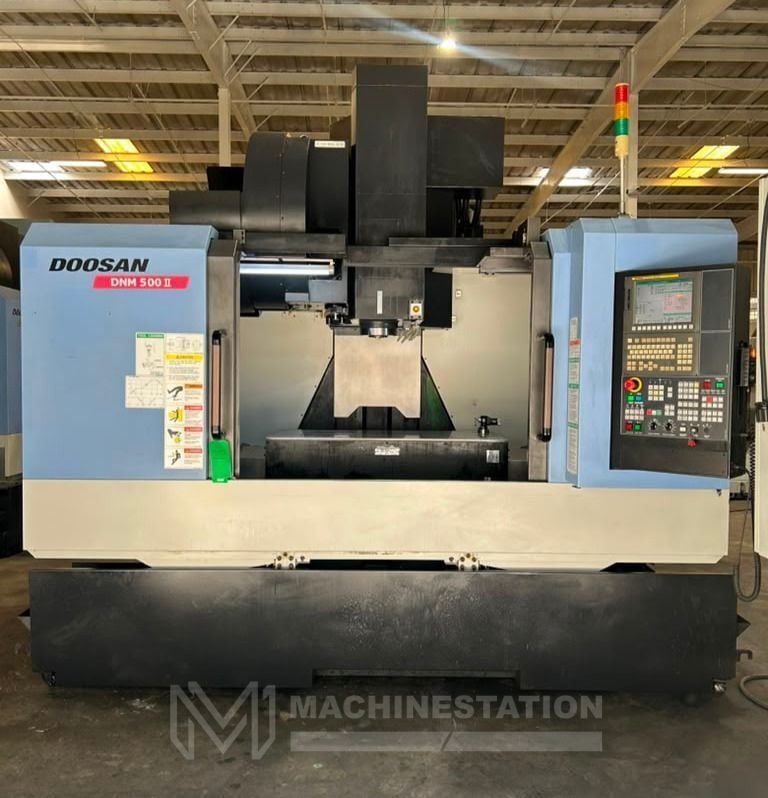

Manufacturer: Daewoo Doosan
Model: DNM-500II
Year: 2013
Automatic Tool Changer: 30
Longitudinal" X: 40.2
Cross" Y: 21.3
Vertical" Z: 20.1
RPM: 12000
Stock # 113650
1 / 10
Click to zoom in
1 / 10
For Sale by MachineStation
Surplus Record Dealer Since 2022
Location: Lake Elsinore, CA
Contact Sales Dept.
Phone Number: 909...> Show Phone Number 909-919-9600
Let the seller know you found their listing on Surplus Record!
Description
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

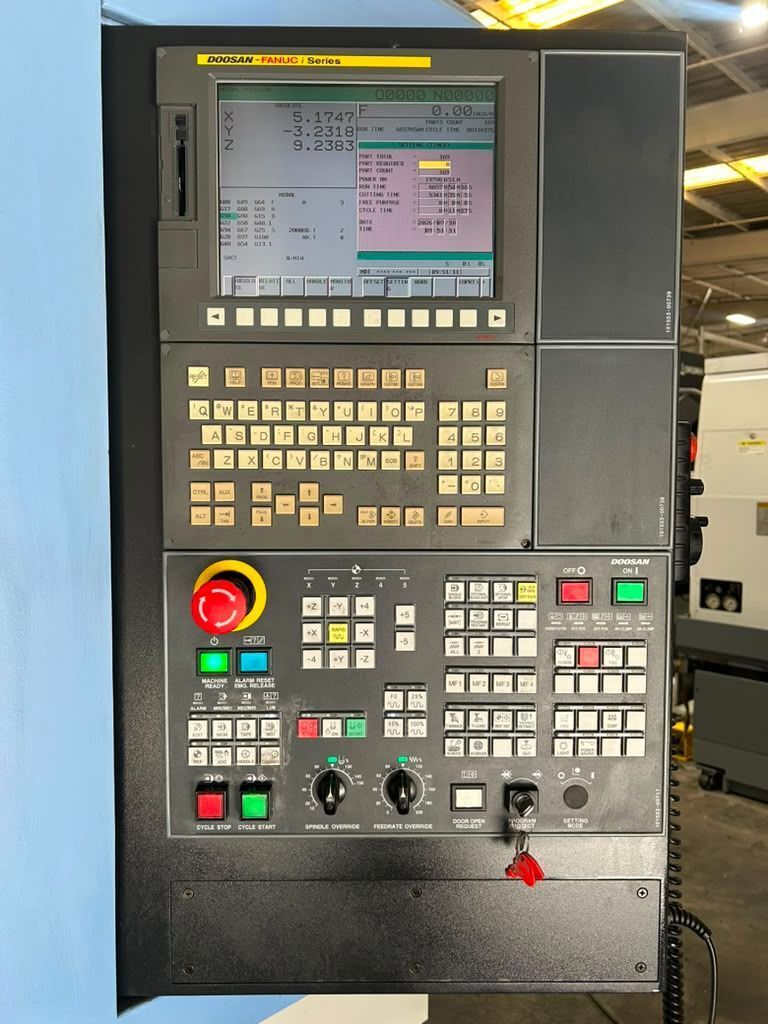

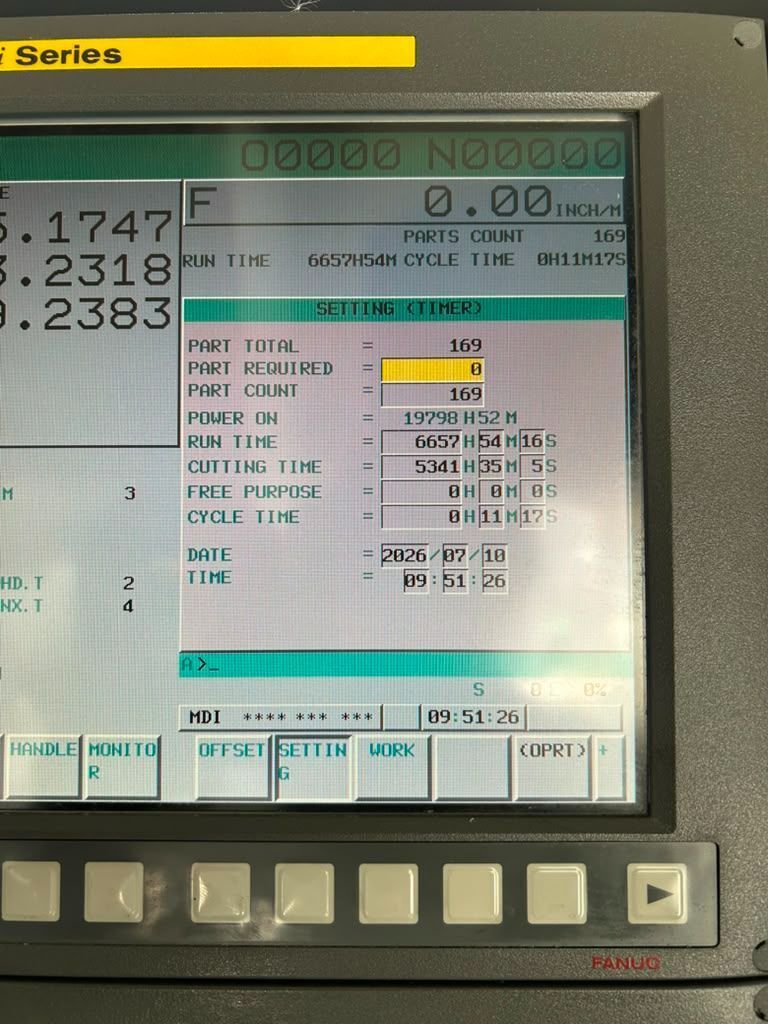

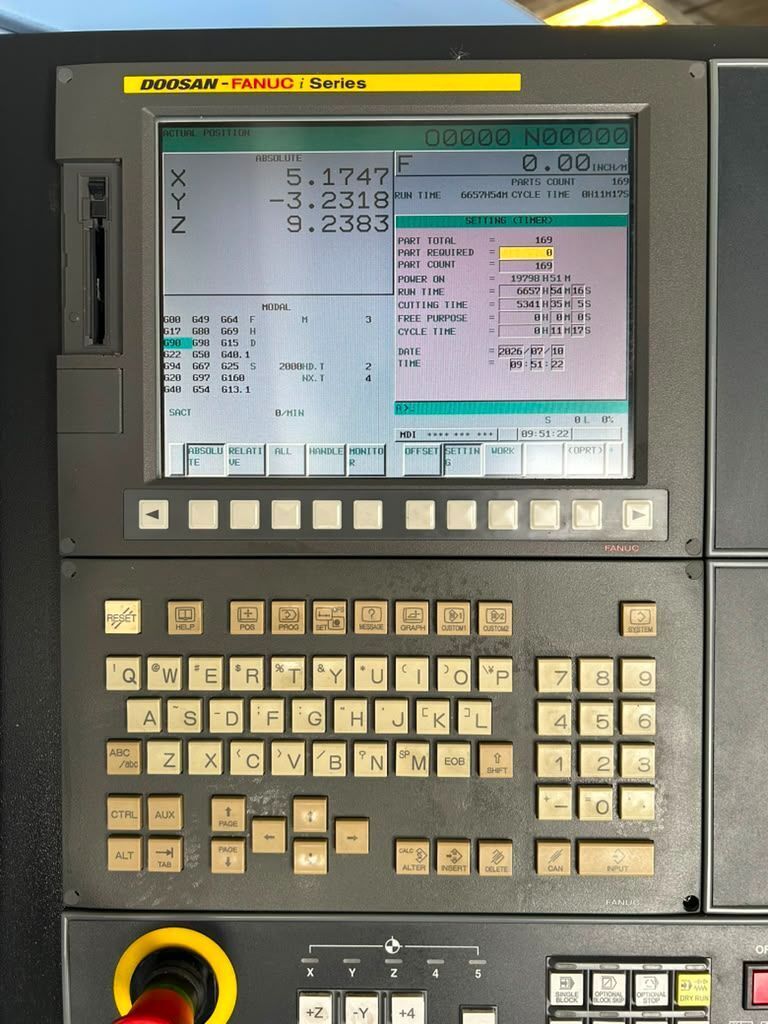

Doosan Fanuc i-Series CNC Control
CAT-40 Taper Spindle
USB Drive
PCMCIA Card Slot
Automatic Lubrication Unit
Rigid Tapping
Coolant Tank
Travels:
X-Axis: 40.2"
Y-Axis: 21.3"
Z-Axis: 20.1"
Rapid Traverse Rates X & Y Axis: 1417 IPM
Rapid Traverse Rates Z Axis: 1181 IPM
Cutting Feed Rates: 590 IPM
Spindle Nose to Table (Min.- Max.): 5.9" 26.0

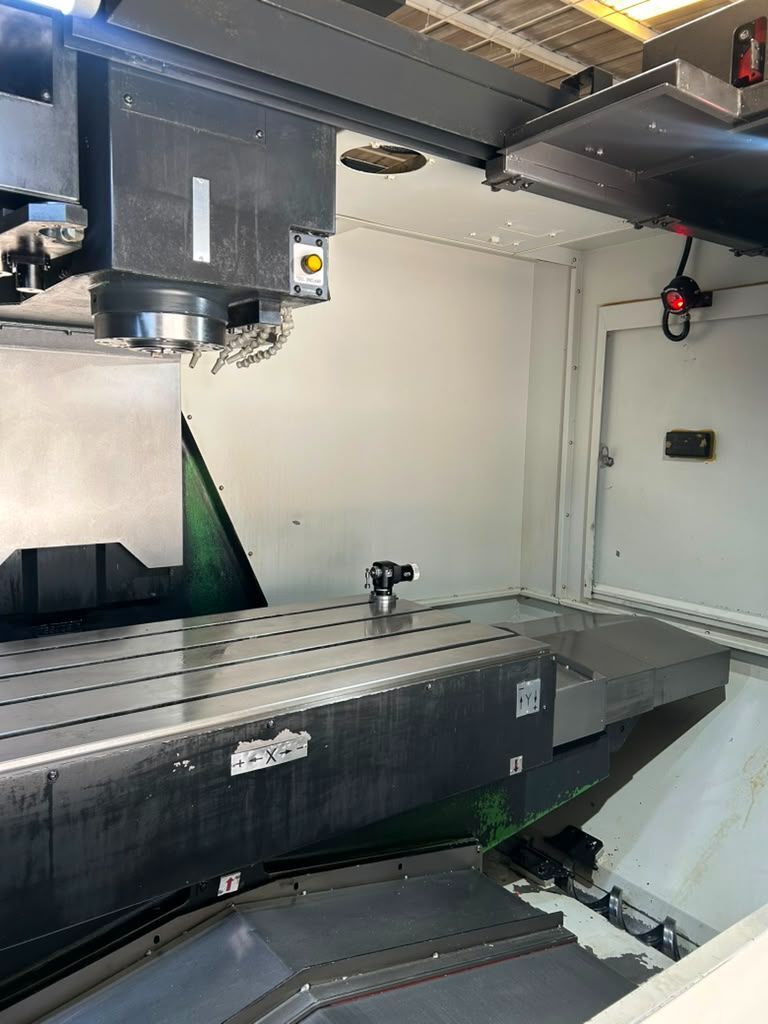

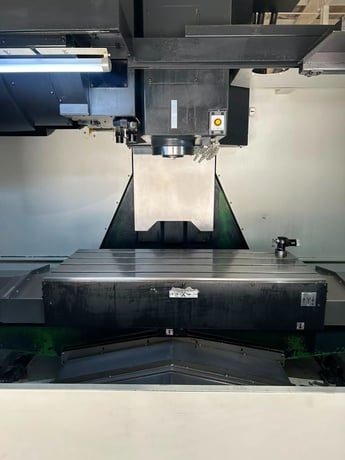

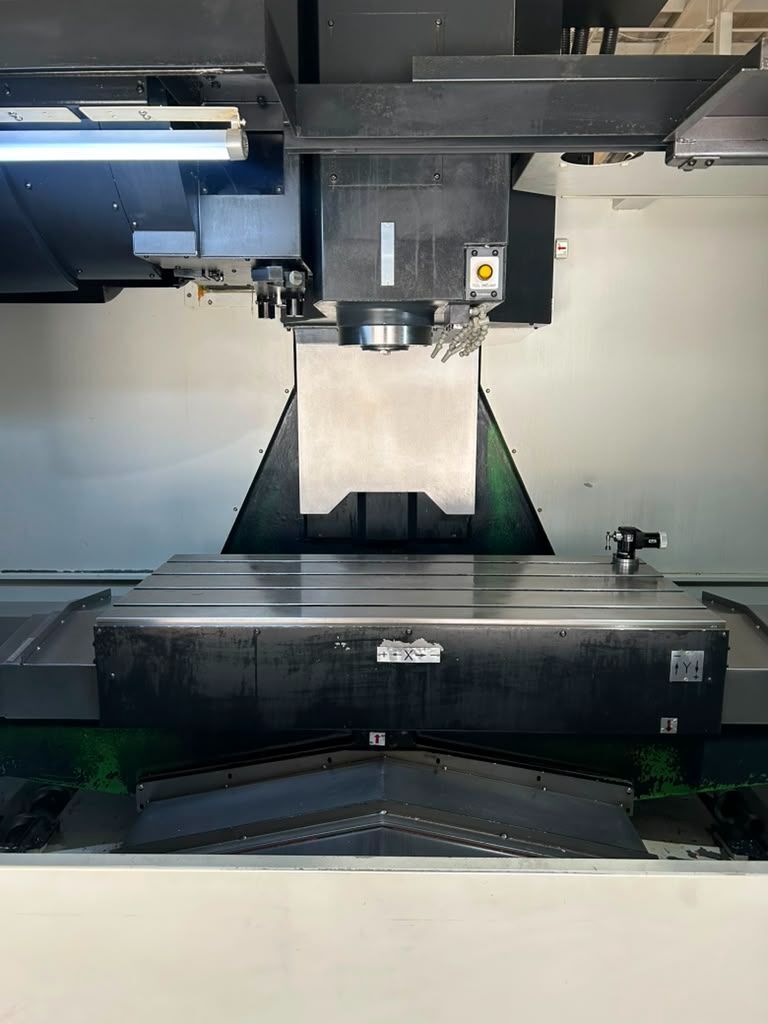

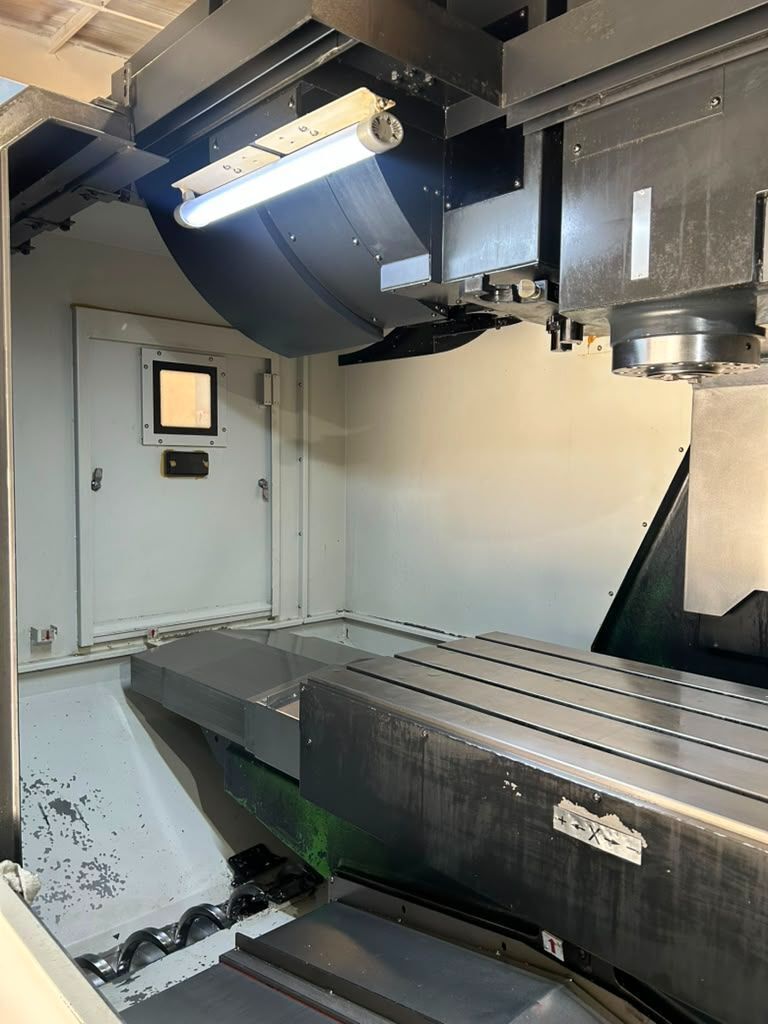

Table:
Length: 47.2"
Width: 21.3"
Number of Std T-Slots: 4
T-Slot Width: 4.9" x 0.7"
Max Weight on Table: 1764 lbs
Spindle:
Taper Size: CAT-40
Speed Range: 12,000 RPM
Spindle Power: 25 HP
Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Max Tool Weight: 17.6 lbs
Max Tool Dia: 3.1" -4.9"
Max Tool Length: 11.81"
Tool Changing Time : 1.3 Seconds
General:
Air Required: 90 psi 4 scfm
Power: 220v / 3-Phase / 50/60 Hz / 33.5 kva
Overall Dimensions: 116" x 96" x 107" High
Weight: 14330 lbs
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:
Doosan Fanuc i-Series CNC Control
CAT-40 Taper Spindle
USB Drive
PCMCIA Card Slot
Automatic Lubrication Unit
Rigid Tapping
Coolant Tank
Travels:
X-Axis: 40.2"
Y-Axis: 21.3"
Z-Axis: 20.1"
Rapid Traverse Rates X & Y Axis: 1417 IPM
Rapid Traverse Rates Z Axis: 1181 IPM
Cutting Feed Rates: 590 IPM
Spindle Nose to Table (Min.- Max.): 5.9" 26.0
Table:
Length: 47.2"
Width: 21.3"
Number of Std T-Slots: 4
T-Slot Width: 4.9" x 0.7"
Max Weight on Table: 1764 lbs
Spindle:
Taper Size: CAT-40
Speed Range: 12,000 RPM
Spindle Power: 25 HP
Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Max Tool Weight: 17.6 lbs
Max Tool Dia: 3.1" -4.9"
Max Tool Length: 11.81"
Tool Changing Time : 1.3 Seconds
General:
Air Required: 90 psi 4 scfm
Power: 220v / 3-Phase / 50/60 Hz / 33.5 kva
Overall Dimensions: 116" x 96" x 107" High
Weight: 14330 lbs
