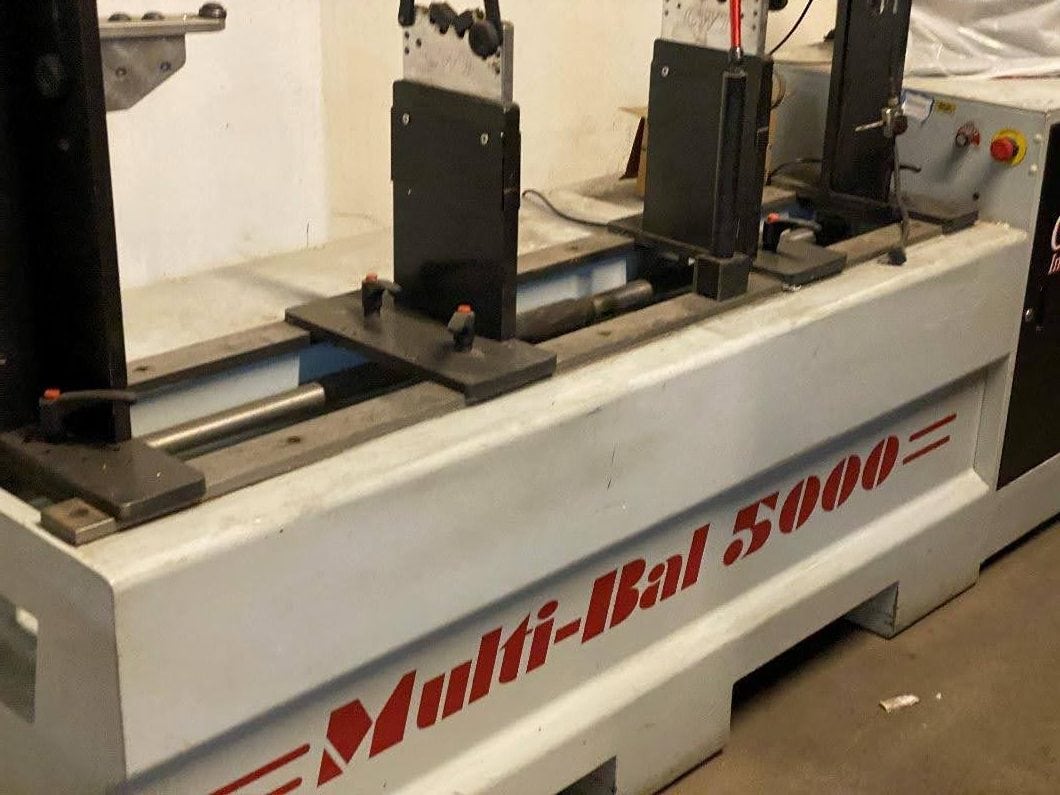

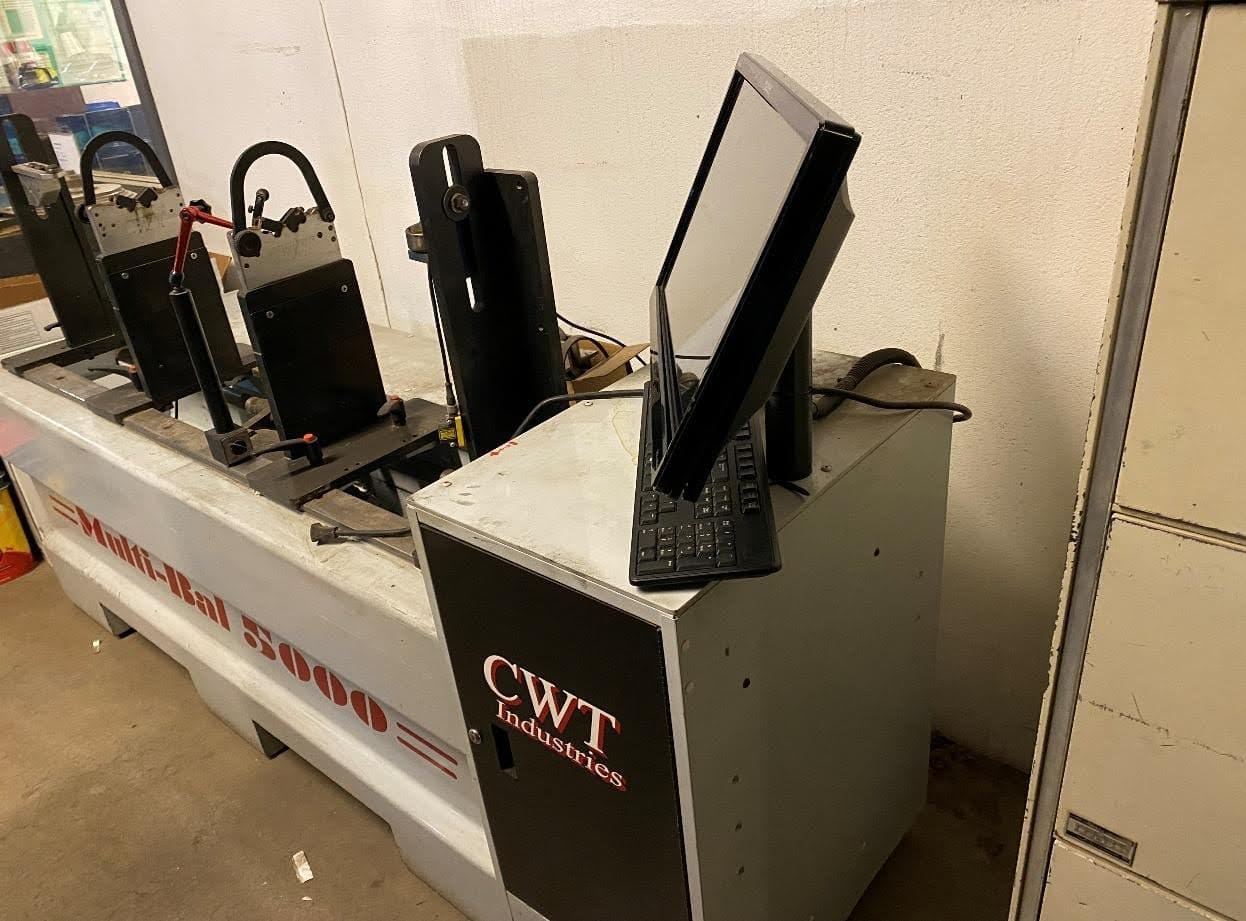

CWT #Multi-bal-5000, Crankshaft Balancing Machine, 2000

4000 Lb Base: The solid filled base is surrounded by heavy gauge Steel that insures mximum rigidity and years of trouble-free maintenance.

Total CNC manufacturing: CWT’s In-house manufacturing with CNC machines allow extremely close tolerance specifications to be maintained with every machine built.

Third Plane Analysis: Unlike conventional Balancers that only use Left and Right Plane Separation, commonly called Dynamic Plane Separation.

CWT uses a third plane for its inspection which allows a faster and better method of determining unbalance forc and location.

On Machine Drill Corrections: Linear Rail Mounting System allows free movement of our Mill/Drill for fast stock removal of excess weight. Single throw air-switch clamps the drill into position.

Heavy Metal Stand: Installing heavy metal has never been easier with the CWT Crankshaft Mounting Stand.

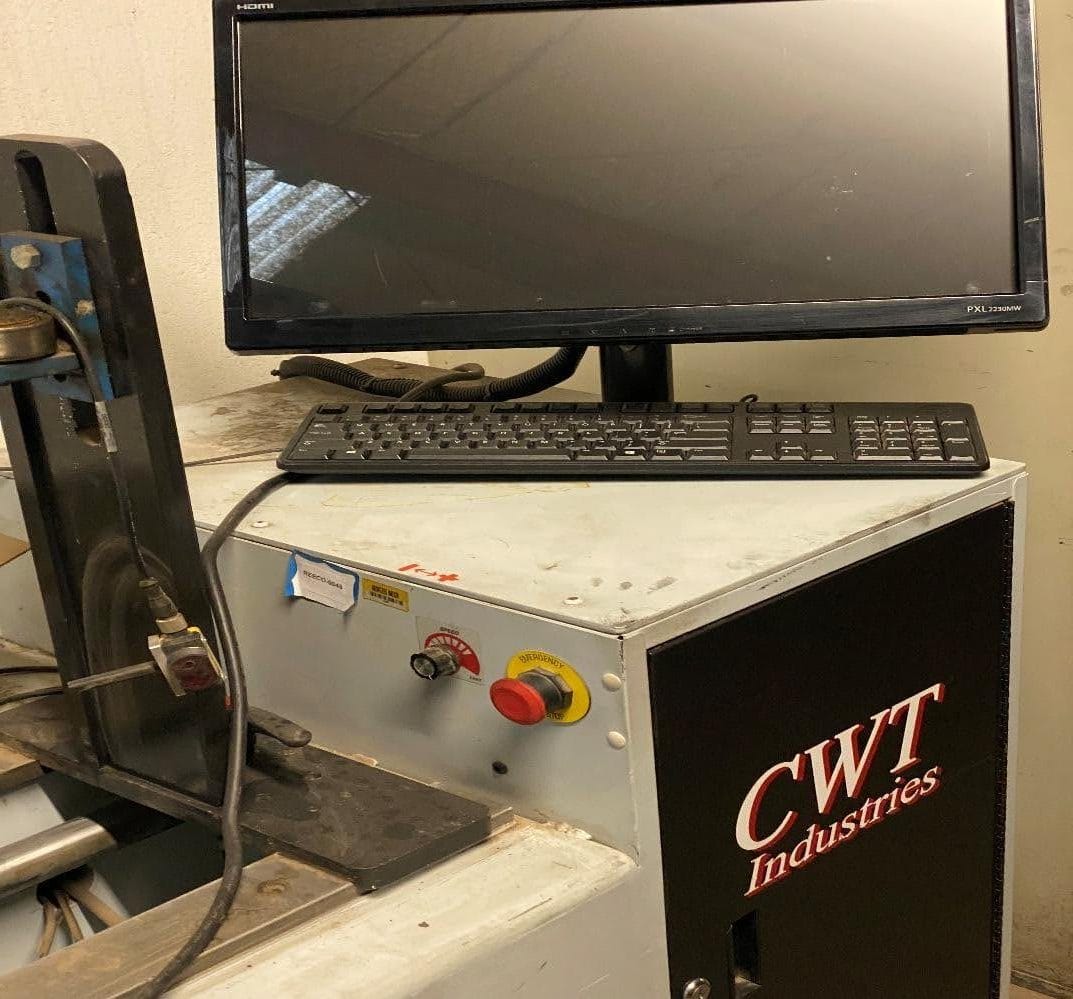

Includes 3.0Gig 512 Ram
PC systems 80 Gig Hard Drive with CD-ROM
Auto Data Backup System
17″ Screen Monitor
Precision Drive Motor
720 Degree High Resolution Encoding System
Variable Speed Control
“Pinging” Software
Full Three Plane Analysis
Drill and Weight Compensation Software
Heavy Metal Software
PDQ Drilling Software
Vector Forecasting Software
Unbalance Before & After Reports
Unlimited Parts Storage
Non-contact Photocell encoding system
