Custom Jaw and Roll Crusher Plant, diesel engine, 12HP

Jaw and Roll Crusher Plant

Description: This Jaw and Rolls Plant was Custom-Built for Testing Ore Bucket Samples. The Jaws and Rolls are in Good Condition.

• Custom Built Plant
• Used for Testing Ore
• Very Little Wear
• Electric Start

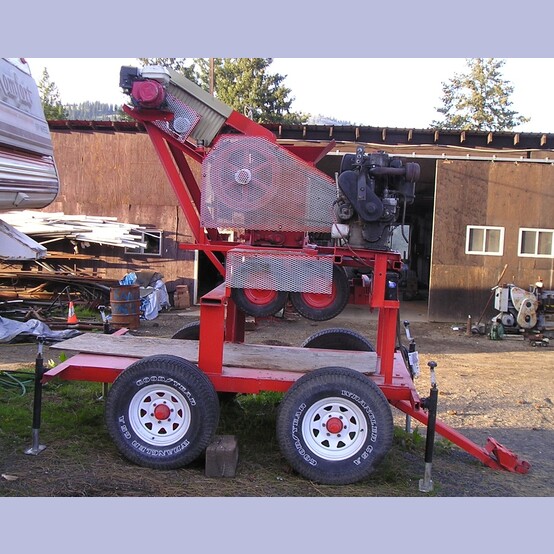

• Deutz Diesel Engine - Single Cylinder (12HP)
  • Single Lever Operation

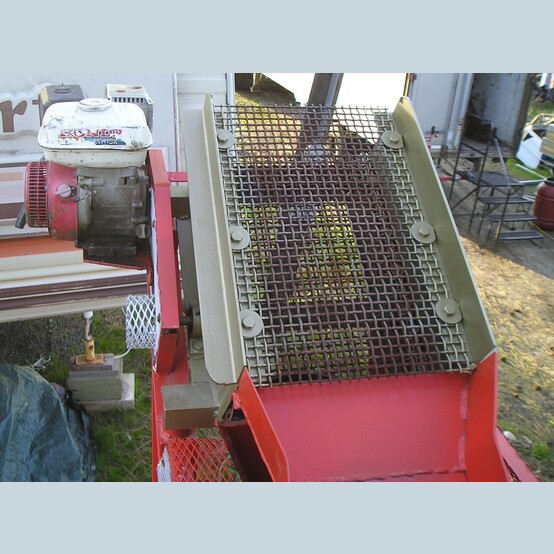

• Shaker Screen to send Oversize to Jaw and Undersize to Roll via Chute
  • Powered Via Honda Engine

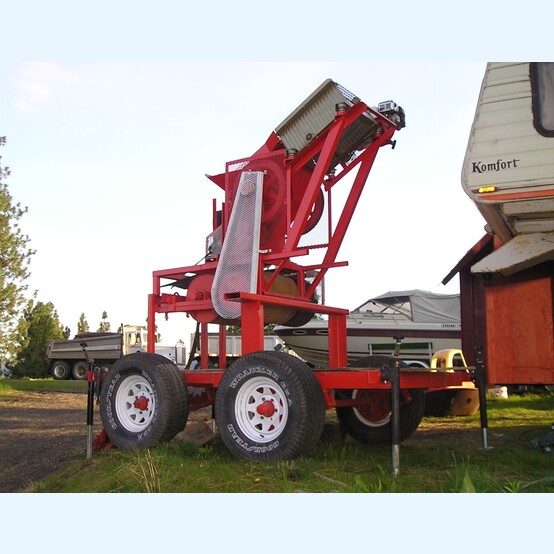

• Mounted onto Purpose Built Trailer
  • Not Highway Towable

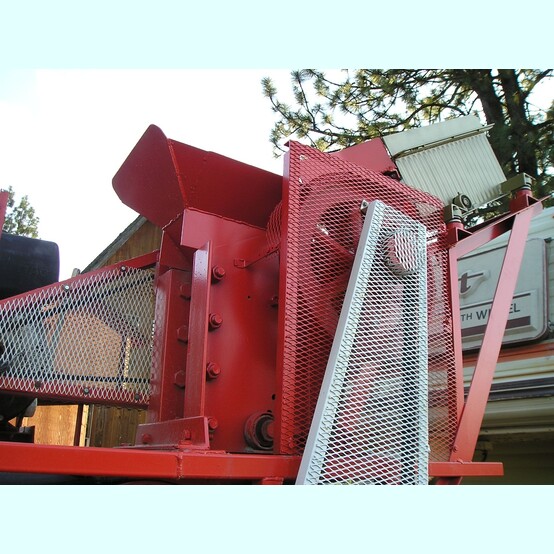

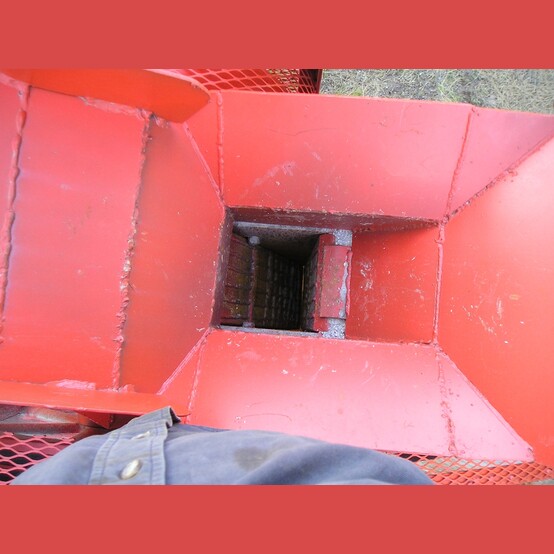

• Jaw Crusher:
  • Size: 6in x 6in
  • Adjustable
  • Condition: Jaw Liners are like New
  • Crushed Product Drops into Roll Crusher Feed

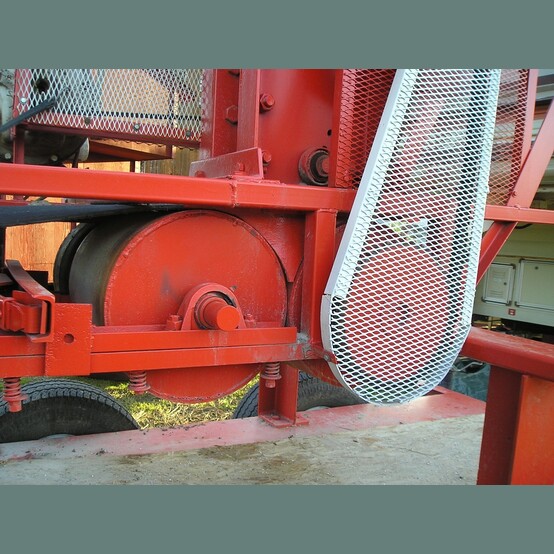

• Roll Crusher:
  • Size: 15.5in Diameter x 18in Long
  • Tire Driven
  • Adjustable Rolls to Allow Jaw Crusher Material to Drop Through or Narrow down to 0.25in
  • Roll Pressure is Adjustable - Air
  • Relief on Rolls Handled by Adjustable Leaf Spring
  • Frame Slides: Deltron Material

• Location: Northwest USA
