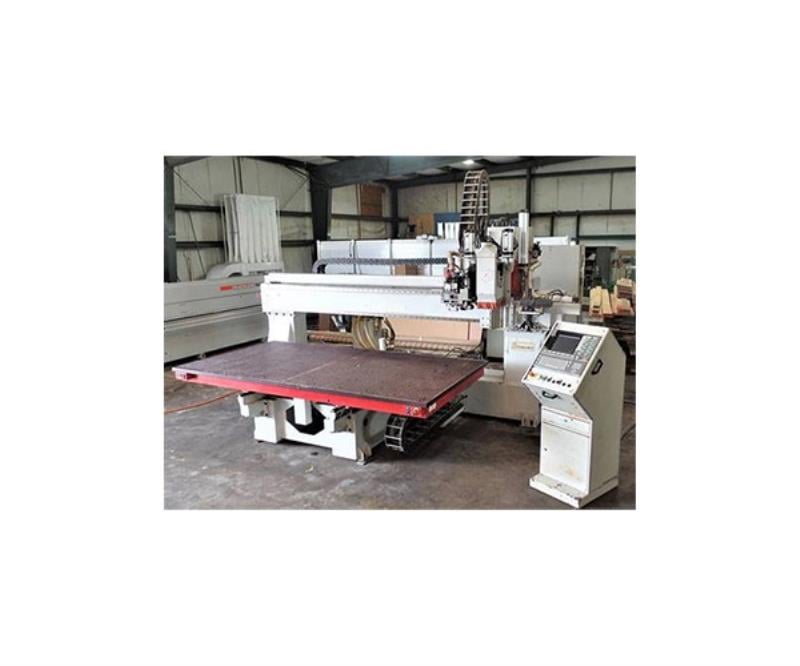

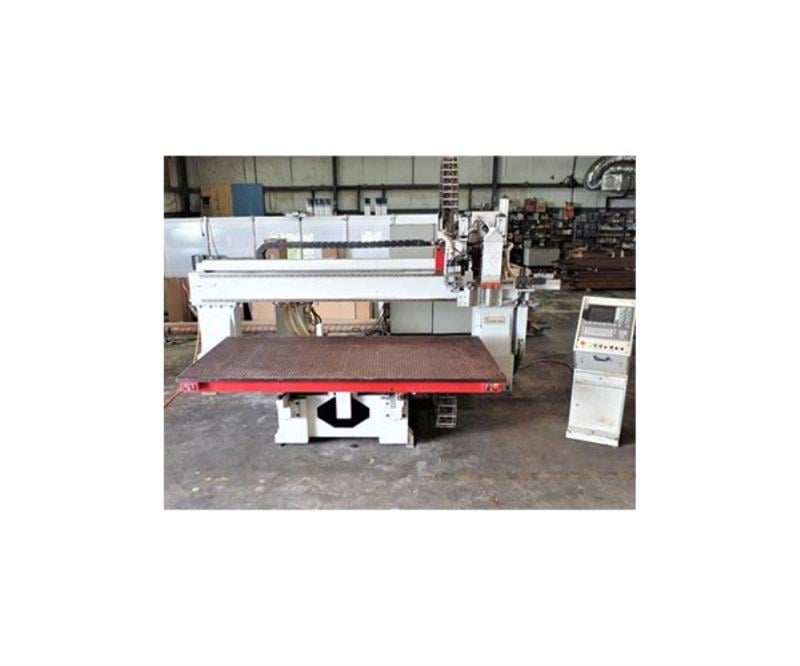

Cosmec #NR32-16CUK, CNC Router w/ATC & Boring, 63" x 122" Table, 10 HP HSD ISO 30 ATC Spindle, 18,000 RPM, 17-Spindle Boring Block, 2001

Estimated monthly payment valid upon approved credit.

Request Formal Quote

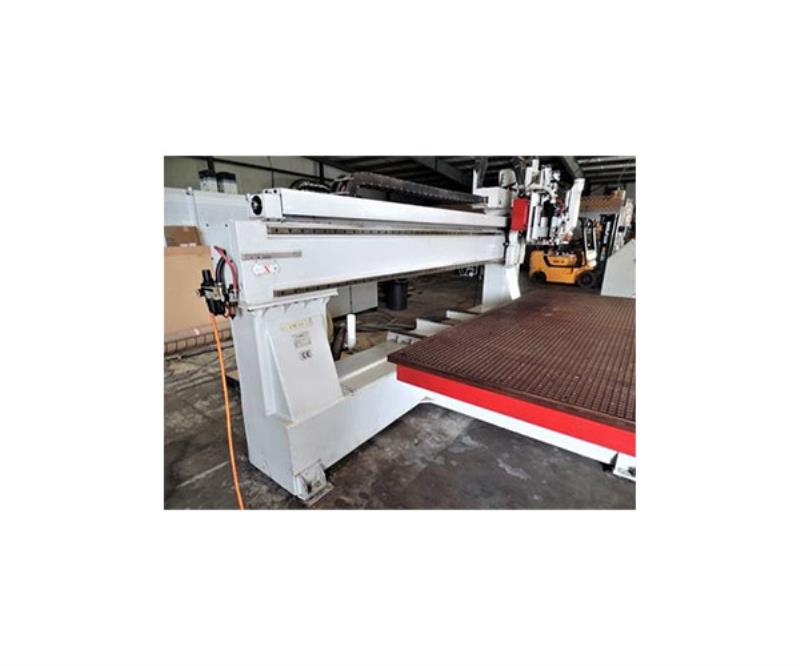

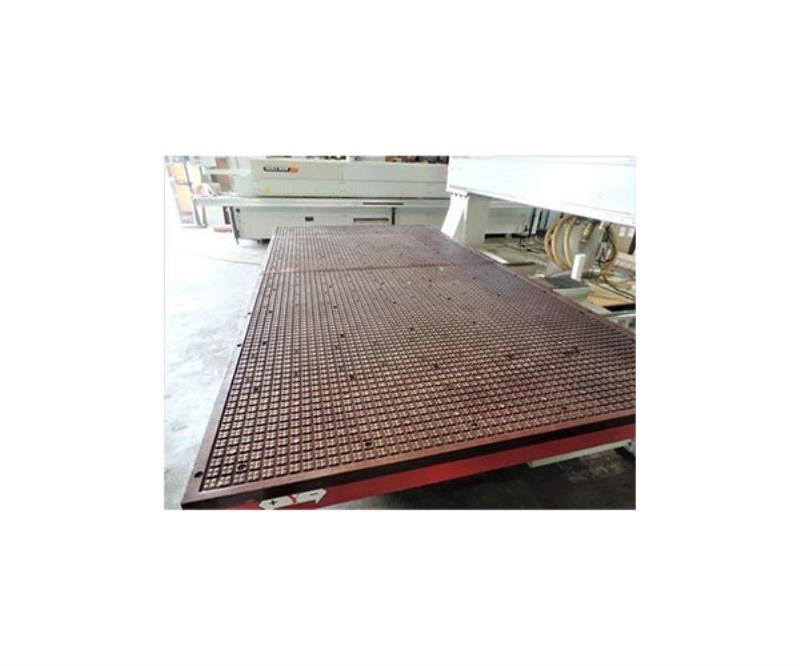

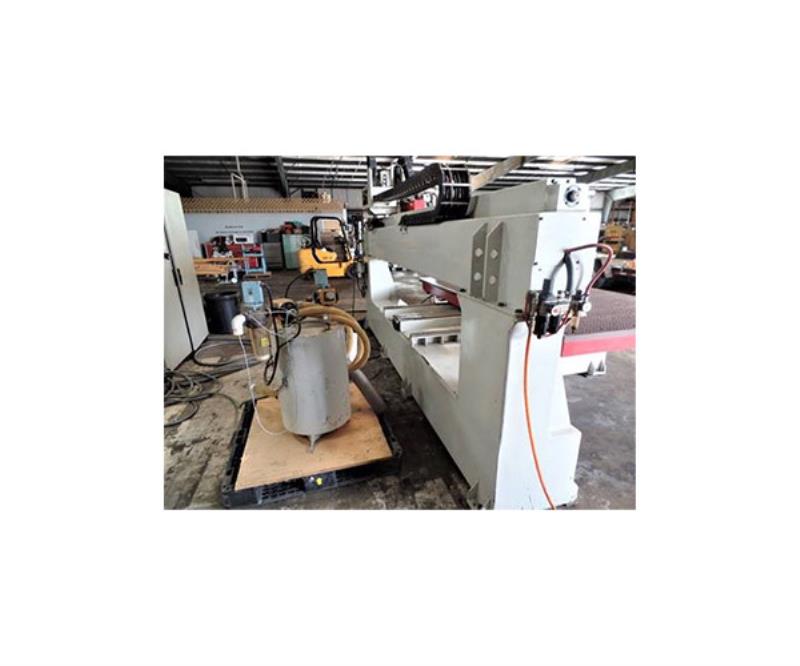

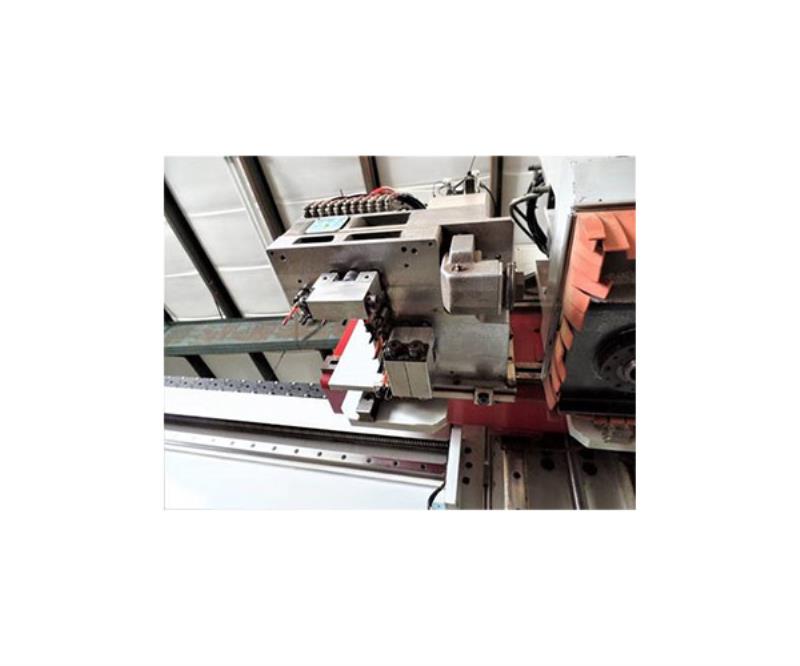

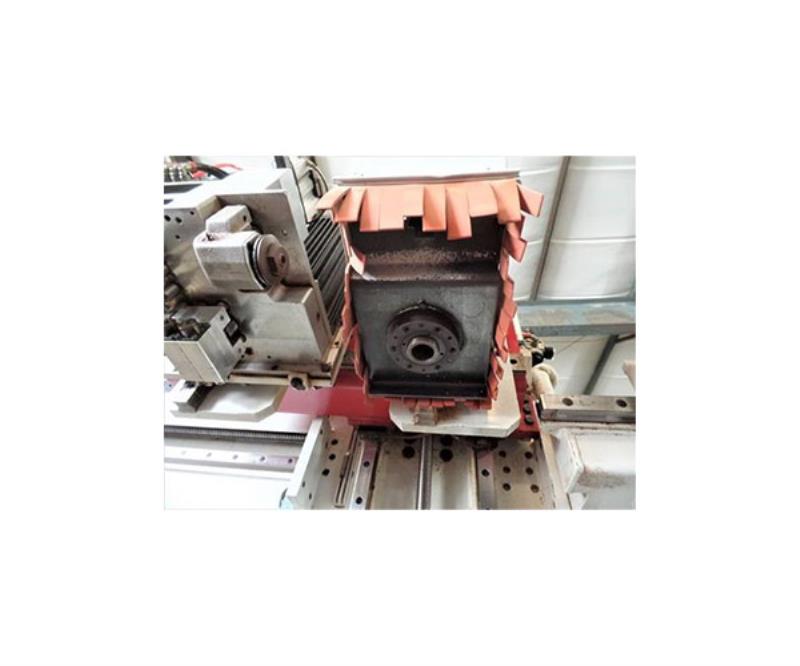

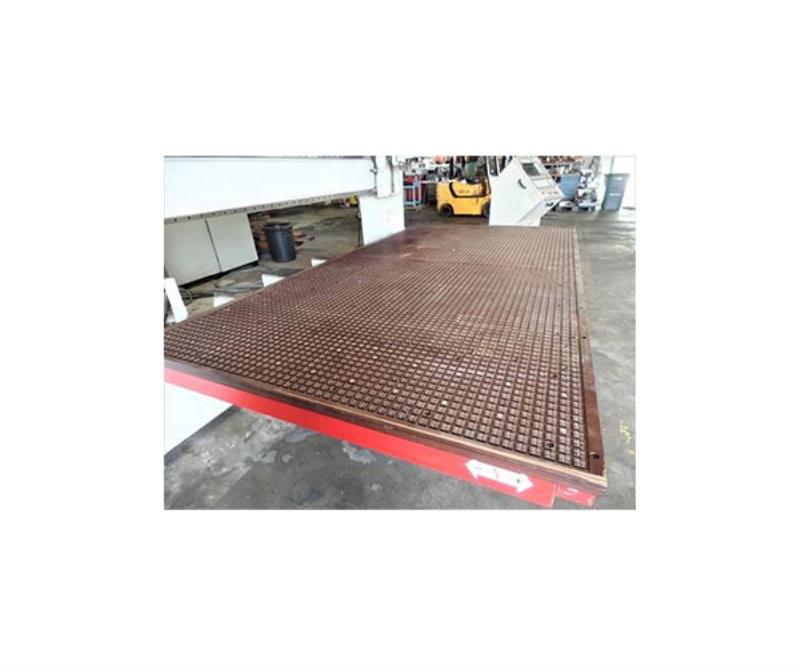

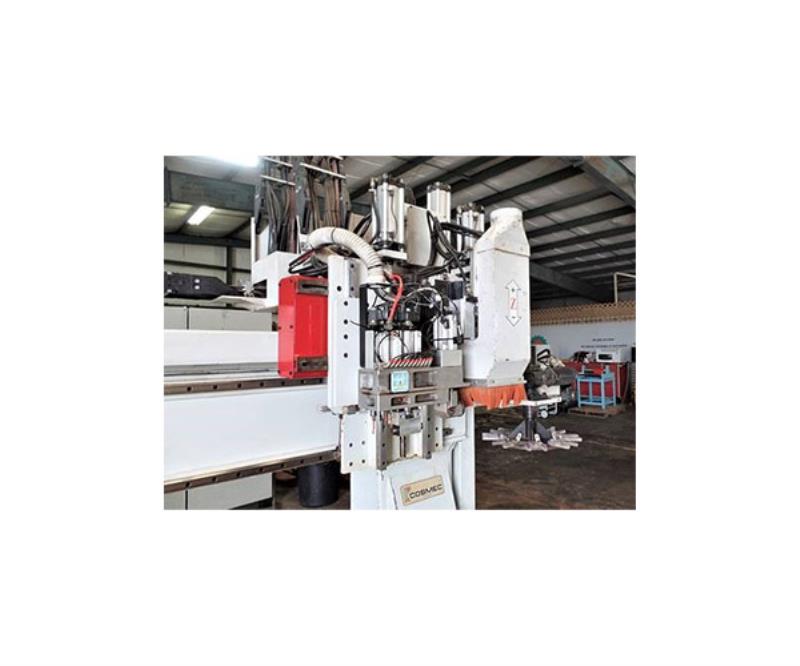

COSMEC NR32-16CUK 510 CNC Router with ATC and Boring:63" x 122" Fixed table: Moving gantry design in a front-to-back configuration; 2-zone Phenolic vacuum table with pop-up pins for part location. -- Equipped with:(1) 10 HP "HSD" ISO 30 Type ATC spindle, 8-position side-mount tool carousel, variable spindle speed from 800 - 18,000 RPM, 11" Z-axis stroke. -- Boring unit:(1) 17-Spindle boring block (11) vertical and (6) horizontal and X-Axis - 5,000 RPM. -- Axis travel: X-Axis travel 3,190 mm (125.6"), Y-Axis travel 2,010 mm (79.1"), Z-Axis travel 280 mm (11.0"); Z-Axis clearance under rail 250 mm (9.84") - Rapid traverse on X- & Y-axis 38 m/Min (1,496 IPM). -- Control:OSAI series 10 numerical control with screen and including, 3-axis linear & circular interpolation, and RS 232 connection with a user-friendly operator interface. -- All axes Incorporate brushless, closed-loop Servo motors driving precision ball screws and ride on STAR linear guideways with an automatic lubrication system servicing the way and ball screw bearings. -- Complete with:Vacuum pump, assorted tool holders, and manuals.
