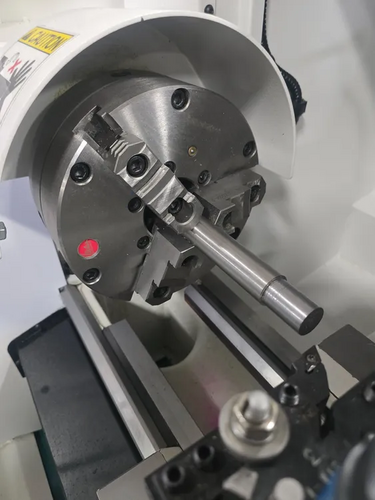

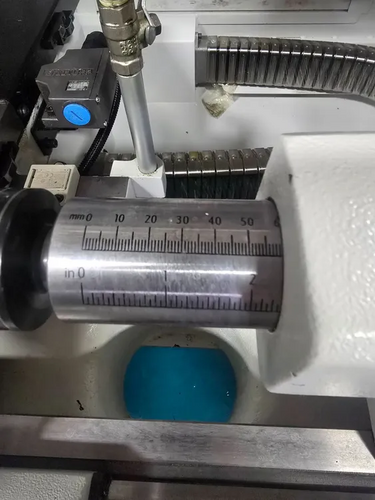

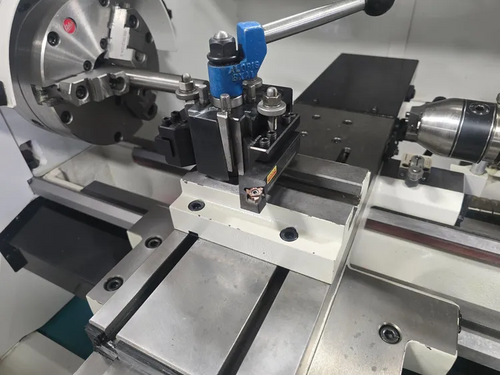

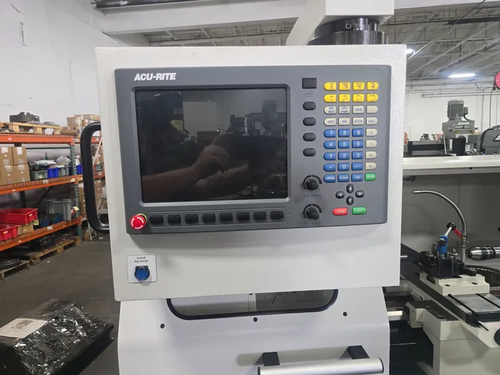

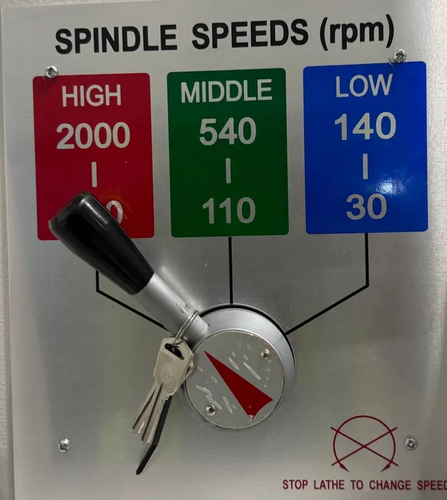

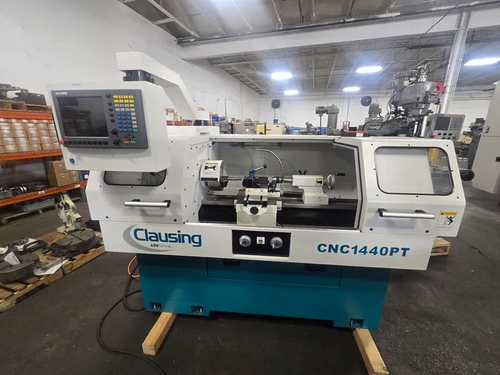

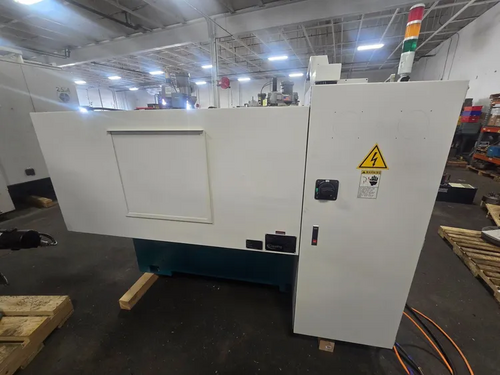

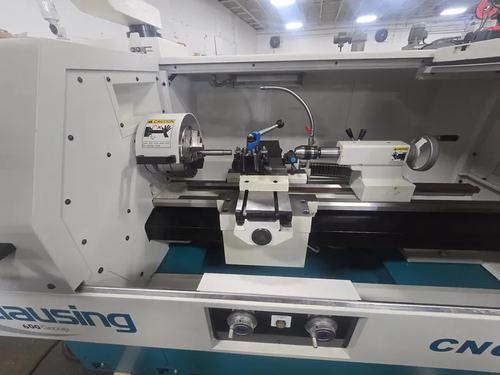

THIS CNC TURNING CENTER FEATURES A 14" SWING OVER THE BED AND 6.7" SWING OVER THE CROSS SLIDE, WITH A DISTANCE BETWEEN CENTERS OF 40" AND AN APPROXIMATE MACHINE WEIGHT OF 2,750 LBS. THE SPINDLE IS DRIVEN BY A 5 HP MOTOR, FEATURES A D1-4 NOSE AND A 1.5" BORE, AND UTILIZES A #5MT TAPER. SPINDLE SPEEDS ARE INFINITELY VARIABLE ACROSS THREE RANGES: LOW (30-140 RPM), MEDIUM (110-540 RPM), AND HIGH (410-2000 RPM). RAPID TRAVERSE RATES FOR BOTH THE X AND Z AXES ARE 100 IPM, POWERED BY A 1.6 HP X, Z SERVO MOTOR. THE TAILSTOCK HAS A 1.75" QUILL DIAMETER, A 3MT TAPER, AND A 4.75" QUILL STROKE. IT IS EQUIPPED WITH THE ACU-RITE TURN POWER CONTOURING CONTROL, WHICH FEATURES A 12.1" COLOR LED DISPLAY AND ENABLES CONVERSATIONAL PROGRAMMING. THE CONTROL SUPPORTS PGM MODE OPERATIONS INCLUDING THREAD, RECESS, AND TURNING CYCLES, ALONG WITH POSITION/DRILL, LINE, ARC, AND BLEND FUNCTIONS. IT ALSO SUPPORTS DXF FILE IMPORT AND G-CODE PROGRAMS. INCLUDED ACCESSORIES ARE A COOLANT SYSTEM, A 3-JAW CHUCK, AND AN ALORIS QUICK CHANGE TOOLPOST WITH HOLDERS.
Used CNC Lathe, 14" swing over bed, 40" between centers, spindle speeds up to 2000 RPM, ACU-RITE control. s include DRO mode, threading cycles, G-code support, and more. Approx. weight: 2,750 lbs., SWING OVER BED. 14", SWING OVER CROSS SLIDE. 6.7", HEIGHT OF CENTER. 6.8", DISTANCE BETWEEN CENTERS. 40", CROSS SLIDE ...more
