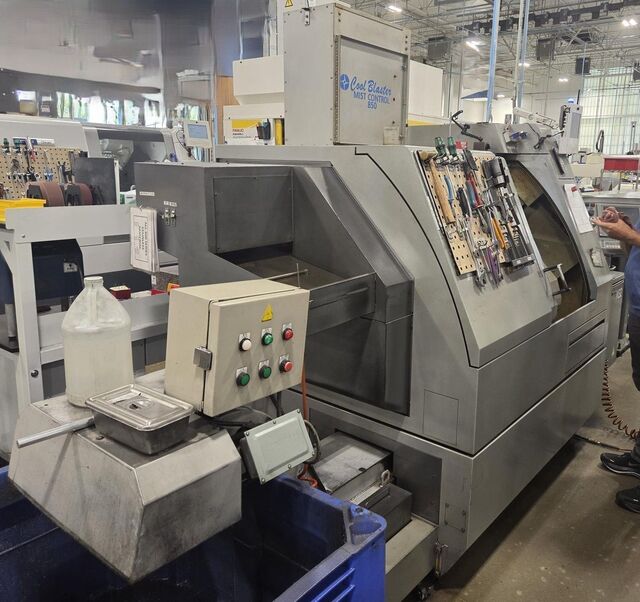

Citizen #M32V-3M5, Swiss Type CNC Lathe, w/ tooling, 2007

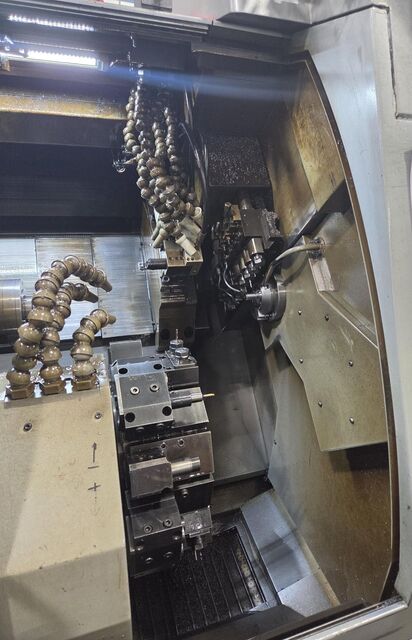

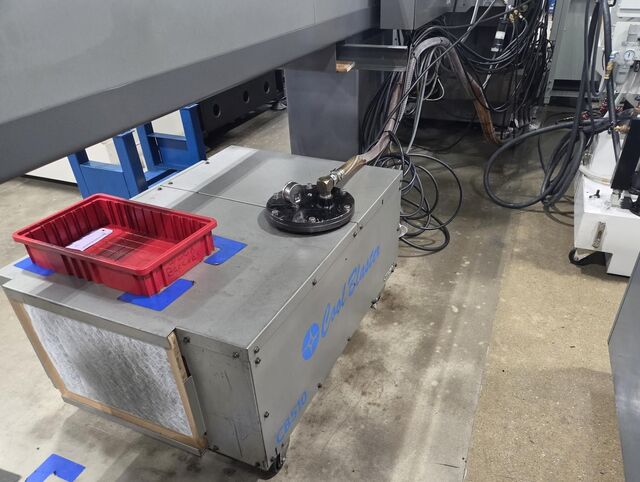

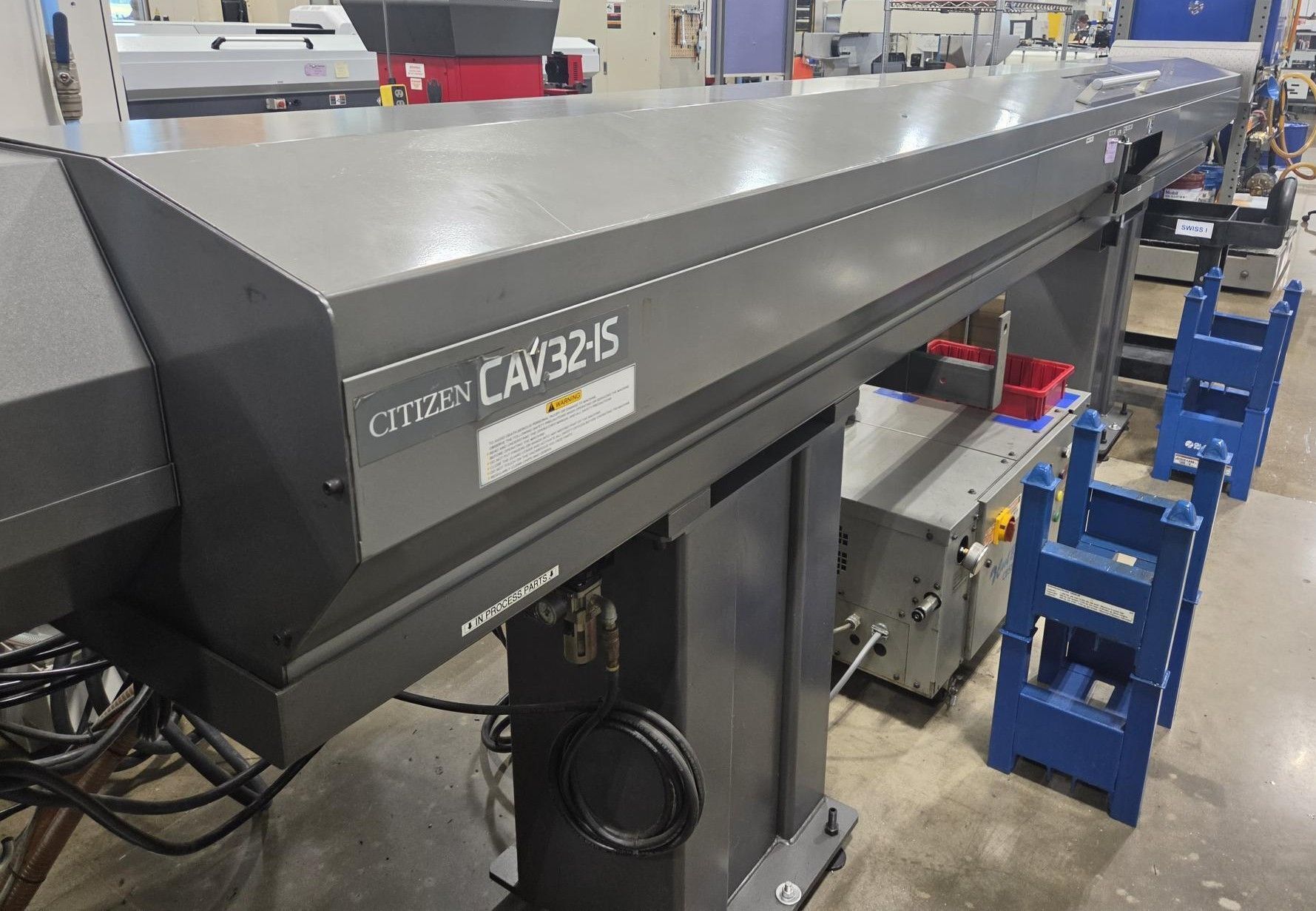

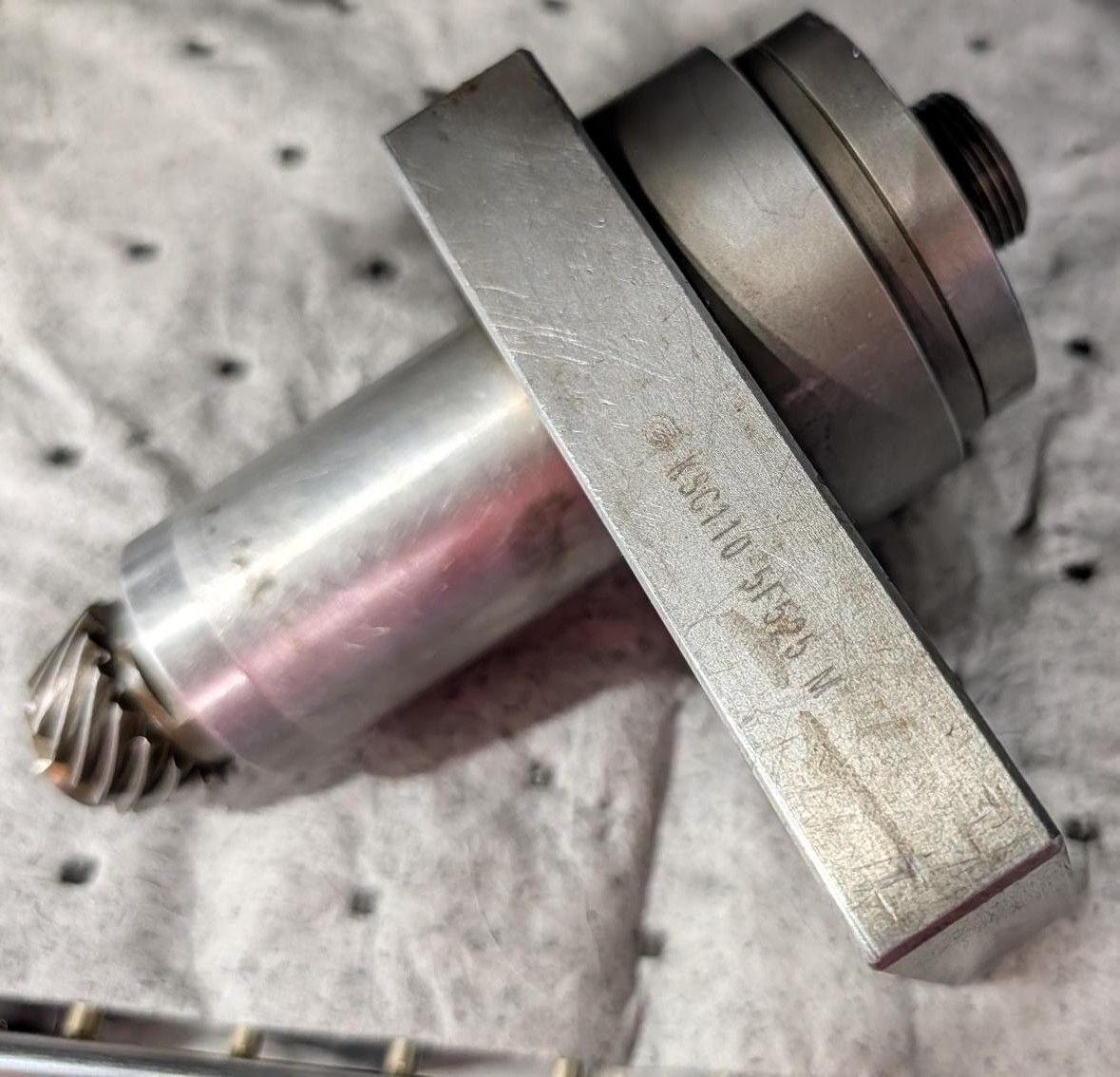

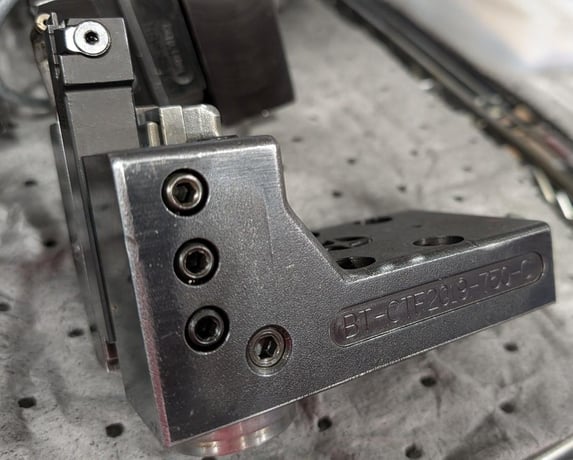

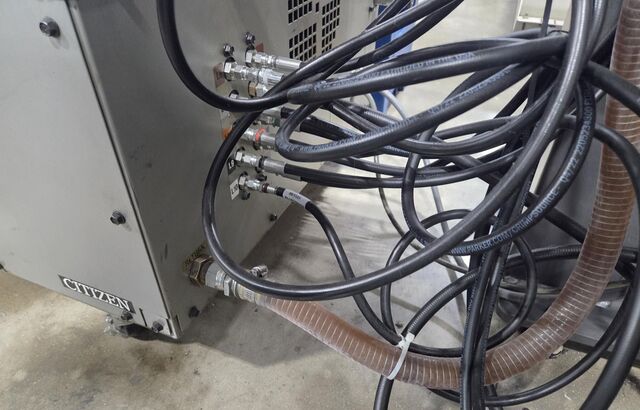

CITIZEN M32V (3M5) Swiss Type CNC Lathe (used) New 2007 - gang tool and Y-axis turret configuration, CAV32M-IS magazine bar loader, mist collector, high pressure coolant, overhead parts grabber and conveyor, ran oil, misc live and stationary turret tooling, many control options turned on, manuals, tool kit, keys.
CITIZEN M32Y
The Cincom M32Y is a high level Swiss Turning Center manufactured by CITIZEN Watch Co. Ltd. It features the 14 axis Simultaneous Cincom System M6D (Mitsubishi Meldas 635LCC).
Its standard Nine Cutting Axes (X1, Z1, Y1, C1, X2, Z2, Y2, X3, Z3), one optional (C2) and Four Miscellaneous Axes (A1, A2, A3 and TI) can handle the most complex part configurations.
The user-friendly editing function which utilizes Multi Line Multi axes programming along with superimposed and synchronized control make setting up the most complex jobs easy.
I. Including:
1) Simultaneous 14 Axes control (3-line)
2) AC Servo Axes Control

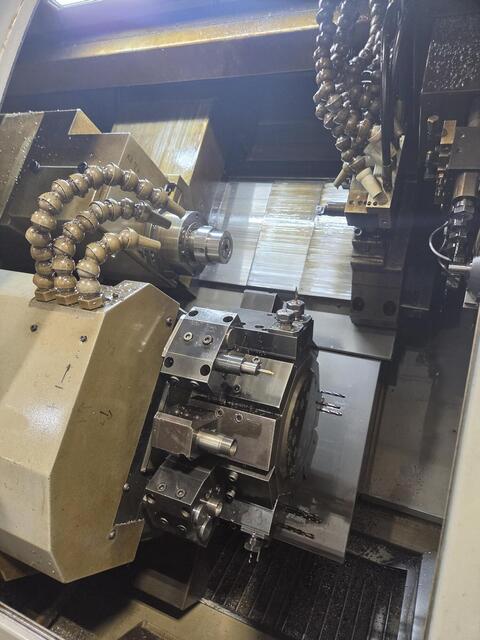

3) Turret 10 Station (1/2 Index 20 Position)
4) Main Spindle Speed 200~8,000rpm 4-digits stepless command (10 H.P peak./ 5 H.P. Cont.)
5) Back Spindle Speed 200~7,000rpm 4-digits stepless command (5 H.P peak./ 2 H.P. Cont.)
6) Live Tool Spindle Speed 4-digits stepless command

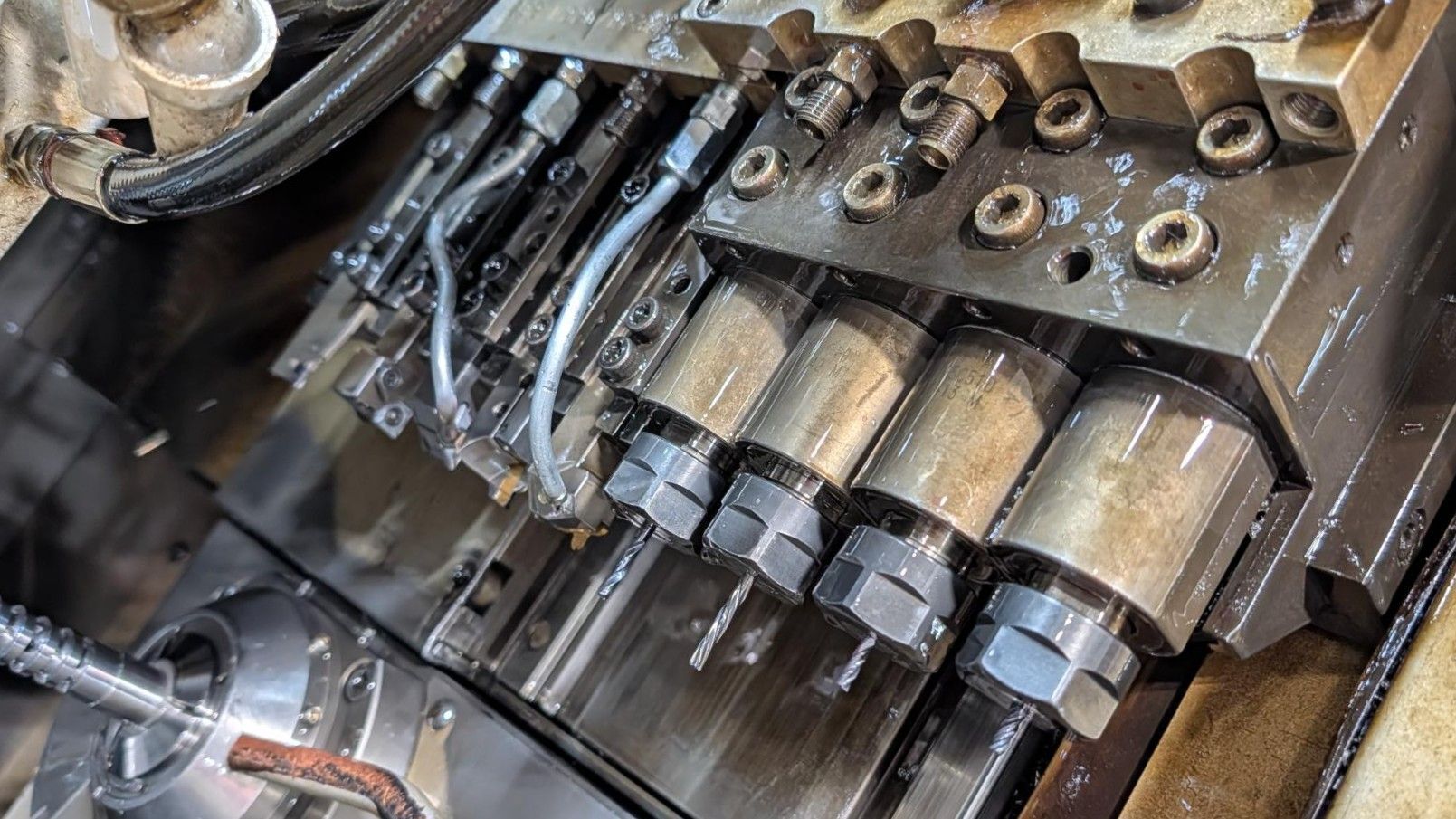

Gang Tool Post 200~5,000rpm
Turret 200~5,000rpm
7) Back Working Tool Post
8) Rotary Tool Drive Unit on Turret
9) Rotary Tool Drive Unit on Gang Tool Post
10) Back Spindle Unit
11) Back Spindle Chuck unit (S&M TF37)
12) Work-piece Separator (length: 145mm and shorter)
13) Cutting Oil Tank with Level Detect (45gal. =170L. oil capacity)
14) Air Blow System on Back Spindle
15) Synchronous rotary guide Bushing unit (S&M TD32)
16) Rotary Guide Bushing Drive Unit
17) Main Spindle Chuck unit (S&M TF37)
18) Door Interlock with Switches
19) Centralized Lubrication System with Level Detect (oil capacity 0.8L)
20) Leveling Bolts and Pads
21) Main Spindle C Axis Control
22) Back Spindle C Axis Control

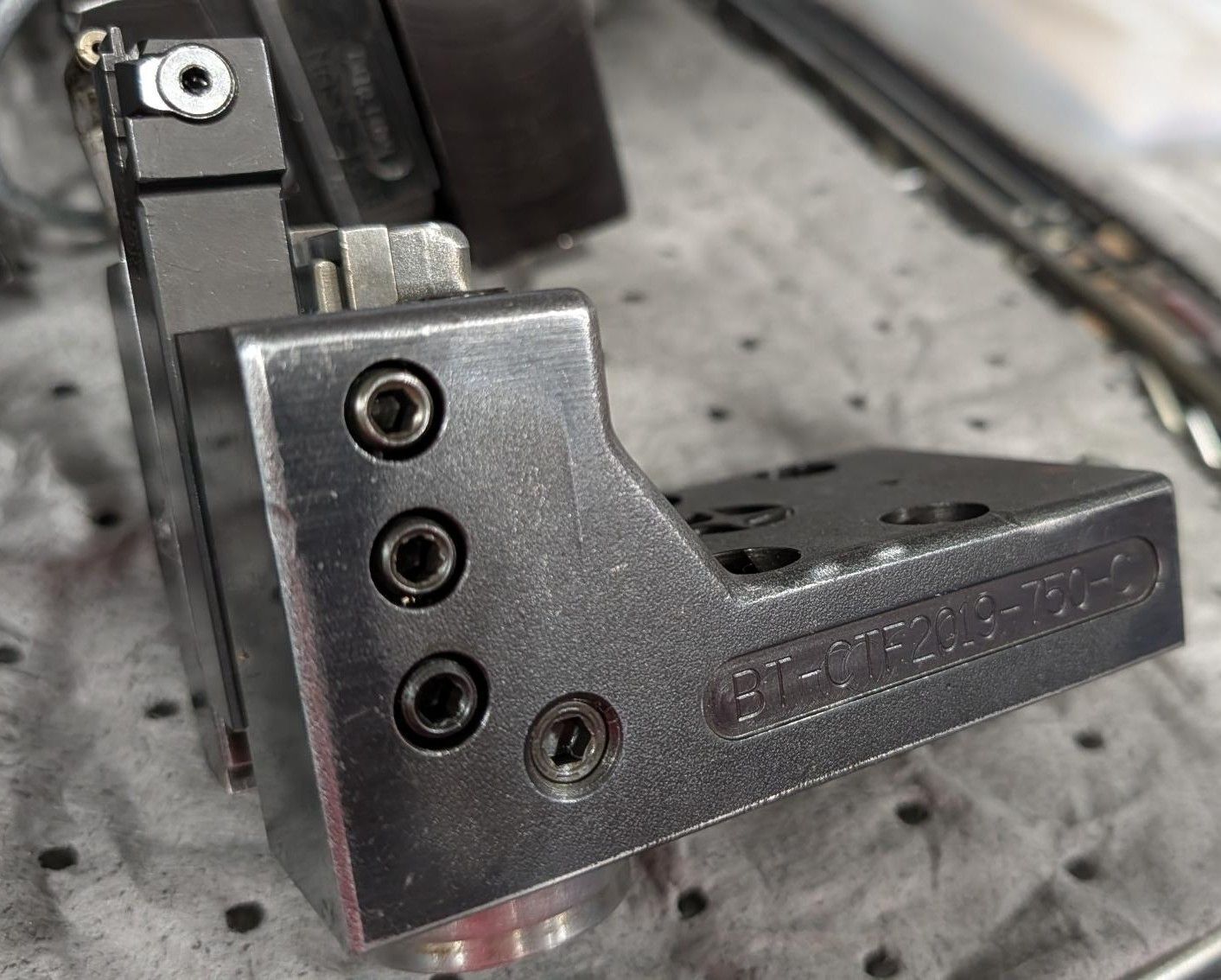

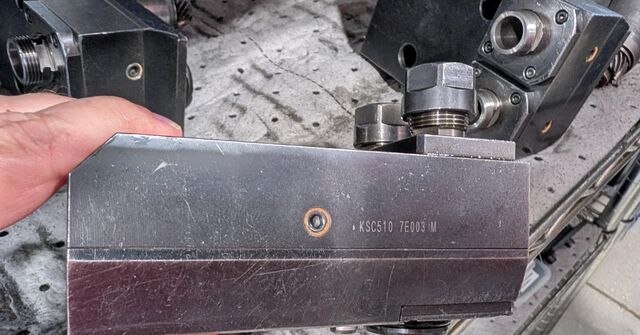

23) Tool package:
GTF5216 5 Turning ( 4-5/8 shank & 1-3/4 shank) & 4 Live Tool Spindle Tool Holder (1 pc)
GSC1010 Cross Milling Unit
24) Hand Tools (spanners, wrenches, etc.)
25) One Complete Set of Manuals
26) Test Chart (1 vol)
27) Parameter List (1 vol)
Standard Specifications of CNC System
28) 10.5 " Color LCD
29) 3-Spindle Speeds Command in the Single Block
30) 8 bit B-code Function
31) Absolute/Incremental Command (Combined Use in Same Block)
32) Automatic Power Off Function
33) Background Edit Function
34) Canned Cycle for Threading
35) Chamfer/Corner Rounding Function I & II
Constant Surface Speed Control (Main & Back)
36) Continuous Threading Cycle
37) Cutting Feed rate: 1 - 8,000 mm/min
38) Cycle Time Check Function
39) Feed Command by inch/rev or inch/min (switchable by G code)
40) Help Function
41) I/O Interface for RS232C
42) Inch/Metric Conversion
43) Machine Status Memory/Display
44) Manual Feed by Pulse Generator for all Axes
45) Minimum Increment (0.00001 inch)
46) Multi-axis & Multi-line Free Control System
47) Multiple Repetitive Cycle
48) Number of Tool Offset (80 pairs)
49) Output of Miscellaneous Function during Axis Movement
50) Part Program Work Area: (80m tape length)
51) Part Program Storage Area, (160m tape length)
52) Preparation Function (Guide bushing automatic clearance adjustment, Chucking force)
53) Program Check Function (run program forward & reverse by pulse generator)
54) Program Editing Support Function (Calculator , M&G codes list-up, Cutting condition)
55) Radius Designation on Arc
56) Rapid Feed rate: 20m/min
57) Reference Point Return (Absolute Position Detector)
58) Run Hour Display
59) Self-Diagnosis Function
60) Single Point Threading
61) Spindle Speed Fluctuation Detection
62) Superimposed & Simultaneous Control System
63) Tape Code (EIA/ISO Automatic Recognition)
64) Three Dimensional Interference Check Function
65) Tool Breakage Detector (Spindle Speed Check)
66) Tool Nose Radius Compensation
67) Main/Back Spindle Synchronization
68) C-Axis Control (Main)
69) C-Axis Control (Back)
70) Canned Cycles for Drilling (G80/83/85/89)
71) User Macro (G65-67)
72) Milling Interpolation
73) Polygon Turning Function
74) Hobbing Function
75) Synchronous Tapping
76) Differential Speed Tap Function option
77) Tool Life Management I
78) Tool Life Management II
79) Sub Inch Designation
80) Helical Interpolation
81) Slant Helical Interpolation
82) Circular Thread Cutting
