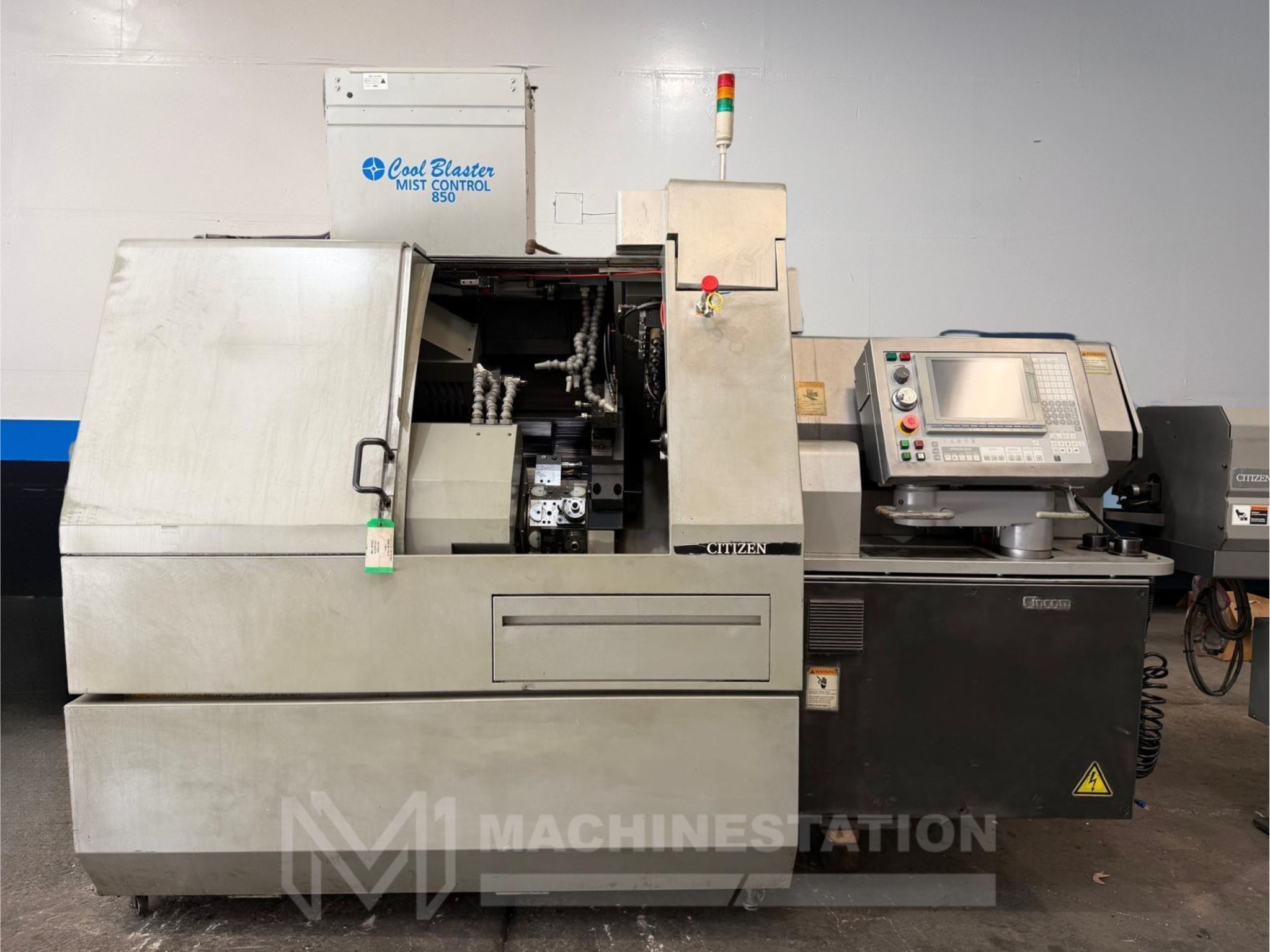

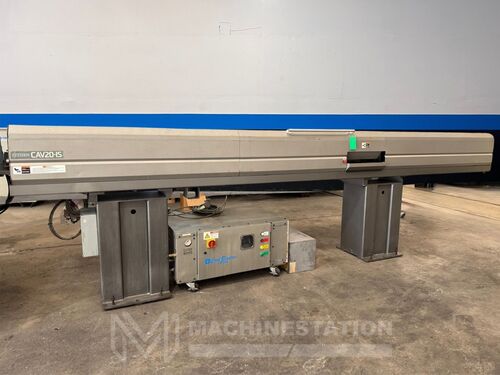

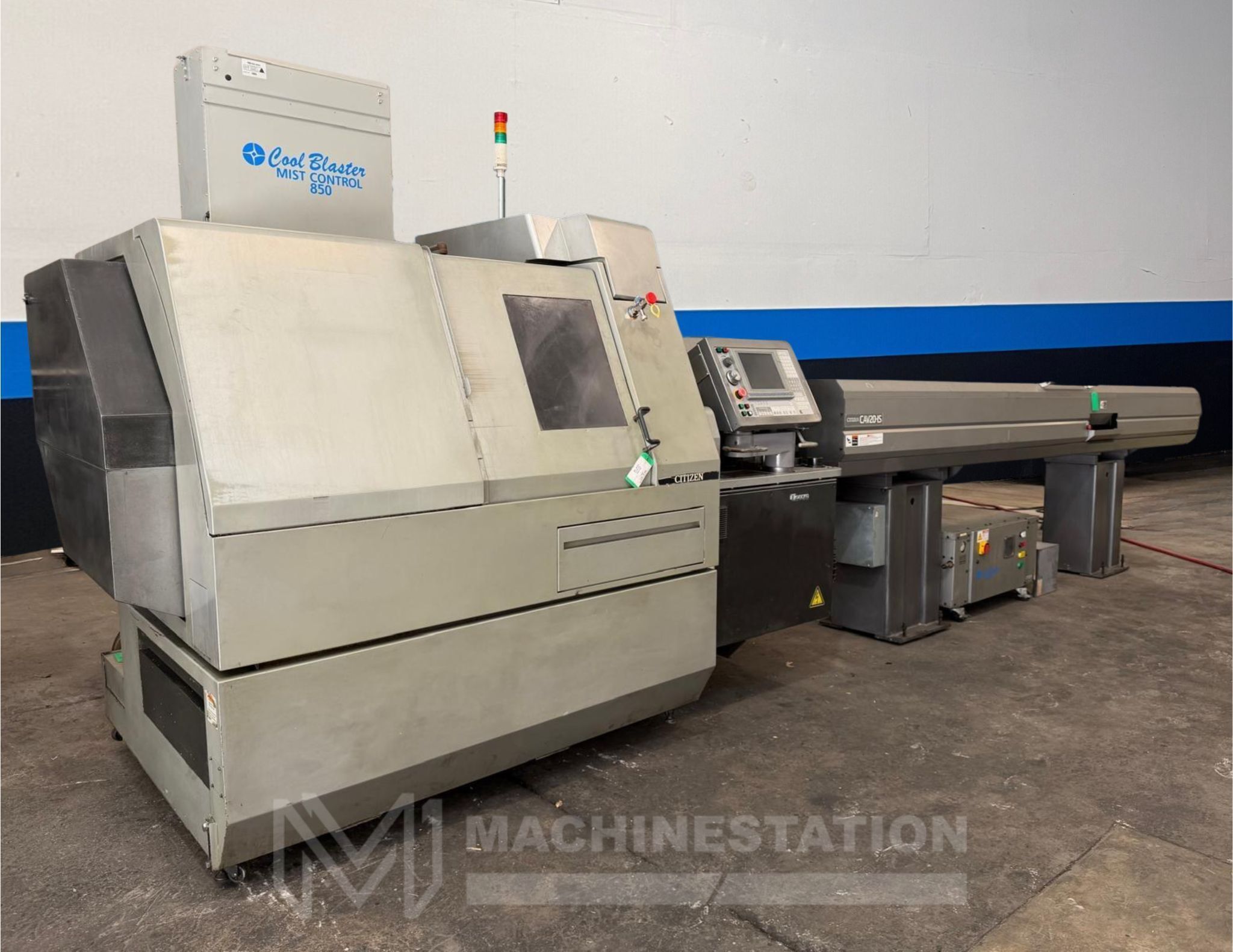

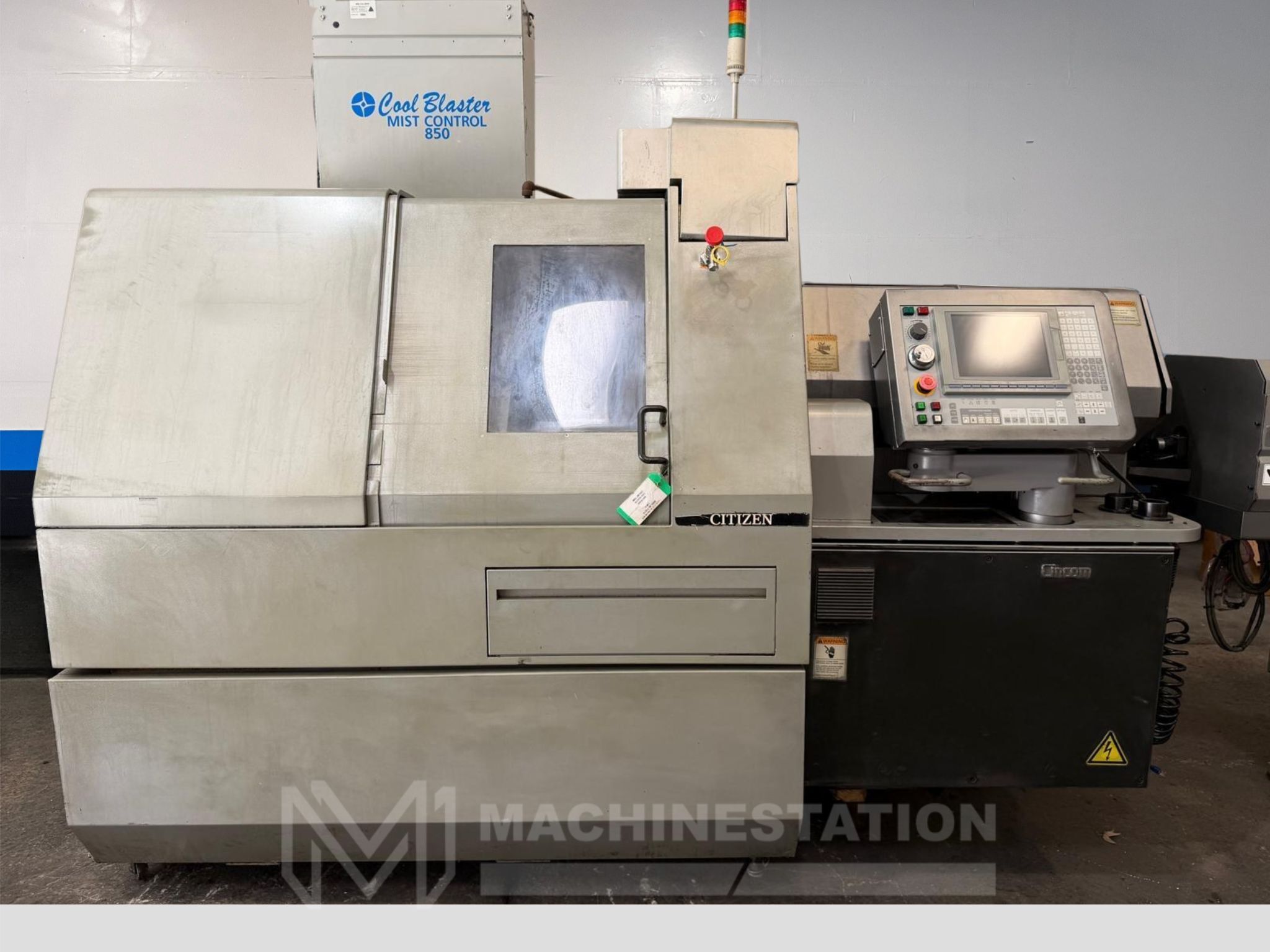

Citizen #M20V, CNC swiss type automatic lathe, .79" diameter, 12.59" length, Citizen Cincom, CAV20-IS bar feeder, 2007

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

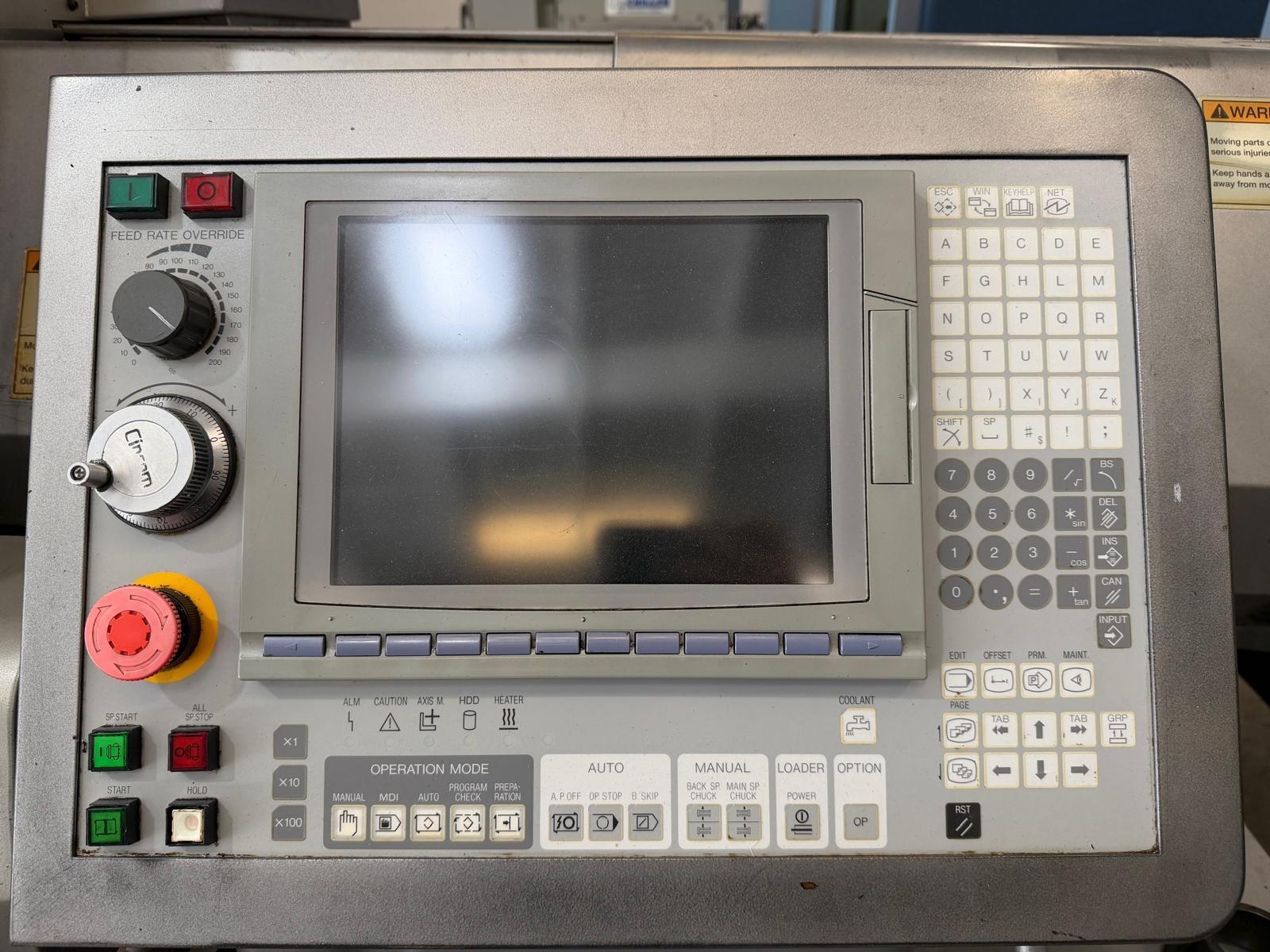

Citizen Cincom CNC Control
Controlled Axes (Liner Axes) X1, X2, X3, Y1, Z1, Z2, Z3
MPG Control
Main & Back Spindle Synchronization
Automatic Lubrication System

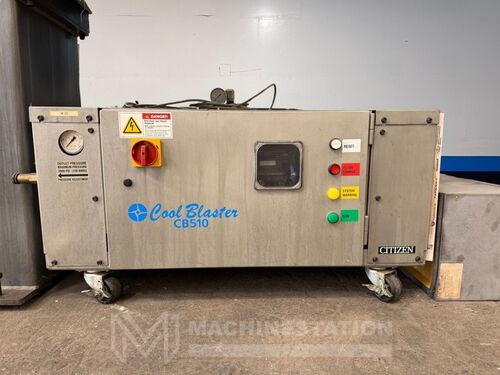

Coolant System
Capacity:
Max Turning Diameter: 0.79" (20 mm)
Max Turning Length: 12.59" (320 mm)
Max Bar Capacity: 0.79" (20 mm)

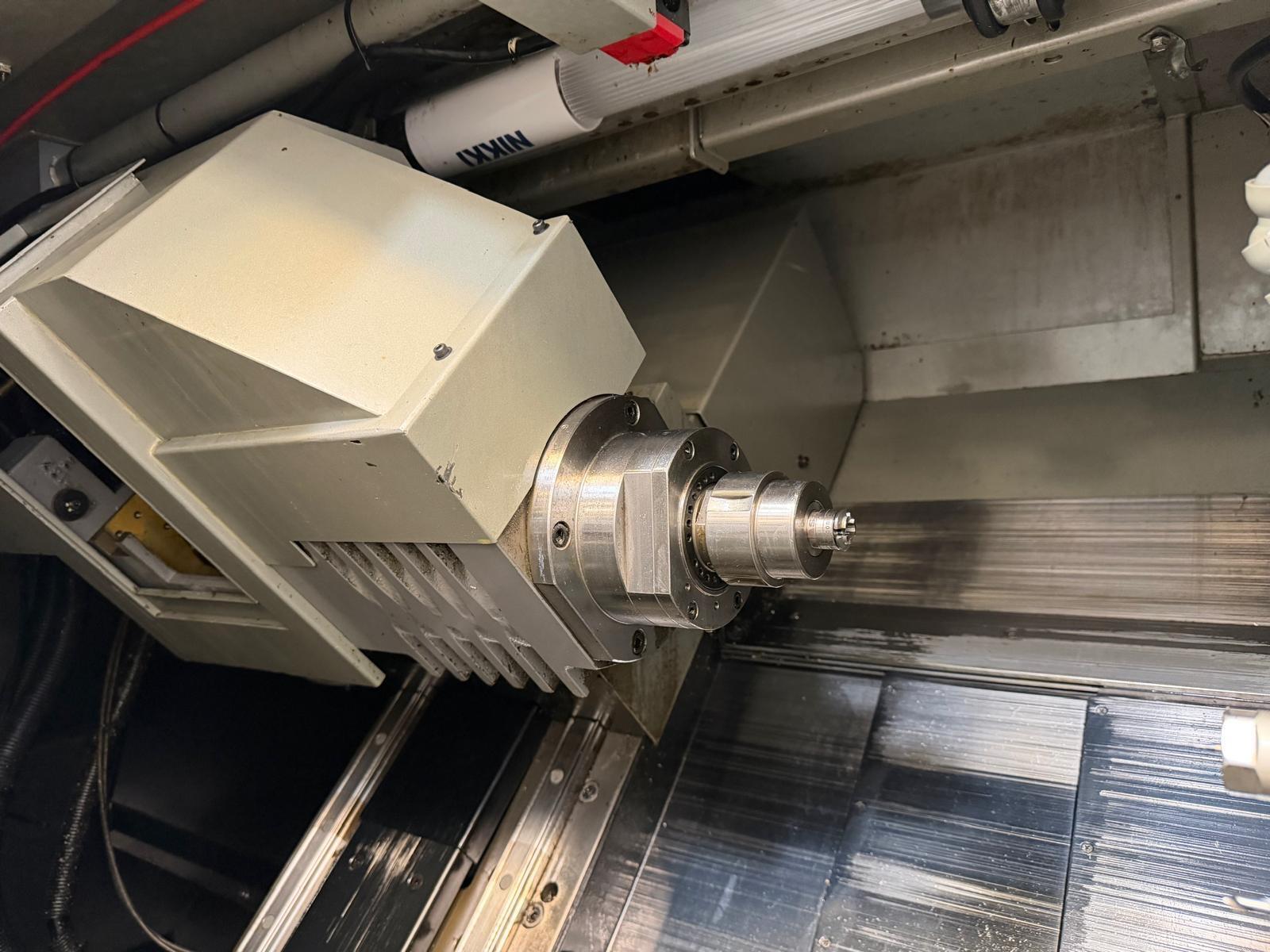

Spindle:
Main Spindle Indexing: 360° (Full C-Axis)
Main Spindle Bore: 0.79" (20 mm)
Main Spindle Speed: 200 10000 RPM
Back Spindle Motor: 5 HP
Back Spindle Indexing: 360° (Full C-Axis)
Back Spindle Speed: 200 8000 RPM
Back Spindle Motor: 3 HP

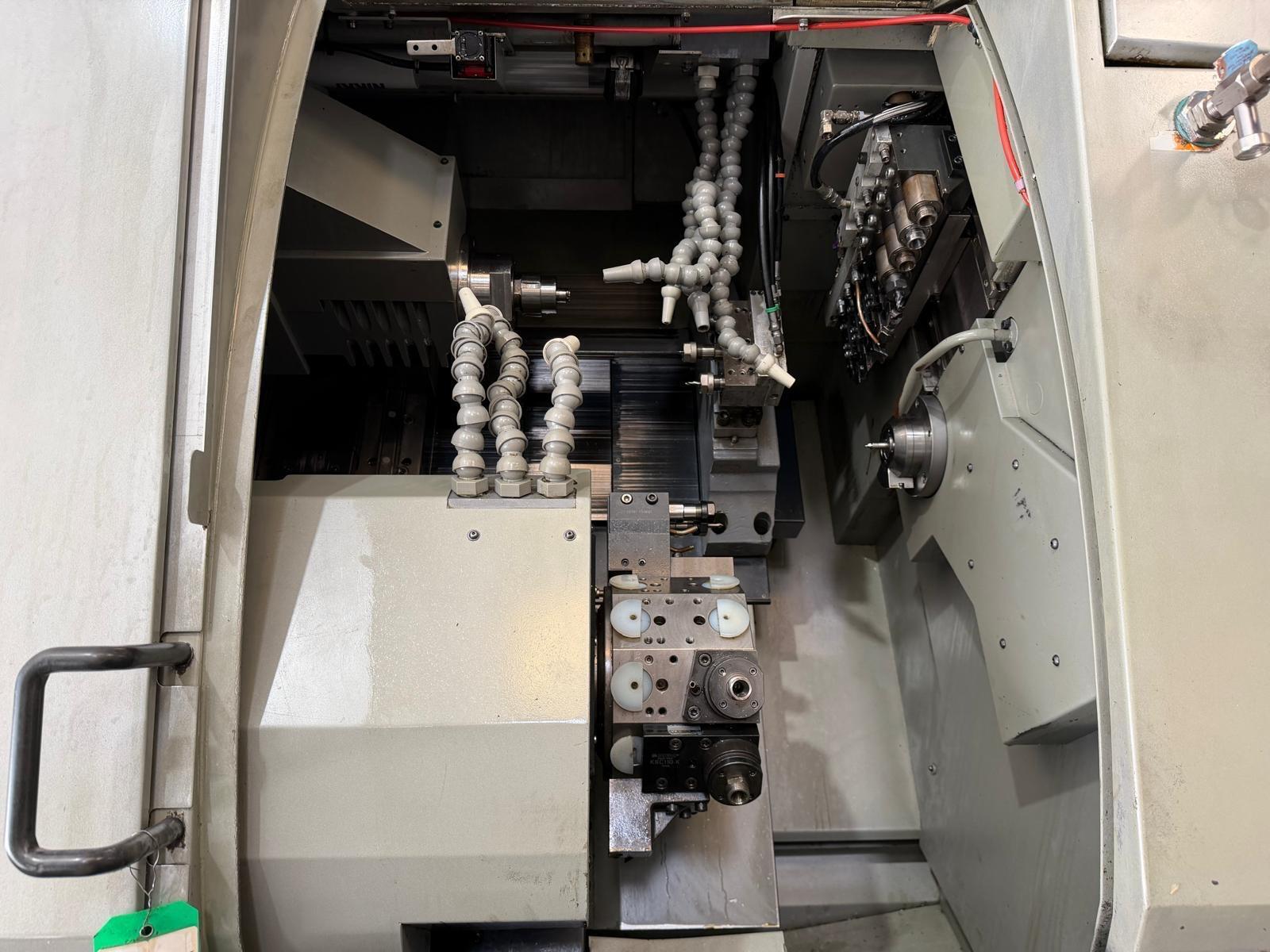

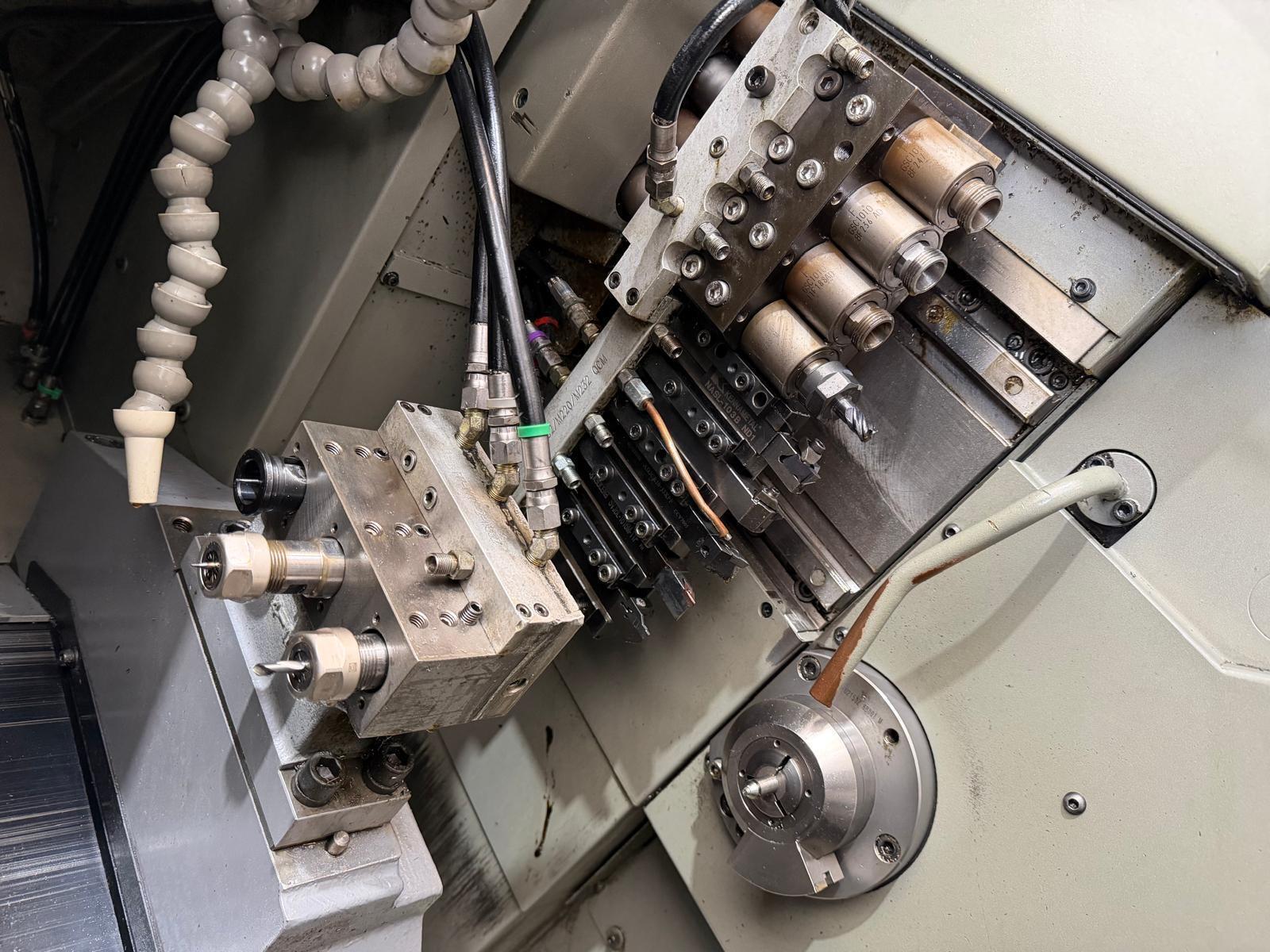

Turret & Gang Tooling:

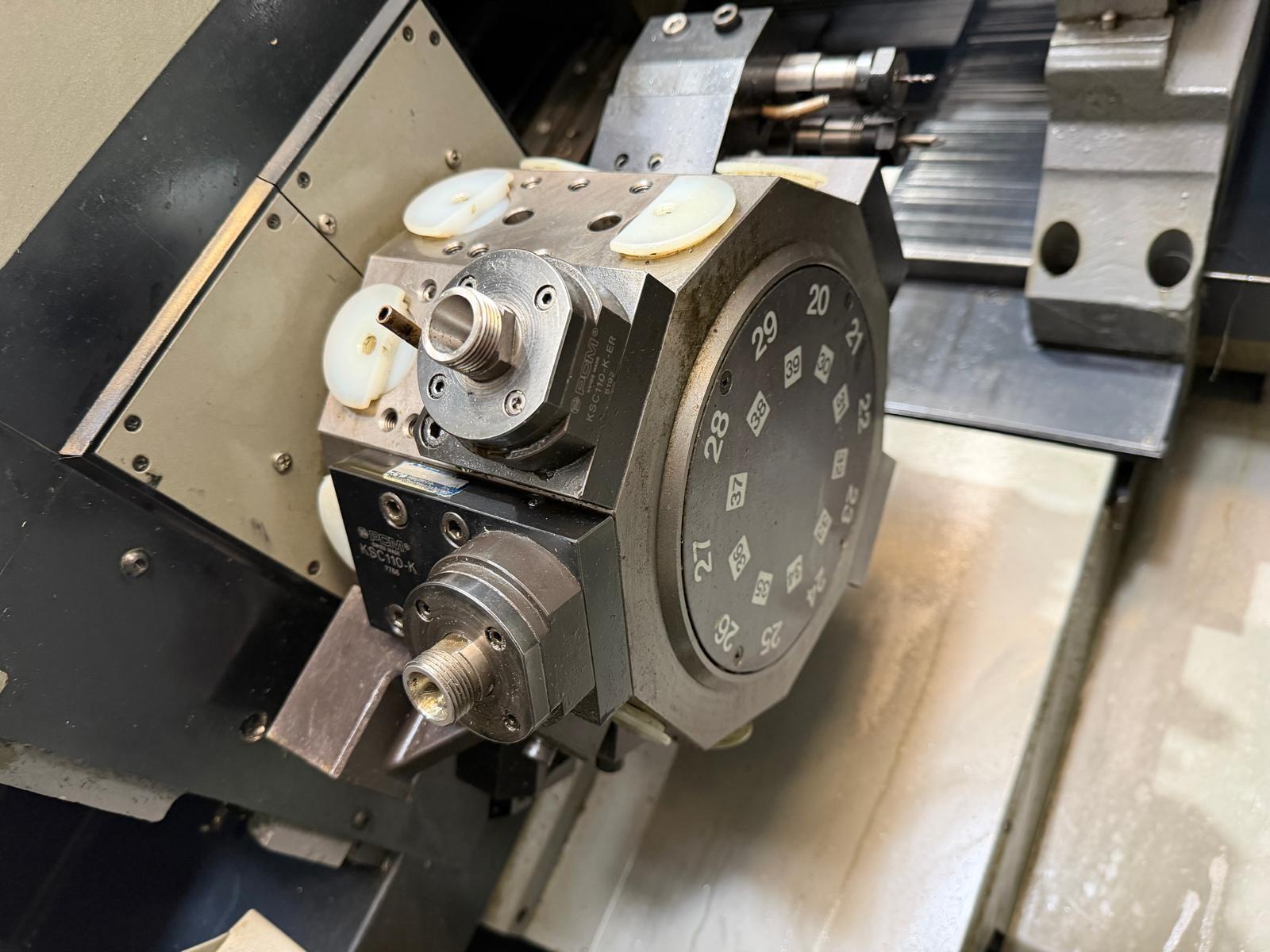

Turret Tools: 10 Station (20 Positions)
Gang Tools: 5 Turning + 4 Rotary
Back Working Tool Post: 3 (+ Rear Facing Tools On Turret)
Rotary Tool Speed: 200 - 5000 RPM
Rotary Tool Motor: 2 HP
General:
Power Source: AC 220v / 3-Phase /60 Hz
Overall Dimensions: 110" X 50" X 72" High without Bar Feeder
Weight: 6,830 lbs. Approx.
