Description

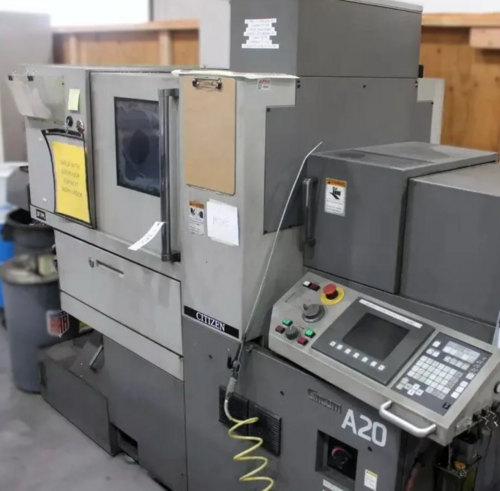

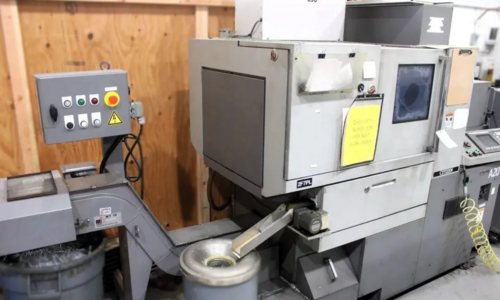

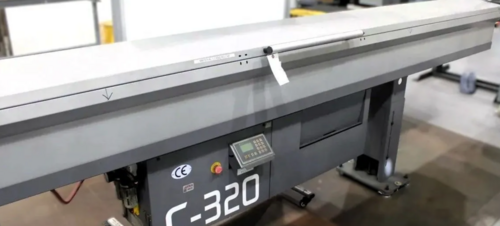

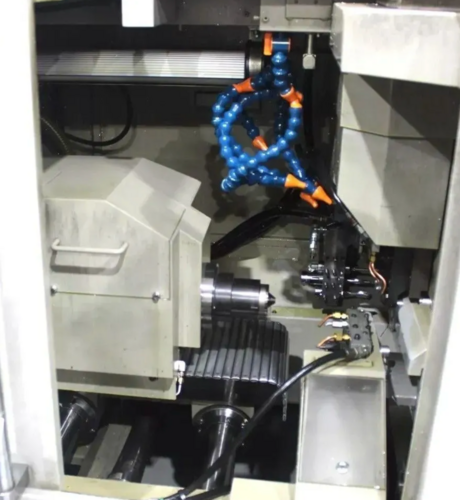

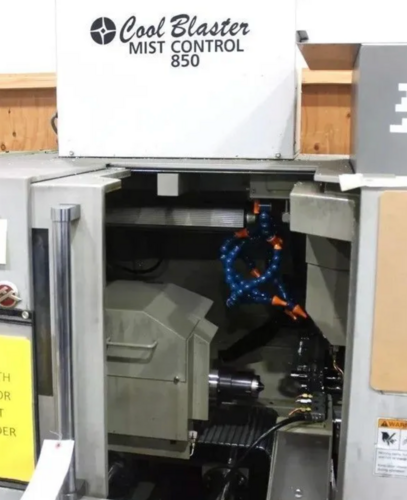

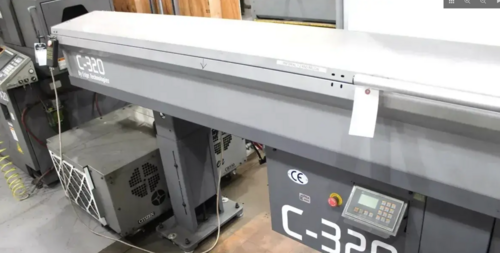

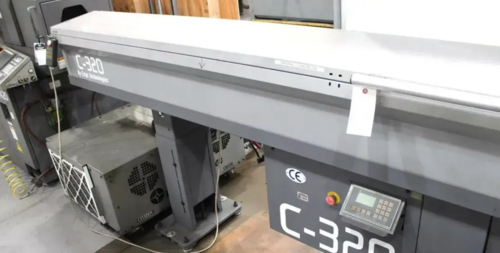

Used Swiss Type Automatic Screw Machine features 20 mm spindle hole, 8,000 RPM, Fanuc CNC Controls, live tools, sub-spindle, C-axis, and more. Equipped with a high-pressure coolant system, chip conveyor, and magazine bar feeder.
Max. Machining Diam. 20mm
Max. Machining Length 165mm/1 chucking
Main Spindle speeds 100-8000 RPM
Main Spindle Indexing Full C-axis (.001 Deg)
Back Spindle Speeds 100-8,000 RPM
Sub-Spindle Indexing Full C-Axis(.001 Deg)
Rotary Tool Speeds 6,000 Max. RPM
Back Spindle Max. Chucking Diam. 20mm
Turning Tools 5 Static on Main Slide
Rotary Live Tools 4 Live on Main Slide
Front Endworking Tools 4 Static
Back Endworking Tools 4 Static
Cutting Tool Shank/Sleeve Size 1/2" Square Shank
1" Diam. Sleeves
Rapid Traverse (X/Y/Z) 32mm/min X2, Y1,Z1
Z2 & 18 m/min on X1
Main Spindle Drive 5 HP/3 HP
Back Spindle Drive 2 HP
Rotary Tool Drive 1 HP
Max. Machining Diam. 20mm
Max. Machining Length 165mm/1 chucking
Main Spindle speeds 100-8000 RPM
Main Spindle Indexing Full C-axis (.001 Deg)
Back Spindle Speeds 100-8,000 RPM
Sub-Spindle Indexing Full C-Axis(.001 Deg)
Rotary Tool Speeds 6,000 Max. RPM
Back Spindle Max. Chucking Diam. 20mm
Turning Tools 5 Static on Main Slide
Rotary Live Tools 4 Live on Main Slide
Front Endworking Tools 4 Static
Back Endworking Tools 4 Static
Cutting Tool Shank/Sleeve Size 1/2" Square Shank
1" Diam. Sleeves
Rapid Traverse (X/Y/Z) 32mm/min X2, Y1,Z1
Z2 & 18 m/min on X1
Main Spindle Drive 5 HP/3 HP
Back Spindle Drive 2 HP
Rotary Tool Drive 1 HP
