Cincinnati #OBS110, hydraulic gap frame press, 10" stroke, 6.25" Shut Height, 25 HP

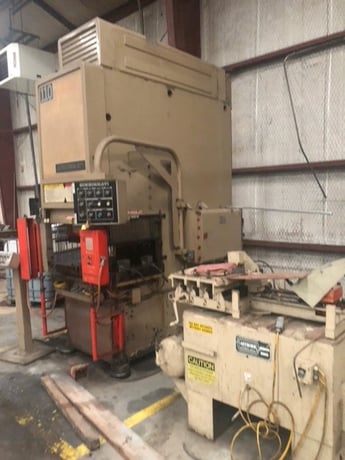

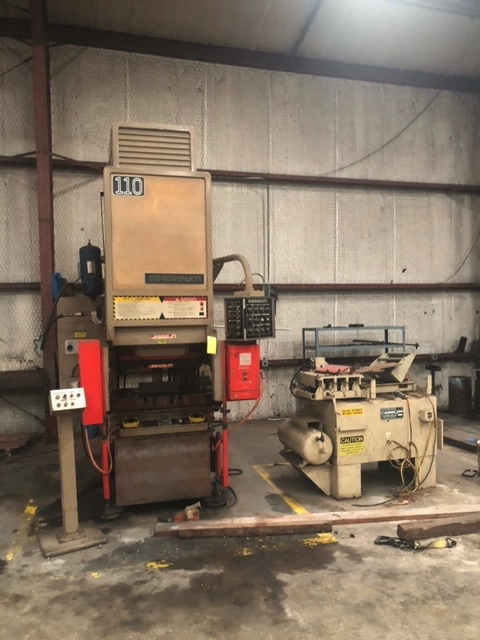

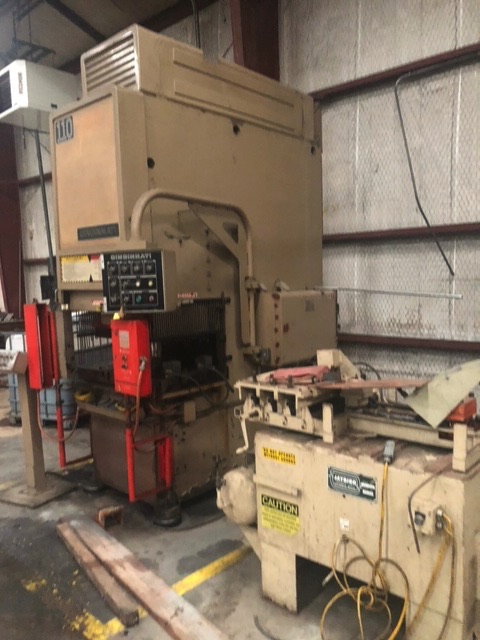

Pre Owned Cincinnati Model OBS110 Hydraulic Gap Frame Press

GENERAL SPECIFICATIONS
Capacity 42-75 Tons
Bed Area 42” LR X 27”
Slide Area 24” LR X 18”
Stroke 10”
Open Height 16.25”
Shut Height 6.25”
Opening Through Back 25”
Speed
PRESS
High 588 Inches Per Minute
Medium 149 Inches Per Minute
Low 60 Inches Per Minute
RETURN
High 608 Inches Per Minute
Low 350 Inches Per Minute
Main Motor Horsepower 25 HP 208/220/440/3/60

EQUIPPED WITH
Programmable
Forming Speeds
Speed Change
Tonnage
Stroke Selection
Stroke
Top Stop
Palm Button Stations
Auto Knockout
Inch / Single / Continuous
Batch Counter
BIJUR PRESSURIZED RE-CIRCULATING LUBRICATION SYSTEM

Approximate Overall Dimensions 106" L x 67" W x 135"H
(Can be placed horizontally for Shipping Purposes)
Approximate Overall Weight 19,024 LBS
